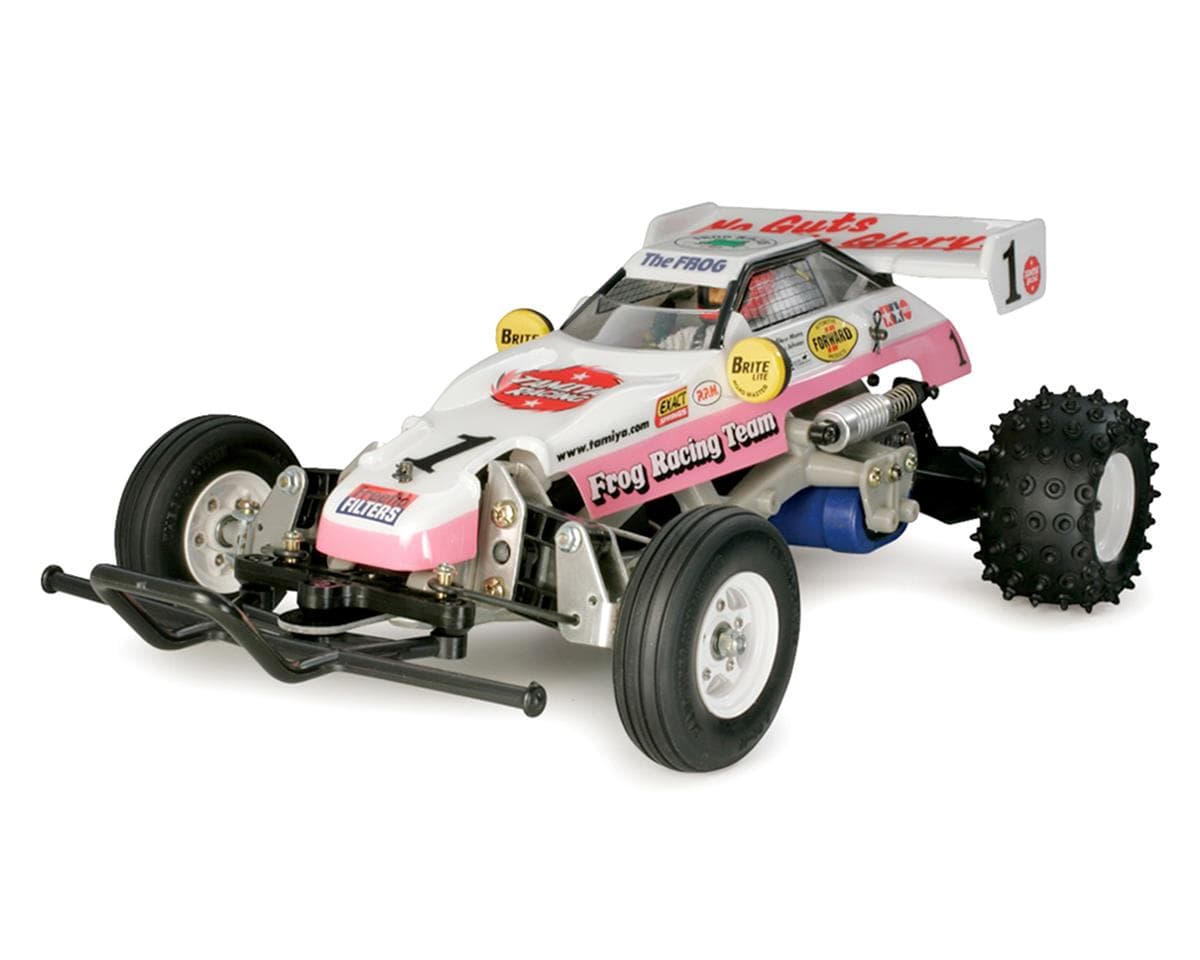

Tamiya Frog 1/10 Off-Road 2WD Buggy Kit
About this part
Tamiya The Frog - An RC Legend
First introduced in 1983, the 2WD racing buggy Frog made a huge splash with its eye-catching design and high performance running. The Frog now makes a comeback, updated for a new age, but with its basic structure essentially unchanged. Preserving its characteristic space frame, the oil dampers for trailing-arm type rear suspension have been updated to diaphragm type. Drive the buggy that won the 1984 German Nationals - The Frog.
About The Frog
Clear Body
The detailed clear body depicts the buggy bodies found in the 1980s. Made from durable polycarbonate, this body shell is very low profile and neatly covers the top of the chassis. The wing, also polycarbonate, helps aid in downforce and rear traction. The driver figure and body are separate pieces allowing for a more detailed finish. Pod lights and decals finish the body off with a realistic appearance.
Performance Chassis

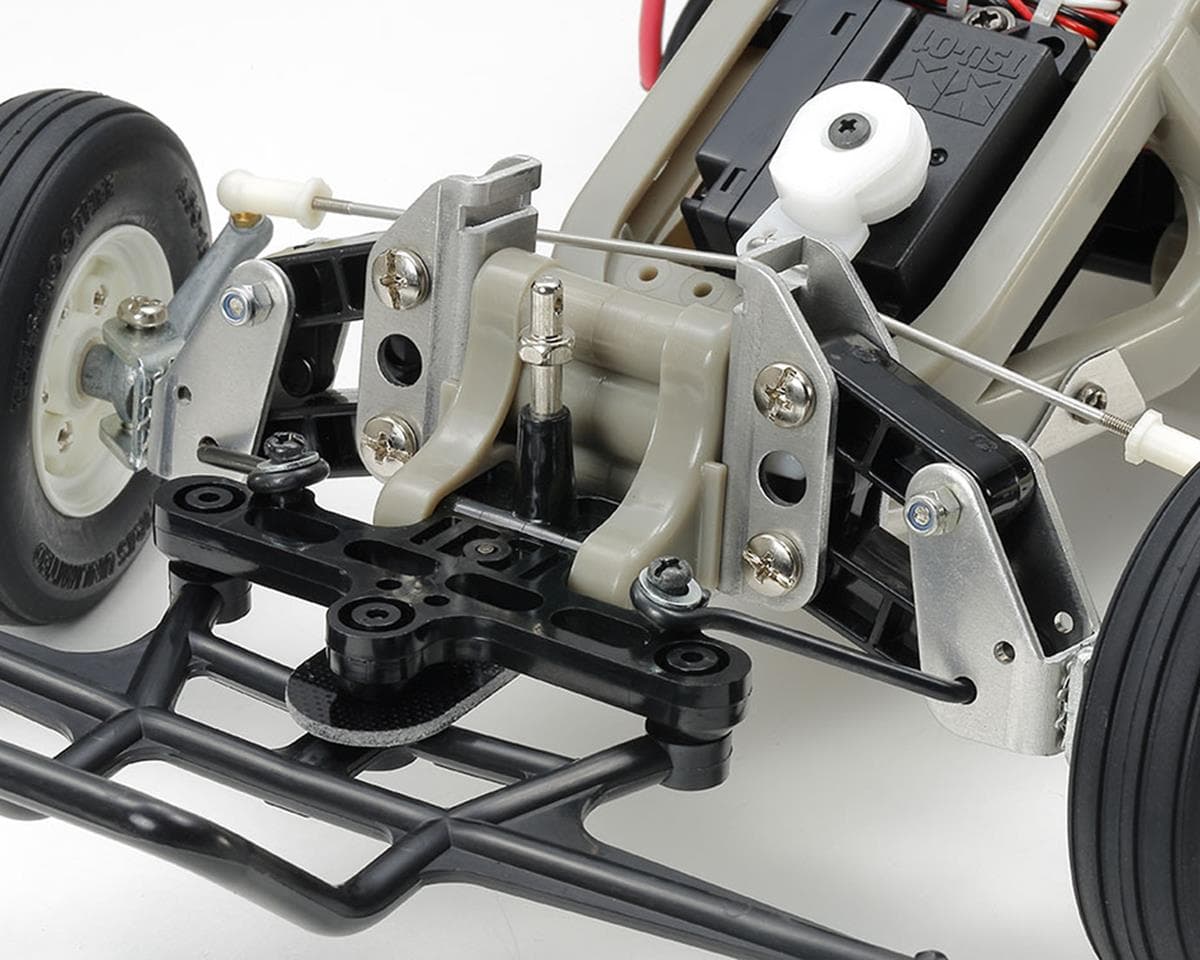

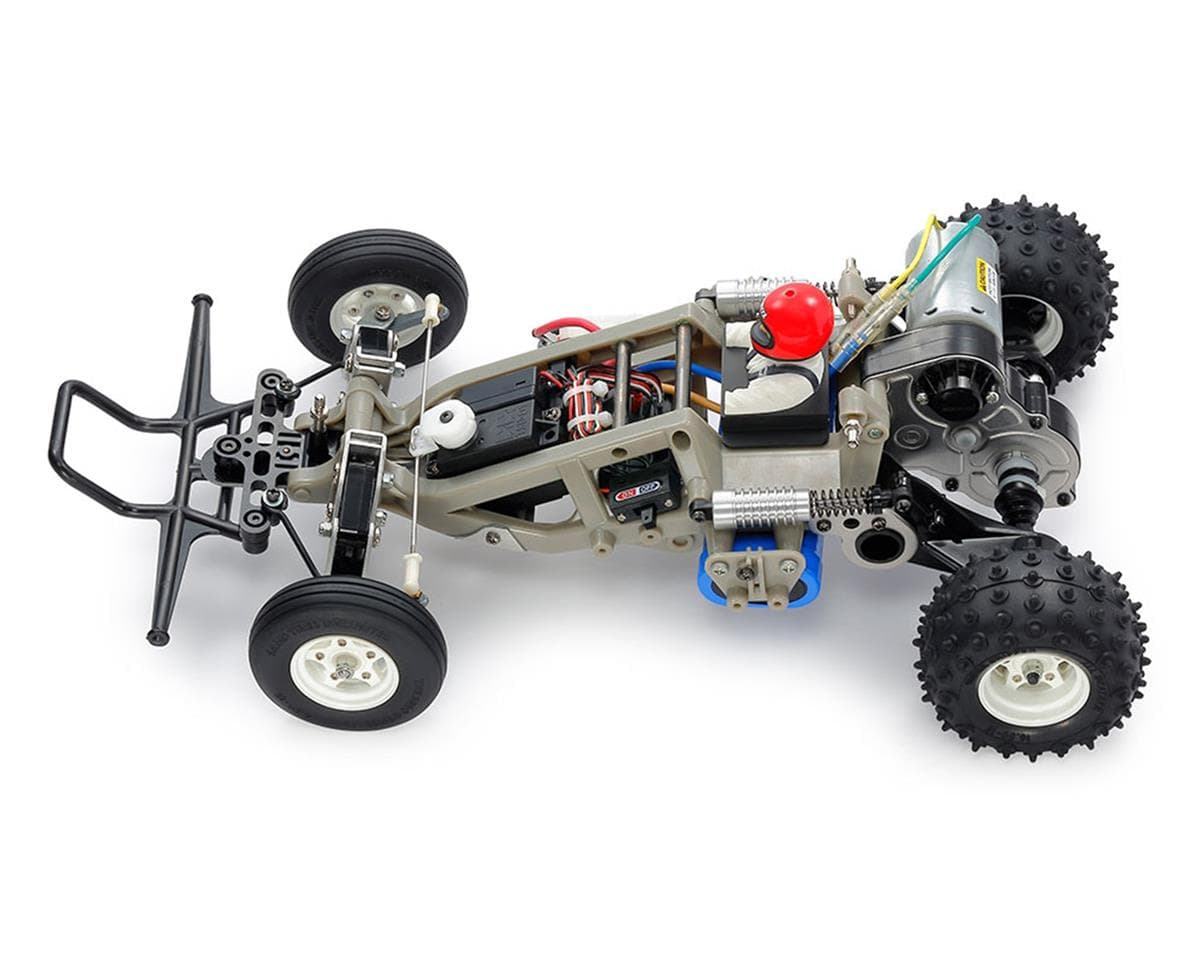

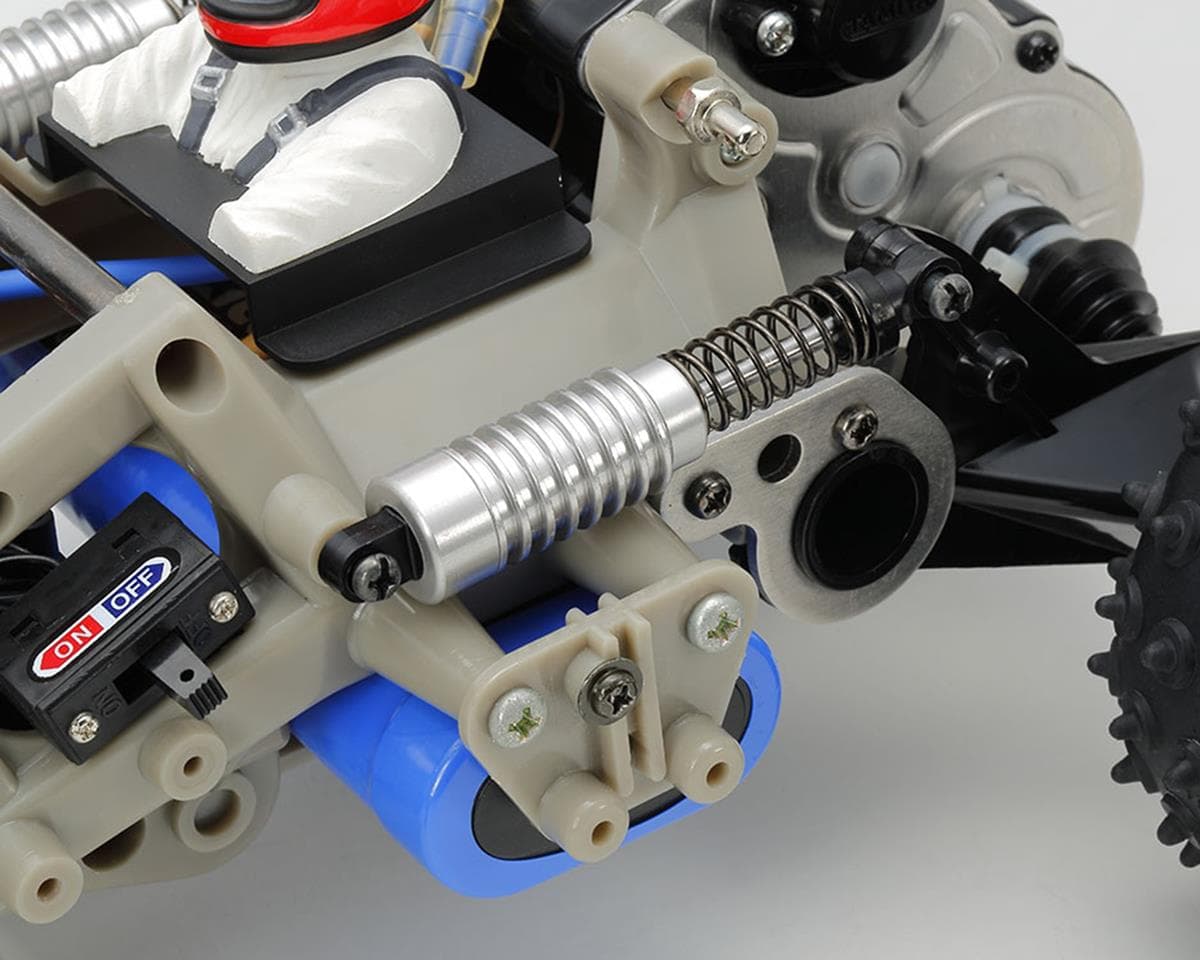

The durable ABS frame and nylon suspension of The Frog, are lightweight and rugged for off-road performance. The battery is held in an ultra-low position to aid in stability over rough terrain and jumps. Advanced 4-wheel independent suspension composed of front double wishbone type featuring in-board spring and durable steel radius arm. The rear trailing arm type features horizontally mounted aluminum cylinder oil dampers for effective shock absorption. A sealed differential gearbox ensures high speed cornering, while full gearbox ball bearings and 3-step gear ratio secures maximum transmission efficiency.
Included Electronics
This chassis Kit includes both a torque tuned brushed motor and Hobbywing 1060 ESC. these components combine to deliver a performance enhanced on-road racing experience. The compact ESC boasts extreme performance, complemented by a built-in capacitor module for efficient power delivery. With exceptional current endurance capability, easily configurable parameters using ESC jumpers, and automatic throttle range calibration for user-friendly setup, the Quicrun 1060 stands out. Its impressive built-in BEC output capacity, built-in capacitor, and IP-67 waterproof rating further elevate its reliability, making it a top-tier choice for enthusiasts seeking optimal performance in their RC adventures. The RS-540 Torque-Tuned motor offers higher top speeds and increased acceleration.
Features:
- Includes re-designed side aluminum dampers inspired by TRF shock design.
- Includes re-designed dog-bone style drive train with original rubber boots.
- Reintroducing the original 2WD buggy masterpiece
- ABS resin space frame with horizontally mounted oil dampers
- Powered by a Type 540 motor
- Includes a Hobbywing THW-1060 Brushed ESC
- Kit includes straight ribbed racing front tires and high-grip rear spiked tires.
- Includes realistic 3-piece wheels
Connector Information
When upgrading to a high current LiPo battery, it is recommended to also upgrade your battery connector. We recommend using an XT60 or T-Style connector for this application. Please check out the video below to learn how to solder on a T-Style connector.
Includes:
- (1) Tamiya The Frog 1/10 2WD Buggy
- Manual
Needed To Complete:
- 2 channel radio system
- Steering servo
- Polycarbonate paint for body
- 7.2 - 7.4 volt battery
- Compatible Charger
Recommended to Complete:
Specifications:
| Scale | 1/10 |
|---|---|
| Length | 16.14in (410mm) |
| Width | 9.44in (240mm) |
| Height | 5.70in (145mm) |
| Wheelbase | 9.76in (248mm) |
| Drive | 2WD |
| Input Voltage | 7.2-7.4V |
| Assembly Level | Kit* |
*NOTE: RC Kits are an unassembled Remote Control Model that requires assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
Manuals:
User Manual
Paint The Frog:
Reviews5.0 · 3 reviews
This was a fun build and a great little throwback car to the 80's.
The Tamiya Frog is an RC legend. Prior to the RC10 sweeping the nation in the mid 80's, the Frog was the next step up from the Grasshopper and Hornet when the industry was still figuring things out. And today The Frog is still an interesting buggy, very unique, somehow performs better than it should. I just finished my kit yesterday and the build was pretty straight forward. Just a warning that screws and parts are scattered across several bags so take you time to match everything up and certainly buy a ball bearing kit as well-only the transmission bearings are included. I'm pleased with how this turned out. Unlike my original Frog that destroyed the hexagonal outdrives back in the 80;s. this new version is setup with dog bones. Very nice. Comes with the 540 motor and 3 gearing options during the build (Torque, High speed, and standard) along the with the proper 32p pinion gears to match. A Tamiya Torque or Sport tuned motor is a good match for this buggy and keeps the original look intact. Add a standard servo and radio and you are set for hours of fun which was the entire attraction to these buggies in the first place. Great job Tamiya. *Will need PS11 Pink, PS1 White, Black, and yellow paint to make a box art replica
Amazing how they had this RC buggy brought back a lot of child hood memories. This was my very first RC toy it’s what got me into everything that’s RC. Ordered it and arrived exactly when they said
All three reviewers are verified owners who rate the Tamiya Frog 1/10 Off-Road 2WD Buggy Kit 5 out of 5, and all reference the car's 1980s heritage and nostalgic appeal. Reviewers describe the build as straightforward and enjoyable. One reviewer warns that parts and screws are spread across several bags and advises buying a separate ball bearing kit, as only the transmission bearings are included. One reviewer notes the original hexagonal outdrives on an earlier Frog broke, and reports that the new kit performs well. No reviewer reports problems with the kit itself beyond the bearing and bag-organisation notes. Reviews are few, so the picture is limited.
- + Straightforward build
- + Nostalgic 1980s design
- + Performs better than expected
- + Arrived on schedule
- − Parts spread across several bags
- − Ball bearings not included
- − Original outdrives prone to breaking
