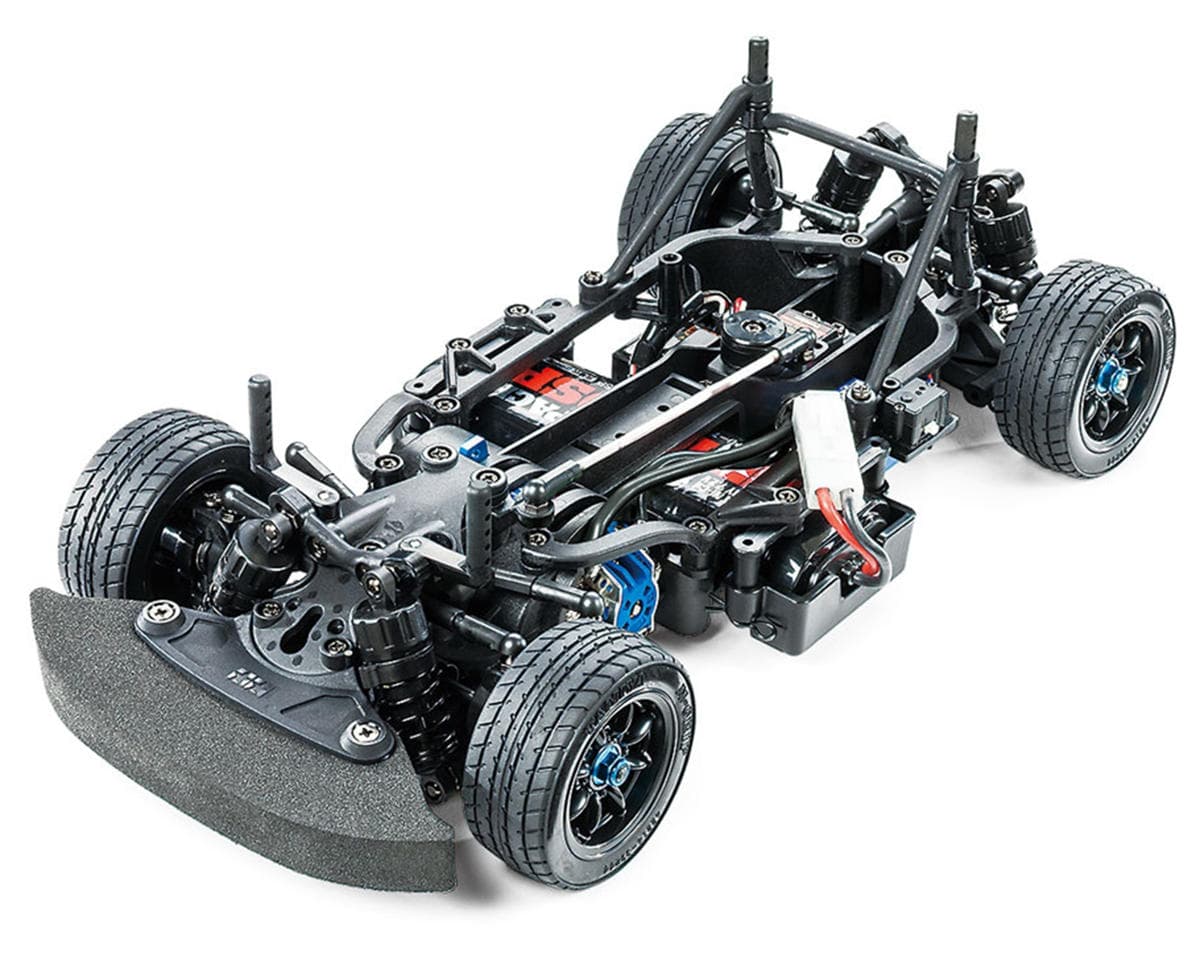

Tamiya M-07 Concept 1/10 FWD Electric On-Road Chassis Kit
About this part
Precision M-Chassis Kit Designed for Confident Control
The Tamiya M-07 Concept 1/10 FWD Electric On-Road Chassis Kit is a high-performance front-wheel drive platform built around a rigid monocoque frame for responsive handling and efficient maintenance. Its integrated upper frame and detachable lower section create a strong, lightweight structure that supports precise suspension geometry and smooth drivetrain operation. The design emphasizes accessibility, allowing quick adjustments to the differential and suspension settings. With compatibility across multiple M-chassis body sizes and electronics, it offers a versatile foundation for both club racing and professional-level tuning.
About the M-07 Concept Chassis Kit
Monocoque Chassis Design
The M-07 Concept centers around a monocoque chassis with an integrated upper frame that delivers excellent rigidity while keeping weight balanced and predictable. The detachable lower section allows fast access to internal components, making routine maintenance and tuning simple and efficient. This structure helps the chassis communicate road feel clearly, giving drivers better feedback when evaluating setup changes. Its layout also supports clean wiring and efficient component placement for a tidy, race-ready build.

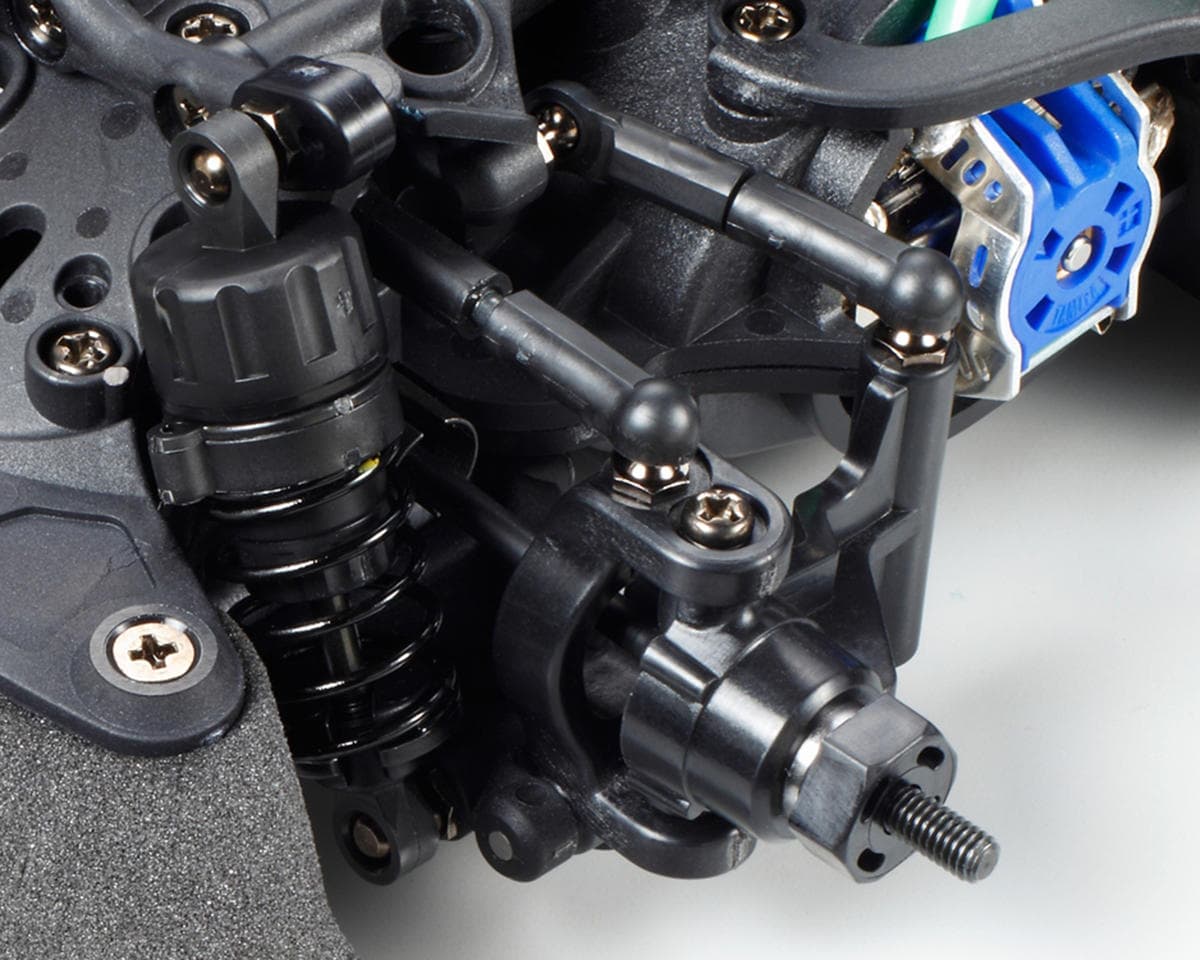

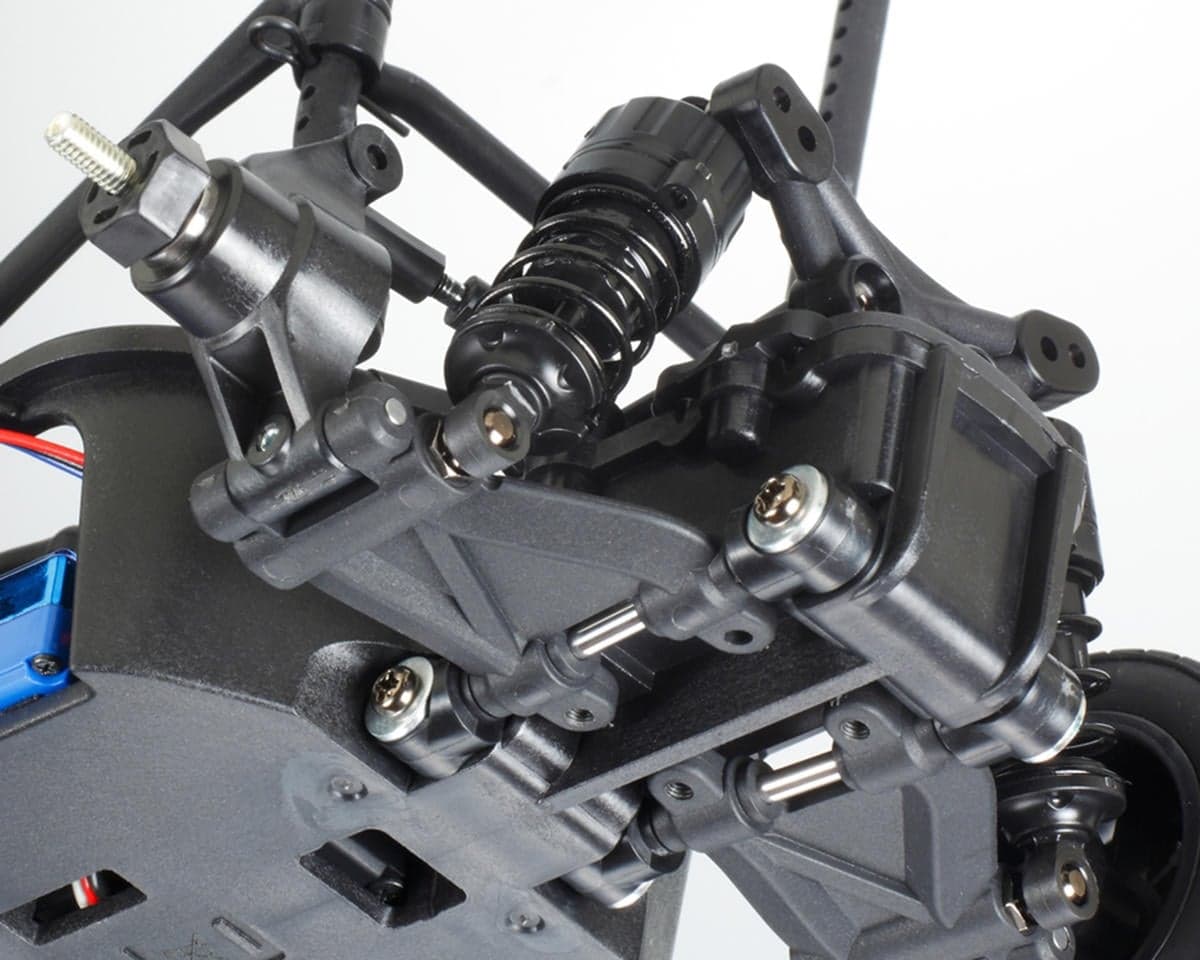

Adjustable Suspension & Steering Geometry
Long suspension arms and dedicated steering linkage components create an ideal leverage ratio for stable, predictable cornering. The four-wheel double wishbone layout is paired with CVA oil shocks, giving the car smooth damping and consistent grip across a variety of surfaces. Rear toe adjustments can be made quickly using spacers, allowing racers to fine-tune stability without complex disassembly. The suspension design also provides a wide range of camber and alignment options for dialing in performance.

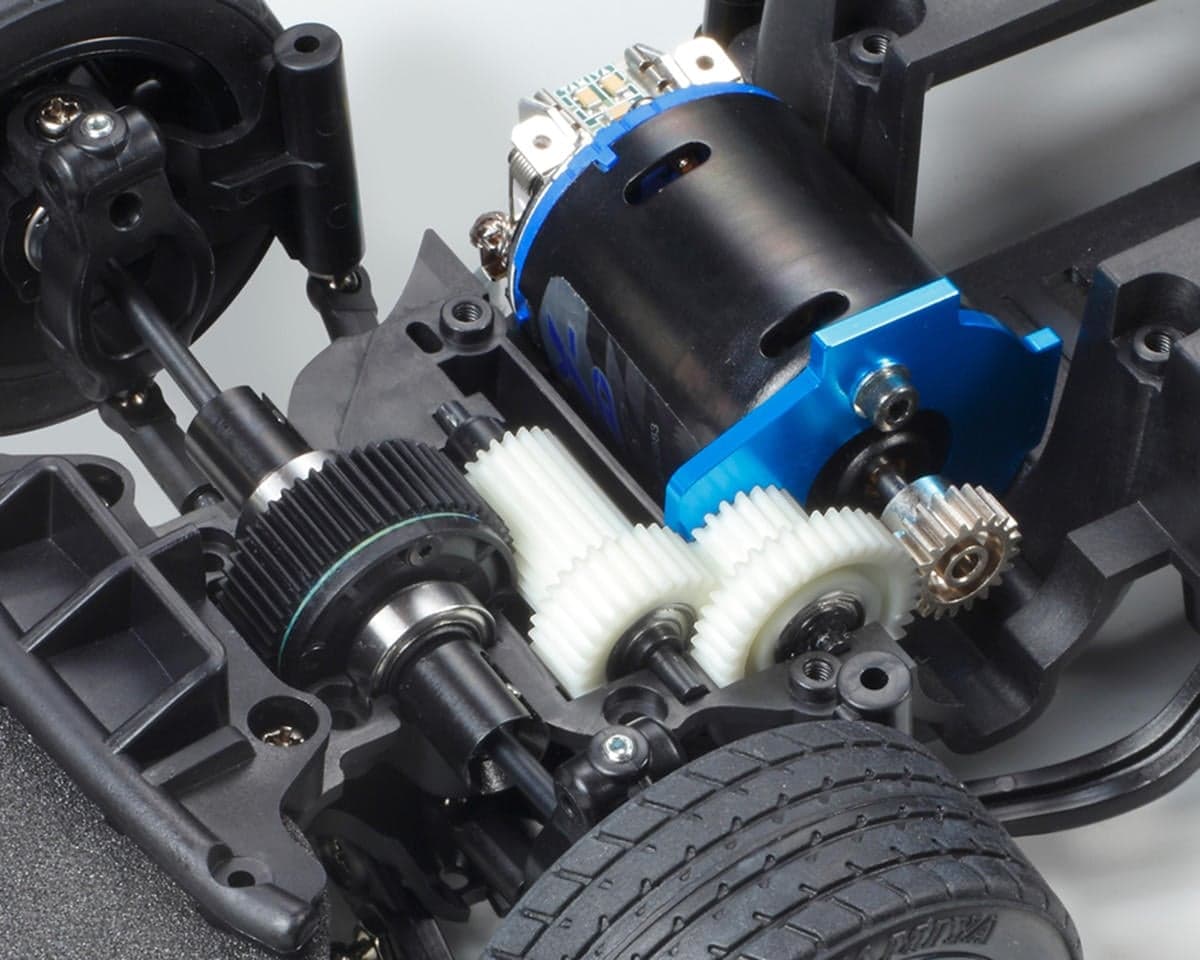

Smooth Drivetrain & Flexible Configuration
A full set of ball bearings, universal drive shafts, and an oil-filled gear differential create a silky-smooth drivetrain that maximizes efficiency and durability. The TA06-style differential offers consistent traction and can be accessed easily from the underside for quick servicing. The chassis supports both 225-millimeter and 239-millimeter wheelbases, making it compatible with a wide range of Tamiya M-chassis bodies. It also accommodates standard LiPo packs and low-profile servos for modern electronics setups.
Features:
- Rigid monocoque chassis provides excellent structural stability
- Detachable lower section allows fast access to internal components
- Long suspension arms provide ideal leverage for balanced handling
- CVA oil shocks provide consistent damping performance
- Double wishbone suspension improves grip and cornering control
- Adjustable rear toe allows quick stability tuning
- Full ball bearings reduce drivetrain friction
- Oil-filled gear differential provides smooth power delivery
- Universal drive shafts improve efficiency and durability
- Dual wheelbase options increase body compatibility
Includes:
- (1) M-07 Concept 1/10 FWD Electric On-Road Chassis Kit
- Product Manual
Needed To Complete:
- (1) 2-Channel Transmitter & Receiver System
- (1) Steering Servo
- (1) 1/10 ESC (Electronic Speed Control)
- (1) 6-Cell NiMH or 2S LiPo Battery (7.2-7.4V)
- (1) Compatible Battery Charger
- (1) 225mm or 239mm Wheelbase M-Chassis Body
- (1) 540-Size Motor
- (4) Tires
- Paint for Body
- Tools for Assembly
Specifications:
| Scale | 1:10 |
|---|---|
| Drive | 2WD |
| Power Source | 2S LiPo |
| Length | 13.07in (332mm) |
| Wheelbase | 8.86in or 9.41in (225mm or 239mm) |
| Width | 6.46in (164mm) |
| Height | - |
| Weight | Varies |
| Assembly Level | Kit* |
*Tech Note: RC Kits are an unassembled Remote Control Model that require assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
