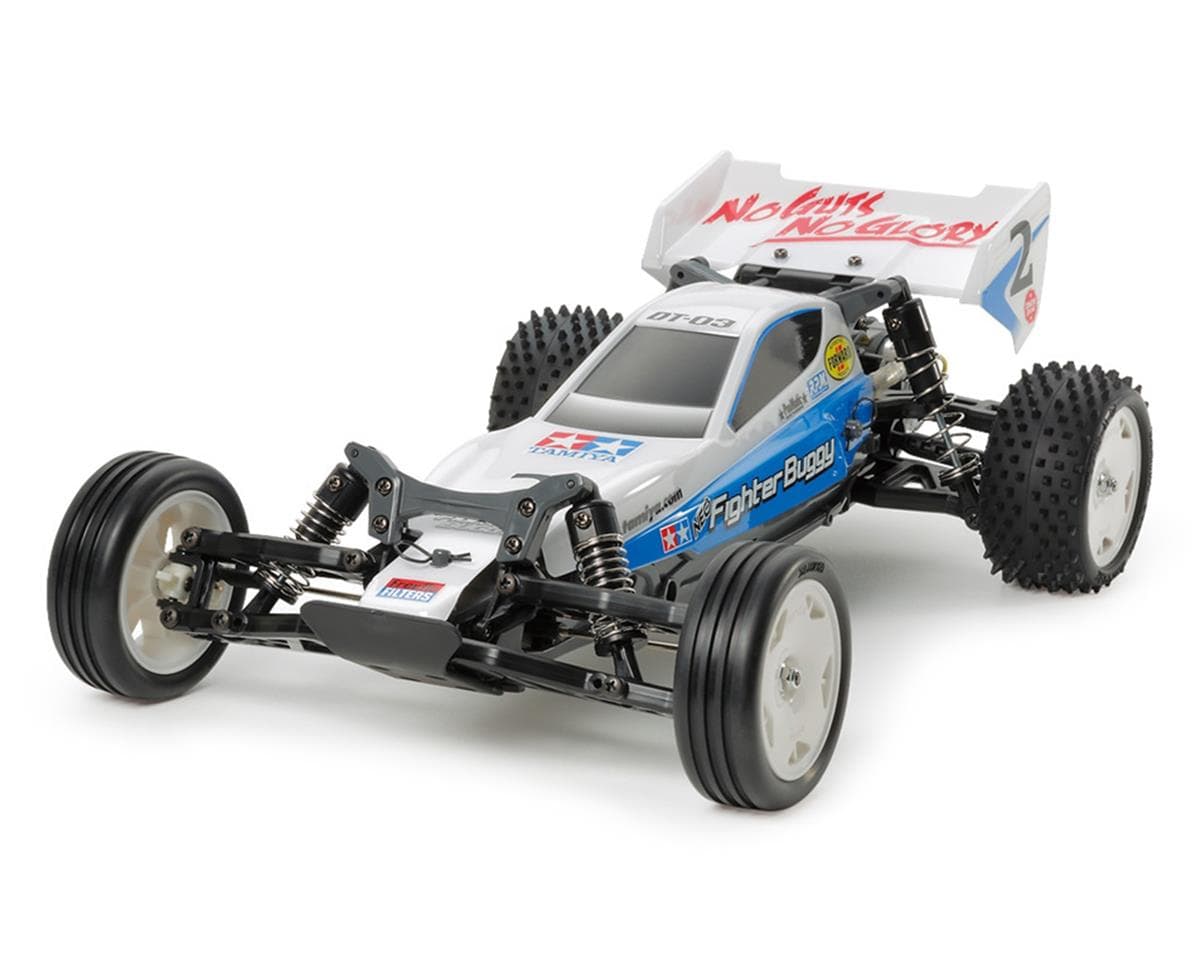

Tamiya Neo Fighter DT-03 1/10 2WD Off Road Buggy Kit
About this part
Tamiya DT-03: Extreme Performance Buggy
The Tamiya Neo Fighter DT-03 1/10 2WD Off Road Buggy Kit was inspired by the classic "The Frog" from the 80s. At home both on and off-road, this 2WD buggy features a lightweight yet tough monocoque frame that protects vital equipment such as the servo and battery from damage, as well as offering great stability. With friction shocks and 4-wheel double wishbone suspension, the Neo Fighter Buggy performs well even on rough off-road surfaces. With this balance of features and performance, this is a great option for drivers and collectors alike.
About The Neo Fighter
Clear Body
The Neo Fighter comes with a clear buggy style body that features smooth, sharp lines. The rear wing is made from a durable molded material and allows for great downforce leading to more rear traction. Being clear, this body is ready to receive your custom paint scheme!
Performance DT-03 Chassis

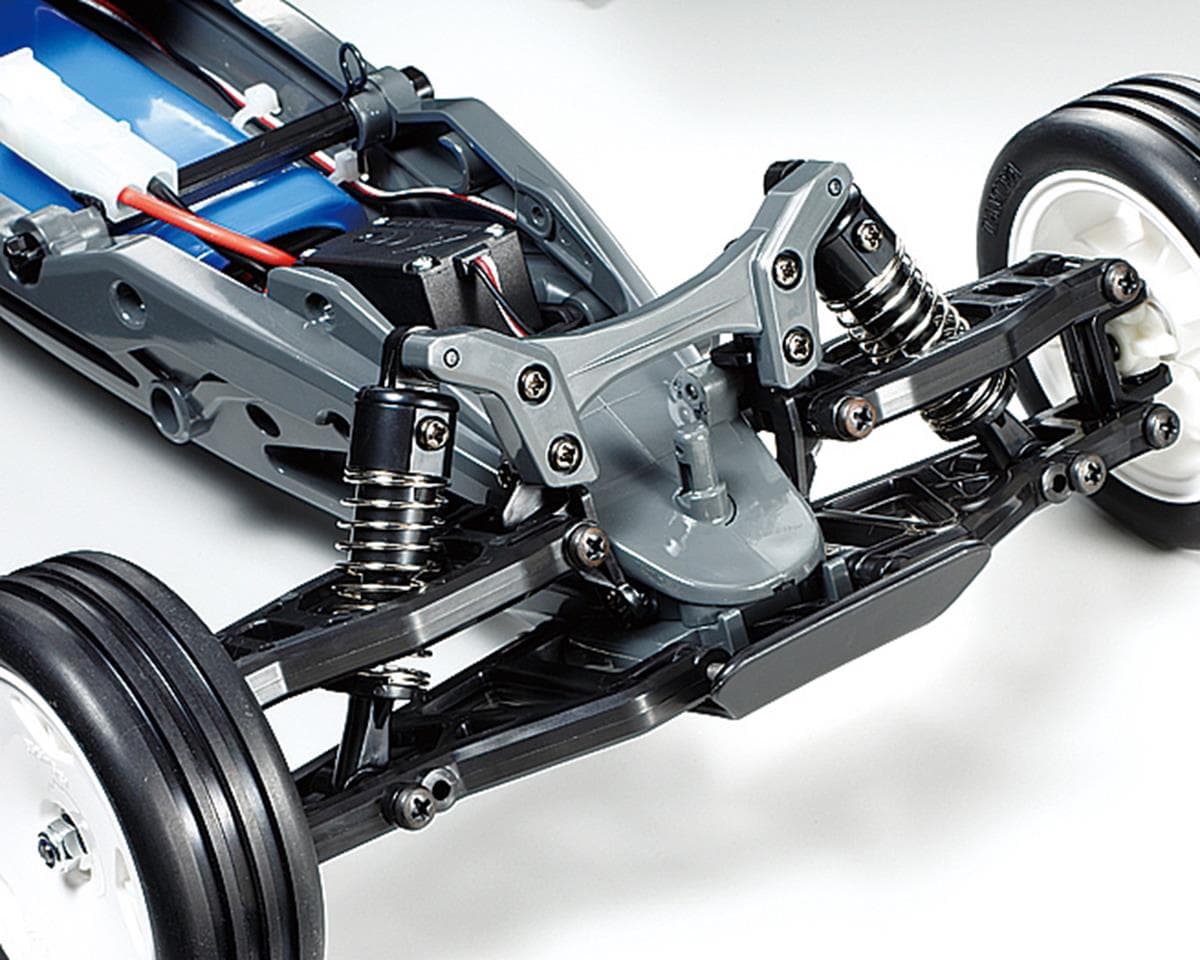

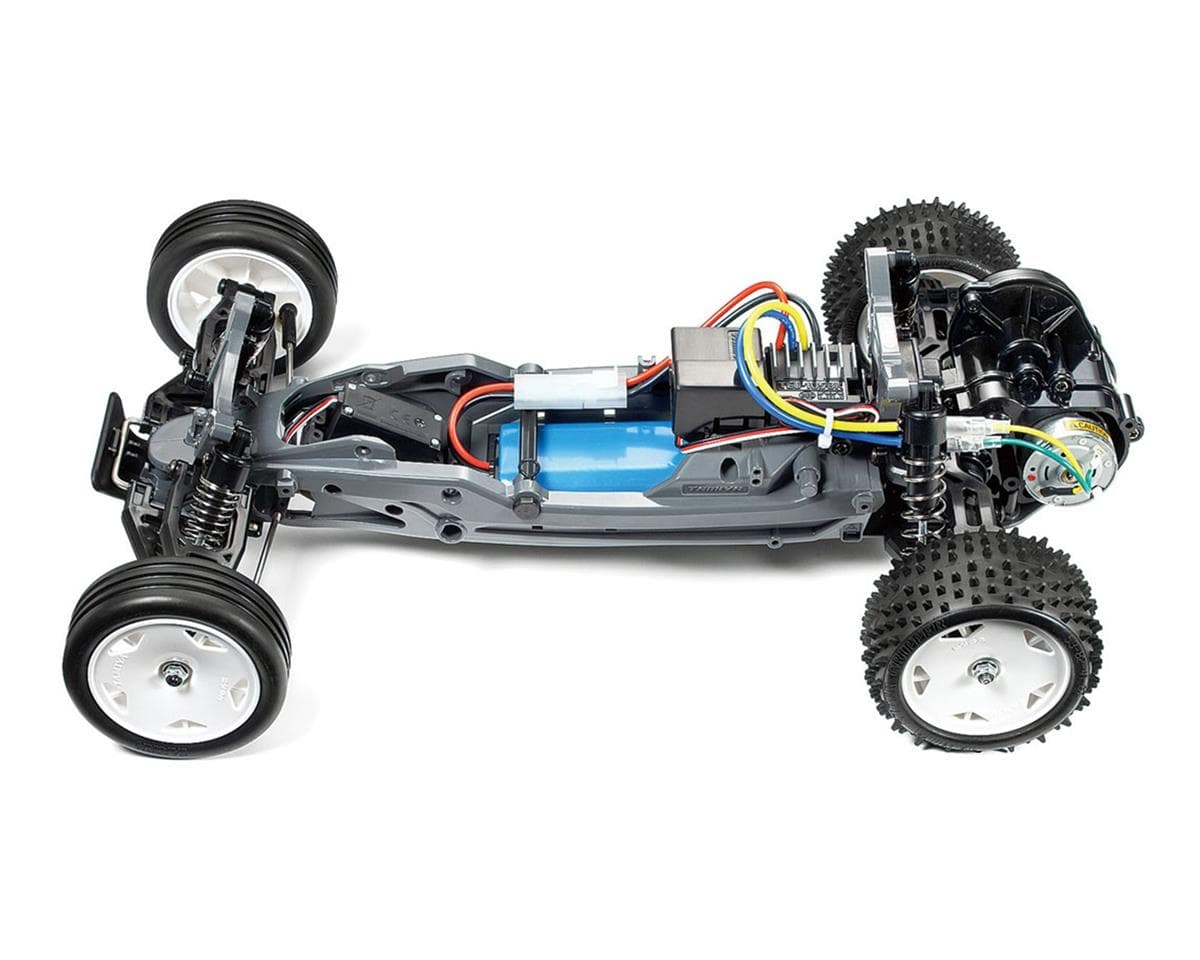

The slim form of the DT-03 chassis stems from the lightweight yet durable monocoque frame, which features a longitudinally-positioned battery and radio equipment along the centerline for excellent balance. The combination of a long 287mm wheelbase and 4-wheel double wishbone suspension married to long arms, allows the model to handle with stability on poor surfaces. Ribbed front and square spike rear tires provide ample grip, and the rear-positioned gearbox is sealed to protect from dust and dirt, with the built-in differential gear offering smooth cornering.
Included Electronics
This chassis Kit includes both a torque tuned brushed motor and Hobbywing 1060 ESC. these components combine to deliver a performance enhanced on-road racing experience. The compact ESC boasts extreme performance, complemented by a built-in capacitor module for efficient power delivery. With exceptional current endurance capability, easily configurable parameters using ESC jumpers, and automatic throttle range calibration for user-friendly setup, the Quicrun 1060 stands out. Its impressive built-in BEC output capacity, built-in capacitor, and IP-67 waterproof rating further elevate its reliability, making it a top-tier choice for enthusiasts seeking optimal performance in their RC adventures. The RS-540 Torque-Tuned motor offers higher top speeds and increased acceleration.
Features:
- Stylish body molded in durable and lightweight polycarbonate
- Tough monocoque frame with indapendent suspension
- Large wheelbase for great performance off-road
- Front arms are at a 25-degree angle for great off-road driving
- High-performance oil filled shocks
- A torque-tuned 540 motor is included
- Sealed rear gearbox with internal gear differential unit, plus a dust cover for R/C equipment
- Hobbywing THW 1060 Brushed (2-3s) ESC with Tamiya connector included
- Fully independent double wishbone suspension
Connector Information
When upgrading to a high current LiPo battery, it is recommended to also upgrade your battery connector. We recommend using an XT60 or T-Style connector for this application. Please check out the video below to learn how to solder on a T-Style connector.
Includes:
- (1) Tamiya Neo Fighter Buggy Kit
- Manual
Needed To Complete:
- 2-channel radio
- Steering servo
- 7.2 - 7.4 volt battery w/Tamiya Connector
- Battery charger
- Polycarbonate Paint
Recommended to Complete:
Specifications:
| Scale | 1/10 |
|---|---|
| Length | 15.74in (400mm) |
| Width | 9.60in (244mm) |
| Height | 5.27in (134mm) |
| Wheelbase | 11.33in (288mm) |
| Drive | 2WD |
| Input Voltage | 7.2-7.4V |
| Assembly Level | Kit* |
*NOTE: RC Kits are an unassembled Remote Control Model that require assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
Manuals:
User Manual
Paint Your DT03:
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 3 reviews
I've had this for a bit more than a year now and it's my go-to car to just pull out for a rip. I've broken the chassis while it was very cold out which is to be expected for an ABS construction. But in the summer I can't break it. Jumps, flips, lending the car out to newbies, it takes it all. The car is a tank. I have a powerful brushless system in it and it takes the power like a champ. With enough traction it'll pull wheelies and understeer like a pig as well as rolling sideways, so it's better for low traction. Rear wheel drive means you can slide it around and it holds drifts very well. It holds onto asphalt quite well, and handles great on dirt. Rear springs are a bit soft so it's low to the ground, and I installed ball bearings aftermarket. I absolutely can't recommend ball bearings enough.
Using it for my brushed motor tests and got it to top out at 48mph (77kph) with an ARRMA MEGA 550 12T motor. Check me out on Instagram @emil_builds
If you like the DT03 platform this is a good one to add to your collection. Easy to assemble and handles well over jumps. I use a Sport Tuned in mine and it goes really well on my home track. Lots of hop-up parts are available if you want to make improvements-but it's still good right out of the box.
Reviewers consistently rate this 1/10 2WD buggy highly, with all three giving five stars. One owner reports a year of regular use including jumps, flips and use by newcomers, with the chassis holding up in warm weather but breaking once in cold conditions, which they note is expected for ABS construction. Owners describe good handling on dirt and asphalt, predictable rear-wheel-drive sliding and drifting, and capacity for powerful brushless systems. Another owner reports a top speed of 48 mph with a brushed motor setup. A third describes easy assembly, good jump handling, and wide availability of hop-up parts. One review mentions soft rear springs, though the owner did not present this as a major issue. Review count is small.
- + Durable for jumps and flips in warm weather
- + Handles well on dirt and asphalt
- + Easy to assemble
- + Good hop-up parts availability
- − Chassis broke in cold weather
- − Rear springs are soft
- − Understeers with heavy throttle
