Tamiya Subaru Brat 1/10 Off-Road 2WD Pick-Up Truck Kit
About this part
Tamiya Subaru Brat 1/10 Off-Road 2WD Pick-Up Truck Kit

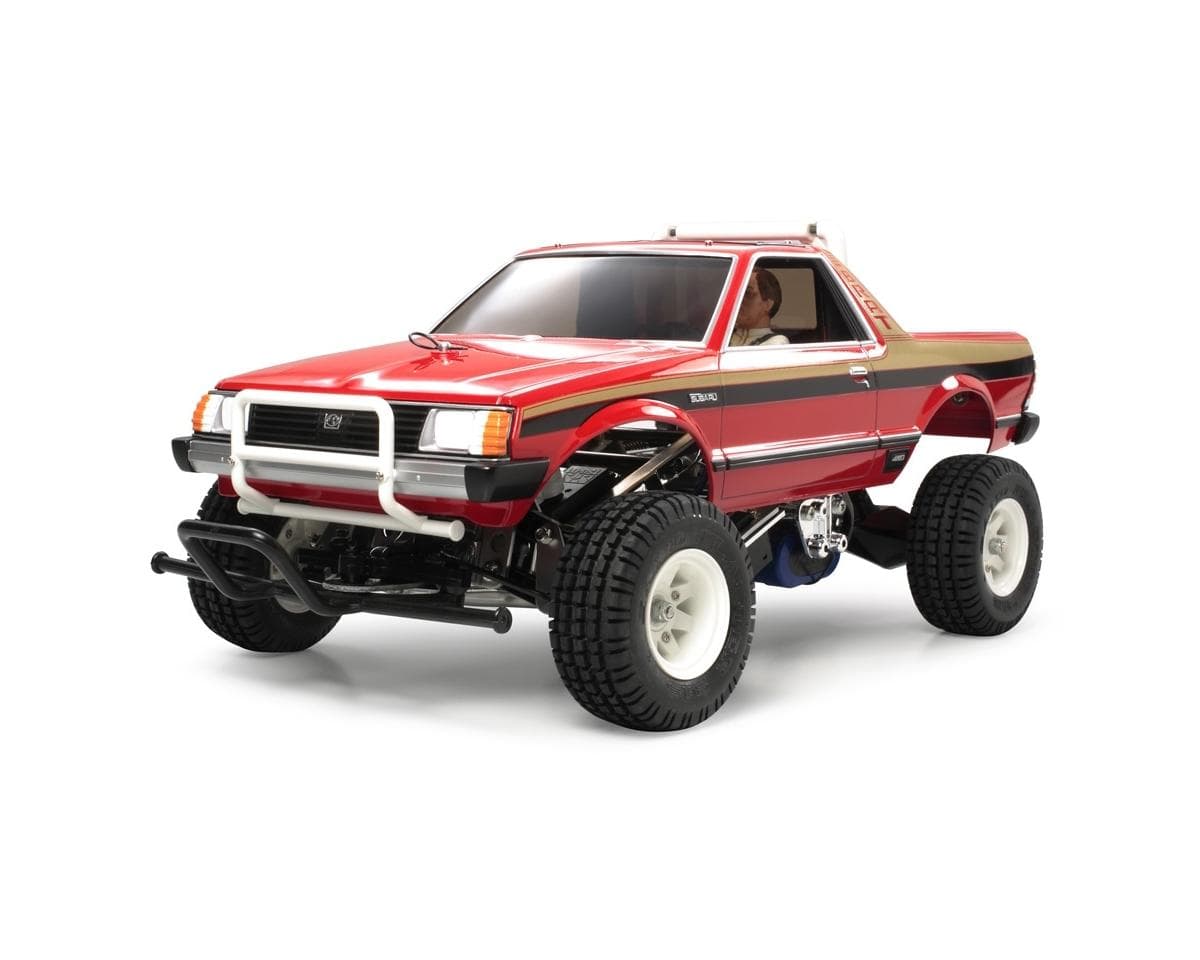

Tamiya Subaru Brat 1/10 Off-Road 2WD Pick-Up Truck Kit. The Subaru Brat was made solely for export, and achieved tremendous popularity in the U.S. market in the 1970s. Tamiya first produced an R/C version of this popular little truck back in 1983 and is now proud to present an updated, improved re-release of this classic R/C truck. Aside from the upgraded internal parts, this assembly kit comes with a driver figure for a nostalgic feel. In addition, both a super-detailed resin body for shelf display and a lightweight durable polycarbonate body for racing are included.
The unique space frame chassis features a 4-wheel independent suspension system with front double wishbones and rear trailing arms. The rear suspension in particular has been updated with the diaphragm type oil dampers and coil springs. A 540-type motor drives the differential-equipped gearbox, and the drive shaft features a dog bone joint for optimum transmission efficiency. Block pattern tires mounted on the realistic 8-spoke wheels round out this stylish package.
NOTE: Finished kit shown in the photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.
Features:
- An Updated version of the Original 1983 Legendary Subaru Brat
- Includes hard and Lexan bodies
- 4-wheel independent suspension system with front double wishbones and rear trailing arms.
- Oil dampers and coil springs for smoother damping action
- Differential-equipped gearbox
- Driveshaft with a dog bone joint design for optimum transmission efficiency
- Block pattern tires mounted on the realistic 8-spoke wheels
- Includes HobbyWing THW 1060 Brushed ESC (2-3S)
Specifications:
- Scale: 1/10
- Drivetrain: 2WD
- Power Plant: Electric
- Length: 453mm
- Width: 220mm
- Height: 175mm
- Weight: 1,840g
Includes:
- (1) Subaru Brat 1/10 Off-Road 2WD Pick-Up Truck Kit
- (1) Includes HobbyWing THW 1060 Brushed ESC
- (1) 540 Brushed Motor
Needed to Complete:
- 2 Channel Radio System
- NiMh or 2S Battery Pack
- Battery Charger
- Steering Servo
- Tools for Assembly
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 3 reviews
The kit was a breeze. I set it up for high speed. Still working on the hard body but the clear body with the stickers is stunning. All of my tracks out here are sandy dirt. Great when damp but when dry the Brat would bog down and get stuck with one tire spinning. The differential was too free wheeling for dirt. After much thought I decided to add a #2.5 washer to each end of all 3 small bevel gears MD11. It took pressure to install them back into the differential spur gear but it also turned the dif. into limited slip. WOW. I added better rear tires (PRO119411), nearly the same size but better tread, painted them to match and I think this car is my favorite to drive. Fast enough, punchy, burn-outs anytime, and easy to 180. I have spent over $500 for cars that perform as well as this Brat I have under $300 into. The suspension is stiff but good for what I do and if you do the same tires you will need 6MM spacers to make everything fit properly. I used a 5200 lipo battery. I don't think a nickel-metal would give you the performance. Great car, Great price, and fun!
Finally, i got this Tamiya Subaru Brat truck. I have to say if your mind isn't ready for this build then things can go wrong. I have built many Tamiya car and buggies and this Subaru is the first to actuactly throw curves at me. Don't get it wrong, just so many parts in screws and hardware that look simialer in the manual but may not be the screw or hardware. So make sure you know what is what and this is the first time that bags with screws and hardware are not in the bags labeled for them. But it's looking amazing so far. I gave it a five star because even with mix ups it's coming together perfectly and looking amazing. It's a good model but i would say for an experienced builder. Great little truck.
SUPER EXTRAORDINARY ....JUST NOSTALGIA 80'S THANS YOU!
Three verified owners rate the Tamiya Subaru Brat 1/10 2WD kit 5/5. Reviewers praise the clear body and stickers and the nostalgic appeal. One reviewer reports that the stock differential spins freely on dry sandy dirt, causing the truck to bog down, and describes a fix of adding shims to the bevel gears to create a limited-slip effect, plus upgraded rear tires. Another reviewer found the build challenging, citing similar-looking screws and hardware and bags not labelled correctly, and suggests the kit suits experienced builders. Feedback is limited to three reviews, so the sample is small.
- + Clear body with stickers looks good
- + Nostalgic 1980s appeal
- + Limited-slip mod improves traction in dirt
- + Punchy and fun to drive after upgrades
- − Stock differential free-wheels on dry dirt
- − Similar-looking screws and hardware
- − Hardware bags not labelled correctly
- − Challenging build for less experienced builders
