Parts/Complete vehicles & kits/Kits (unassembled)/Tamiya Suzuki Jimny JB23 1/10 4WD Electric Rally Car Kit (MF-01X)
Tamiya
Tamiya Suzuki Jimny JB23 1/10 4WD Electric Rally Car Kit (MF-01X)
Part # TAM58614-60A5.0(1)
Where to buy
$160.30
Prices are as last seen at the store; stock is not tracked.
About this part

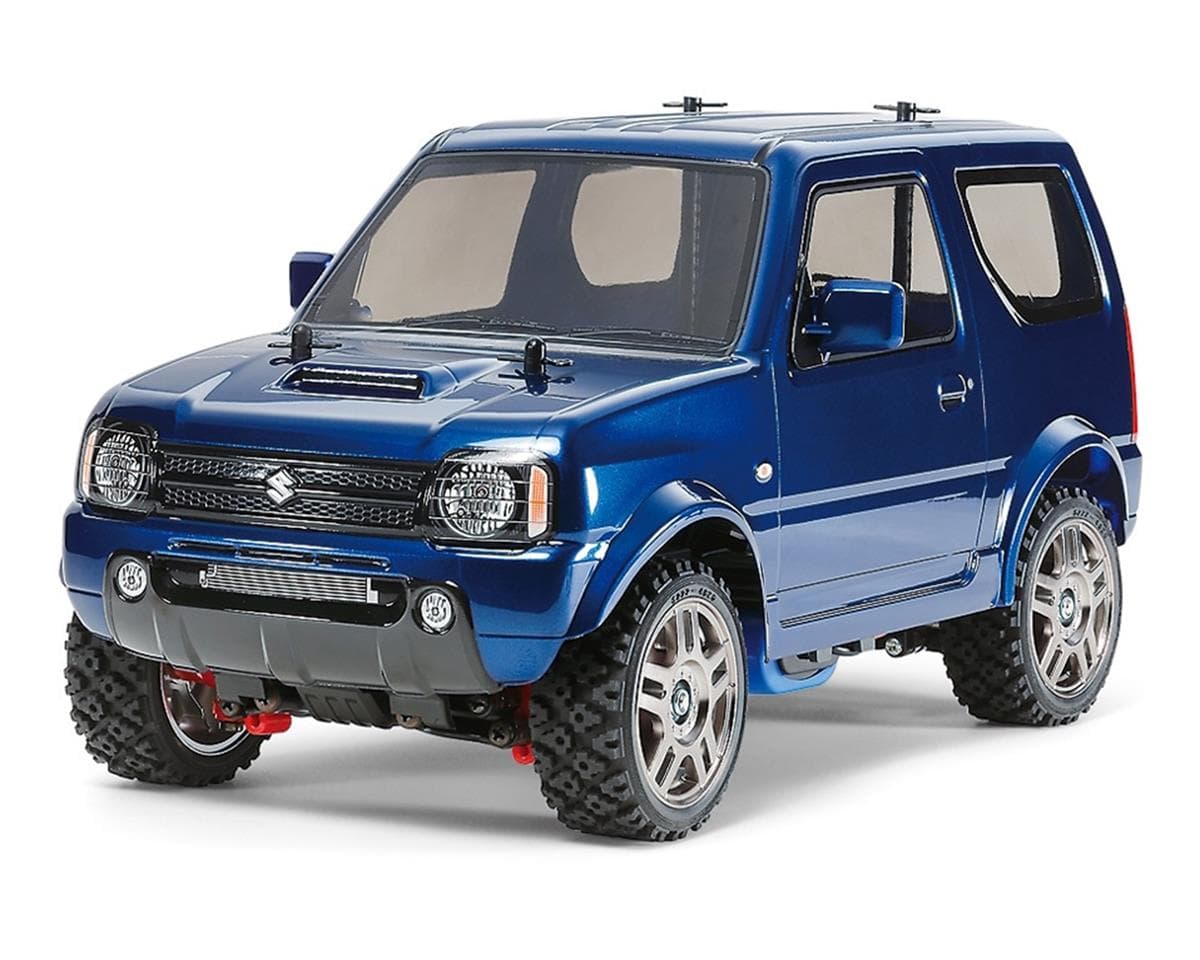

Tamiya Suzuki Jimny JB23 1/10 4WD Electric Rally Car Kit. This model faithfully recreates the the legendary Japanese off-roader. The JB23 depicted by this model is one of the 3rd generation Jimnys introduced in 1998 which had a modernized, rounded body design. The Jimny body sits atop Tamiya’s proven shaft-driven 4WD MF-01X chassis, which is at home on a range of surfaces from road to flat dirt.
NOTE: Finished kit shown in photos is for illustrative purposes only. This is a kit that requires assembly. See needed to complete list below for a list of items required to complete the model.
Features:
NOTE: Finished kit shown in photos is for illustrative purposes only. This is a kit that requires assembly. See needed to complete list below for a list of items required to complete the model.
Features:
- 1/10 scale R/C model assembly kit
- Body is made of polycarbonate

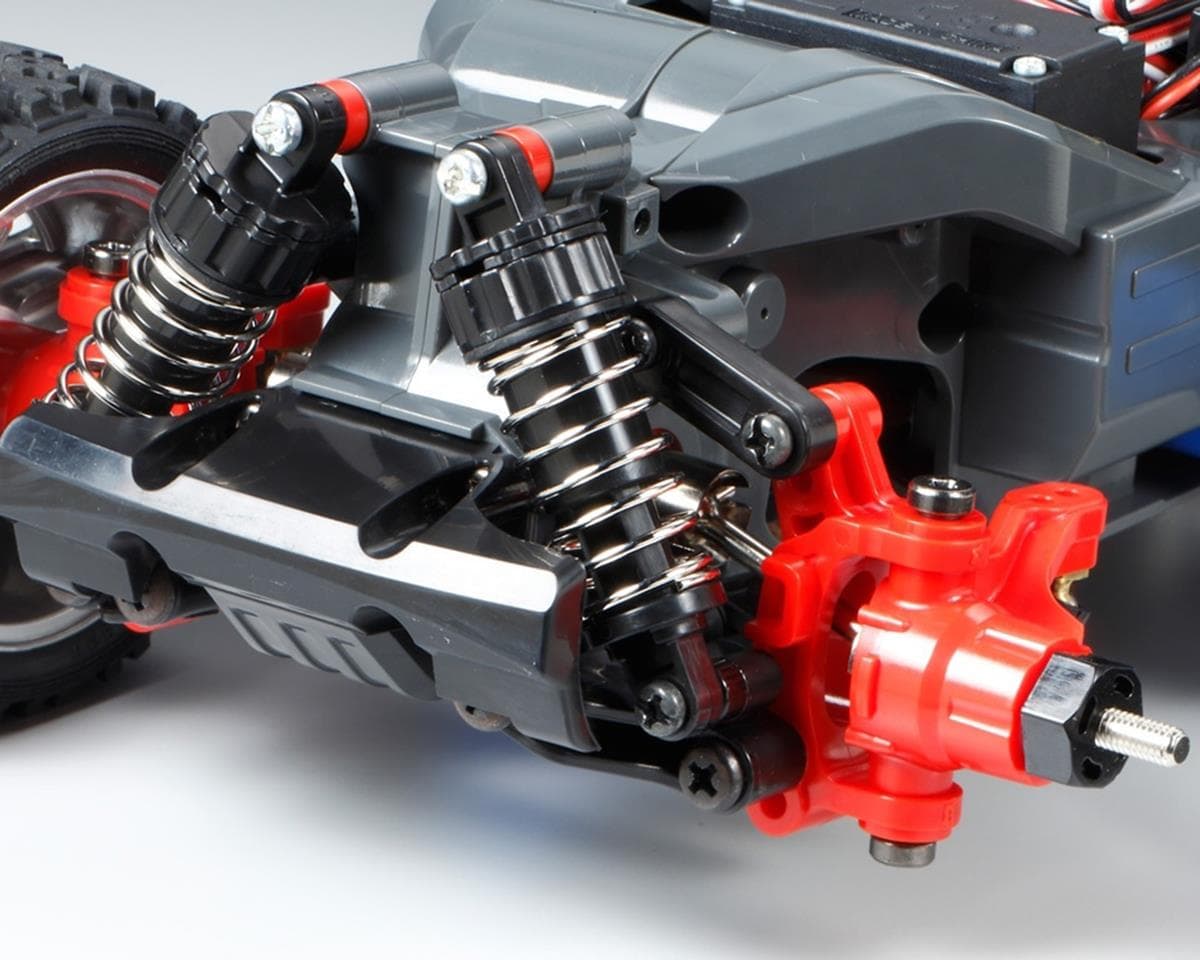

- The MF-01X is at home on-road or on flat dirt, thanks to 4-wheel double wishbone suspension

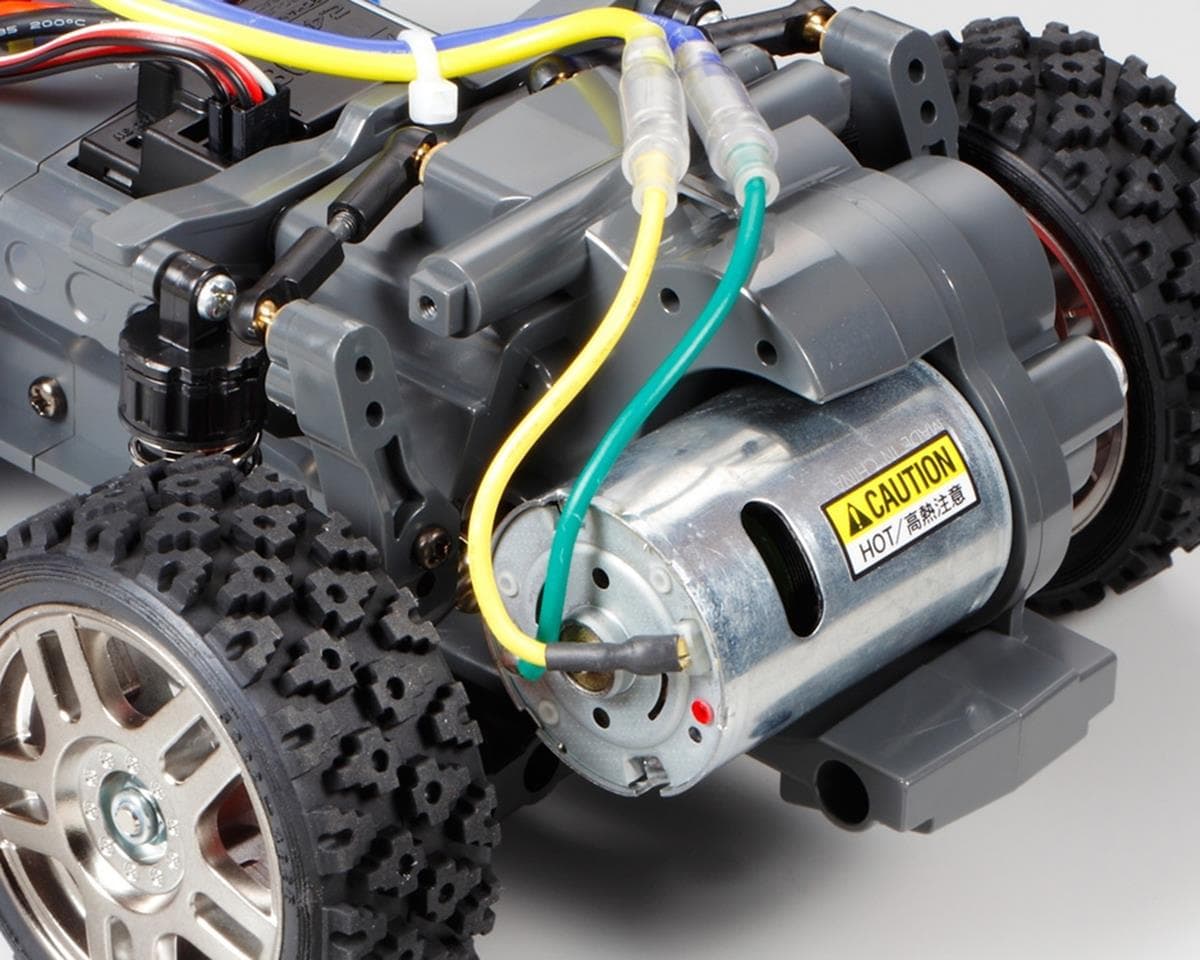

- Power from the rear mounted motor is transmitted by gear differential to the rear wheels, and via a propeller shaft to the front
- The chassis can be assembled into S and L wheelbases using separately sold propeller shafts
- A host of Hop-Up Option parts are available to tune the MF-01X chassis
- Includes a Hobbywing THW-1060 Brushed ESC
Specifications:
Adjustable Gear Ratio: Yes
Bearings: Plastic bushing
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: ABS Plastic
Chassis Type: MX-01
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 4WD
Motor: Brushed 540 Type
Scale: 1/10
Shock Damper: Friction type
Suspension: Fully Independent Double Wishbone
Terrain Use: Multi-Purpose
Needed To Complete:
- 2-Channel Radio and Receiver
- Battery Pack
- Charger
- Paint
- AA Batteries
- Tools
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 1 review
Robert PophamVerified ownerMay 4, 2025on Tamiya Suzuki Jimny JB23 1/10 4WD Electric Rally Car Kit (MF-01X)
Like all Tamiya kits it went together quite well. I used shock kit TAM54753 @ $22.40 with the car springs and it worked great. Friction springs are only good for hard surfaces and I have sand and gravel out here. Goes about 10-12MPH and is more stable than I thought it would be. The body in the front where it bends under is quite thin and started to crack when cutting. I used 2 layers of 3/8" wide black auto pen-strip on the outside and heat shrank it to the body. Can't see it and was very strong. A very good looking kit! It's too bad AMain doesn't have picture posts
1 found this helpful
