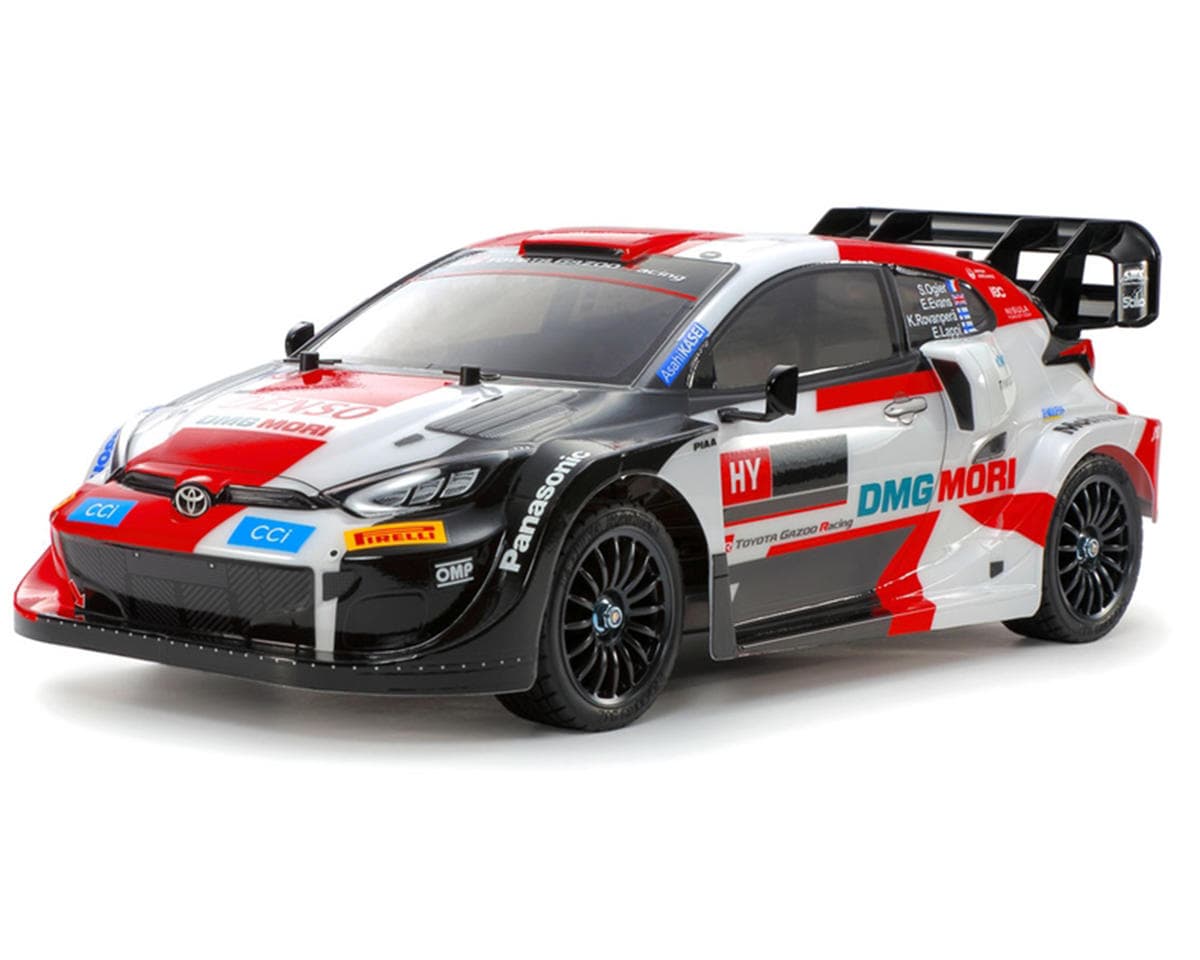

Tamiya Toyota GAZOO Racing WRT/GR Yaris Rally1 1/10 4WD Electric Rally Car Kit (TT-02)
About this part
High-Performance GR Yaris On-Road Rally Kit
This RC kit assembly kit replicates the Toyota GAZOO Racing WRT/GR Yaris Rally1 Hybrid, a contender since 2022 adhering to Rally 1 regulations. The innovative hybrid system, integrating a motor, generator, and engine, delivers an impressive 500PS and 500Nm. Notably, the car incorporates regenerative charging during braking. Powered by a 1.6-liter inline 4-cylinder direct injection turbo engine running on non-fossil fuel, it boasts distinctive features like side skirts, a large rear wing, and rear air ducts for efficient hybrid unit cooling. In 2022, this model clinched both the Manufacturer’s and Driver’s Championships.
About the 2022 Toyota GR WRT Yaris
Clear Body

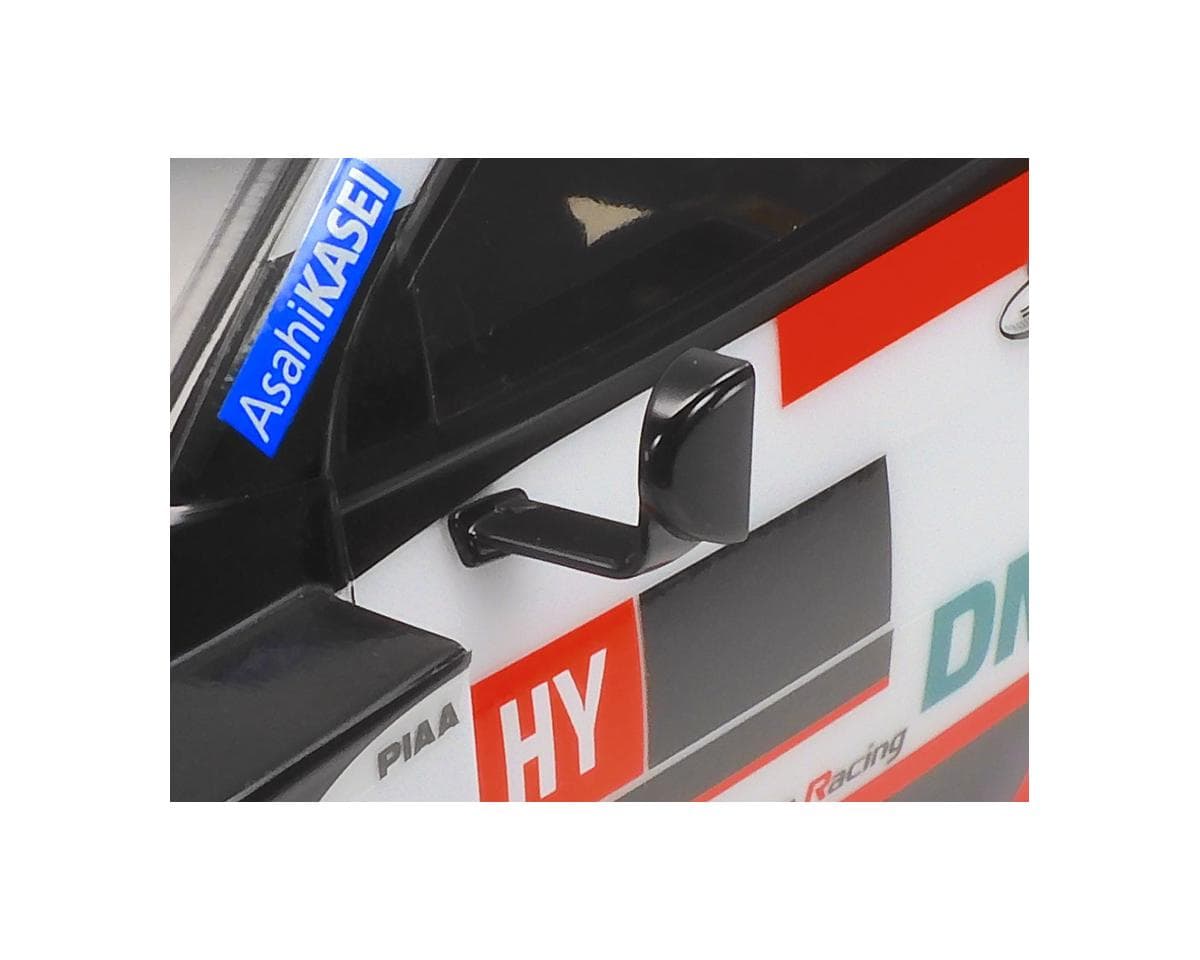

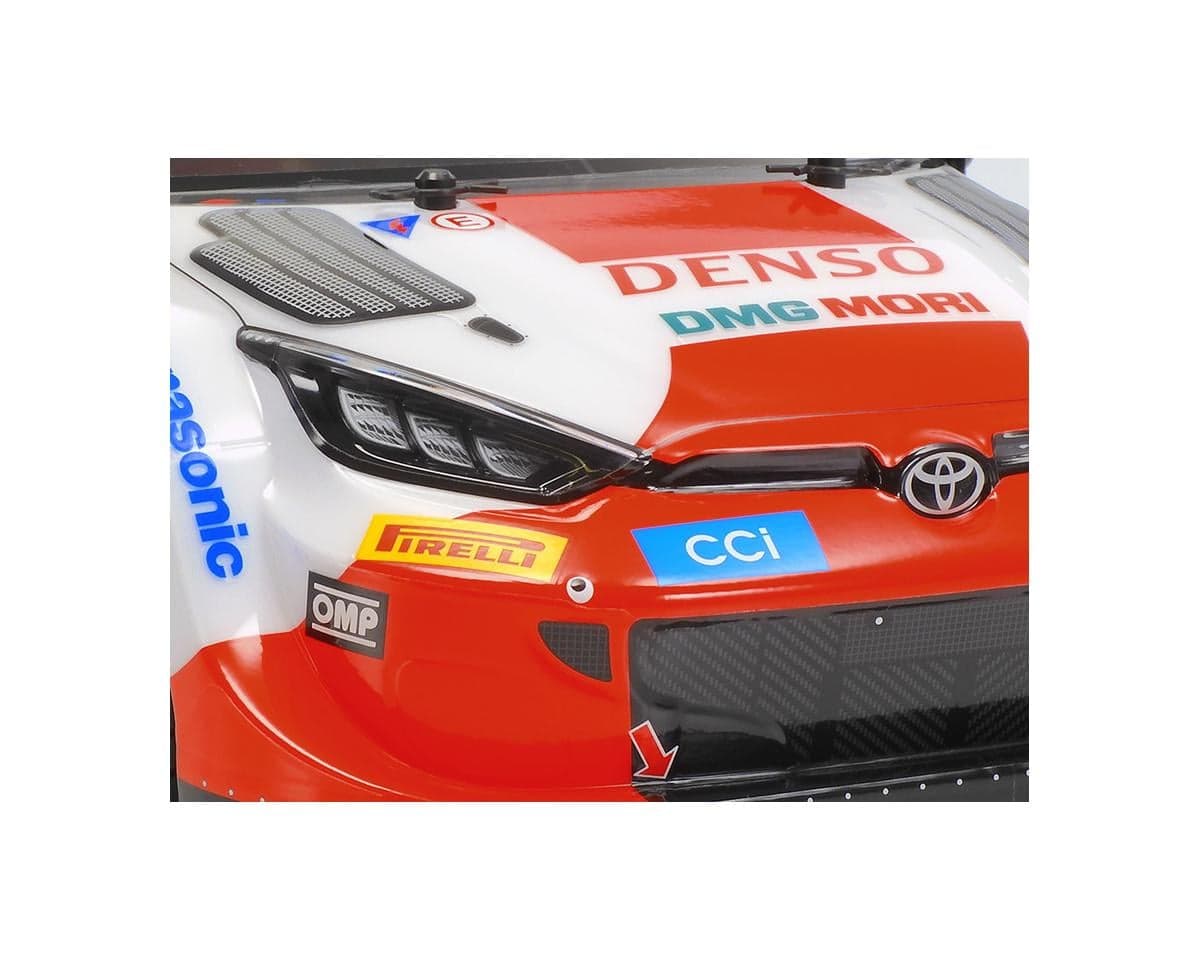

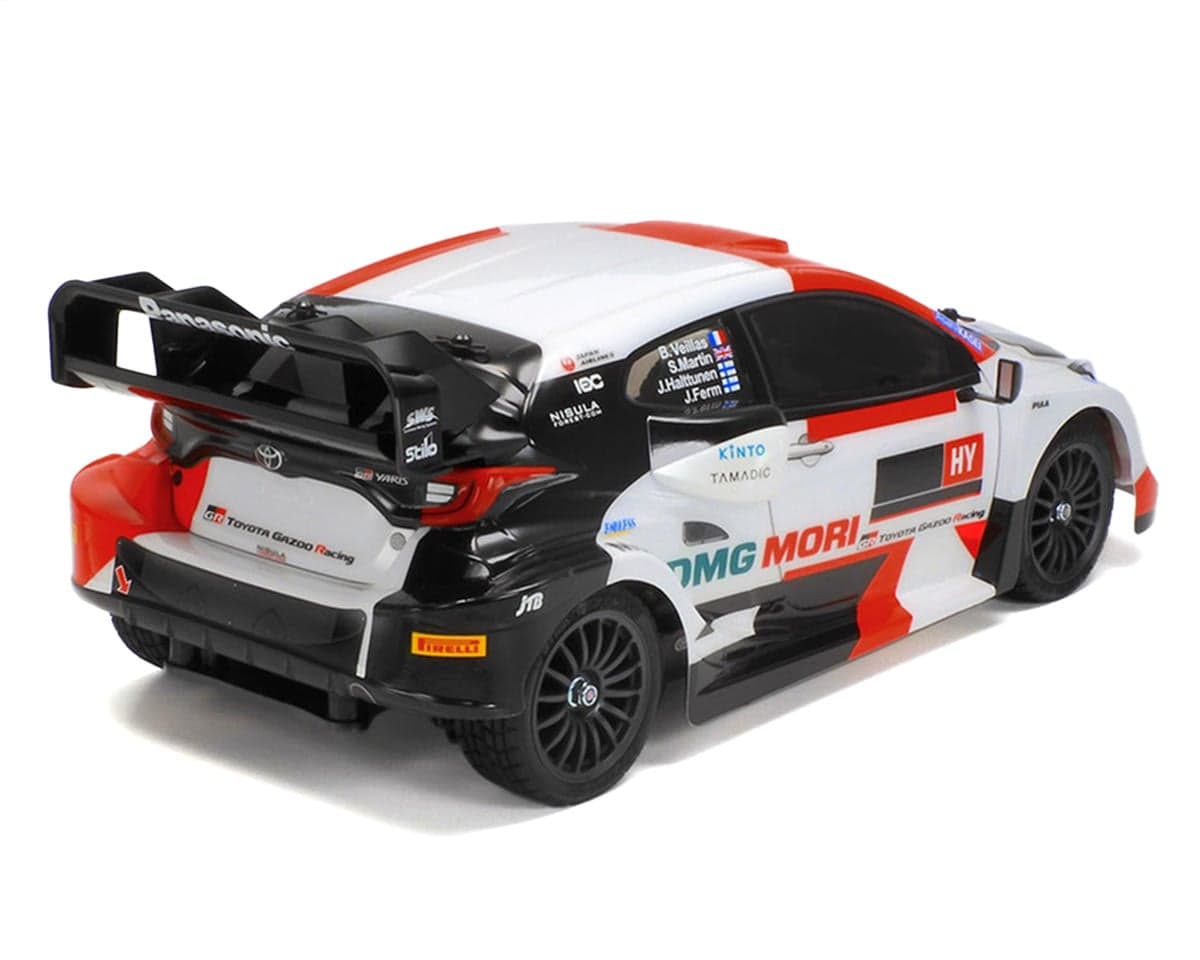

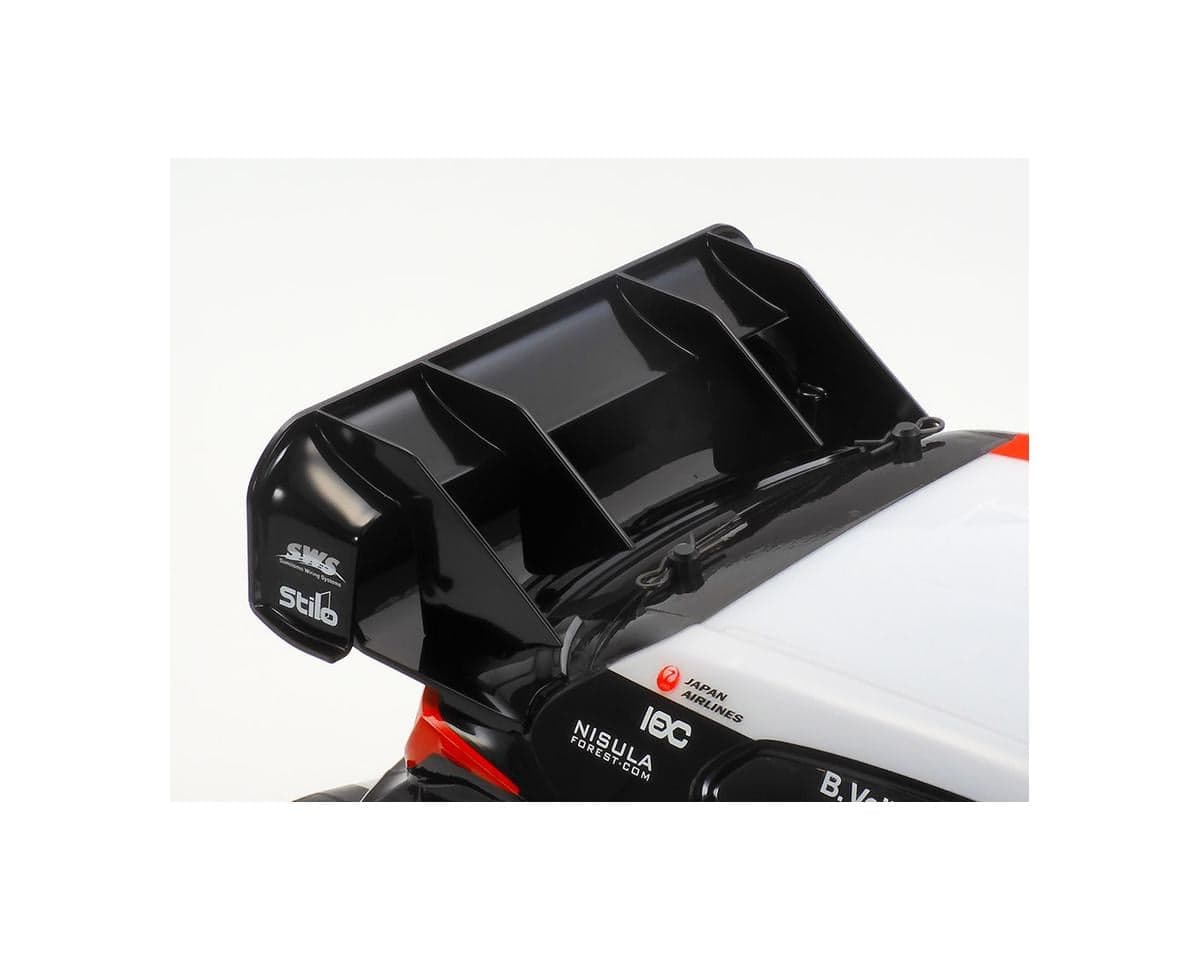

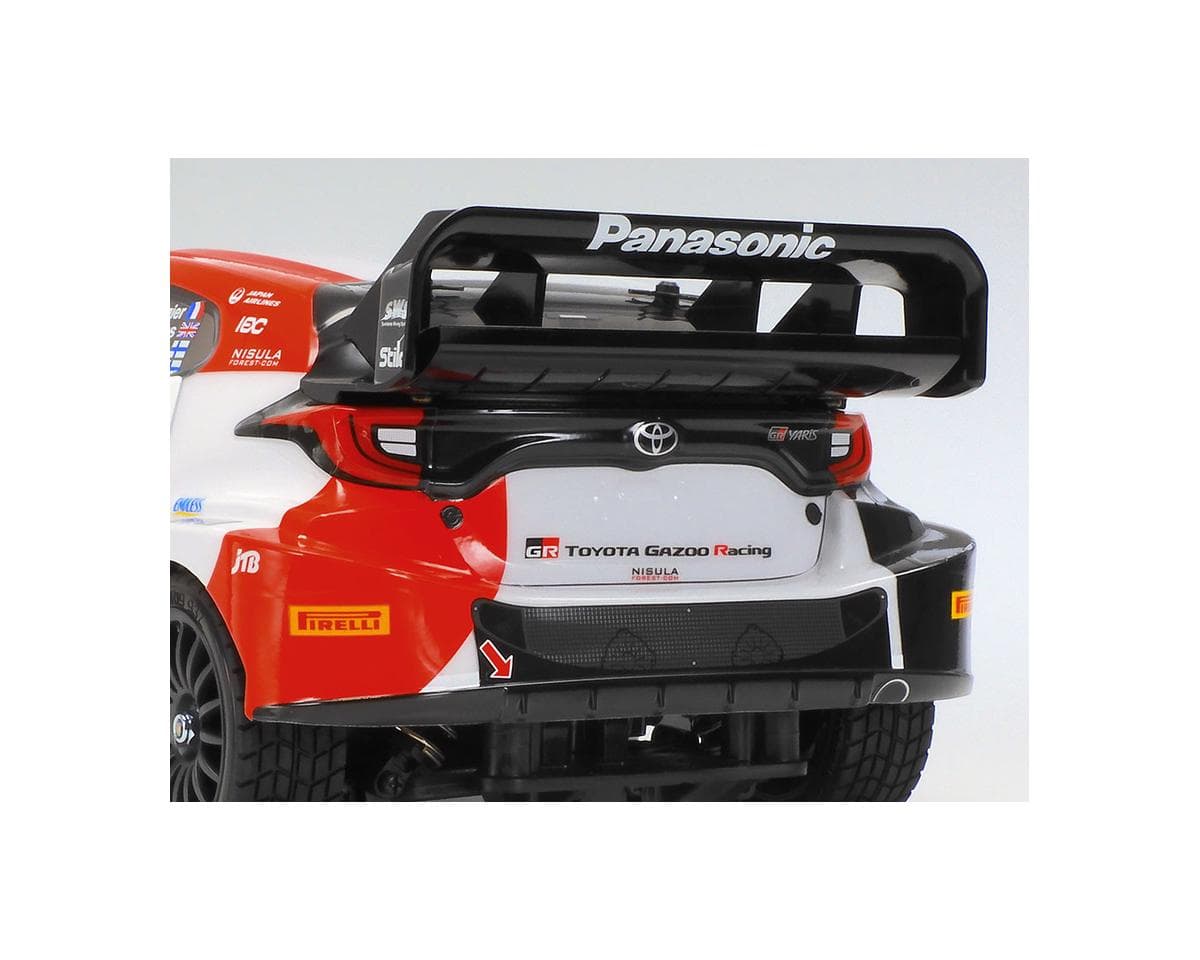

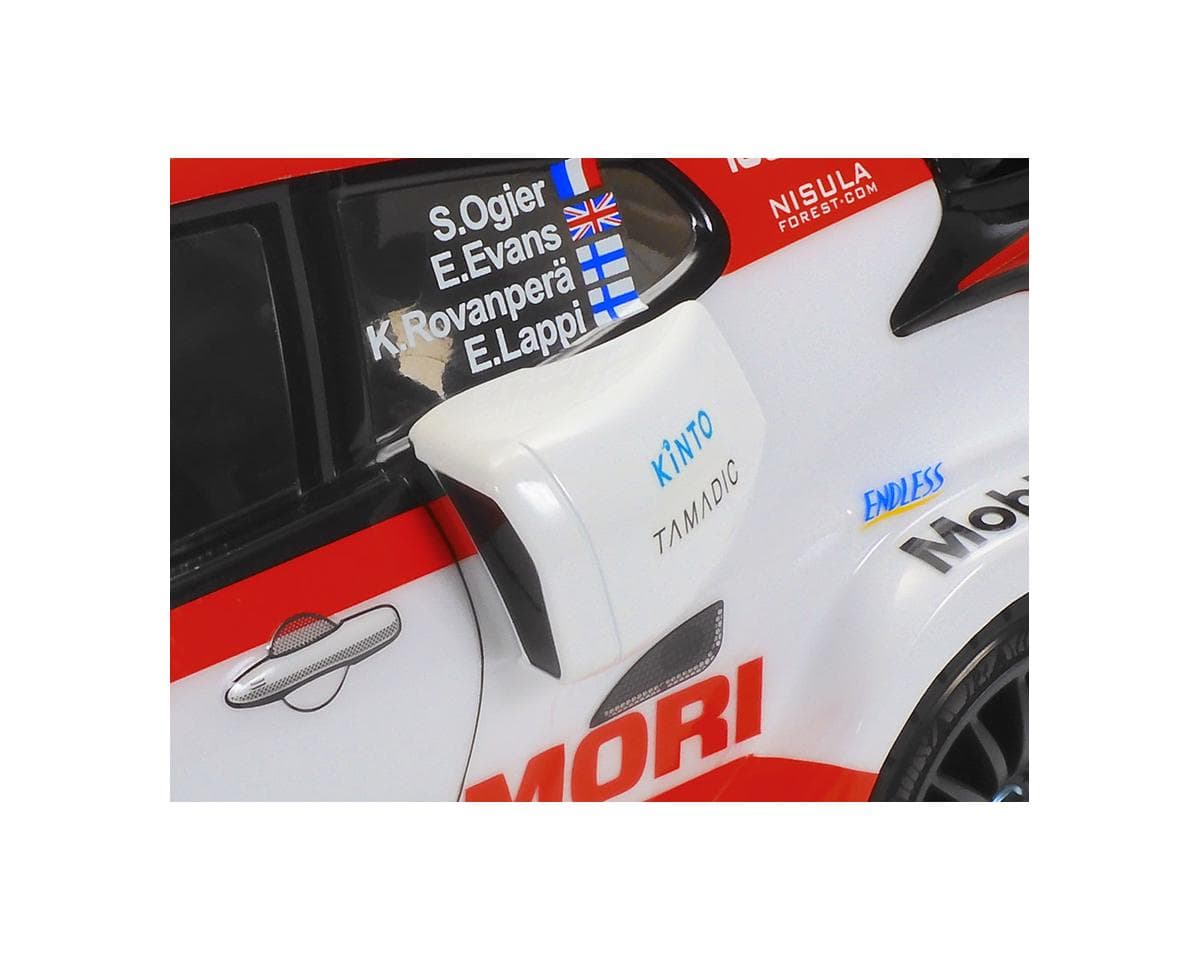

The Clear and untrimmed body design of the Toyota GAZOO Racing WRT/GR Yaris Rally1 is a dynamic fusion of aerodynamics and functionality, tailored for high-performance rallying. Marked by aggressive lines and aerodynamic enhancements, including side skirts and a prominent large rear wing, the body exudes a sporty and purposeful appearance. Strategically placed air ducts on both sides at the rear contribute to effective cooling of the hybrid unit, showcasing the marriage of performance and efficiency. The Rally1-compliant design is a visual testament to Toyota GAZOO Racing's commitment to innovation and success on the rally circuit.
Performance Chassis

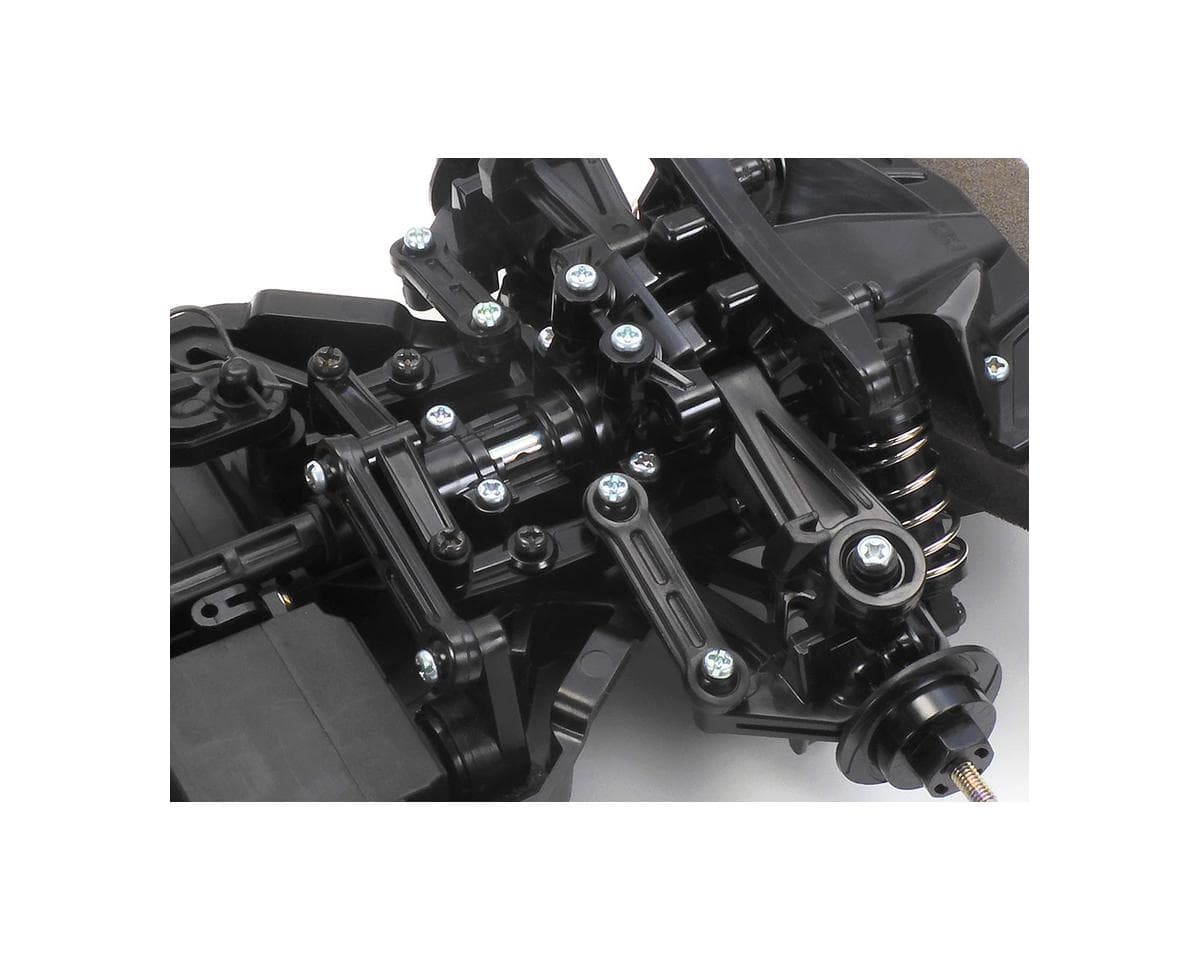

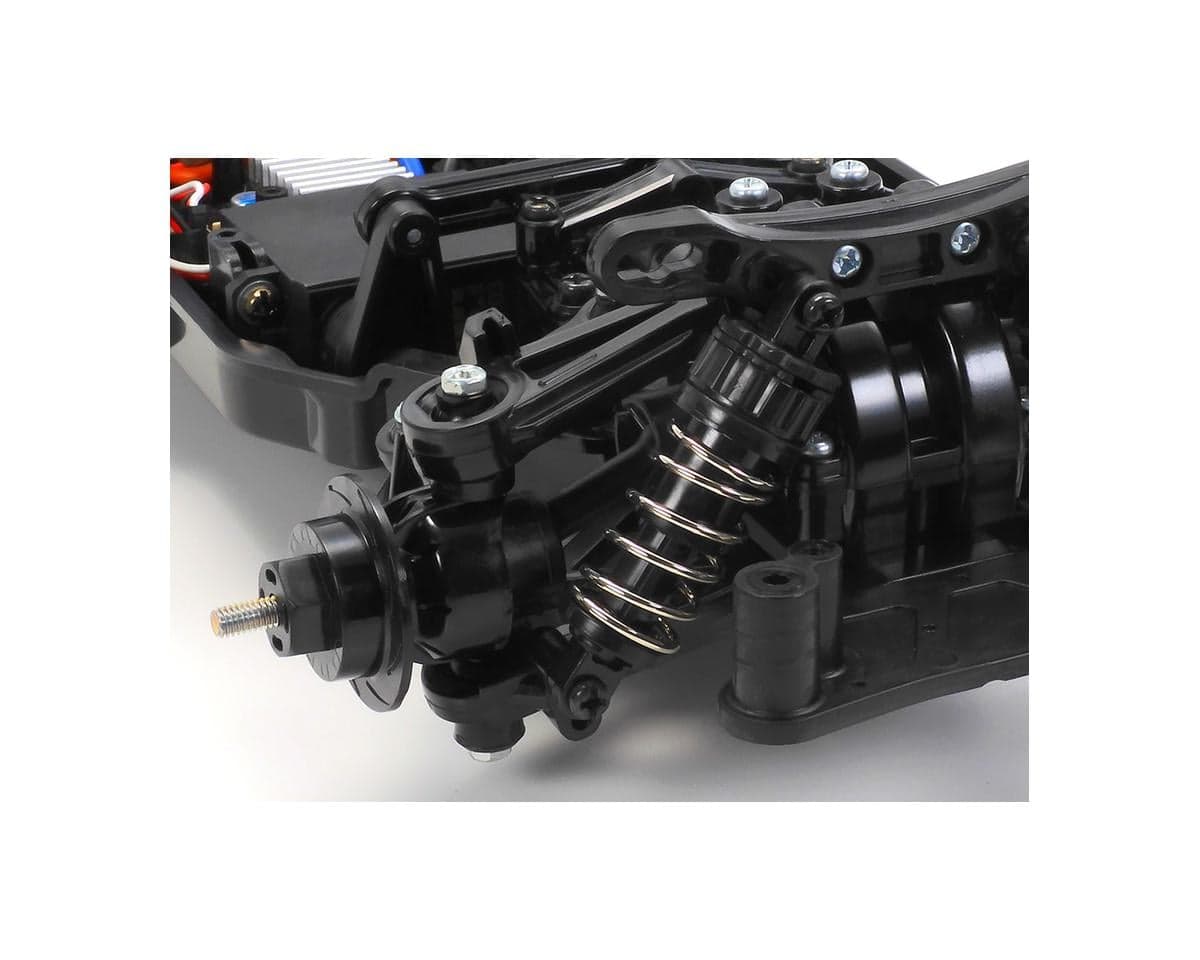

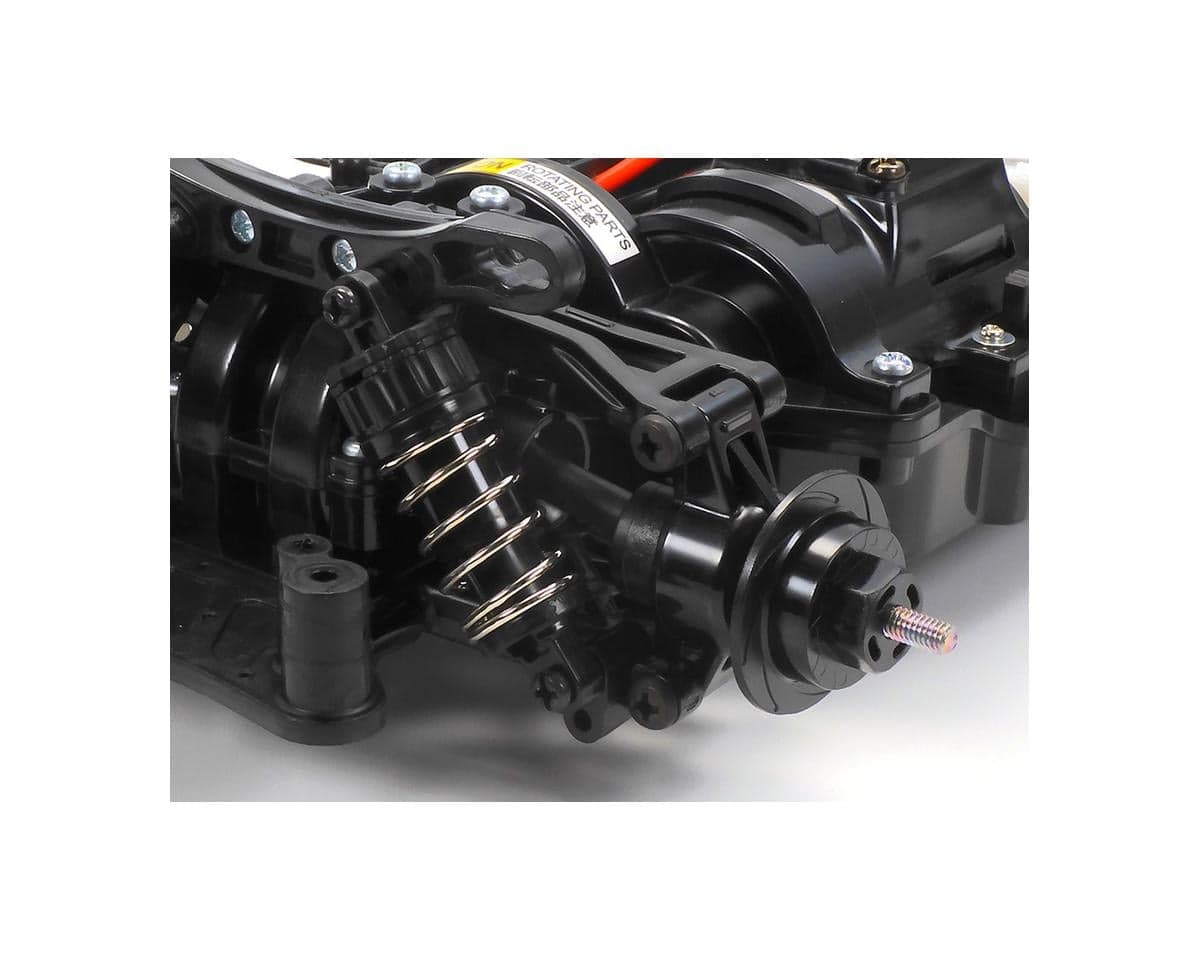

The TT-02 chassis, with its adaptable and balanced shaft-driven 4WD system, ensures excellent stability through a longitudinal layout featuring the battery on the left and the motor on the right. Its design incorporates identical left and right suspension arms and uprights for straightforward assembly, along with easily maintainable gearboxes. The chassis offers versatility with two wheelbases, two ground clearance settings, two tread setups, and a selection of ten gear ratios. Not only functional, it boasts aesthetic appeal with brake disc-shaped wheel hubs, stylish front bumper supports, gun metal color 10-spoke wheels, and sleek slick tires, delivering a sporty appearance.
Included Electronics

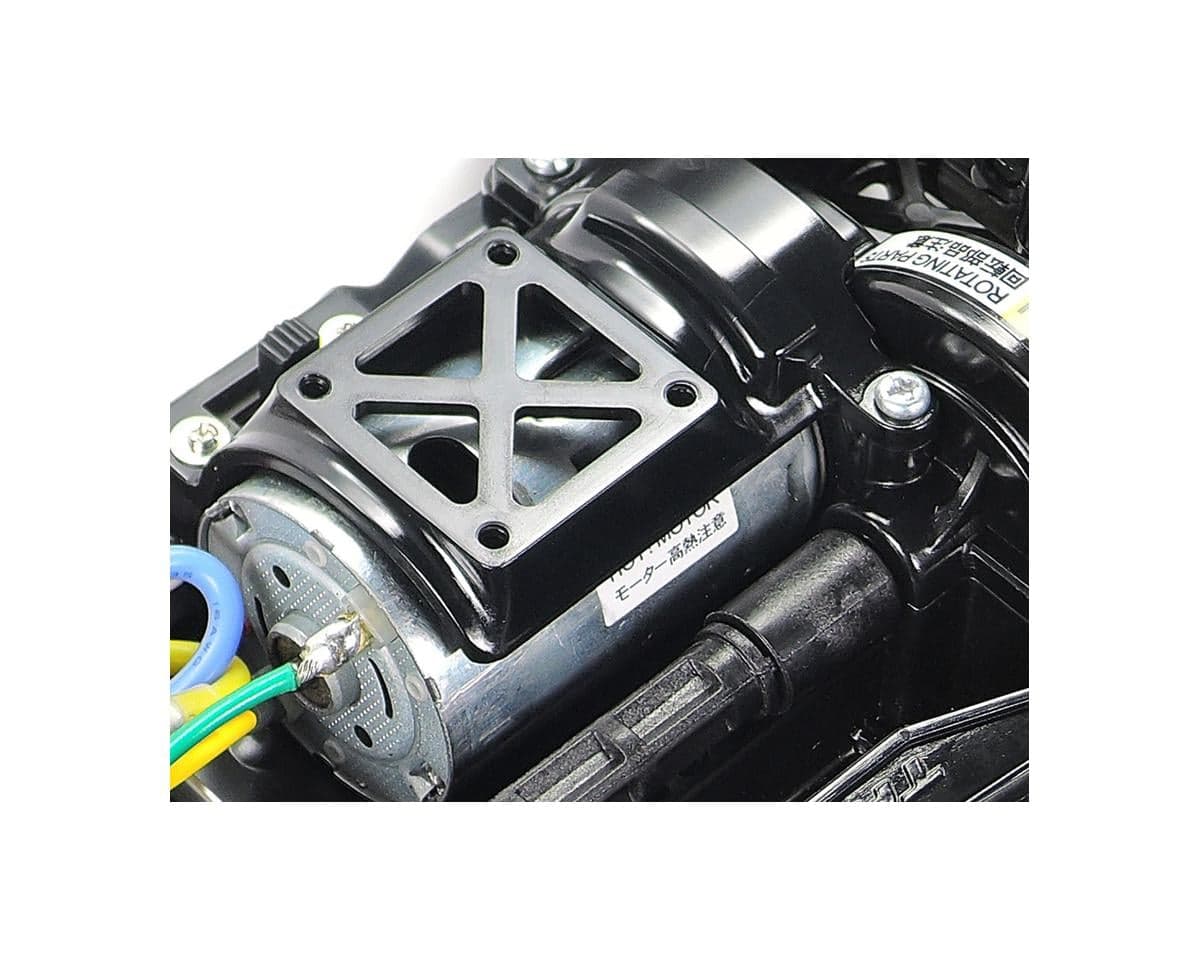

This chassis Kit includes both a torque tuned brushed motor and Hobbywing 1060 ESC. these components combine to deliver a performance enhanced on-road racing experience. The compact ESC boasts extreme performance, complemented by a built-in capacitor module for efficient power delivery. With exceptional current endurance capability, easily configurable parameters using ESC jumpers, and automatic throttle range calibration for user-friendly setup, the Quicrun 1060 stands out. Its impressive built-in BEC output capacity, built-in capacitor, and IP-67 waterproof rating further elevate its reliability, making it a top-tier choice for enthusiasts seeking optimal performance in their RC adventures. The RS-540 Torque-Tuned motor offers higher top speeds and increased acceleration.
Features:
- Super smooth shaft-driven 4WD TT-02 chassis
- Stickers and window masking for use in the body painting process

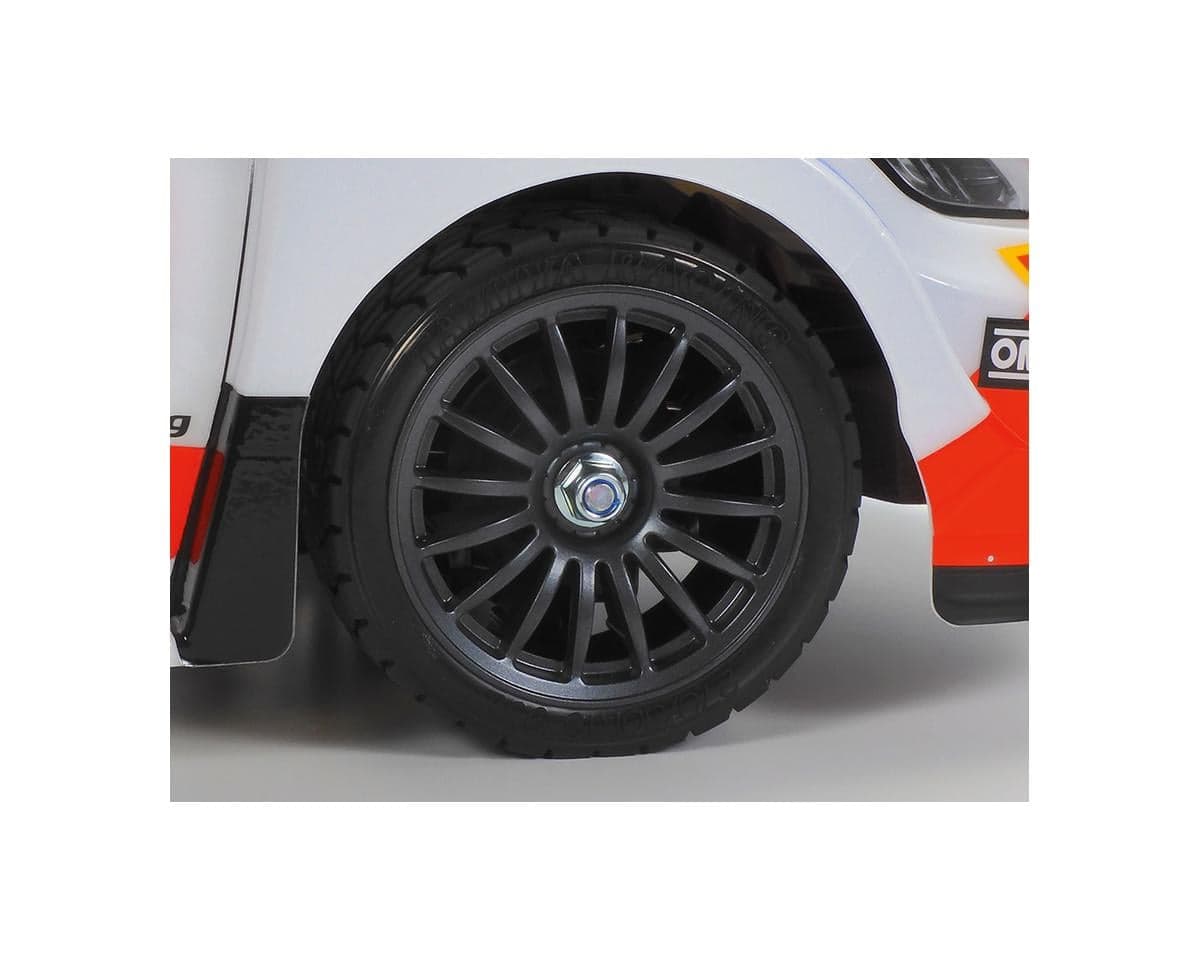

- Sleek racing wheels to match the iconic body
- The body is made of lightweight and rigid polycarbonate
- Fully independent double wishbone suspension
- Low maintenance Friction style shocks
- Reliable Hobbywing THW 1060 Brushed ESC
- Strong Torque tuned Mabuchi RS-540 brushed motor
- High strength chassis constructed from ABS (Acrylonitrile Butadiene Styrene)
- Buttery smooth grease filled differentials
Connector Information
When upgrading to a high current LiPo battery, it is recommended to also upgrade your battery connector. We recommend using an XT60 or T-Style connector for this application. Please check out the video below to learn how to solder on a T-Style connector.
Includes:
- (1) Tamiya Toyota GR WRT Yaris Kit
- (1) Hobbywing 1060 ESC with Tamiya Connector
- (1) Torque tuned 540 brushed motor
- Manual
Needed To Complete:
- 2 channel radio system
- (1) Standard or Low-profile Steering servo
- Polycarbonate paint for body
- (1) 7.2V NiMh battery with Tamiya Connector
- Compatible Charger
Specifications:
| Scale | 1/10 |
|---|---|
| Length | 16.77in (416mm) |
| Width | 7.48in (190mm) |
| Height | 5.74in (146mm) |
| Wheelbase | 10.11in (257mm) |
| Drive | 4WD |
| Input Voltage | 7.2V |
| Assembly Level | Kit* |
*NOTE: RC Kits are an unassembled Remote Control Model that require assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
Manuals:
User Manual
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 4 reviews
Great kit, simple build, quality parts... LOTS of stickers that need to be put on, over 100.
I built this car to add to my collection of rally cars. Overall-a nice easy TT02 project to do over a couple of evenings. If you want the box art, the stickers will be an absolute nightmare for anyone but the most professional hobbyist. There are way too many. I simply made my own design and used leftover decals from other Tamiya cars. I added CVA oil shocks, bearings, and a 21t brushed motor along with modifying the suspension for more ground clearance. But you can just as easily leave the suspension alone-it is still a blast to run. The stock tires are not really effective on anything but pavement-but Tamiya rally block tires are inexpensive. I do recommend gluing the tires to the rims, no matter which ones you use. A great value compared to other brands and the TT02 chassis has lots of hop ups to keep you interested.
Soooo many decals! Buy bearings too. Excellent kit. I also bought a chasis cover. Easy build with time consuming stickers but the end result is a dam good looking car.
buen producto, de excelente calidad y sobre todo el detalle del body y la calidad de los materiales
All four reviewers rate the Tamiya GR Yaris Rally1 TT-02 kit 5/5 and describe it as an easy, enjoyable build with good-quality parts and an attractive finished look. The most consistent criticism is the very large number of decals, which reviewers say is time-consuming and difficult, with one estimating over 100. One reviewer notes the stock tyres grip poorly off pavement and recommends rally block tyres, and suggests gluing tyres to rims. Reviewers mention upgrades they fitted, including oil shocks, bearings, a brushed motor and a chassis cover, with one suggesting bearings should be bought too. Sample size is small and all reviews are for the same kit variant.
- + Easy, enjoyable build
- + Good quality parts and materials
- + Attractive body detail and finished look
- + Fun to run even with stock suspension
- − Very large number of decals (over 100)
- − Stock tyres poor off pavement
- − Decal application time-consuming
