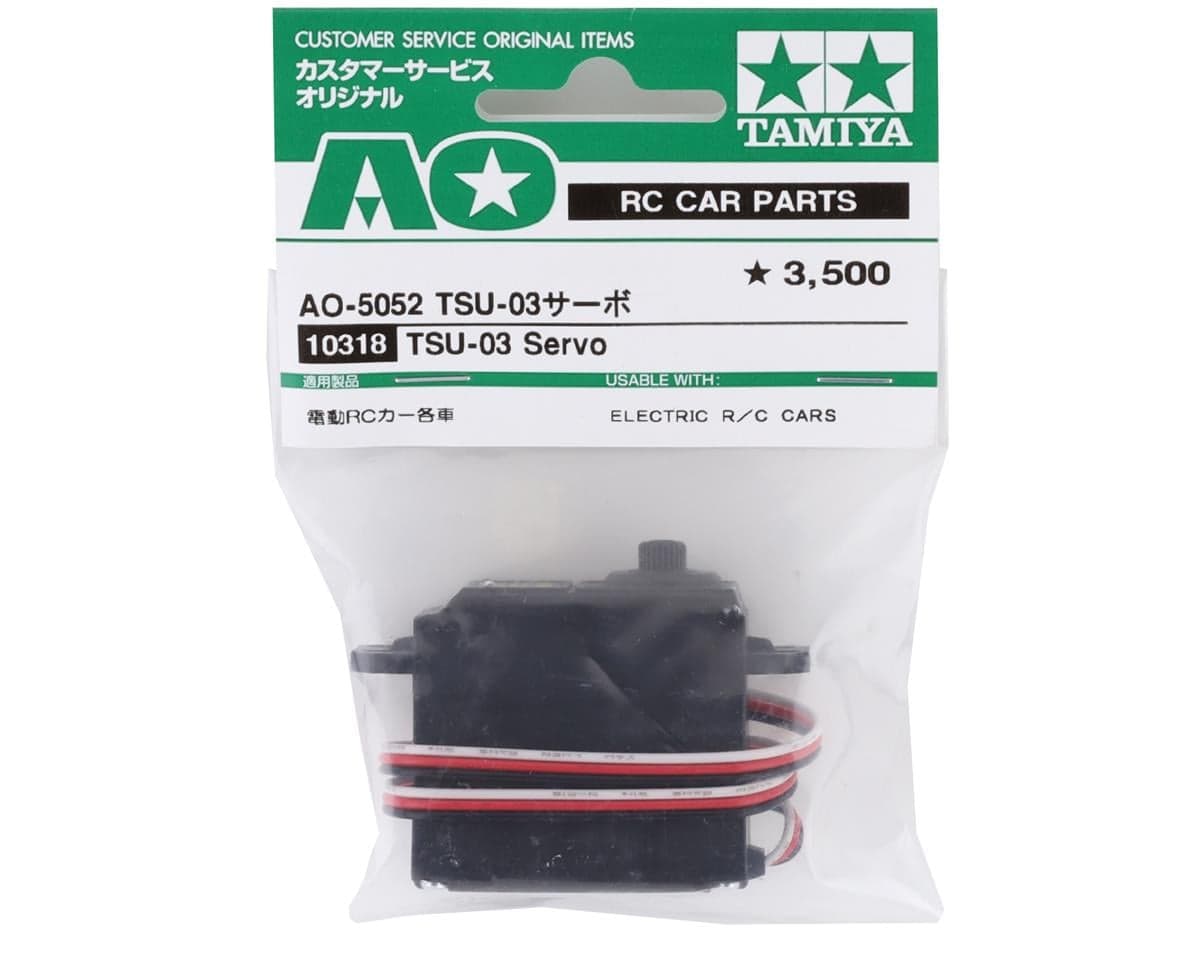

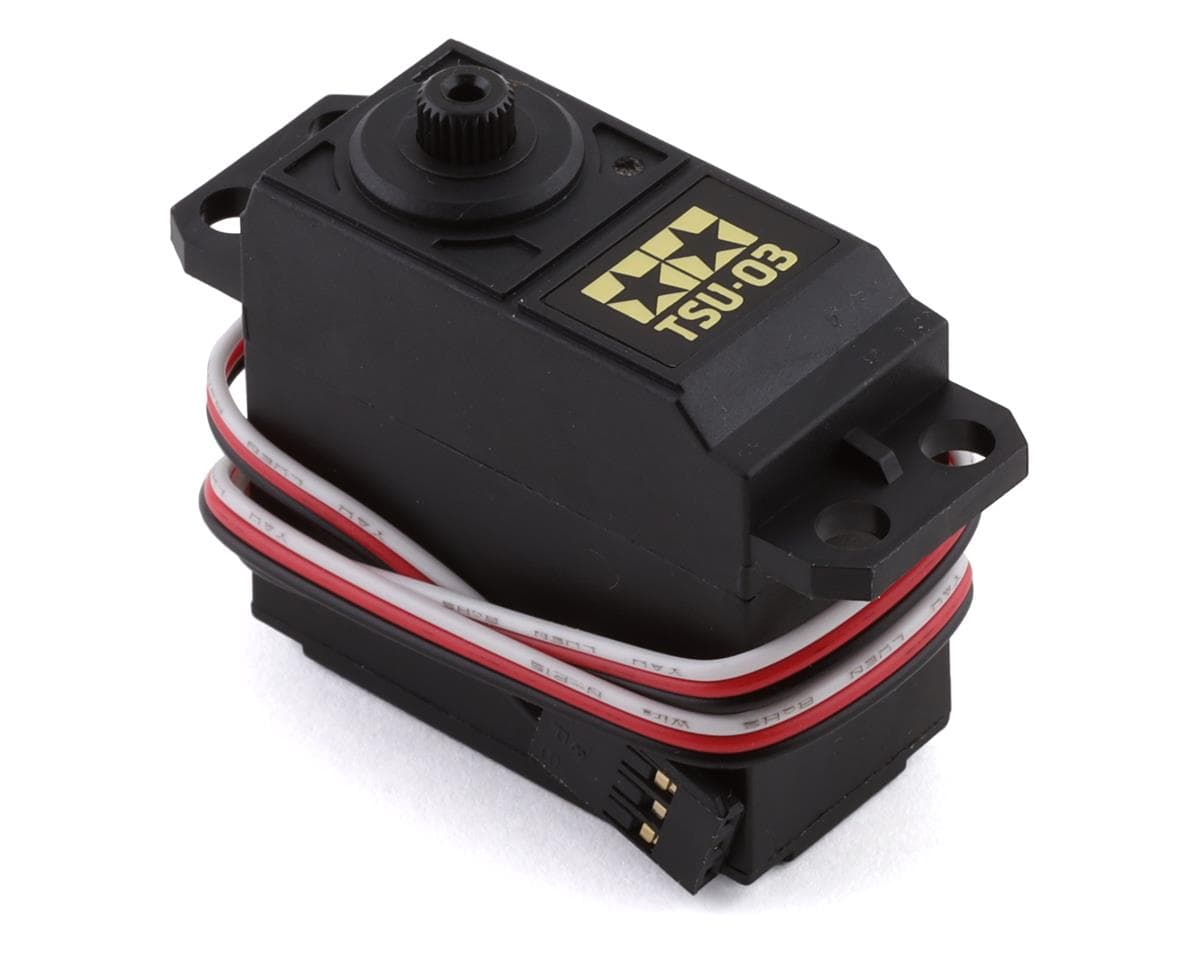

Name: Tamiya TSU-03 Servo
Brand: Tamiya
SKU: TAM10318
Price: 27.2 USD

Tamiya TSU-03 Servo

AMain Hobbies

<div>Tamiya TSU-03 Servo. This servo can be used with many of Tamiya’s radio control products.
</div>
<div>
  <br>
</div>
<div><strong>Specifications:</strong>
</div>
<div><strong>Control system: </strong>pulse width control
</div>
<div><strong>Operating angle: </strong>One side more than 45 degrees
</div>
<div><strong>Power supply: </strong>4.8-6.0V
</div>
<div><strong>Current consumption: </strong>8mA (using 6.0V battery)
</div>
<div><strong>Output torque: </strong>3.5kg-cm (using 6.0V battery)
</div>
<div><strong>Operating speed: </strong>0.17 sec/ 60 degrees (using 6.0V battery)
</div>
<div><strong>Dimensions: </strong>40 x 20 x 37mm
</div>
<div><strong>Weight: </strong>37g
</div>        <details class="prop-65-details margin-top-m">
            <summary>CA Residents Prop 65 Warning</summary>
            <i class="fa fa-exclamation-triangle fa-fw yellow-outline" aria-hidden="true"></i> <b>WARNING</b>: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to <a href="https://www.P65Warnings.ca.gov">www.P65Warnings.ca.gov</a>
                <span style="float:right"><a href="/CAProp65/cp416" target="_blank">Details...</a></span>
        </details>

Tamiya TSU-03 Servo. This servo can be used with many of Tamiya’s radio control products. Specifications: Control system: pulse width control Operating angle: One side more than 45 degrees Power supply: 4.8-6.0V Current consumption: 8mA (using 6.0V battery) Output torque: 3.5kg-cm (using 6.0V battery) Operating speed: 0.17 sec/ 60 degrees (using 6.0V battery) Dimensions: 40 x 20 x 37mm Weight: 37g
