Tamiya TT-02 Porsche 911 GT3 (992) 1/10 4WD Electric Touring Car Kit
About this part
German Engineered On-Road GT Racing Kit
This RC model assembly kit faithfully reproduces the Porsche 911 GT3 (992), showcasing a meticulously detailed polycarbonate body. Built upon the user-friendly and customizable TT-02 chassis, this kit captures the essence of the full-size 7th generation Porsche 911 GT3. The real car features a double-wishbone front suspension, transitioning from the MacPherson strut, and is powered by a horizontally opposed 6-cylinder engine. Performance enhancements include lightweight components, an aerodynamic design, and innovative features such as a carbon fiber-reinforced plastic front hood. Additionally, the hanging type wing stay contributes to increased downforce and reduced drag for an optimized racing experience.
Learn to Build Your TT-02View Blog
About the Porsche 911 GT3 (992)
Clear Body

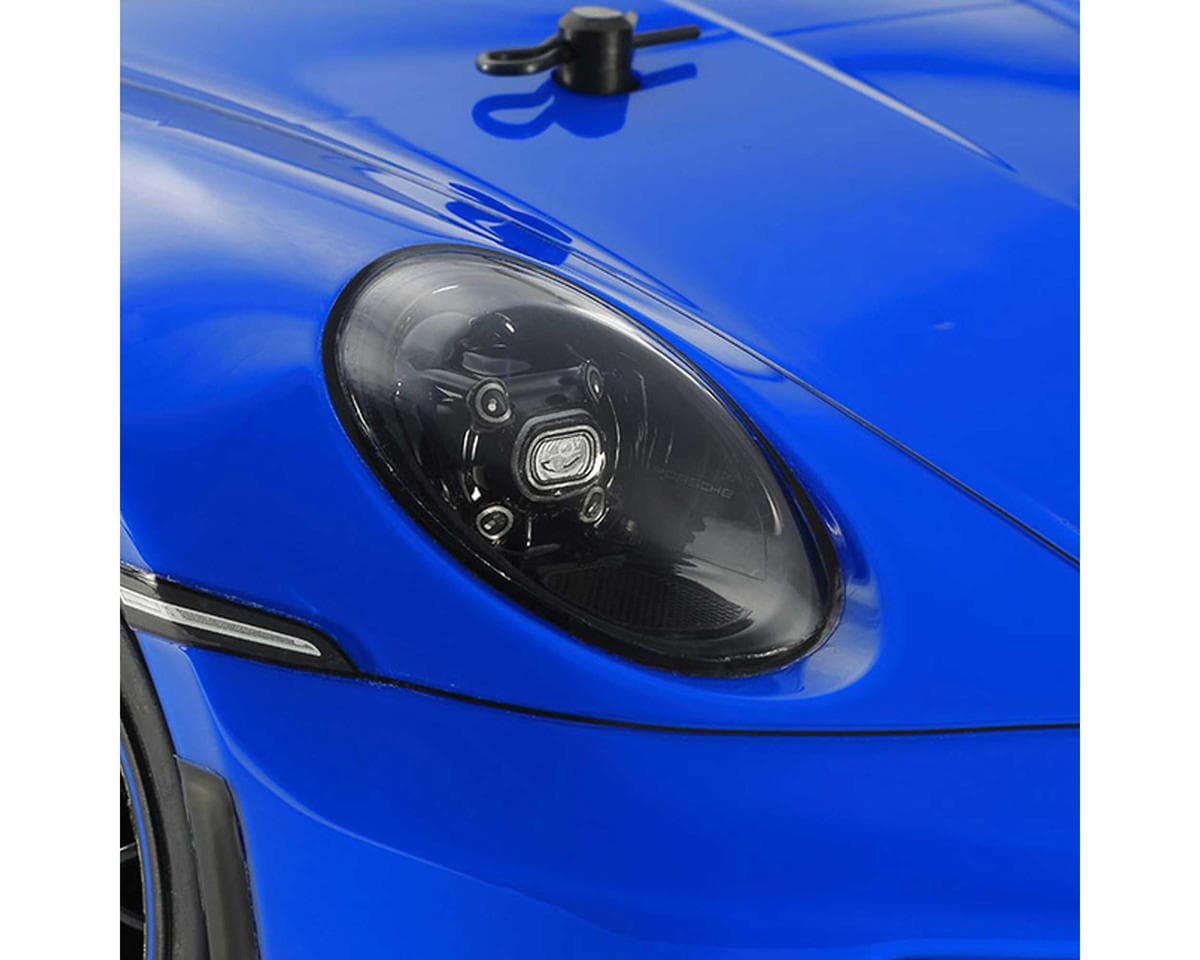

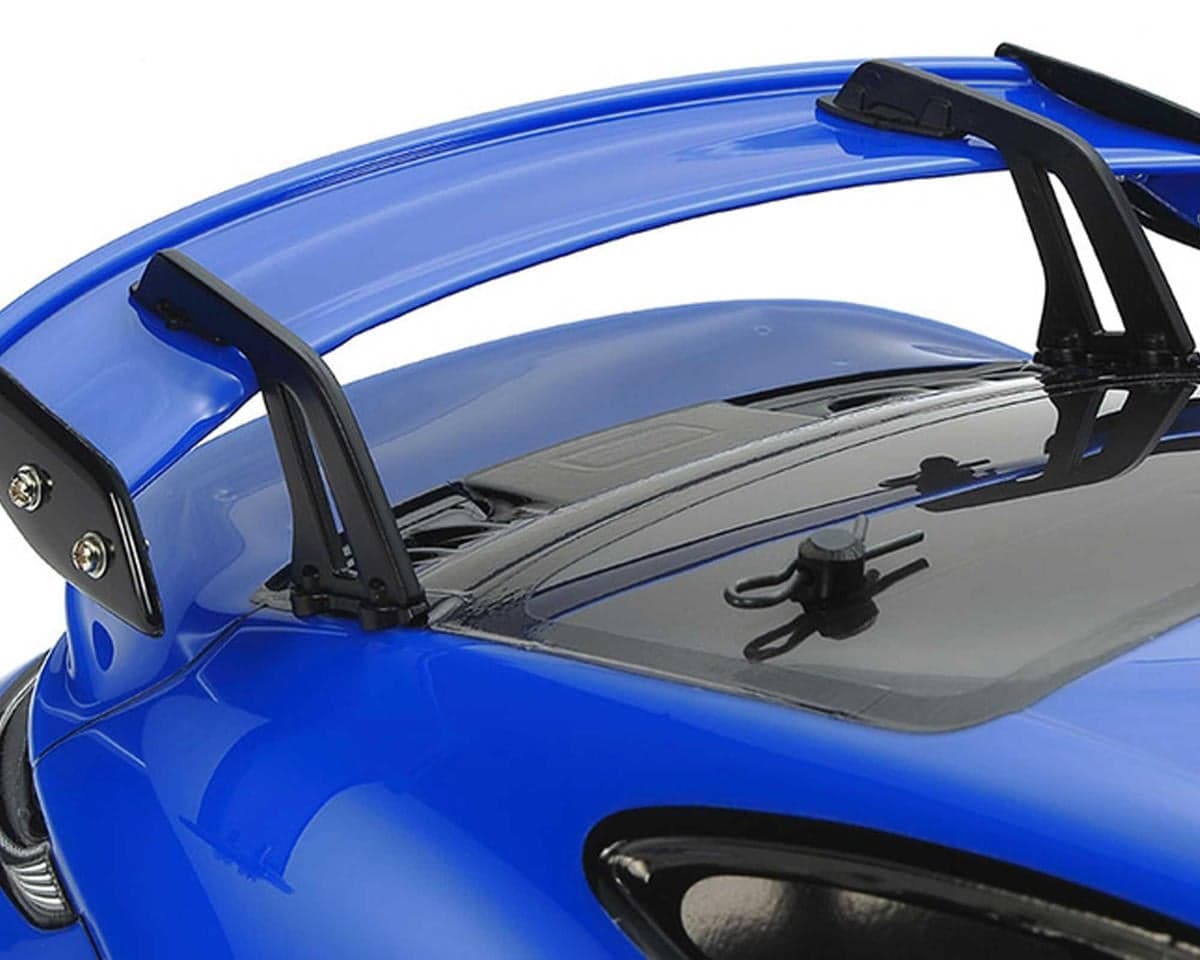

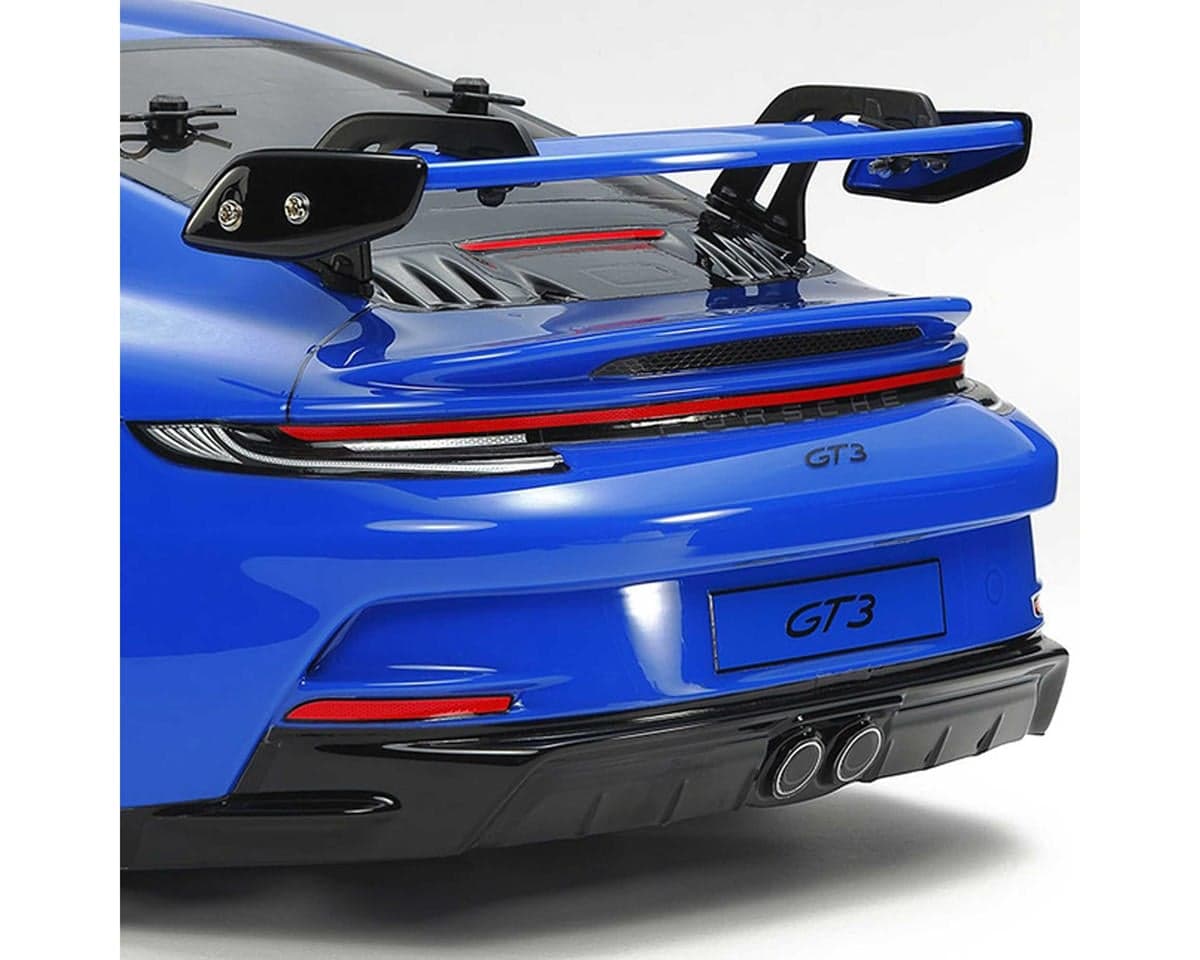

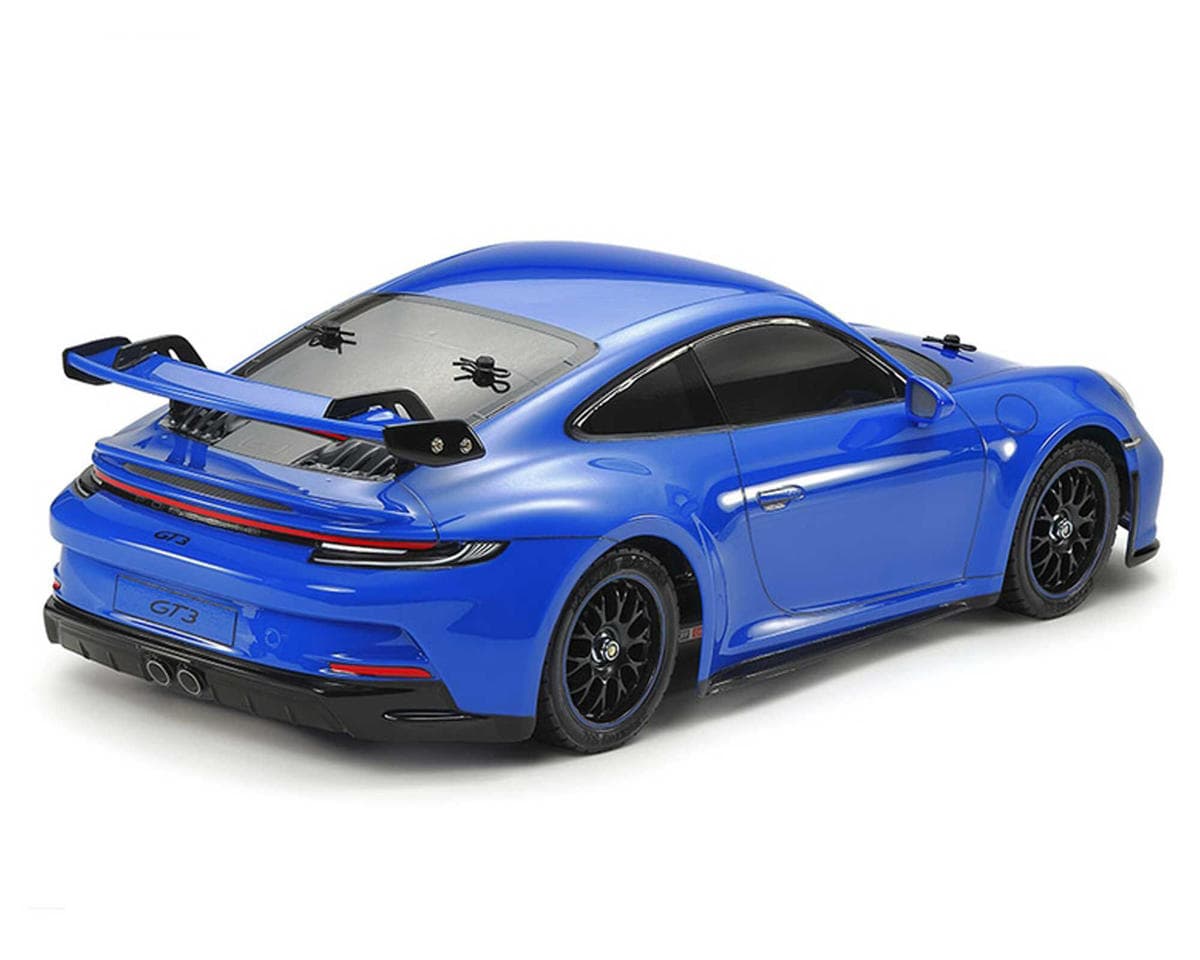

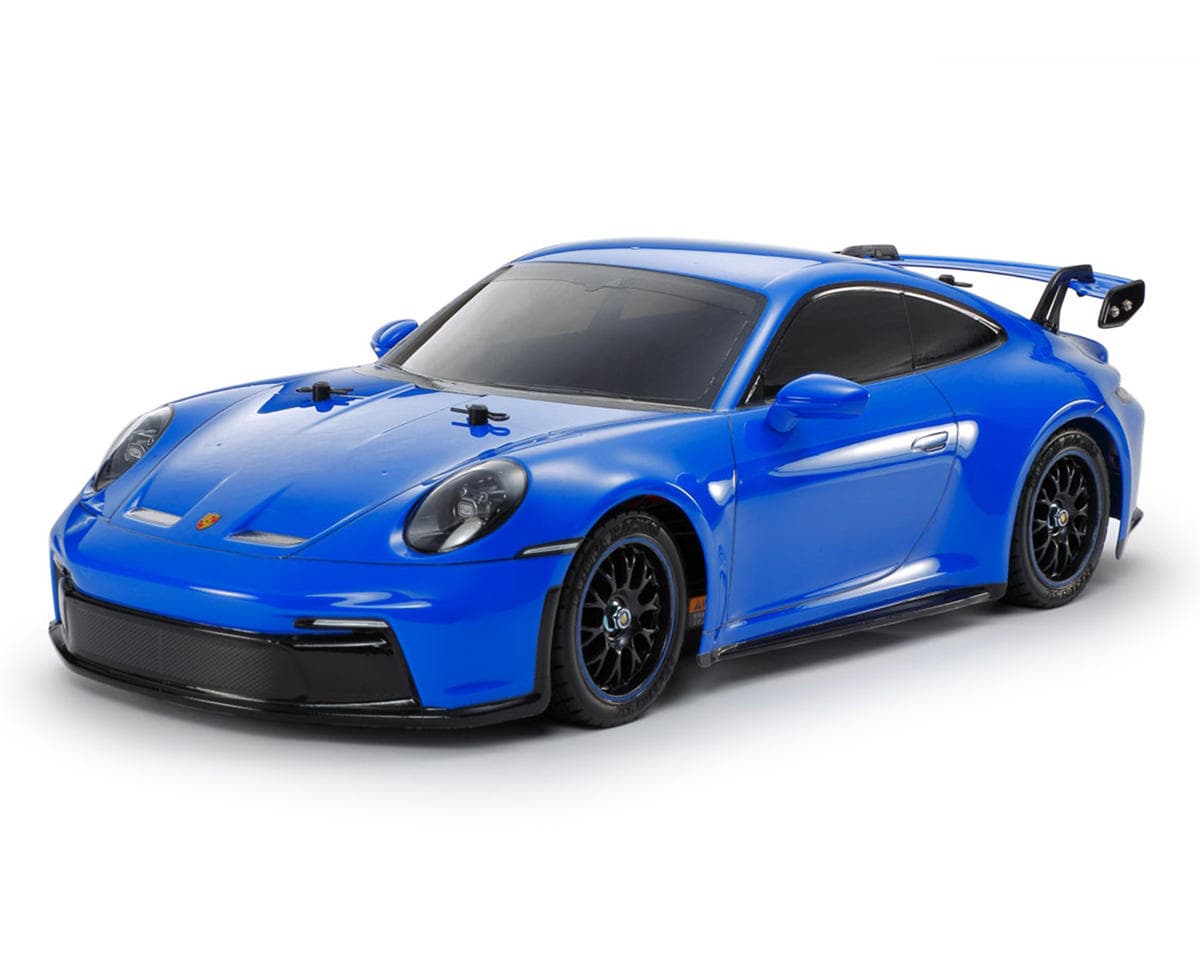

The Clear untrimmed Porsche 911 GT3 (992) body boasts a captivating body design intricately replicated in this RC model assembly kit. Characterized by stunning attention to detail, the polycarbonate body captures the sleek and aerodynamically refined contours of the full-size 7th generation Porsche 911 GT3. The hanging type wing stay not only imparts a dynamic aesthetic but also contributes to enhanced downforce and reduced drag, reflecting the real car's commitment to performance and style.
Performance Chassis

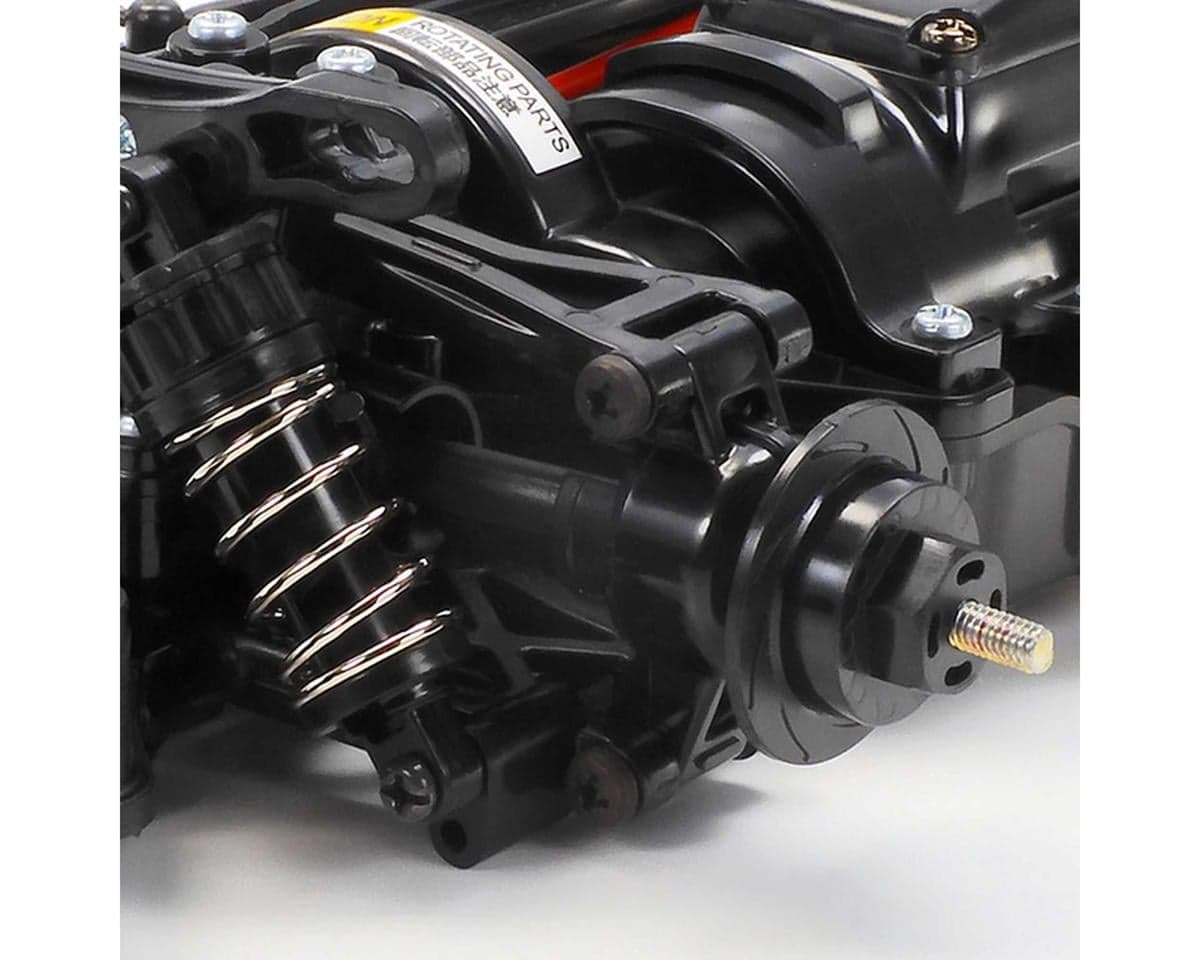

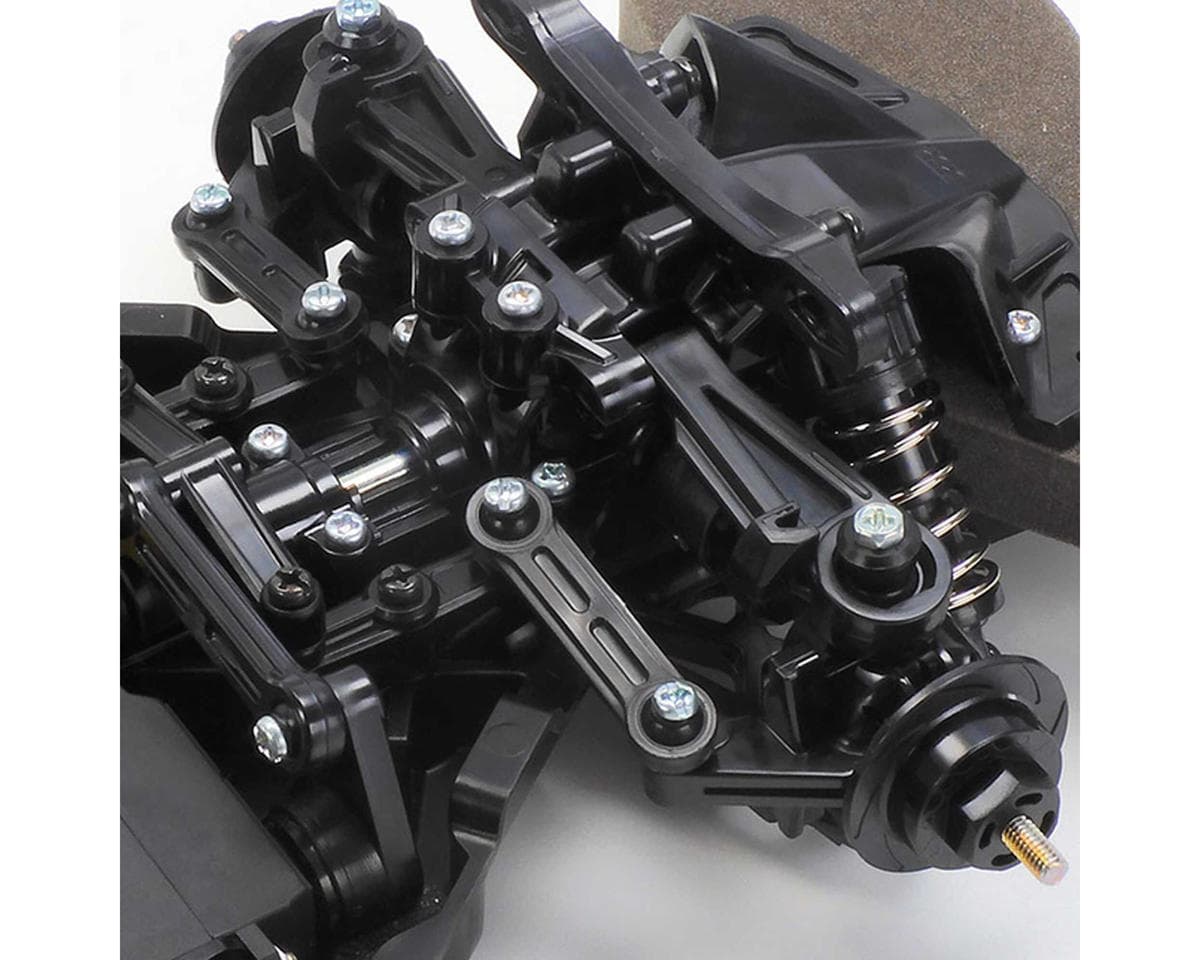

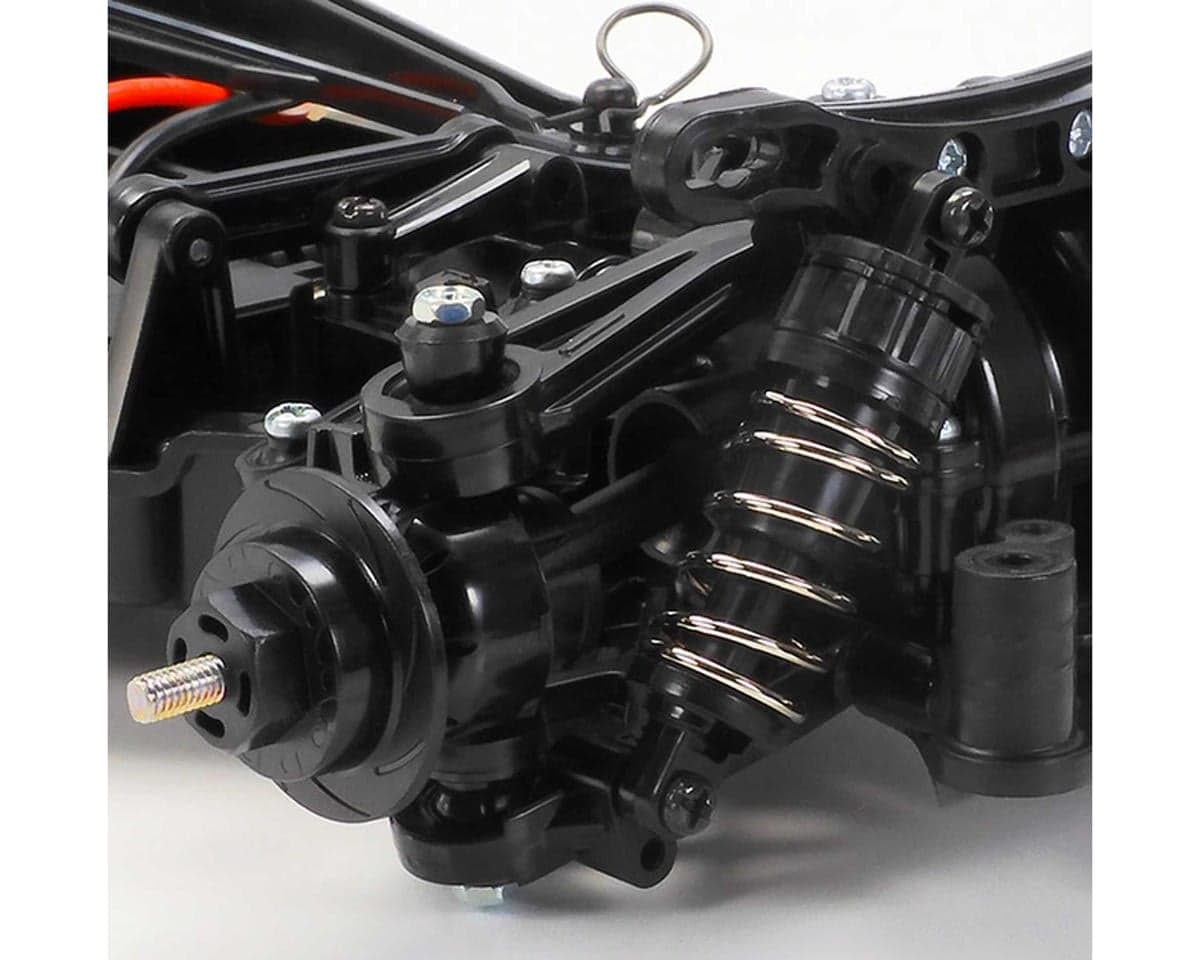

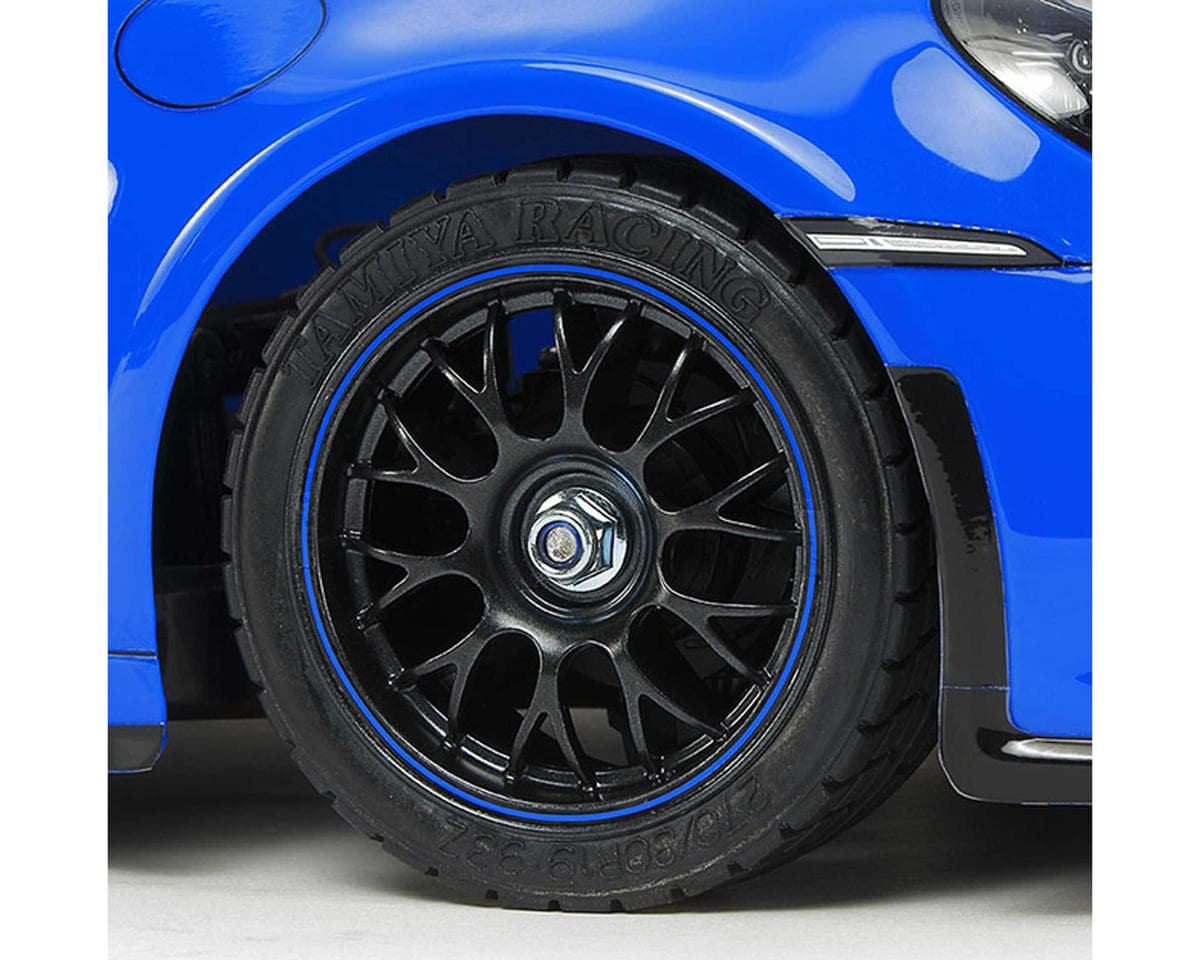

The TT-02 chassis, with its adaptable and balanced shaft-driven 4WD system, ensures excellent stability through a longitudinal layout featuring the battery on the left and the motor on the right. Its design incorporates identical left and right suspension arms and uprights for straightforward assembly, along with easily maintainable gearboxes. The chassis offers versatility with two wheelbases, two ground clearance settings, two tread setups, and a selection of ten gear ratios. Not only functional, it boasts aesthetic appeal with brake disc-shaped wheel hubs, stylish front bumper supports, gun metal color 10-spoke wheels, and sleek slick tires, delivering a sporty appearance.
Included Electronics

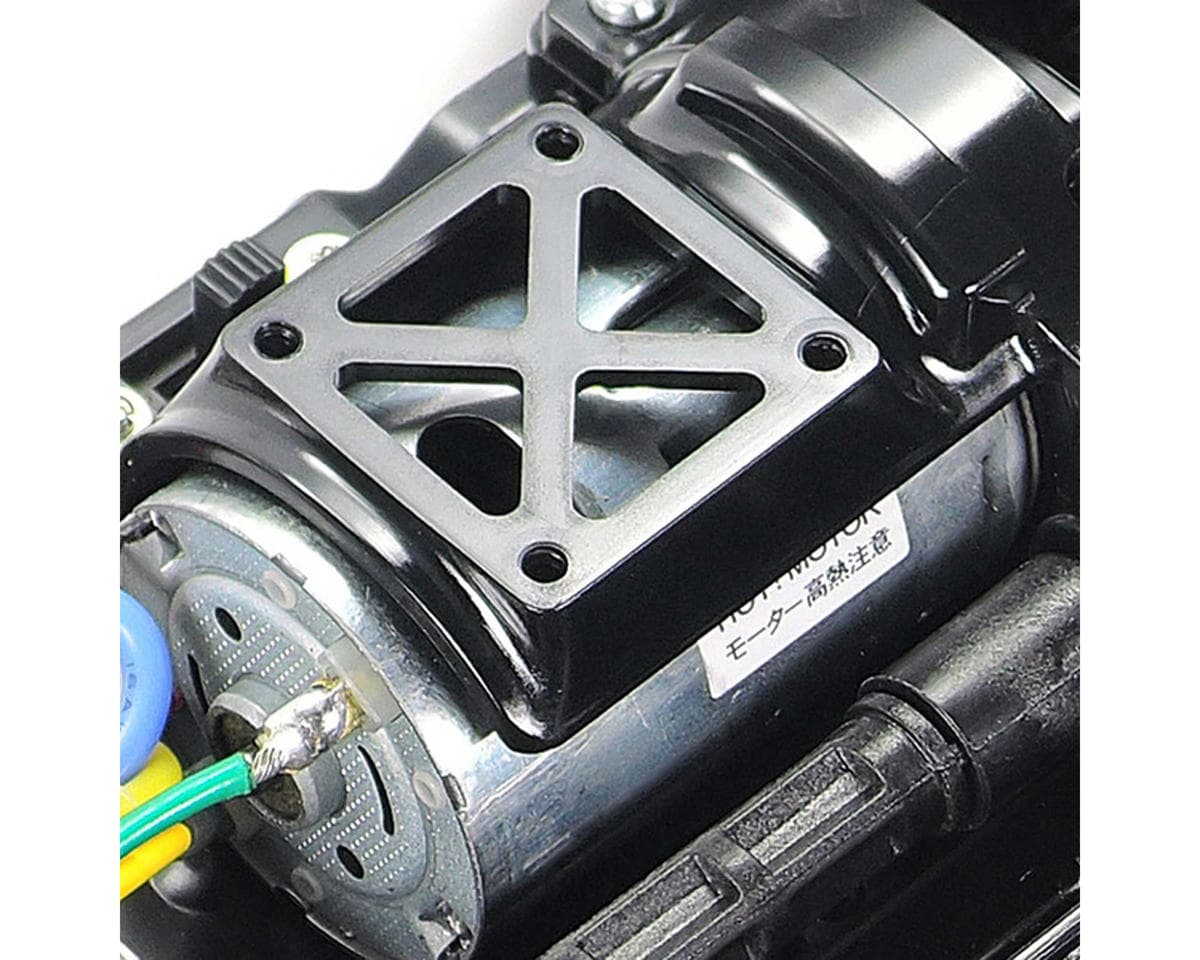

This chassis Kit includes both a torque tuned brushed motor and Hobbywing 1060 ESC. these components combine to deliver a performance enhanced on-road racing experience. The compact ESC boasts extreme performance, complemented by a built-in capacitor module for efficient power delivery. With exceptional current endurance capability, easily configurable parameters using ESC jumpers, and automatic throttle range calibration for user-friendly setup, the Quicrun 1060 stands out. Its impressive built-in BEC output capacity, built-in capacitor, and IP-67 waterproof rating further elevate its reliability, making it a top-tier choice for enthusiasts seeking optimal performance in their RC adventures. The RS-540 Torque-Tuned motor offers higher top speeds and increased acceleration.
Features:
- Super smooth shaft-driven 4WD TT-02 chassis
- Stickers and window masking for use in the body painting process
- Sleek racing wheels to match the iconic body
- The body is made of lightweight and rigid polycarbonate
- Fully independent double wishbone suspension
- Low maintenance Friction style shocks
- Reliable HobbyWing THW 1060 Brushed ESC
- Strong Torque tuned Mabuchi RS-540 brushed motor
- High strength chassis constructed from ABS (Acrylonitrile Butadiene Styrene)
- Buttery smooth grease filled diffrentials
Connector Information
When upgrading to a high current LiPo battery, it is recommended to also upgrade your battery connector. We recommend using an XT60 or T-Style connector for this application. Please check out the video below to learn how to solder on a T-Style connector.
Includes:
- (1) Tamiya Porsche 911 GT3 (992) Kit
- (1) Hobbywing 1060 ESC with Tamiya Connector
- (1) Torque tuned 540 brushed motor
- Manual
Needed To Complete:
- 2 channel radio system
- (1) Standard or Low-profile Steering servo
- Polycarbonate paint for body
- (1) 7.2V NiMh battery with Tamiya Connector
- Compatible Charger
Specifications:
| Scale | 1/10 |
|---|---|
| Length | 18.38in (467mm) |
| Width | 7.40in (188mm) |
| Height | 5.15in (131mm) |
| Wheelbase | 9.88in (251mm) |
| Drive | 4WD |
| Input Voltage | 7.2V |
| Assembly Level | Kit* |
*NOTE: RC Kits are an unassembled Remote Control Model that require assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
Manuals:
User Manual
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.3 · 6 reviews
build went fine put bearings in different motor only big deal was cutting out and installing decals
This was my second kit that I've ever built. It was not hard at all. The only pain is cutting out the decals. I have had the car for about 3 years now and I am very happy with it. I actually just put a 3s brushless system in it yesterday. The fun has now tripled!
Super easy kit to build and I highly recommend this kit to anyone! Don't forget to order the bearing kit.
I thought I had ordered the painted body kit but received unpainted version. Need to wait til spring happens to paint.. Not a fan of their chassis kits as the plastic feels toyish cheap. Battery tray only fits specific type battery vs standard shaped lipos. Best thing for me about Tamiya is that they have the most different types of bodies available.
The tamiya Porchse 911 is not a bad first build,but the only problems are that the servo setup it iffy bug all in all the car runs good when built it don’t go too fast maybe about 15 20 with the brushed motor it comes with bug when you get the brushless upgrade I recommend the hobbywing quick run combo it goes fast you just need a good radio I personally use sanwa other than that good car I would recommend going aluminum shaft and others.
Reviewers generally find the Tamiya TT-02 Porsche 911 GT3 (992) kit straightforward to build and good value, with several noting it suits spec TT02 racing at local tracks. The most consistent complaint is the tedious cutting out of decals. Other points were mixed: one reviewer said the bearings were installed in a different motor, one thought the chassis plastic feels cheap, one noted the battery tray only fits specific battery shapes rather than standard lipos, and one reported receiving an unpainted body instead of the painted one ordered. One reviewer described servo setup as fiddly and recommended a bearing and aluminum shaft upgrade, and another said the included brushed motor is slow and suggested a brushless upgrade. Reviews are all for the same kit variant.
- + Easy, straightforward build
- + Good value for the price
- + Fun to drive and suited to spec TT02 racing
- + Wide range of body options
- − Decal cutting is tedious
- − Chassis plastic feels cheap
- − Battery tray fits only specific battery shapes
- − Servo setup can be fiddly
