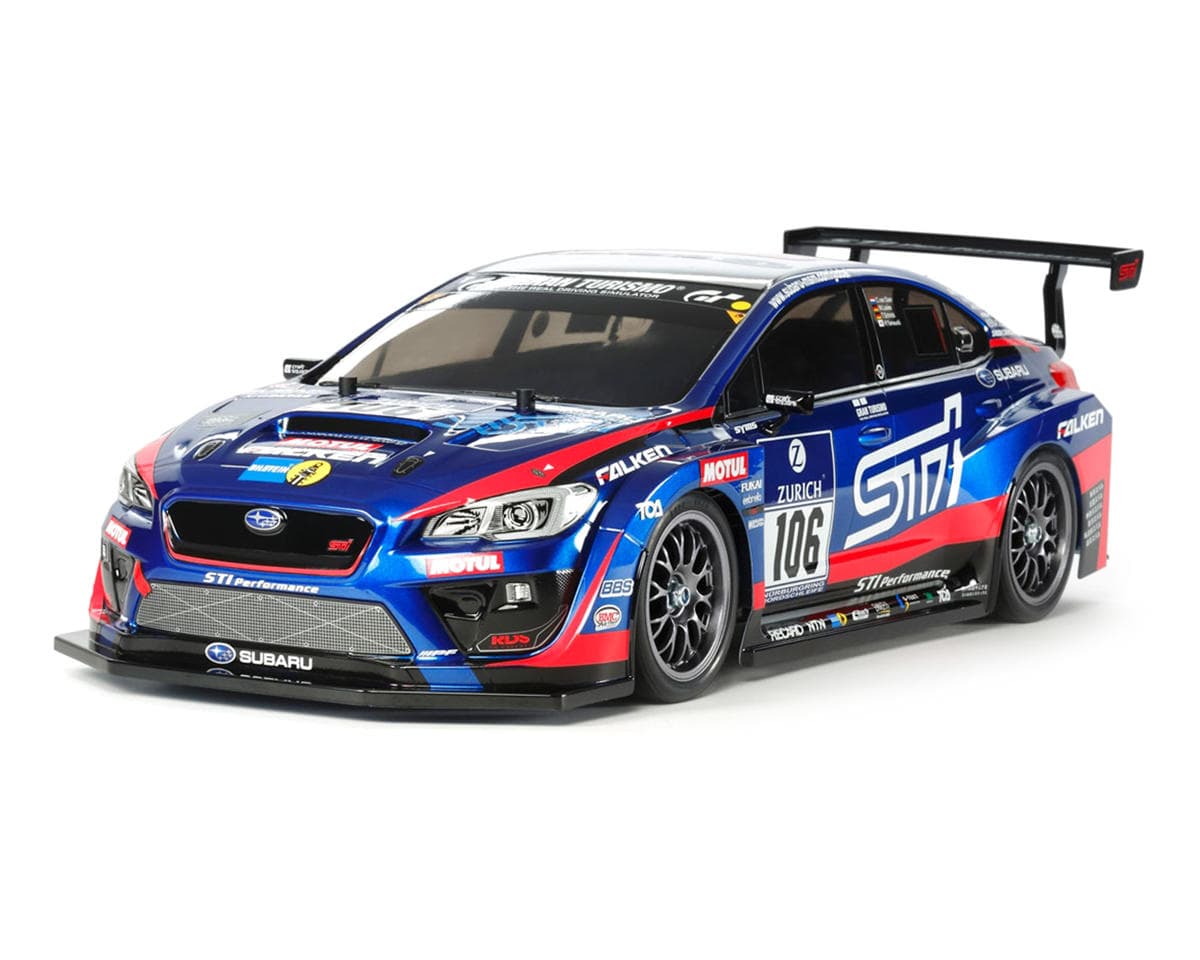

Tamiya TT-02 Subaru WRX STI 24h Nurburgring 1/10 4WD Electric Touring Car Kit
About this part
Performance Engineered On-Road Racing Kit
Crafted for the challenging Nurburgring 24-hour endurance race, the WRX STI NBR Challenge car is built on the foundation of Subaru's high-performance WRX STI sport sedan. This R/C model assembly kit faithfully replicates the winning vehicle that triumphed in its class during the 2016 edition of the grueling race. Every detail and performance aspect of the original car has been meticulously recreated, offering enthusiasts the opportunity to experience the excitement and success of Subaru's NBR Challenge car in a remote-controlled form.
Learn to Build Your TT-02View Blog
About the Subaru WRX STI NBR
Clear Body
The Clear untrimmed Subaru WRX STI NBR Challenge race car boasts a dynamic and aerodynamically optimized body design tailored for high-performance racing. Featuring aggressive lines, sleek contours, and an imposing presence, the car's exterior is meticulously crafted to enhance both visual appeal and aerodynamic efficiency on the race track. Every aspect of the body design reflects a seamless fusion of style and functionality, embodying the essence of a formidable racing machine. With a focus on optimal downforce, reduced drag, and efficient airflow, the WRX STI NBR Challenge race car's body design contributes to its success in endurance racing competitions.
Performance Chassis
The TT-02 chassis, with its adaptable and balanced shaft-driven 4WD system, ensures excellent stability through a longitudinal layout featuring the battery on the left and the motor on the right. Its design incorporates identical left and right suspension arms and uprights for straightforward assembly, along with easily maintainable gearboxes. The chassis offers versatility with two wheelbases, two ground clearance settings, two tread setups, and a selection of ten gear ratios. Not only functional, it boasts aesthetic appeal with brake disc-shaped wheel hubs, stylish front bumper supports, gun metal color 10-spoke wheels, and sleek slick tires, delivering a sporty appearance.
Included Electronics
This chassis Kit includes both a torque tuned brushed motor and Hobbywing 1060 ESC. these components combine to deliver a performance enhanced on-road racing experience. The compact ESC boasts extreme performance, complemented by a built-in capacitor module for efficient power delivery. With exceptional current endurance capability, easily configurable parameters using ESC jumpers, and automatic throttle range calibration for user-friendly setup, the Quicrun 1060 stands out. Its impressive built-in BEC output capacity, built-in capacitor, and IP-67 waterproof rating further elevate its reliability, making it a top-tier choice for enthusiasts seeking optimal performance in their RC adventures. The RS-540 Torque-Tuned motor offers higher top speeds and increased acceleration.
Features:
- Super smooth shaft-driven 4WD TT-02 chassis
- Stickers and window masking for use in the body painting process
- Sleek racing wheels to match the iconic body
- The body is made of lightweight and rigid polycarbonate
- Fully independent double wishbone suspension
- Low maintenance Friction style shocks
- Reliable Hobbywing THW 1060 Brushed ESC
- Strong Torque tuned Mabuchi RS-540 brushed motor
- High strength chassis constructed from ABS (Acrylonitrile Butadiene Styrene)
- Buttery smooth grease filled differentials
Connector Information
When upgrading to a high current LiPo battery, it is recommended to also upgrade your battery connector. We recommend using an XT60 or T-Style connector for this application. Please check out the video below to learn how to solder on a T-Style connector.
Includes:
- (1) Tamiya Subaru WRX STI NBR Kit
- (1) Hobbywing 1060 ESC with Tamiya Connector
- (1) Torque tuned 540 brushed motor
- Manual
Needed To Complete:
- 2 channel radio system
- (1) Standard or Low-profile Steering servo
- Polycarbonate paint for body
- (1) 7.2V NiMh battery with Tamiya Connector
- Compatible Charger
Specifications:
| Scale | 1/10 |
|---|---|
| Length | 18.22in (463mm) |
| Width | 7.40in (188mm) |
| Height | 5.43in (138mm) |
| Wheelbase | 10.11in (257mm) |
| Drive | 4WD |
| Input Voltage | 7.2V |
| Assembly Level | Kit* |
*NOTE: RC Kits are an unassembled Remote Control Model that require assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
Manuals:
User Manual
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 2 reviews
Standard TT-02 kit. Easy to build and fun to drive. Get some bearings for it. The body will take longer to complete then the chassis. Applying the decals goes on for an eternity. The final result is so stunning you rather stare at it than drive it. Either way, by the time you complete it, you will be too old to see it or drive it. Call your friends with TT-02 cars, lay out some PVC pipe on an outdoor basketball court, and start bouncing around the corners. The chassis balance is perfect and so is the cheesey silver can motor. Forget about all the hop-up options for this chassis. If you are looking for precision and bling, get a real touring car. Keep the TT-02 sloppy, slow and fun. This chassis provides some of the biggest smiles and laughs for the dollar.
Super fast delivery. 3 days from ca to Arizona. All ready started painting. Should be a nice Subaru race car when finished.
