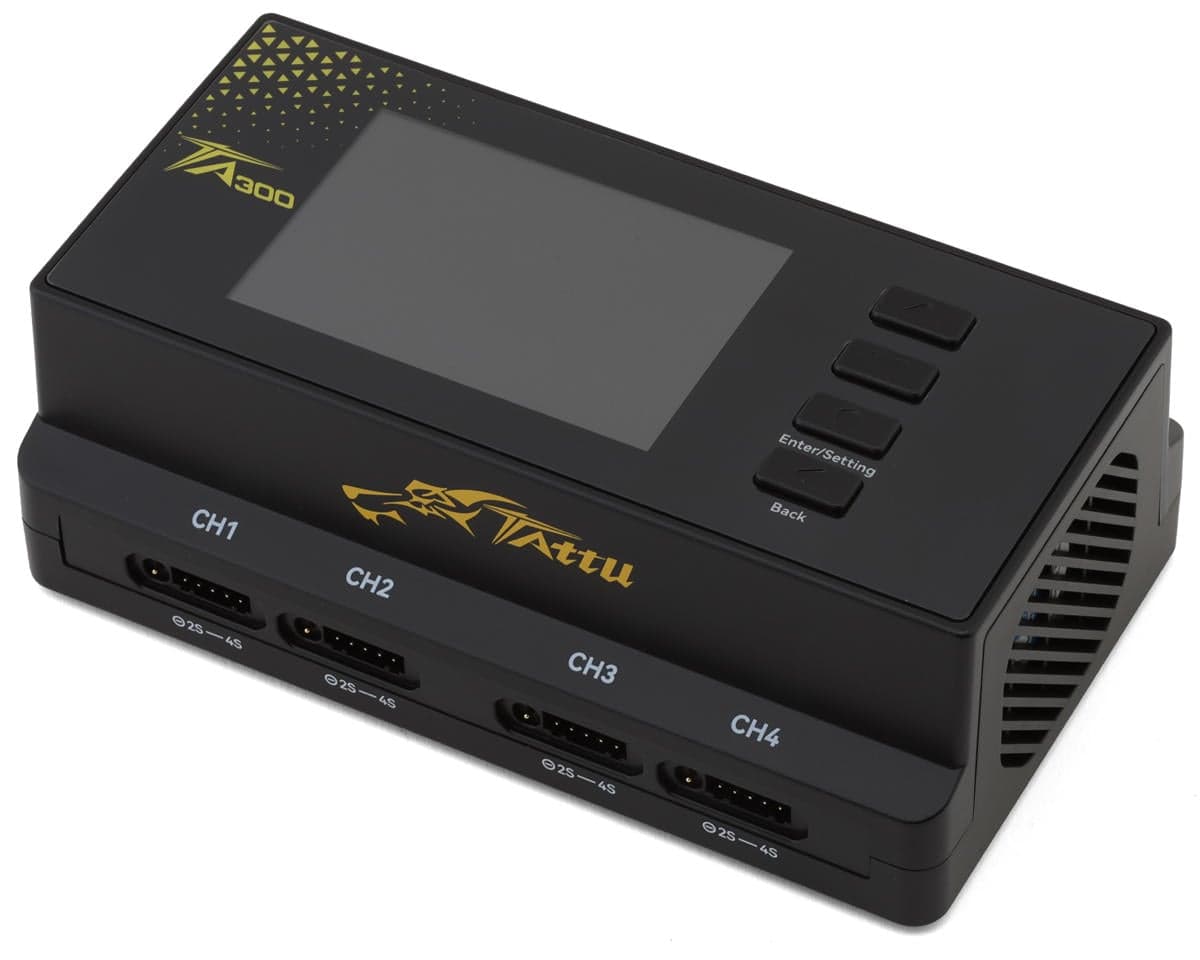

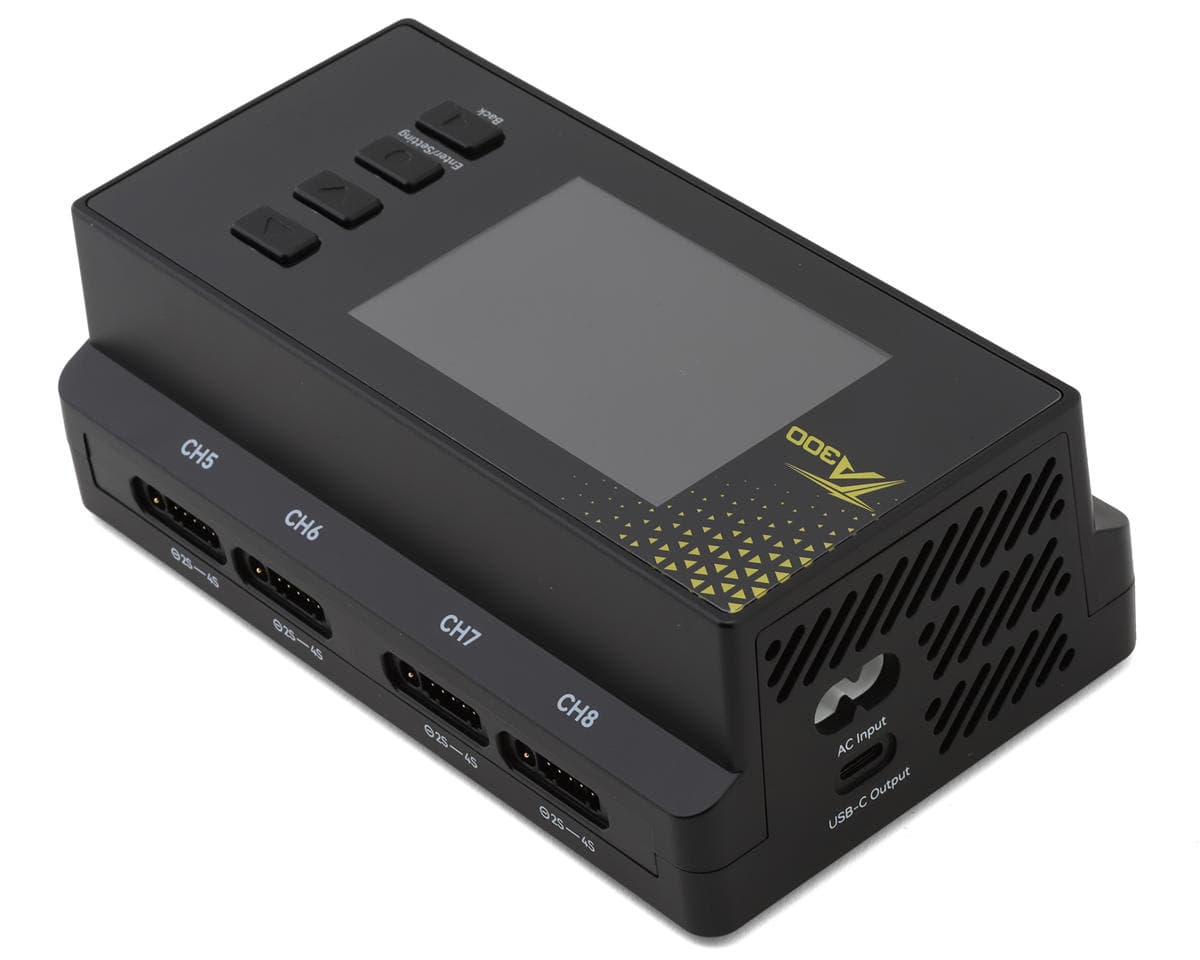

Tattu TA300 G-Tech Smart 8-Channel AC Charger (Black) (4S/2A/240W)
About this part
Tattu TA300 Drone Battery Charger
The Tattu TA300 G-Tech Smart 8-Channel AC Charger provides a convenient charging solution for pilots who regularly manage multiple 2S-4S LiPo or LiHV batteries. Eight independent charging channels deliver up to 30W each, allowing multiple packs to be charged from a single compact charger. G-Tech battery recognition, real-time monitoring, storage functionality, and built-in safety protections simplify battery management at home, at the track, or in the field.
About the TA300
G-Tech Smart Technology
The TA300 automatically recognizes compatible G-Tech smart batteries and detects the battery type and charging parameters for plug-and-play operation. Simply connect a G-Tech battery and the charger can begin charging without requiring the normal manual battery setup process. Standard non-G-Tech 2S-4S LiPo and LiHV batteries are also supported with manual configuration.
8-Charge Ports
Eight independent channels allow the TA300 to charge multiple batteries simultaneously, with up to 30W of charging power available per channel. This makes it especially useful for FPV, drone racing, drone soccer, and other applications that cycle through several smaller battery packs during a session.
Integrated Safety Protection
Eight levels of protection help monitor the charging process for abnormal conditions, including overheating, overcurrent, overvoltage, reverse polarity, short circuits, wire faults, incorrect cell counts, and abnormal battery voltage. These safeguards provide additional protection when managing several batteries at the same time.
Features:
- Eight independent charging channels
- Up to 30W charging power per channel
- Compatible with 2S-4S LiPo and LiHV batteries
- Plug-and-play operation with compatible G-Tech batteries
- Charge and storage modes
- Up to 3W discharge power per channel
- Real-time battery monitoring
- Eight-level charging protection
- 60W maximum USB-C output
- Compact and lightweight design
Includes:
- (1) Tattu TA300 8-Channel Smart Charger
- Product Manual
Specifications:
| Input Power | AC |
|---|---|
| Input Voltage | 100-240V AC |
| Output Voltage | 1-17.4V DC |
| LiPo/LiHV Cell Count | 2-4S |
| NiMH/NiCd Cell Count | None |
| Charge Power | 240W AC (30W/Channel) |
| Discharge Power | 3W x8 |
| Charge Current | 0.1-2A |
| Discharge Current | 0.1-3A x2 |
| Max. Input Current | - |
| Balance Current | - |
| Display | 2.4in IPS LCD |
| Cell Balancing | 2-4S |
| Dimensions | 6.35x3.74x2.31in (161.3x95.0x58.7mm) |
| Weight | 19.4oz (550g) |
