Parts/Electric power/Brushed motors/Team Brood Demolition 550 5-Slot Skewed Machine Wound Brushed Motor (10T)

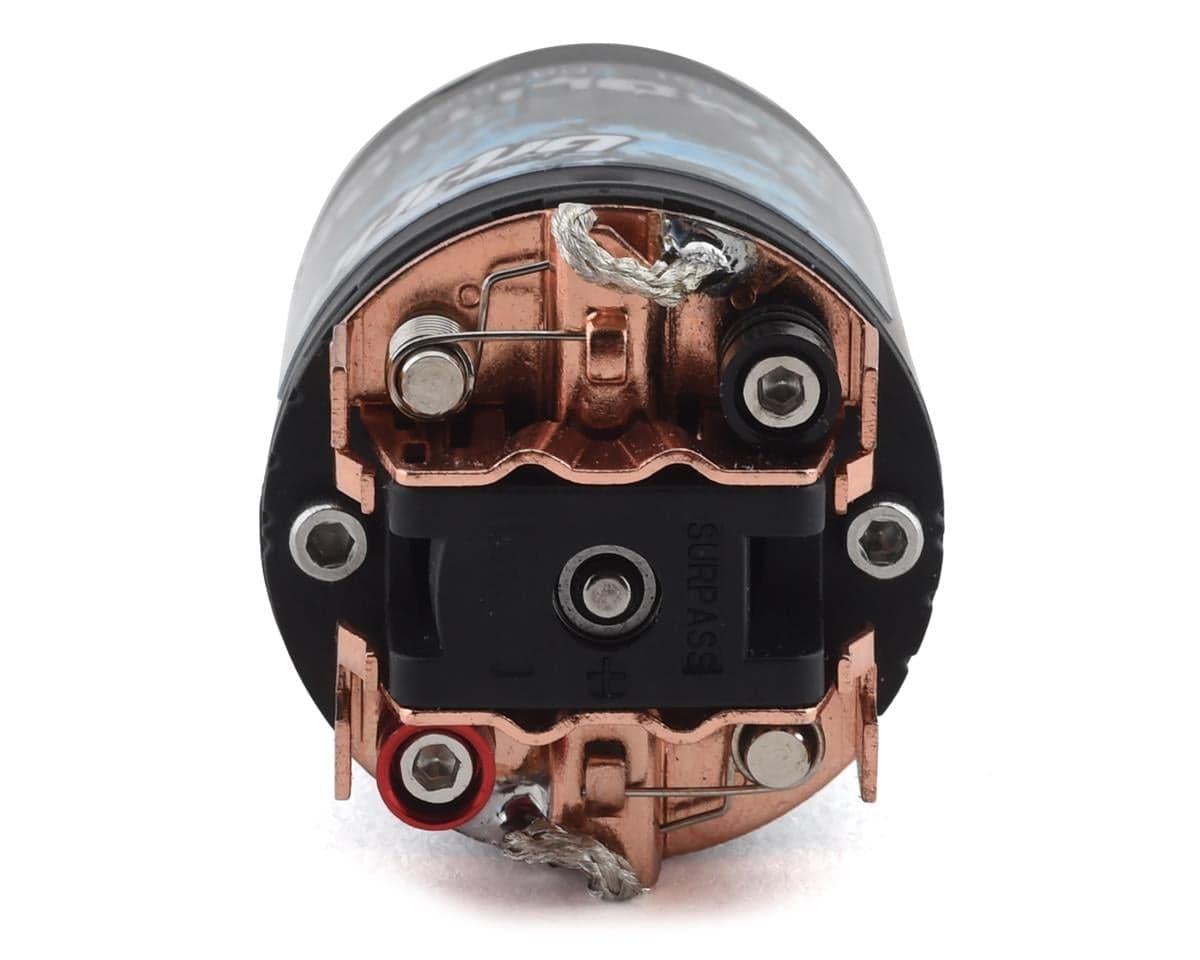

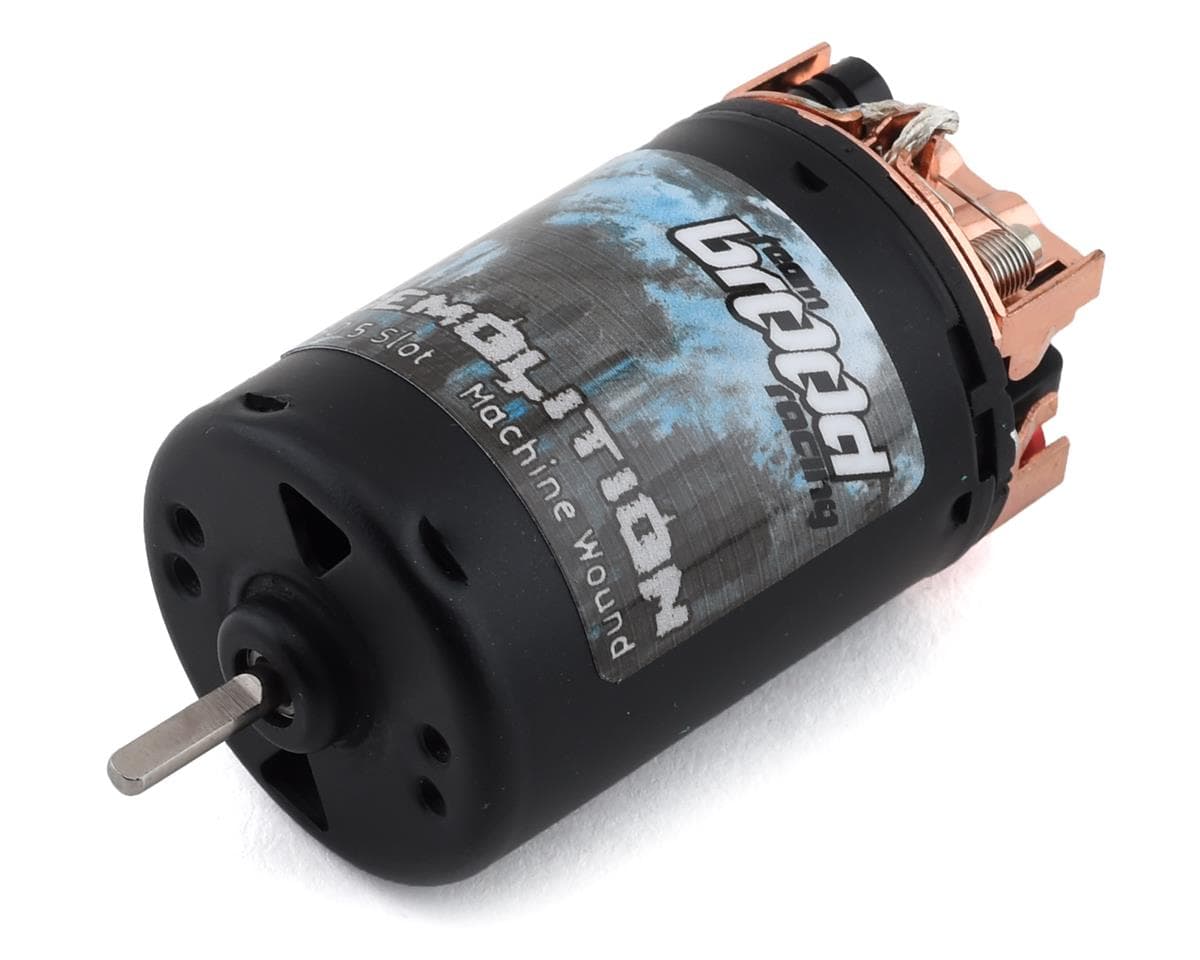

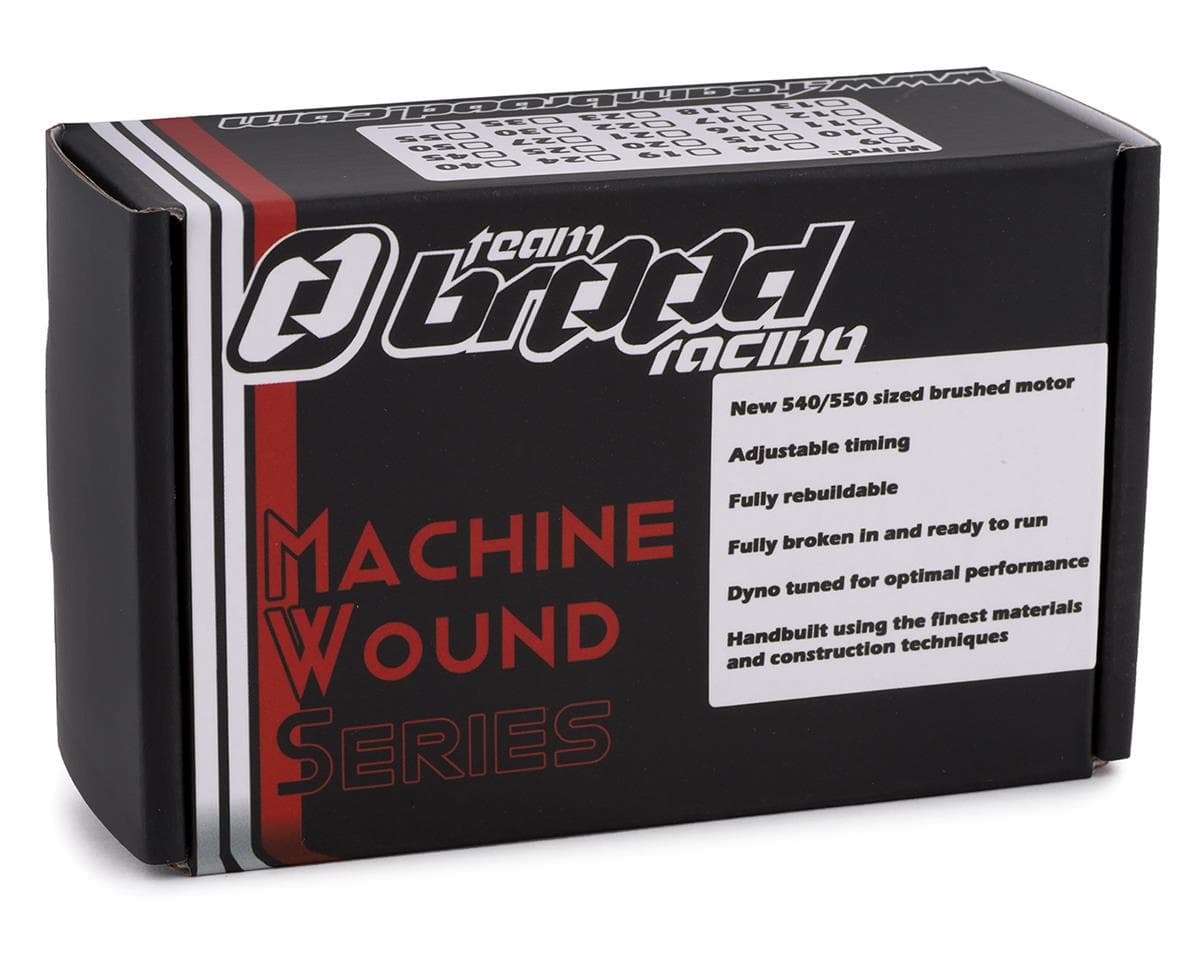

Team Brood Demolition 550 5-Slot Skewed Machine Wound Brushed Motor (10T)
Team Brood

Team Brood Demolition 550 5-Slot Skewed Machine Wound Brushed Motor (10T)

Part # BRO-TBR-DEMOLITION103.0(2)
Brushed motorsLandcraft
Where to buy
$40.00
AMain Hobbies
Seen Oct 12, 2026
$40.00Buy
Prices are as last seen at the store; stock is not tracked.

About this part

The Team Brood Demolition 550 5-Slot Machine Wound Brushed Motor is a great choice for budget conscious crawlers that want the benefits of a larger can 550 motor that has been disassembled, spec'd and prepped. Demolition series motors have been built using a strict assembly process that includes hand shimming the armature and precision brush hood alignment, and is then finished off with a low impact break in and dyno test to ensure that each motor meets strict criteria. This is done to extract all the power from this machined wound option, and provide enthusiasts with a higher quality choice when compared to standard machine wound motors.

Features:

  • Dual Magnet Can: C6 magnets maximize torque and brake strength
  • Adjustable Timing: Fine tune the motors powerband to optimal settings
  • Rebuildable: Can be rebuilt to provide maximum power and longevity
  • Dual Precision Ball Bearings: Reduces friction provides increased efficiency and power
  • Aluminum Heatsinks: Additional cooling provides for a more efficient motor
  • Standup Brushes: Long lasting performance
  • Springs: Optimal Tension Springs
  • Machine Wound Armature: Delivers consistent and reliable performance, at a more affordable price
  • Warranty: 30 Day Limited through manufacturer
Build Features:
  • Cleaned and Lubed Bearings: Allows for the smoothest operation
  • Precision-Spaced Armature: Centers the Armature in the magnetic field with minimal play
  • Precision-Measured Springs: Assures both springs are at the optimal tension
  • Aligned Brush Hoods: Allows the brushes to make full contact allowing even wear and max power
  • Tested: Each component is tested on precision calibrated equipment
  • Fully Broken-In: Ready to install and run when you pull it out of the box
Specifications:
  • Motor:
    • Poles: 2
    • Magnets: Dual C6
    • Brush Style: Standup
    • Voltage Input: 3.7v-14.8v
    • Break-In: 300 seconds at 3 volts, 30 seconds at 3.5 volts
  • Armature:
    • Construction: Machine wound
    • Lamination Size: .014"
    • Stack Design: Skew
    • Slots: 5
    • Wire Type: Copper Round
    • Balance Type: Epoxy
    • Turns: 10T
  • Motor Dimensions:
    • Weight: 8 ounces
    • Length: 63mm (2.48")
    • Diameter: 35.85mm (1.41")
    • Shaft Size: 3.175mm (1/8th)
    • Mounting Pattern: Standard 540 M3x25mm
CA Residents Prop 65 Warning WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...

Reviews3.0 · 2 reviews

Matt bantaVerified owneron Team Brood Demolition 550 5-Slot Skewed Machine Wound Brushed Motor (10T)

Installed in trx4 on 3s lipo. Good wheel speed and decent low end control. However, motor lasted 3 minutes of run time before the winds came off of the armature. Ive had 2 Brood 550 motors do this. Buyer beware.

5 found this helpful
Don AndersonVerified owneron Team Brood Demolition 550 5-Slot Skewed Machine Wound Brushed Motor (10T)

Put this motor in a trx4 on 4s. Plenty of power and torque would recommend to a friend. Worth it especially for the price.
