Parts/Electric power/Brushed motors/Team Brood Monster Truck Machine Wound 540 Clod Buster Motor (23T)
Team Brood

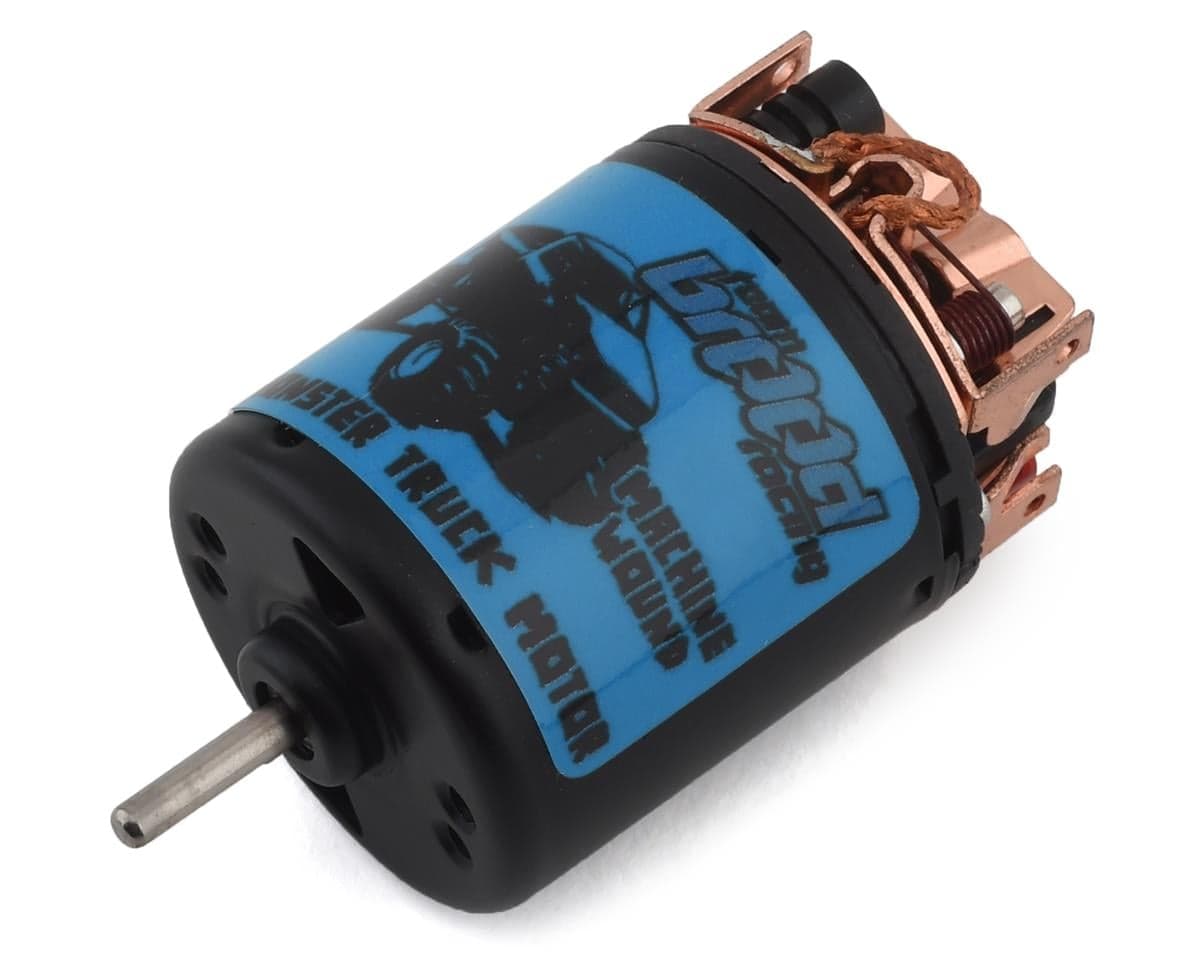

Team Brood Monster Truck Machine Wound 540 Clod Buster Motor (23T)
Part # BRO-TBR-MONSTERMOTOR23T
Where to buy
$29.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Team Brood Monster Truck Machine Wound 540 3 Segment Brushed Motor was developed specifically for spec solid axle monster truck racing. This motor is set to 0 degrees timing, and is ready to rip right out of the box. Grab a one and take advantage of the tricks and tweaks that only a veteran motor builder can offer!
Specifications:
- General:
- Poles: 2
- Magnets: Dual CR6
- Brush Style: Standup
- Voltage Input: 3.7v-14.8v
- Break-In: 300 seconds at 3 volts, 30 seconds at 3.5 volts
- Armature:
- Construction: Machine Wound
- Lamination Size: .2mm
- Stack Design: Skew
- Slots: 3
- Web: 4mm
- Commutator Size: 7.5mm (.300") Small
- Wire Type: Copper Round
- Balance Type: Drill
- Turn Count: 23 Turns
- Dimensions:
- Weight: 6 ounces
- Length: 54mm (2.125")
- Diameter: 35.85mm (1.41")
- Shaft Size: 3.175mm (1/8th)
- Mounting Pattern: Standard 540 M3x25mm
