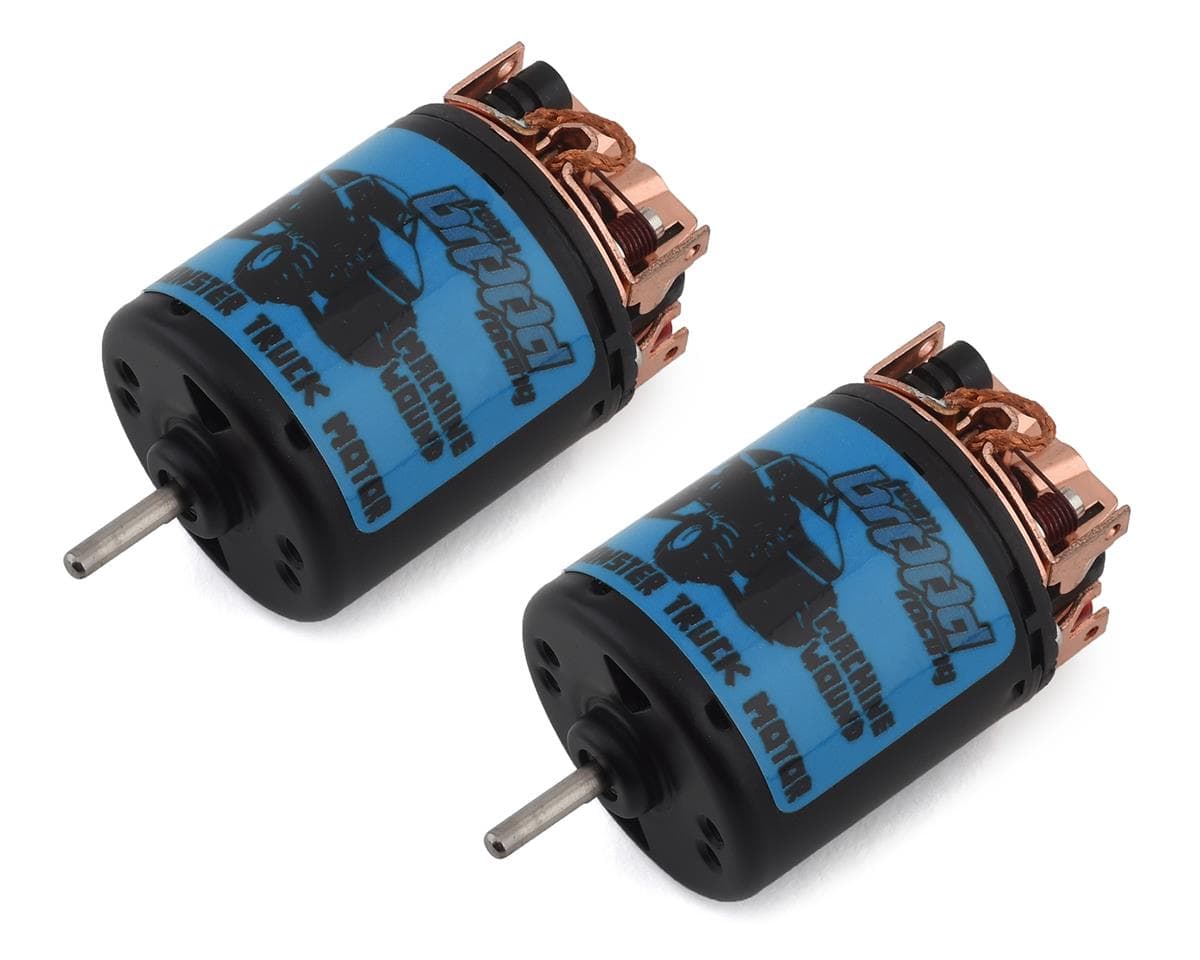

Team Brood Monster Truck Machine Wound 540 Clod Buster Motor Set (2) (23T) (Matched Pair)
Part # BRO-TBR-MTM23TPAIR
Where to buy
$64.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Team Brood Monster Truck Machine Wound 540 Clod Buster Motor Set was developed for spec Clod Buster racing. These motors are setup as a matched pair, marked with forward and reverse position and tuned to run in sync. The motors are broken in in the correct rotation, set to 0 degrees timing, and are ready to rip right out of the box. Grab a pair and take advantage of the tricks and tweaks that only a veteran motor builder can offer!
Specifications:
- General:
- Poles: 2
- Magnets: Dual CR6
- Brush Style: Standup
- Voltage Input: 3.7v-14.8v
- Break-In: 300 seconds at 3 volts, 30 seconds at 3.5 volts
- Armature:
- Construction: Machine Wound
- Lamination Size: .2mm
- Stack Design: Skew
- Slots: 3
- Web: 4mm
- Commutator Size: 7.5mm (.300") Small
- Wire Type: Copper Round
- Balance Type: Drill
- Turn Count: 23 Turns
- Dimensions:
- Weight: 6 ounces
- Length: 54mm (2.125")
- Diameter: 35.85mm (1.41")
- Shaft Size: 3.175mm (1/8th)
- Mounting Pattern: Standard 540 M3x25mm
