Team Brood

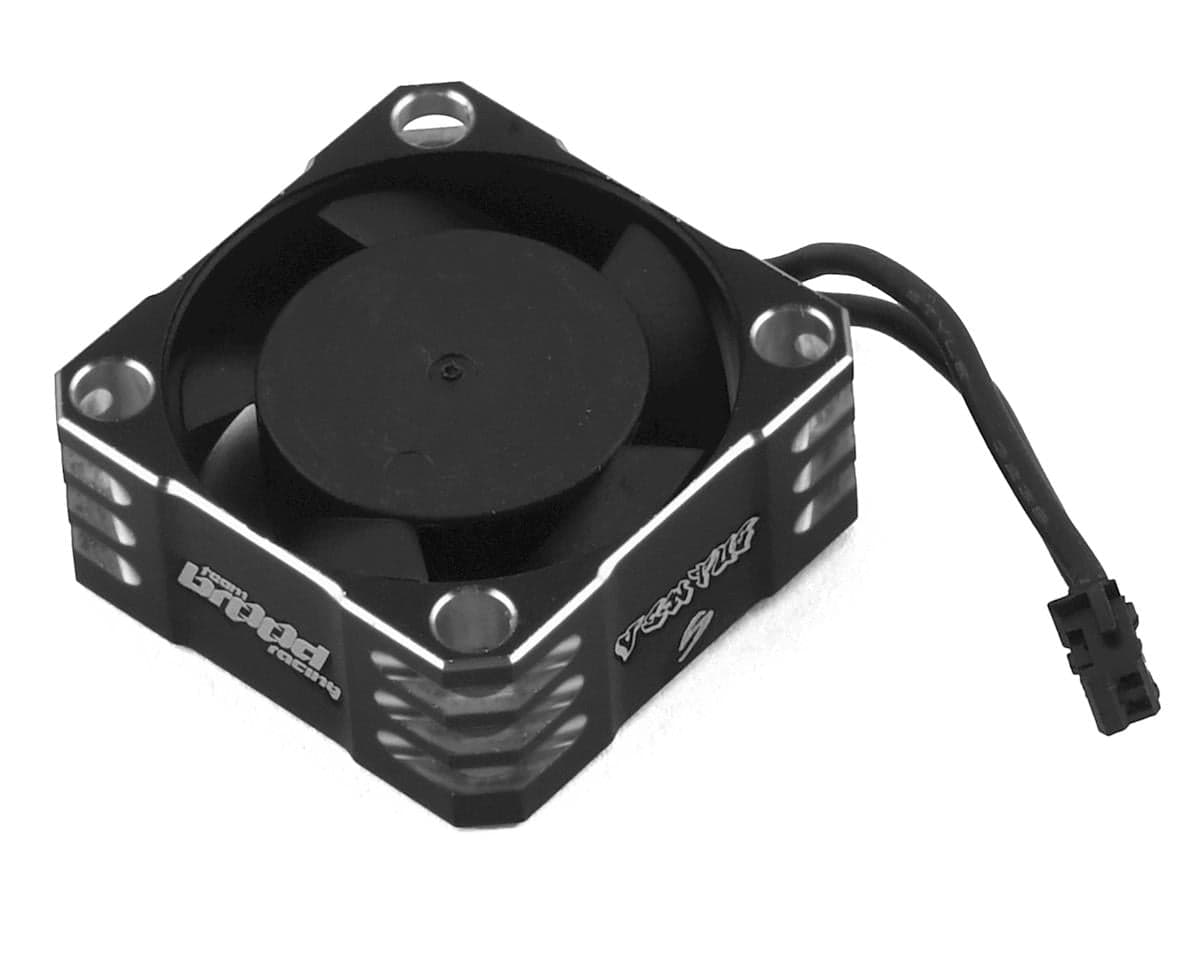

Team Brood Ventus S Aluminum 25mm Cooling Fan (Silver)
Part # BRO-TBR-SVENTUSSILVER
Where to buy
$18.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Team Brood Ventus S Aluminum 25mm High Speed Cooling Fan is a high quality fan option developed for high performance applications. The Ventus S features a heavily machined aluminum casing that will help to protect the fan blades in the event of a crash, and is lighter than a typical 30mm fan making it perfect for a weight conscious enthusiast.
The fan is compatible with 2S HV LiPo systems (8.75V max), has dual ball bearings, and is pre-wired with a 2 pin connector that can be plugged directly into the receiver or another source of power. This fan can be mounted with double side tape, and is an excellent choice for a variety of applications ranging from 1/12 to 1/8 scale.
NOTE: For optimal performance, the fan should be installed at least 5mm away from the motor to prevent magnet interference and to allow sufficient air flow.
Features:
- 25mm aluminum cooling fan
- Aluminum casing helps dissipate heat and protect the fan blades
- Compatible with 2S HV LiPo systems (8.75V max)
- Anodized black with silver chamfered edges
- Perfect for 1/12, 1/10 and 1/8 applications
- 2 pin connector for easy installation
- 30 Day Warranty against defects
Specifications:
Dimensions: 25x25x10mm
Material: Aluminum & Plastic
Bearing: Dual Ball Bearing
Operating Voltage: 5V - 8.4V
Max RPM: 32,000
Current: 0.52A @7.4V
Max RPM: 32,000
Current: 0.52A @7.4V
Connector: JST 2-Pin
Fan Applications: 1/10 Scale, 1/12 Scale, 1/8 Scale
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews
No reviews yet.
Builds using this part
No builds use this part yet — add it to yours from the build editor.
