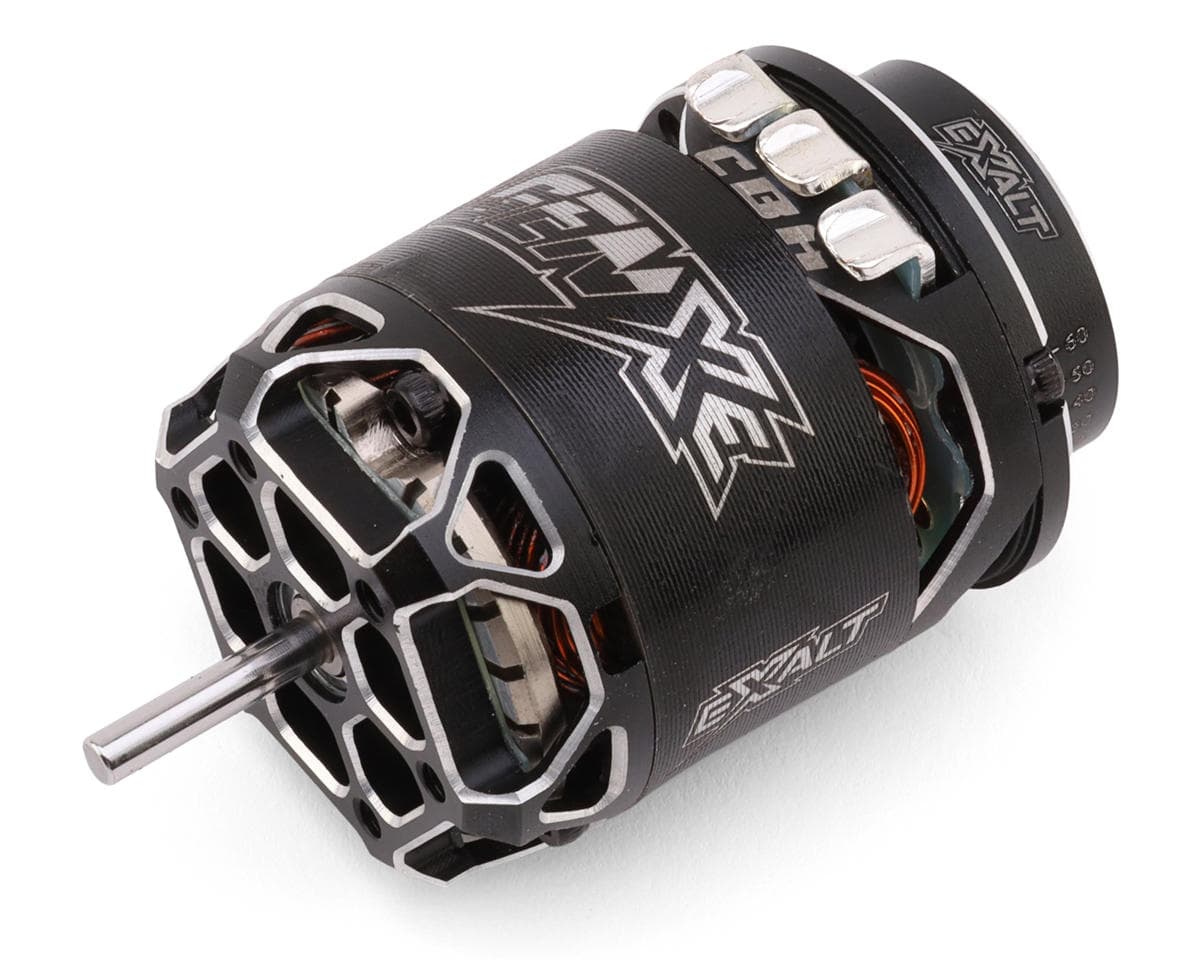

Team Exalt Gen-Xe Bronze Spec Competition Sensored Brushless Motor (13.5T)

Motor Overview:

The Team Exalt Gen-Xe Bronze Spec Competition Sensored Brushless Motor is engineered around a revised stator design featuring updated lamination geometry and optimized shaping to reduce magnetic turbulence. This approach allows the motor to deliver strong torque output without compromising RPM capability. High-quality copper magnet wire is wound to tight tolerances to maintain resistance near the legal minimum, and the insulation system is built for thermal stability to minimize resistance drift and performance fade during long race sessions.

About the Gen-Xe Bronze Spec

Consistency & Competitive Power

The Gen-Xe configuration incorporates a high-temperature epoxy-reinforced stator for improved rigidity, vibration control, and heat transfer, helping the motor maintain consistent performance under heavy load. Its precision-balanced 12.5 millimeter rotor uses a low-resin, high-strength magnet formulation to resist thermal degradation and preserve magnetic force deeper into each run. Ceramic bearings support the rotor for reduced friction and long-term reliability at high RPM. Externally, the motor features a rigid can with directional cooling channels that guide airflow across the stator and rotor, while a machined endbell and reinforced rear plate maintain structural stability and precise sensor alignment. A high-accuracy sensor system with refined hall-element placement and optimized routing ensures smooth startup, clean throttle response, and stable ESC communication throughout the RPM range.

Features:

• High-quality copper windings with tight resistance control
• Epoxy-reinforced stator for rigidity and heat transfer
• Precision-balanced 12.5 millimeter rotor
• ROAR approved
• Ceramic bearings for efficiency and durability
• Optimized cooling channels and rigid can structure

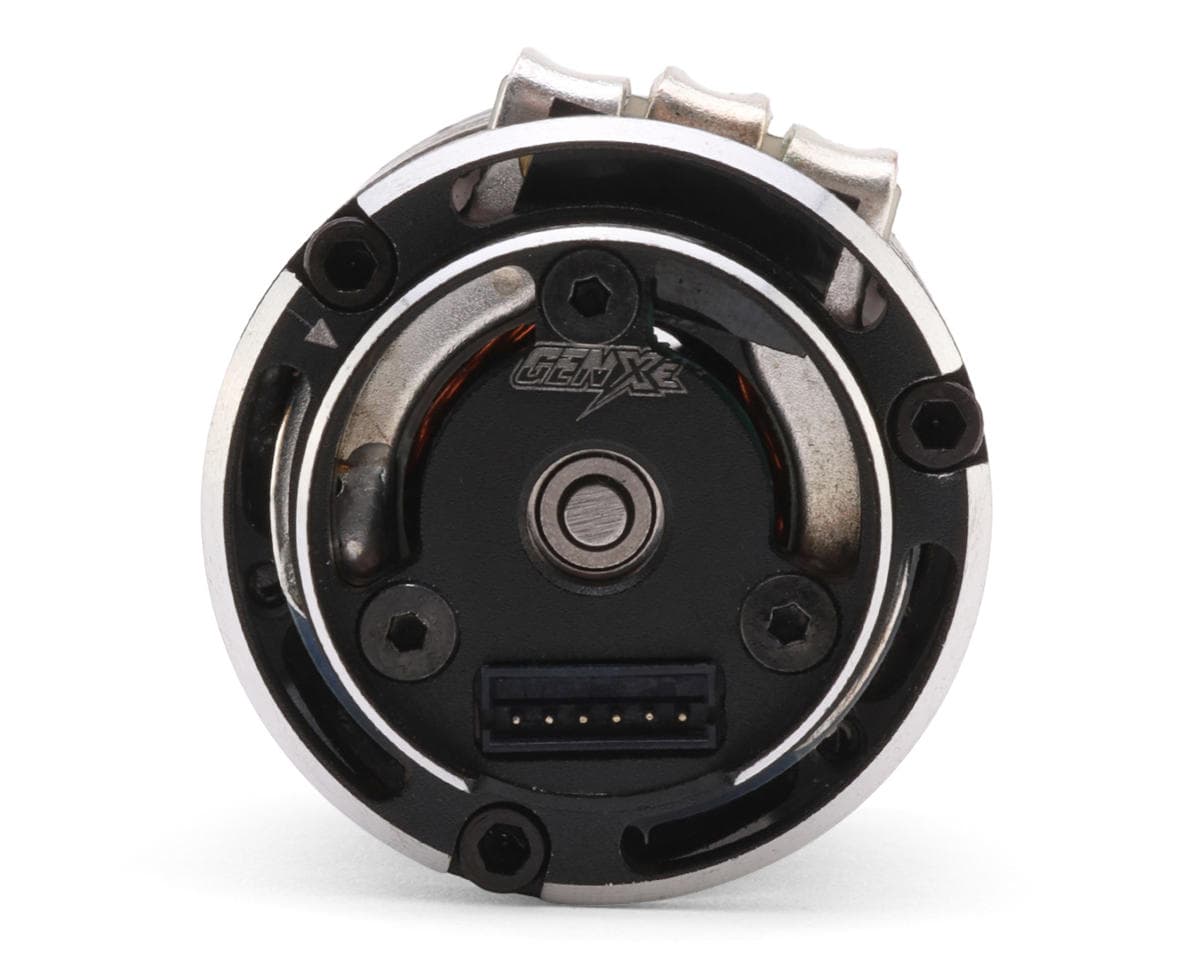

• Reinforced endbell for stable timing and sensor alignment
• High-accuracy sensor board for clean throttle response
