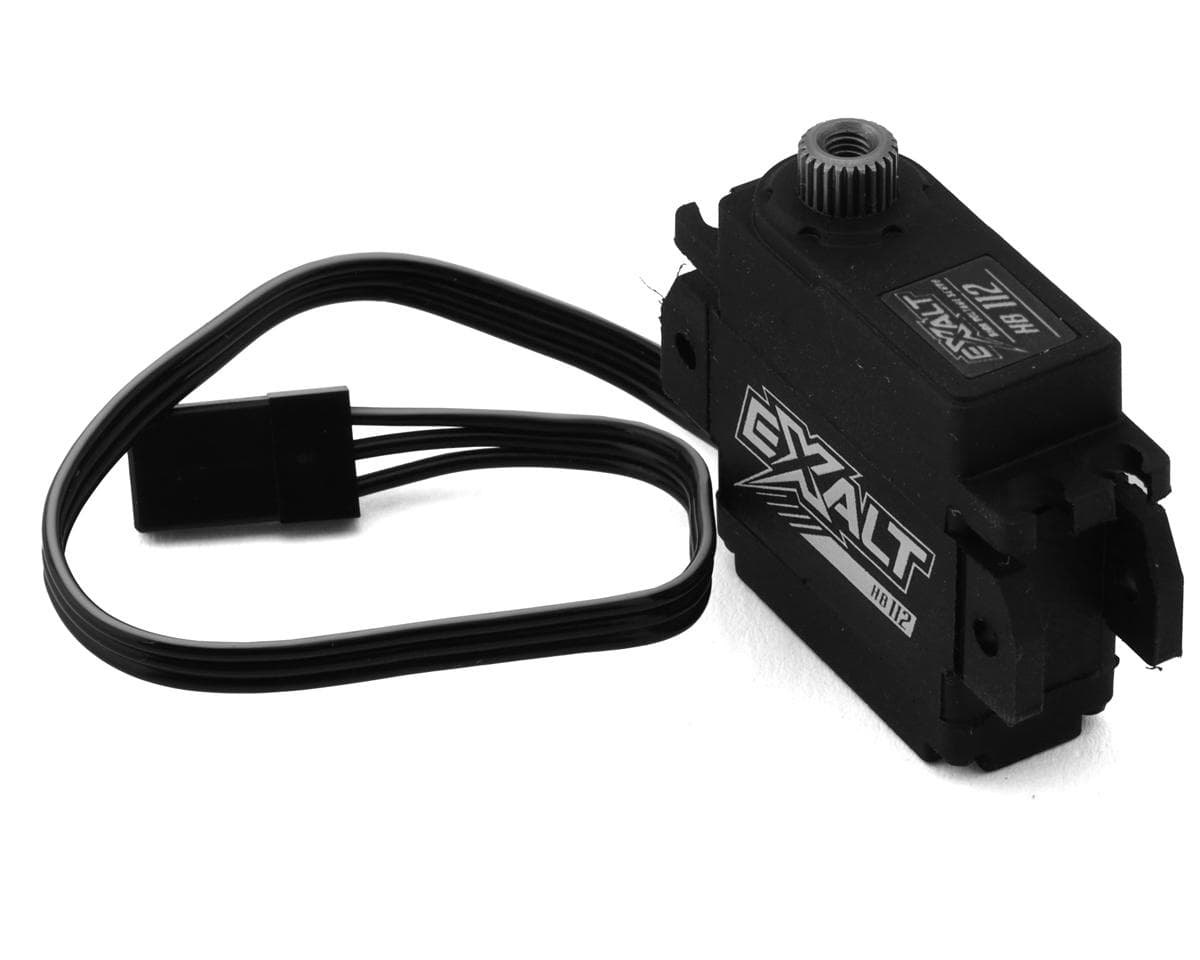

Team Exalt HB112 1/12 Metal Gear Brushless Mini Servo (High Voltage)
About this part
Servo Overview:
Team Exalt HB112 1/12 Metal Gear Brushless High Voltage Mini Servo. Capable of running on up to 8.4V with all machined Titanium and metal gears, and a super lightweight composite case, this mini servo is intended for 1/12 scale cars in need of a lightweight servo without compromising speed and torque to provide a smooth and responsive steering feel!
Features:
- Hi voltage capable of up to 8.4V
- High torque and speed powerful coreless motor
- All Metal and Titanium machined gears
- Smooth and responsive feel
- Lightweight composite case
Specifications:
- Speed:
- @6.0V: 0.085sec/60°
- @7.4V: 0.073sec/60°
- @8.4V: 0.065sec/60°
- Torque:
- @6.0V: 87.49oz-in (6.3kg-cm)
- @7.4V: 104.15oz-in (7.5kg-cm)
- @8.4V: 118.04oz-in (8.5kg-cm)
- Motor: Coreless
- Operating Voltage: 4.8V-8.4V
- Operating Trmp.: -
- Dimensions (LxWxH): 27x12x28mm
- Weight: 16.5g (0.582oz)
- Operating Spline: 25T
Includes:
- (1) Exalt HB112 High Torque 1/12 Coreless Servo

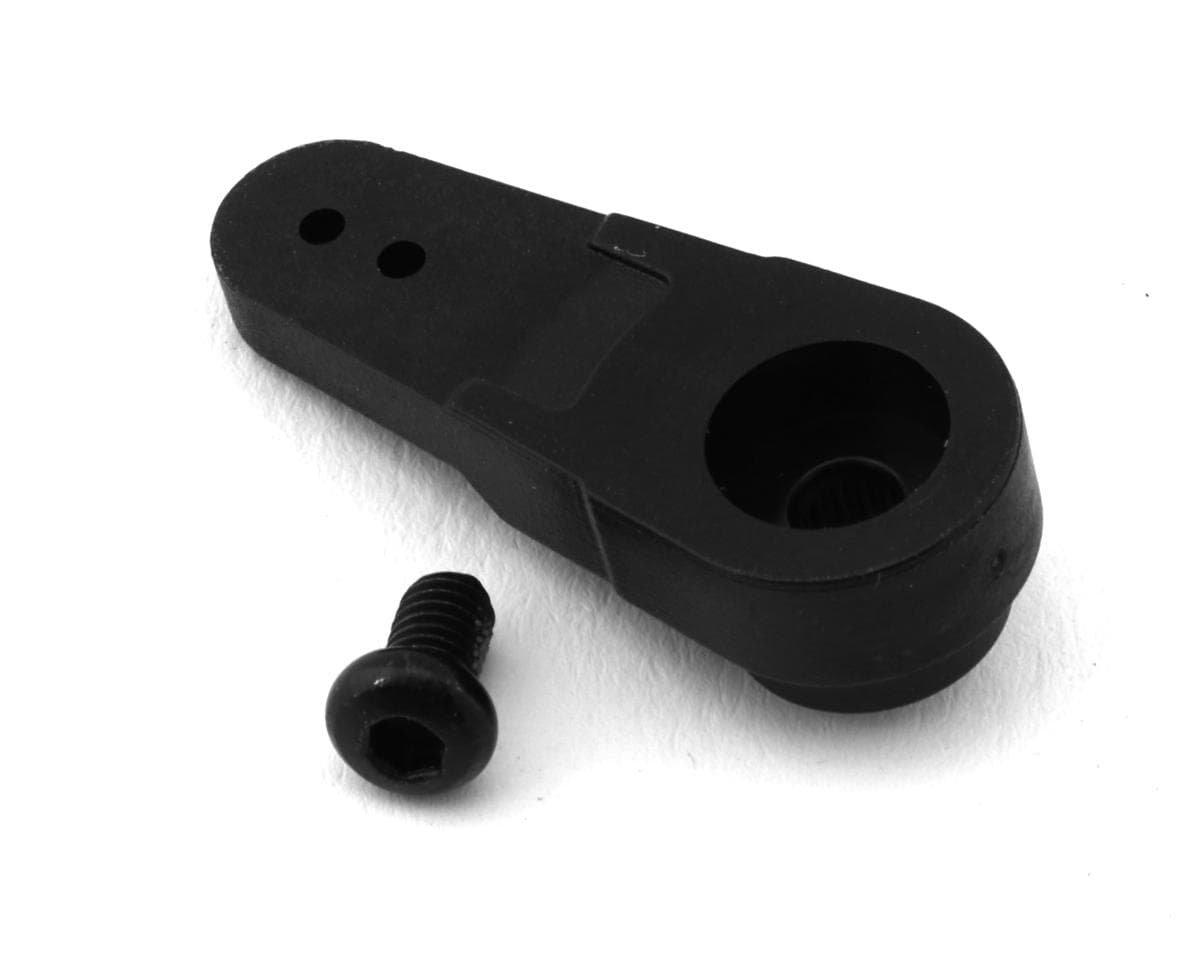

- Composite Servo Horns and Mounting Hardware
Reviews4.5 · 2 reviews
Super fast and strong. Works great in my Ovalwerks Resurgent for foam tire 21.5 truck. Exalt is a great company to deal with all around.
I haven't run this servo yet, so I'll update my review when I do. I just wanted to put some info out there. For those with a 12th scale pan car that requires a thin servo, this has a standard 25t spline and the xray servo saver I used come with adapters for 23, 24, and 25t servos. This fit in my roche p12v with room to spare.
