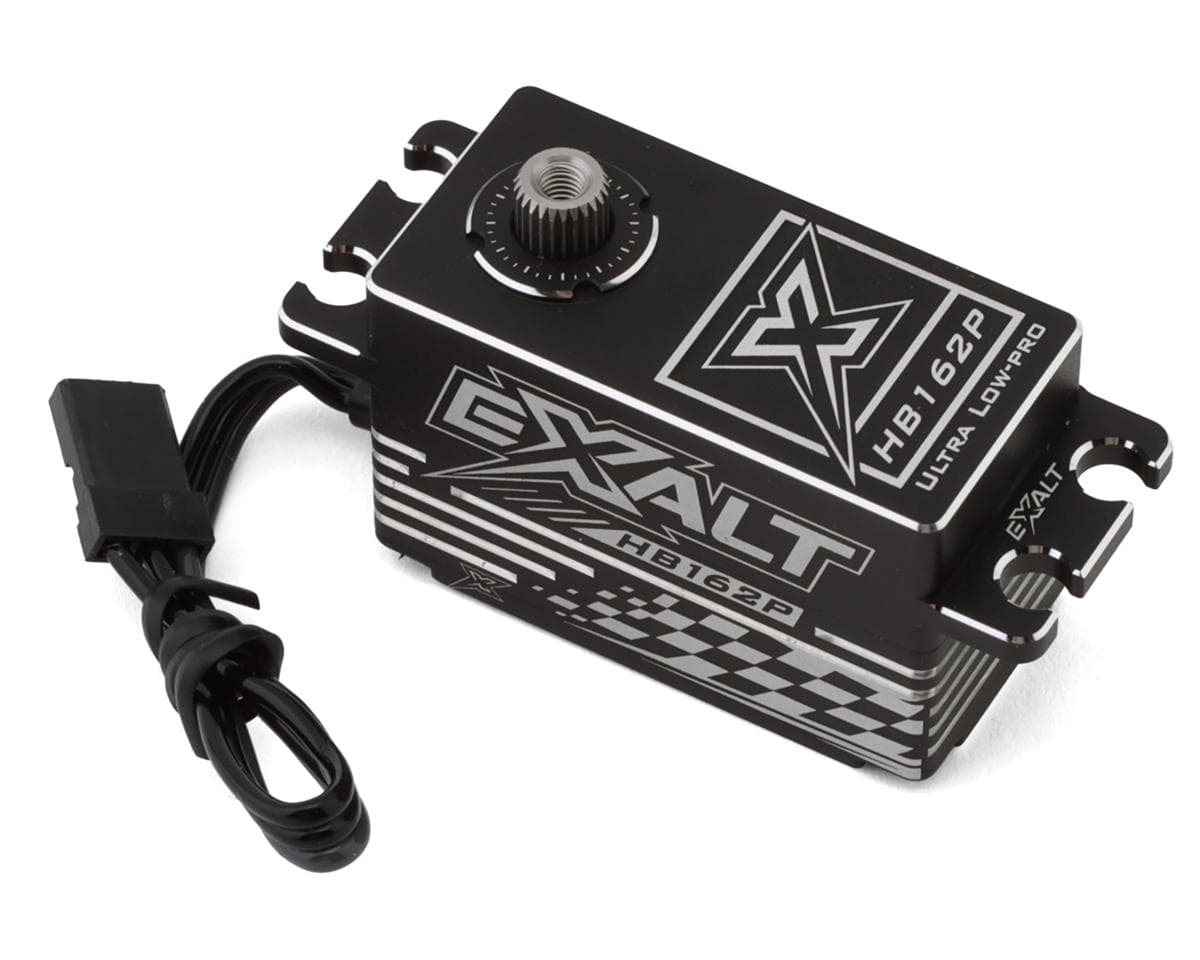

Team Exalt HB162P Ultra Low Profile Brushless Servo (Programmable)
About this part
Servo Overview:
This is the HB162P Ultra Low Profile Brushless Servo from Team Exalt. Designed for racers seeking precision and reliability, this servo delivers strong torque and fast response for confident control. Its compact low-profile design allows it to fit a wide range of RC vehicles.
About the HB162P Ultra Low Profile Brushless Servo
High-Precision Steering Performance
The HB162P combines high torque output with rapid transit speeds to deliver precise and responsive steering control. Its dual ball bearing construction and digital circuitry provide smooth operation and accurate centering, even under demanding conditions. The wide operating voltage range allows for flexible setup options, while its fully programmable design enables fine-tuning to match specific driving styles and track conditions. With a compact footprint and durable construction, it is well-suited for on-road, off-road, oval, and scale applications.
Features:
- Ultra low profile design
- High torque output
- Fast transit speed
- Digital circuitry
- Dual ball bearings
- Wide operating voltage range
- Fully programmable performance
- Smooth centering accuracy
Includes:
- (1) HB162P Ultra Low Profile Brushless Servo (Programmable)

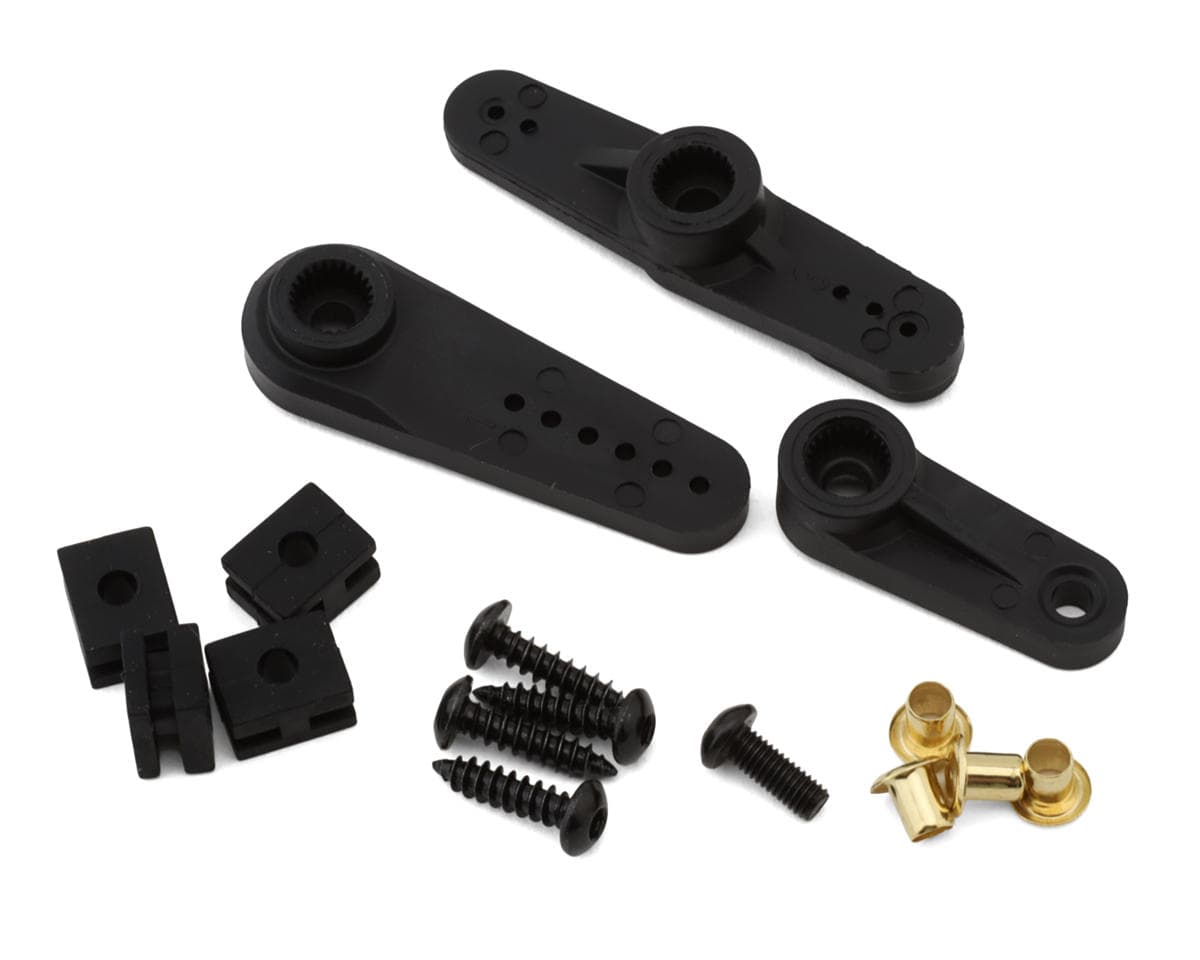

- (1) Servo Horns & Hardware Set
Specifications:
| Application | 1/10-1/12 |
|---|---|
| Input Voltage | 4.8-8.4V |
| Operating Speed @ 6.0V | 0.085sec/60° |
| Dynamic Torque @ 6.0V | 292oz-in (21.0kg-cm) |
| Operating Speed @ 8.4V | 0.068sec/60° |
| Dynamic Torque @ 8.4V | 375oz-in (27.0kg-cm) |
| Pulse/Frequency | - |
| Motor Type | Brushed - Coreless |
| Output Shaft Spline | - |
| Gear Material | Metal |
| Dimensions | 1.61x0.80x1.03in (40.8x20.2x26.1mm) |
| Weight | 2.19oz (62g) |
