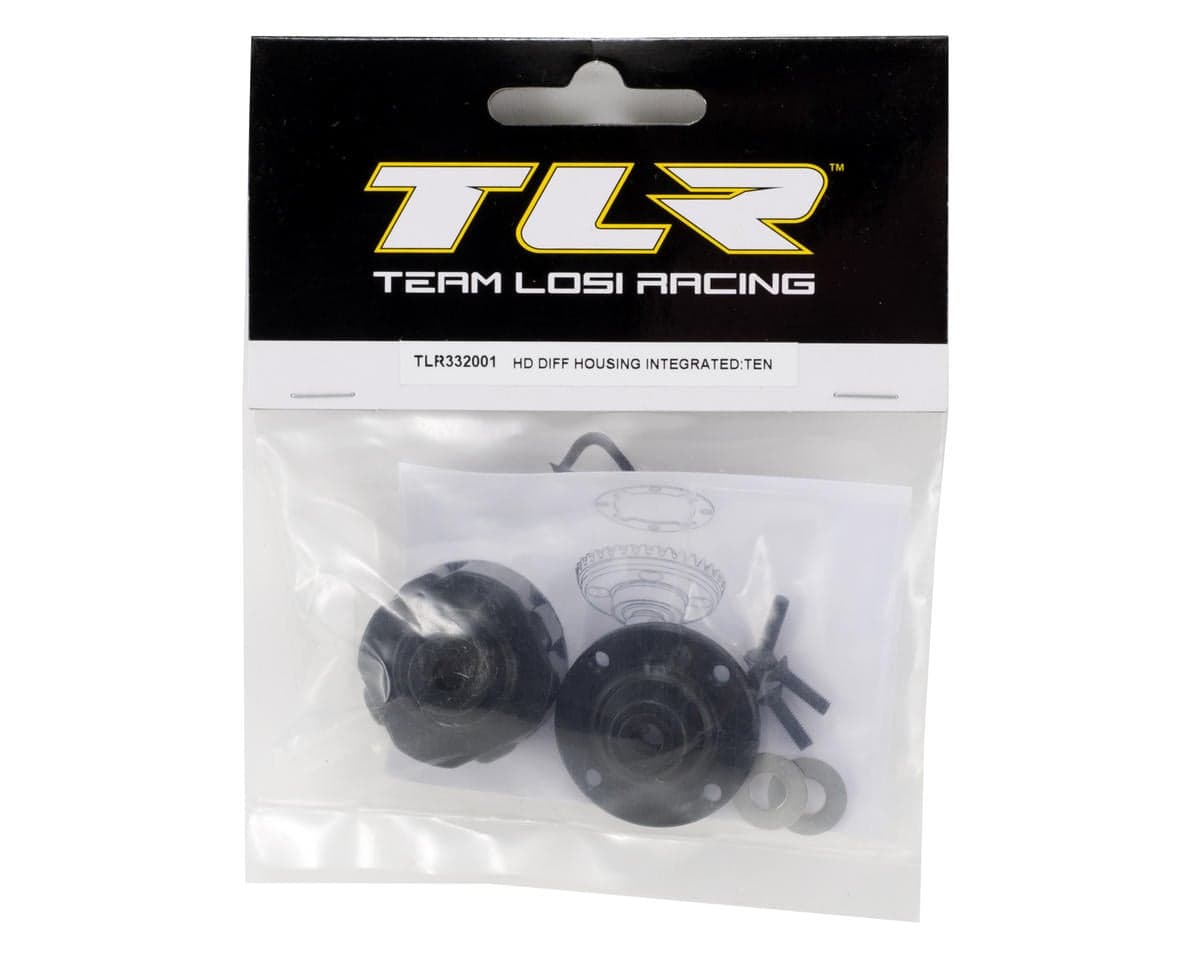

Team Losi Racing HD Differential Housing w/Integrated Insert
About this part
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews3.8 · 4 reviews
The new HD diffs are an improvement over the original ones. But to make it a huge improvement I had to swap out a few of the stock parts included in this set. I haven't had a drop of diff fluid leak on me since. The key is to build it correctly and use a few aftermarket parts to bullet proof the diff. The design is good but there are a few week parts in this diff rebuild set. The diff screws are very soft and easy to strip I highly recommend that you swap it out with some Protek screws 2.5x12mm (PTK-H-2104). The other weak part is the diff shims. I rebuilt the original HD set and noticed that the shims had bowed out into a bowl from wear and tear. The shims are too flimsy. I swapped the shims and bushings out with the stronger ones from APE-rc. The next thing you are going to need is AE green slime (ASC1105). Thats it. Do it right onces and you won't have to touch it for a while. Another note while building up the diffs is to make sure you don't overfill the diffs. Use the green slime on the o-rings and the gasket. When screwing in the diff cap make sure you watch for any seepage which could be caused by overfilling. If you see any sign of diff fluid after you finish screwing in the screws then you overfilled it and lossed the seal that that green slime provides. Rebuild it so that you don't see any diff fluid. Some green slime seepage is ok but if any diff fluid shows up then you didn't build it correctly and that diff WILL leak. If done correctly your diffs will stay filled for a very very long time.
I bought this to replace the original. The screw in to the bag are very poor and strip realy esily. When I tried to screw it, it takes me a lot of strenght, because they juste make an hole in the plastic case... Theres no threads in there!?!?! and when came the time to unscrew it i break a screw in two parts. So now I have a lot of problems to pull the screw out of that part... it breaks just at the tips of the case.
I got an ARR Losi Ten-SCTE and the first thing that I did when I received it was toss the stock diff housings. I read too many complaints about how poorly the stock diffs seal resulting in grease or fluid loss. These HD housings are much better than the stock ones. My biggest complaint is that the included screws are VERY easy to strip out even with high quality tools. I did some searching and Chris Attebery from APE-RC used some M2.5 x .45 x 10 mm from McMaster-Carr. They come in a box of 25 screws. Otherwise, you'll have to buy the entire diff housing assembly to get replacement screws. After 4 months of HARD use, I just started seeing some seepage from the rear diff.
perfect quality, never had oil leaks differential, with the screws must be good tool and not have any problems
Reviewers generally find the HD differential housing an improvement over the stock housings, with better sealing and few reported oil leaks in several cases. The most consistent criticism concerns the included diff screws, which reviewers say are soft and strip easily, with one reporting a screw snapping during removal. Some reviewers say they replaced the screws, and one reported a shim issue, with flimsy shims bowing after wear. One reviewer reports seepage from the rear diff after four months of hard use. Reviews are few and vary in detail, and one specifically references a different setup (ARR Losi Ten-SCTE) for context.
- + Improved sealing over stock housings
- + Few or no oil leaks reported
- + Good overall design
- − Included screws strip easily
- − Screws can snap during removal
- − Shims may be flimsy and bow with wear
- − Occasional seepage after prolonged use
