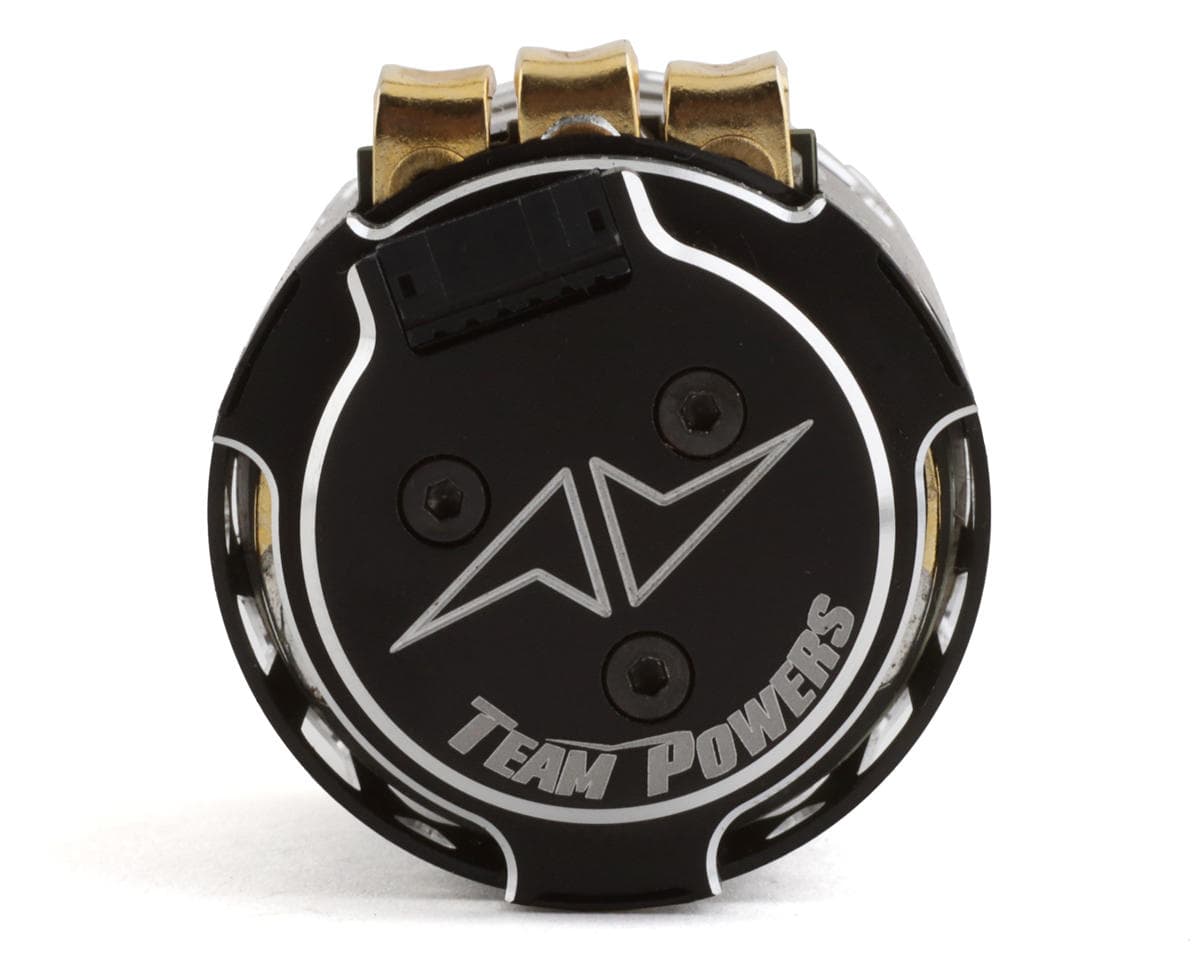

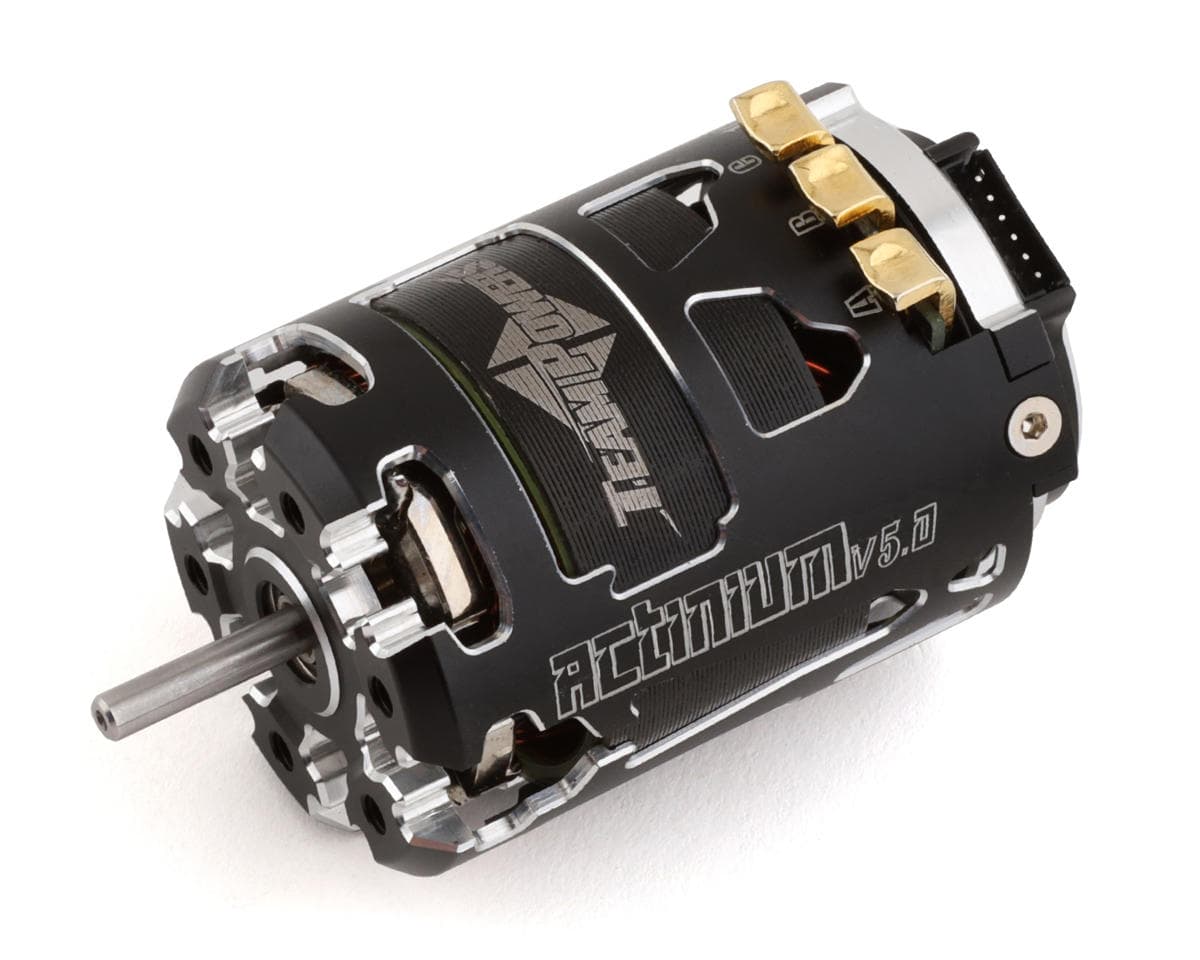

Team Powers Actinium V5 Competition Sensored Brushless Motor (10.5T)

Team Powers Actinium V5 Competition Sensored Brushless Motor. Based on the great Actinium V4 competition motor with extremely worthy performance upgrades and revisions, The Actinium V5 features a revised assembly design for improved sensor accuracy, a revised stator plate profile with 3 screw holes sealed to improve magnetic field consistency and efficiency, increased copper wiring purity for minimized resistance and machined from proprietary alloy Collector ring resulting in minimal resistance and maximum heat dissipation! With all these upgrades, revisions and more, this Actinium V5 is perfect for all serious racers and will ensure the delivery of high performance in each and every race!

Features:

• Based on IFMAR/ROAR/EFRA/BRCA design specifications
• Revised assembly design for improved sensor accuracy
• Revised stator plate profile with 3 screws holes sealed to improve magnetic field consistency and efficiency
• Traditional three long assembly screws replaced with short screws mounted to the side of the end bell
• Copper wiring purity increased for minimized resistance
• Hand wound for maximum accuracy and efficiency
• Revised rotor magnetic material for improved strength, efficiency and extend the fade out time
• Motor can machining profiles slightly revised from V4 to enhance convection cooling
• Collector ring machined from proprietary alloy resulting in minimal resistance and maximum heat dissipation
• Available in multiple Turn sizes

Specifications:

• Application: 1/10 Scale Racing
• Diameter: 35.8mm
• Length: 52.2mm
• Shaft Diameter: 3.17mm
• Weight: ~150g (Varies between turns)
• Available Turns: 10.5T, 13.5T, 17.5T, 21.5T
• Type: Sensored Brushless

Includes:

• (1) Team Powers Actinium V5 Competition Sensored Brushless Motor
