About this part

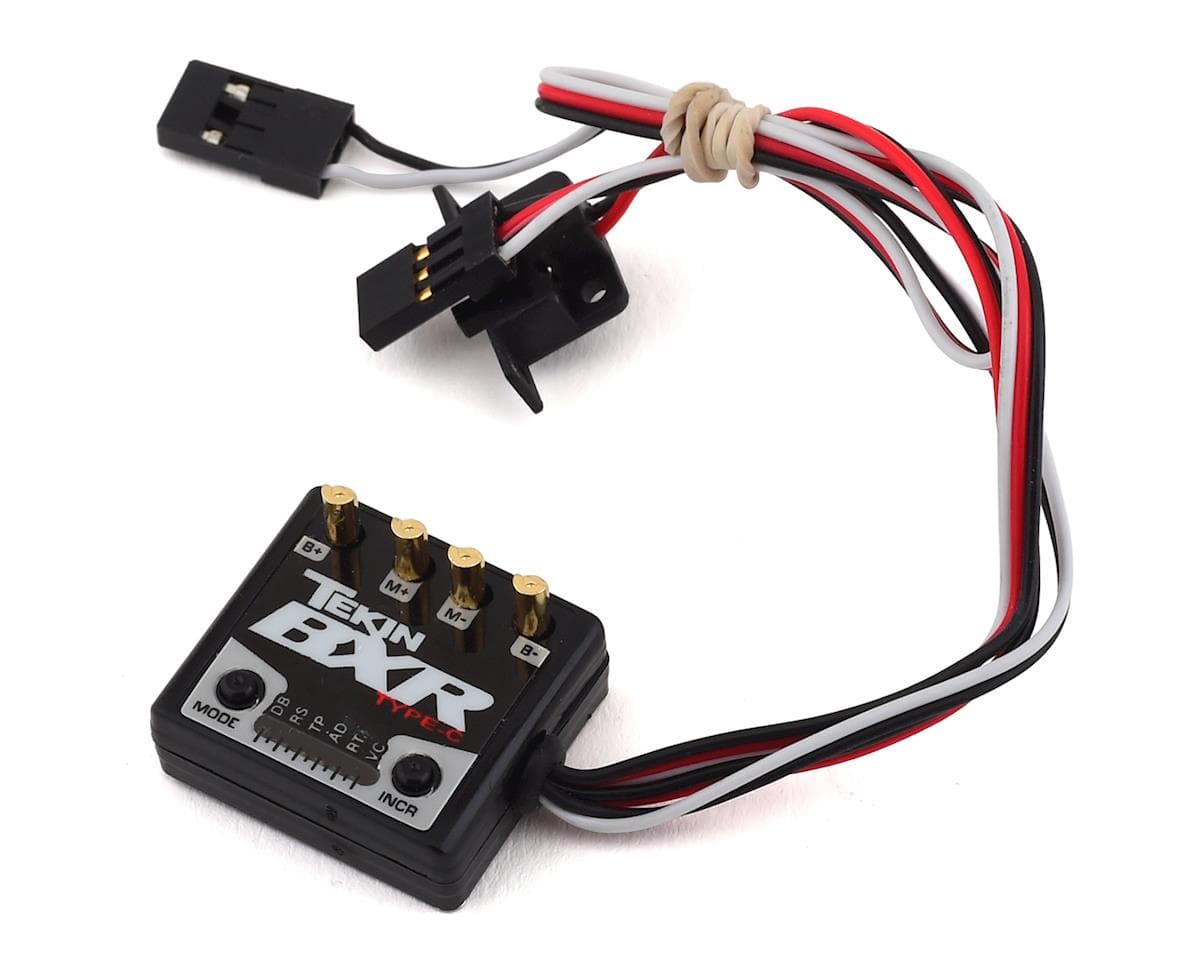

The Tekin BXR Waterproof Brushed Motor Crawler ESC gives your scale crawler precise control and features that are unmatched by any other brushed only ESC. Features like 3rd channel input for on the fly drag brake adjustments and Active Drag Brake make the BXR the perfect scale crawler solution. Tekin's Element proof design allows you to hit the trails with confidence no matter the weather. Small capable and versatile - the BXR is ready for any adventure.
NOTE: Standalone BEC unit required for use with 3S LiPo and high torque servos
Features:
- Drag brake adjust with your radio
- Active drag brake system
- Element proof design
- Fully proportional Forward/Brake/Reverse
- Runs Brushed motors only
- QuickTune One-Touch Programming
- On Board temperature indicator
- LiPo safe with custom voltage cutoffs
- Solder posts for easy wire management
- HotWire PC programming access (requires Tekin HotWire - not included)
- Active drag brake
- Reverse strength
- Drag Brake
- Brake strength
- Current limit
- Neutral width
- Brushed Modes: Fwd/Brk, Fwd/Rev
- Voltage cut off: None, 2S, 3S, Set per cell
- Throttle profiles: 5 choices, mild to aggressive (requires HotWire - not included)
- Adjustable throttle and brake minimums
Specifications:
Control: Forward/Brake/Reverse
Input Voltage: 4-9 Cells / 2-3S LiPo
Motor Limit: 20T on 2S, 30T on 3S LiPo
BEC: 5V/3.7A (standalone BEC unit required for use with 3S LiPo and high torque servos)
Weight: 0.39 oz / 11g w/wires
Dimensions: 25.4x23.6x9mm
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews2.3 · 3 reviews
Everyone always has gripes, here are mine. 1. Motor limitations are too tight. Would be nice if it would handle a 20t on 3s. 2. Needs a real bec, even on 2s this bec isn't usable. 3. Calibration is easy, programming is a pain, must have hotwire 3.0 but can not use bluetooth function. Otherwise this really is an awesome esc! The active drag break function works flawlessly. I recommend this to anyone with a scale truck, just read the description fully. I also have a rx4 which is absolutely amazing but a little on expensive side.
This unit seems to have some odd glitchs. The Tekin FXR is a much better unit.
Do not buy. First course on a fresh build and the truck became unresponsive to my inputs, and glitched out of control.
Three reviews with mixed ratings (4, 2 and 1 out of 5), all from verified owners of the Tekin BXR Waterproof Brushed Motor Crawler ESC. One reviewer rates it highly, praising the active drag brake, and recommends it for scale trucks while noting the limits on motor size and BEC. Another reviewer reports the truck became unresponsive and glitched out of control during the first run of a new build. A third reports odd glitches and prefers the Tekin FXR. Reviewers point to motor limits and programming difficulty as recurring concerns, with the Hotwire 3.0 programming pain point mentioned. The sample is small and the experiences conflict.
- + Active drag brake works well
- + Easy calibration
- + Recommended for scale trucks
- − Motor limit too tight (no 20T on 3S)
- − BEC not usable on 2S
- − Programming difficult; Bluetooth not usable
- − Reports of unresponsive or glitching behaviour
