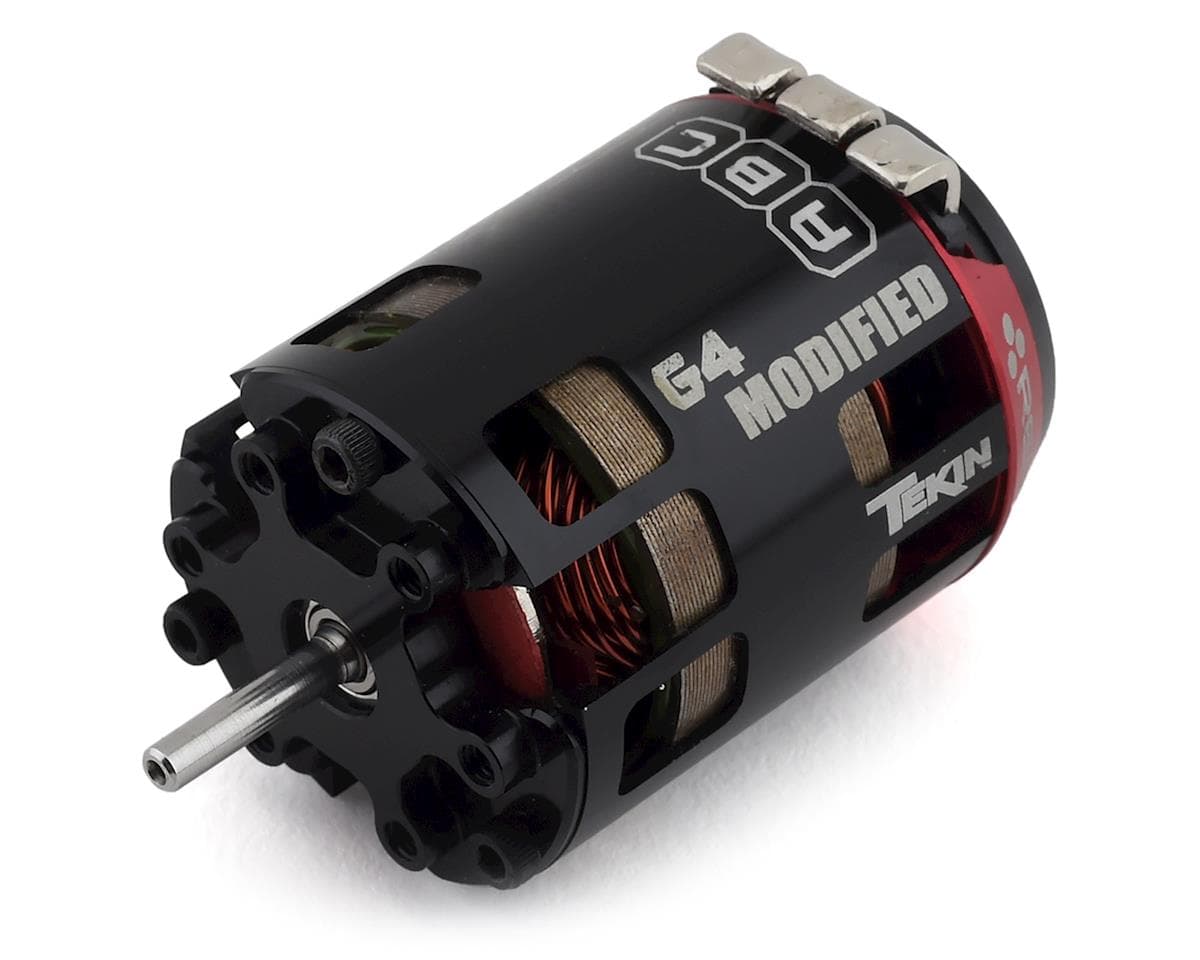

Tekin Gen4 Modified Sensored Brushless Motor (8.5T)
About this part
he Tekin Gen4 Modified Sensored Brushless Motor has been engineered for performance. Utilizing the best materials available the GEN4 has been redesigned to cut weight and reduce resistance, resulting in a purebred racing machine. A perfect choice for any discipline, the GEN4 delivers smooth power and control across the full RPM range. The SPEC-R is competition performance with the speed you need to win.
The GEN4 motor line features a redesigned, precision stamped and pressed stator to increase efficiency and reduce resistance. The stators are hand-wound with high purity copper wire and machined from 6061-T6 aluminum. The motors can be tuned with optional rotors and are re-buildable, making the GEN4 motor a premium performance power plant designed for the serious racer.
Features:
- 60 Degrees Adjustable Timing Advance
- Modified Racing Specific Design
- CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
- ?Neodymium Sintered Magnet
- Precision Engineered for Maximum Energy Conversion
- High Purity Copper Windings Maximize Conductivity
- Low Resistance, High Power Solder Tabs
- Sensored System Ready
- Anodized End-bell Plates Maximize Corrosion and Wear Resistance
- High RPM Precision Bearings
- Oversized Front Bearing
- Rebuild-able Design
- Solder-less Sensor PCB Replacement
- Legal in Major Race Governing Bodies
- ROAR Approved
Specifications:
Input Voltage: 1-2S LiPO - 9.5T / 8.5T / 7.5T / 6.5T / 5.5T
Weight: 5.1oz / 145g
Shaft Dimensions: 3.18mm (1/8") x 15.3mm
Motor Diameter: 35.85mm / 1.40"
Motor Length: 50.25mm / 1.978"
Max Operating Temperature: 180°F / 82°C
Bearing Dimensions: Front: 4x13x5mm; Rear: 1/8x3/8x5/32"
Rotor Size: 12.5mm GREEN
Rebuildable: Yes
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 3 reviews
This Generation motor has all the features you'd expect from a modern motor. I was very impressed, just like I was when I switched to the Redline 10 yrs ago
Exactly what I expected. Tekin makes the fastest electronics.
Great motor. Good value for the money will drag race this motor in a pro stock and expect it to be competitive.
Three verified owners of the Tekin Gen4 Modified Sensored Brushless Motor (8.5T) all gave it 5 out of 5. Reviewers describe it as a modern motor with the features they expected, one compares it favourably to a Redline motor they previously used, and one says it offers good value. One reviewer plans to drag race it in pro stock and expects it to be competitive. Reviews are brief and give little detail on performance, heat, or durability, and no problems are reported.
- + Modern feature set
- + Good value for money
- + Expected performance
- + Favourably compared to Redline
