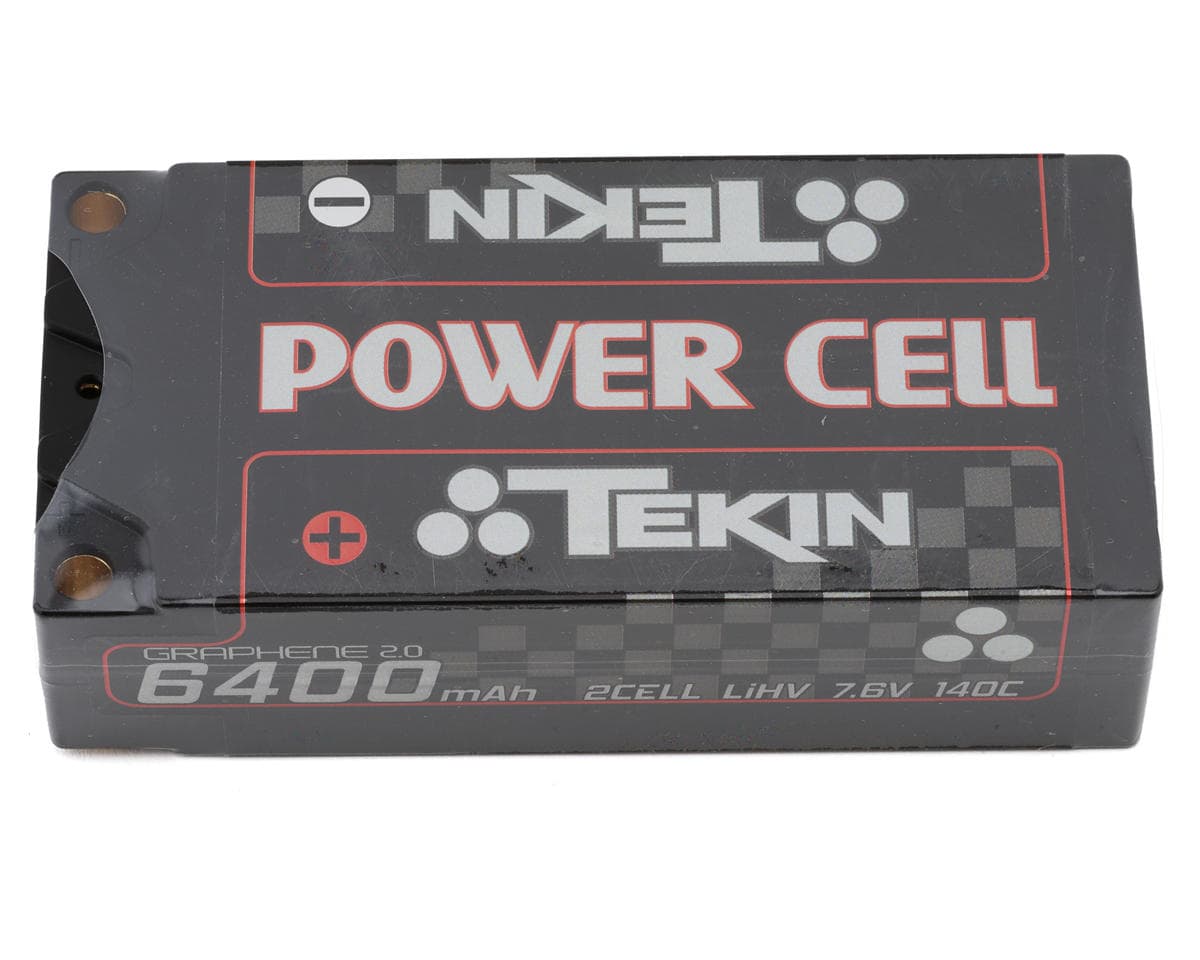

Tekin Power Cell 2S Shorty 140C Graphene LiHV Battery (7.6V/6400mAh) w/5mm Bullets
About this part
Battery Overview
The Tekin Power Cell 2S Shorty 140C Graphene LiHV Battery delivers exceptional performance and versatility for competitive RC racers. Featuring a compact shorty design, this battery reduces overall weight while offering flexible placement options in a wide range of cars and trucks. Built with advanced LiHV Graphene technology, it can be safely charged up to 4.35 volts per cell, providing increased power, improved efficiency, and extended run-time for demanding race conditions.
About the 2S Shorty Graphene LiHV Battery
Durable Design & Reliable Connectivity
Engineered for maximum performance, this battery boasts a 140C discharge rate for explosive acceleration and consistent power delivery. Gold-plated five-millimeter high-power bullet connectors ensure minimal resistance and optimal current flow, while a two-millimeter balance port allows precise, safe balance charging. Encased in a durable hardcase housing, the battery is protected against impact and wear, safeguarding both the cells and terminals.
Features:
- LiHV Graphene cells charge up to 4.35V per cell for more power
- 140C discharge rate ensures instant, consistent performance
- Gold-plated 5mm bullet connectors minimize resistance
- Hardcase protects battery cells and terminals from damage
- Enhanced efficiency extends overall run-time
IMPORTANT LITHIUM POLYMER SAFETY INFORMATION
- DO NOT leave a battery in your model when charging
- DO NOT leave lithium batteries unattended when charging
- ALWAYS balance charge lithium battery
- ALWAYS use a LiPo Safe charging bag/box
- YOU MUST use a Li-Poly specific charger to charge lithium batteries (NiMH or NiCD only chargers WILL NOT WORK!)
- YOU MUST not over discharge lithium battery packs
- READ & UNDERSTAND the instructions carefully before operating this battery
NOTE: When using high energy Li-Polymer Batteries, please do not over-discharge or over-charge batteries as this will result in overheated batteries. Discharging capacity can't exceed 80% of the max capacity of the pack after full charging to ensure a good cycle performance. It is recommended to fully charge a brand new battery before using and only discharge the battery 50% for the first 5 cycles. Always monitor race time and/or set a low voltage warning on ESC (End voltage cannot be lower than 3.2v per cell). Do not use a battery that has too low a voltage. Do not expose batteries to sunshine or store/charge batteries at temperatures above 35°C or in a closed car. The high-temperature environment could cause damage to the pack or make it burst. If the battery becomes hot while fast charging, high current discharging, or racing, do not charge it until it has cooled completely. Wait about 20 mins, then inspect prior to recharging.
Includes:
- (1) Power Cell 2S Shorty 140C Graphene LiHV Battery (7.6V/6400mAh)

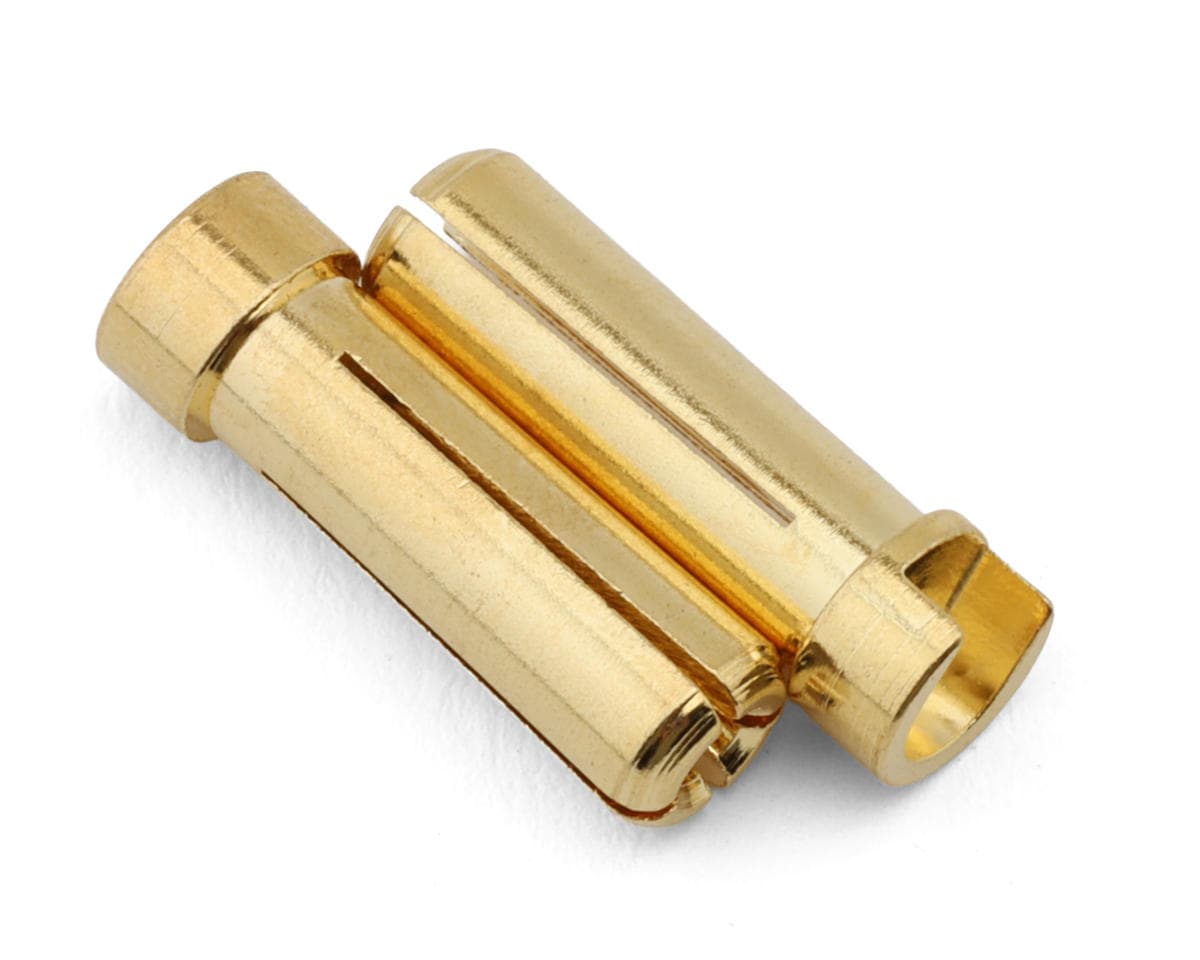

- (2) 5mm Bullets
Specifications
| Nominal Voltage: | 7.6V (2S) |
|---|---|
| Capacity: | 6400mAh |
| Maximum Charge Rate: | 1.5C |
| Discharge Rates | |
| Continuous: | - |
| Peak: | 140C |
| Cell Configuration: | 2S2P |
| Watt Hours: | 48.64Wh |
| ROAR Approved: | - |
| Connectors | |
| Battery: | 5mm Bullets |
| Balance: | 2mm Bullet |
| Dimensions (LxWxH): | 3.7x1.8x0.98in (96x47x25mm) |
| Weight: | 8.1oz (229g) |
