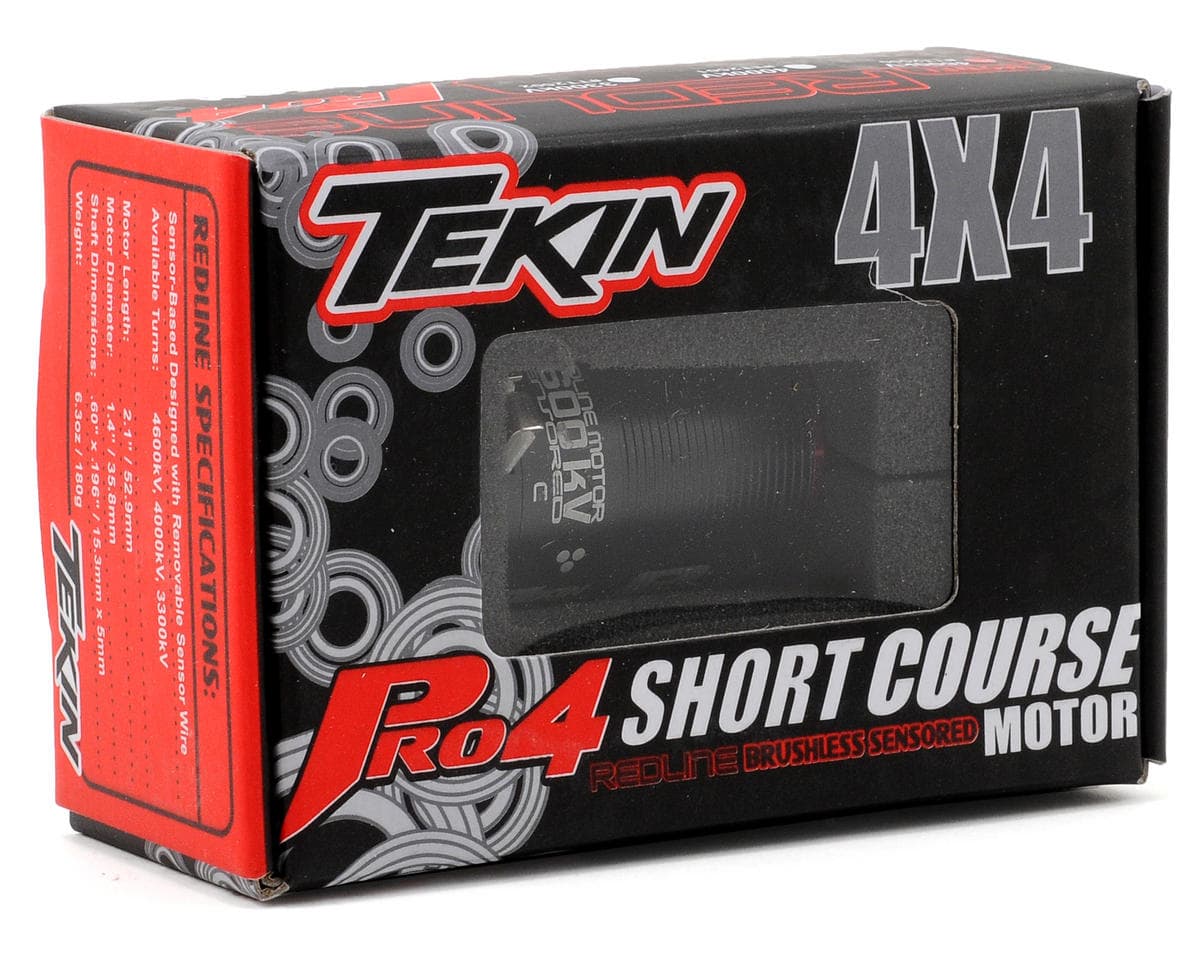

Tekin Pro4 4-Pole Brushless Motor w/5mm Shaft (4,600kV)
About this part
This is the Tekin 4,600kV Pro4 4-Pole Brushless Motor. Tekin's Pro4 Motors set a new standard for 4 Wheel Drive Short Course performance. Utilizing the proven design of the T8 1:8th Scale motor, the Tekin Pro4 produces the torque and smooth power you demand for a 4x4 Short Course Truck. Specifically designed with KV ranges to complement 2s Lipo power systems, no other 10th scale motor on the market can deliver the power your 4x4 Short Course requires. Get a Tekin Pro4 Motor and never look back.
Features:
- 4 Pole 12 Slot Hi-torque Motor Design
- CNC Machined 6061 T6 Billet Aluminum Heatsink Can
- Neodymium Sintered Magnets
- Rebuildable Design
- High Purity Copper Windings Maximizes Efficiency
- Precision Engineered for Maximum Energy Conversion
- Dual-Plug Sensor Wire Harness for use with all sensored and sensorless systems
- High RPM ABEC5 Oversized Bearings
Specifications:
Motor Length: 2.1" (52.9mm)
Diameter: 1.4" (35.8mm)
Shaft: .60x.196" (15.3x5mm)
Weight: 6.75oz (193g)
Turns: 1Y
Voltage: 2S
kV: 4600
Rotor: 18.5mm
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.6 · 29 reviews
Cant believe the speed this motor produces, on 2 cell batteries with an RX8 and a 15t pinion its faster than my old set up was on 3s which was a castle MMP and a 4 pole 550 2800 kv with a 17t pinion, I have to gear down to either a 13t or 14t on the track, otherwise its overkill. Temps on 15t 165ish 14t 145 13t around 130. I set my current limiter at 75
It's a great motor, perfect for the Losi TEN-SCTE . Make sure you pick up the RX8 with it too. If your having trouble finding the perfect gears for this motor. Im referring to the pinions to use, go to the tekin website(www.teamtekin.com) and you will see a variety of settups that team tekin racers are using on their r.c trucks and buggies. If you help leave a email and I will post the link to where the settups are located.
Awesome motor. My Ten SCT-E runs faster and 20 degrees cooler than my Novak 4.5 with the high torque rotor. This motor is worth every penny. TQing all day. Using a RX8 and it is buttery smooth too.
Amazing little motor! I have this in my ET410 and for the larger outdoor dirt track I run it at, its perfect! I can keep up with the 8th scale (as long as I don't get ran over, LOL).
This is by far my motor of choice for my 4wd short course truck. It has so much power and is nice and light. It always runs strong and cool.
Reviewers widely praise this 4,600kV motor for strong, smooth power in short course trucks and SCT-style chassis, most often paired with a Tekin RX8 ESC. Many report cool running with appropriate gearing, though a few say it runs hot and one says it needs cooler gearing. Several reviewers describe running it on 2S, 3S or 4S. One reviewer, referring to the separate 4300kV version, reported cogging and inconsistent performance between two units. A secondhand report describes several units returned under warranty. Some reviews mention other Tekin variants (550 and 3300kV) and a competitor motor, and some entries are off-topic or joking.
- + Strong, smooth power
- + Runs cool with proper gearing
- + Compact and light
- + Works well on tight tracks
- − Can run hot in some setups
- − Reported cogging on a 4300kV unit
- − Warranty returns mentioned secondhand
