Parts/Electric power/Brushless motors/Tekin Pro4 Type-D Sensored 4-Pole Brushless No Prep Drag Motor (6500kV)
Tekin

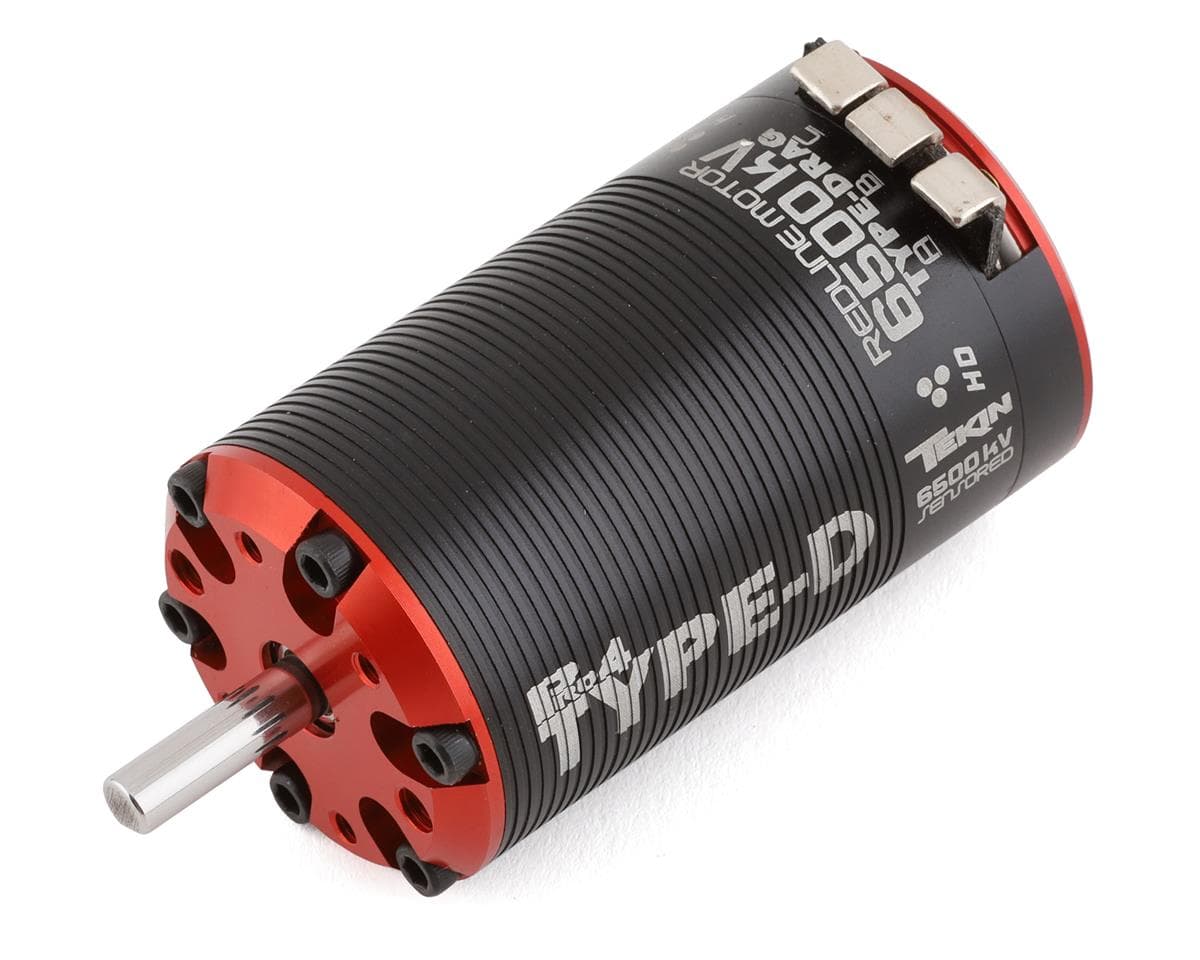

Tekin Pro4 Type-D Sensored 4-Pole Brushless No Prep Drag Motor (6500kV)
Part # TEKTT25355.0(1)
Where to buy
$101.99
Prices are as last seen at the store; stock is not tracked.
About this part
This is the Tekin Pro4 Type-D Sensored 4-Pole Brushless No Prep Drag Motor. Designed as a purpose built drag race motor this latest offering from Tekin brings massive power and torque to the market! This motor utilizes a 4-pole 12-slot design with an oversized Ultra Torque HD rotor. This creates a huge amount of power that doesn't let up throughout the RPM range. From Pro Mod to Street Eliminator classes, these PRO series motors create power whenever you need it, giving you the advantage on the strip.
Features:
Features:
- 4 Pole 12 Slot High Torque Motor Design
- 1:10 Drag Racing Specific
- HD 550 Size Design Increases Power and Torque
- CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
- Neodymium Sintered Magnets
- Precision Engineered for Maximum Energy Conversion
- High Purity Copper Windings Maximize Conductivity and Efficiency
- Low Resistance, High Power Solder Tabs

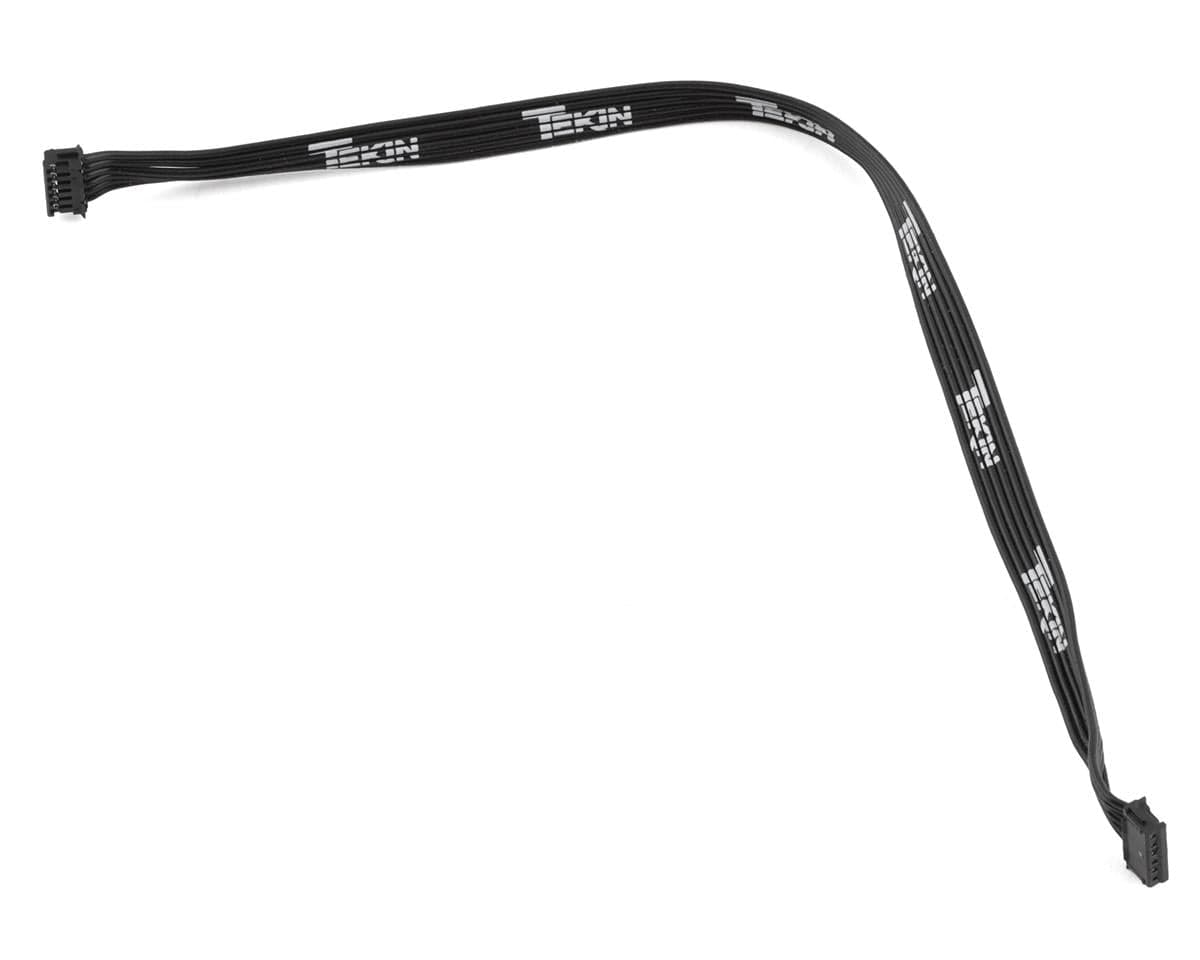

- Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems
- Anodized End-bell plates maximize corrosion and wear resistance
- High RPM ABEC-5 Precision Bearings
- Oversized Front Bearing adds Durability
- Rebuild-able Design
Voltage Limit: 2S LiPo
KV: 6500
Weight: 7.8oz (221g)
Shaft Dimensions: 5mm (.196") x 15.3mm
Motor Diameter: 1.40" (35.85mm)
Motor Length: 2.50" (62.5mm)
Max Operating Temperature: 180°F (82°C)
Max RPM: 65,000
Bearing Dimensions: Front: 5 x 14 x 5mm, Rear: 5 x 11 x 5mm
Rotor Size: 18.5mm
Rebuildable: Yes
Mounting Pattern: 3mm @ 1" (25.4mm) and 4mm @ 1" (25.4mm)
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 1 review
Richard WiegandVerified owneron Tekin Pro4 Type-D Sensored 4-Pole Brushless No Prep Drag Motor (6500kV)
fast shipping,fast motor,2nd pass dr10m 2.18 / 65mph. no timing or turbo. I wish i knew the can timing???
2 found this helpful
Builds using this part
No builds use this part yet — add it to yours from the build editor.
