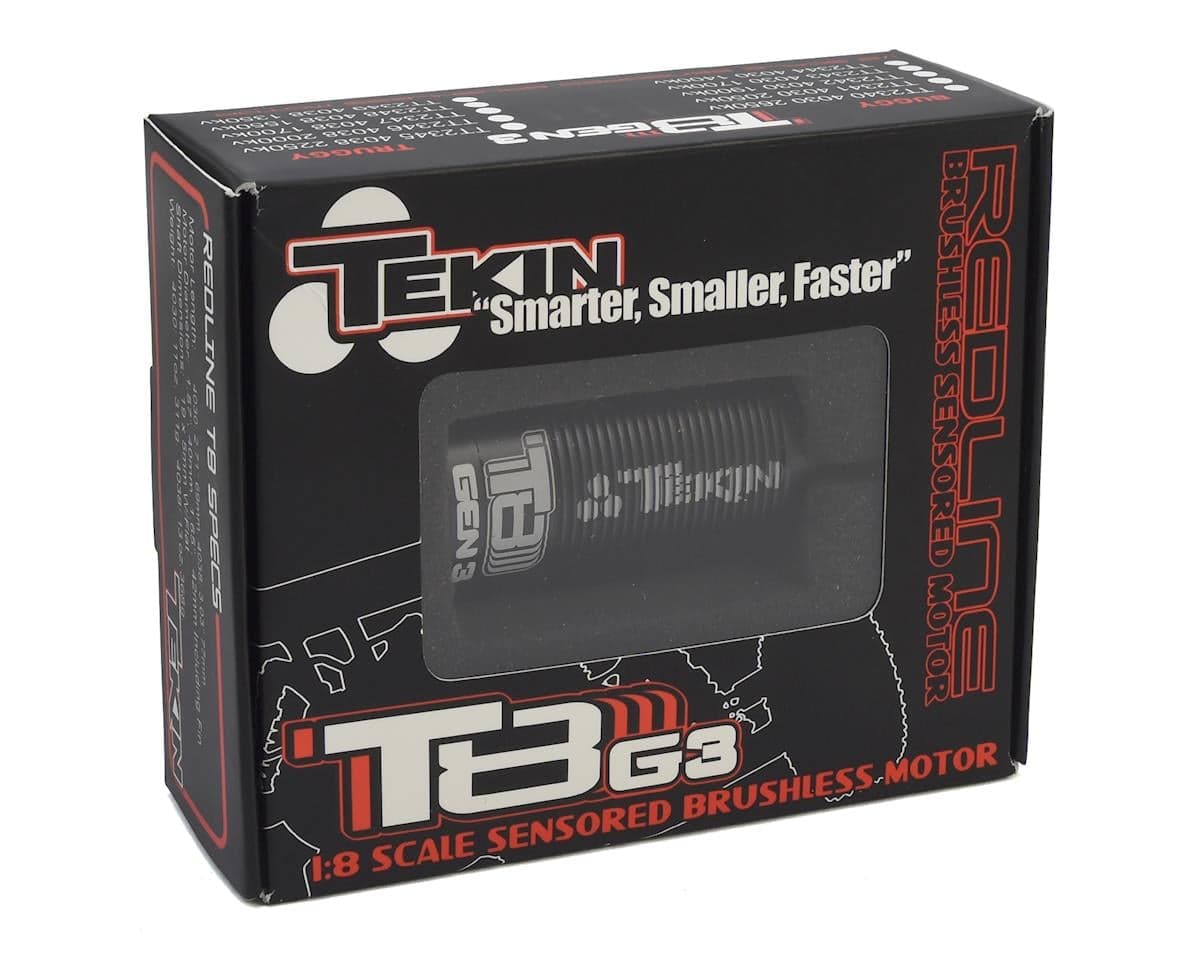

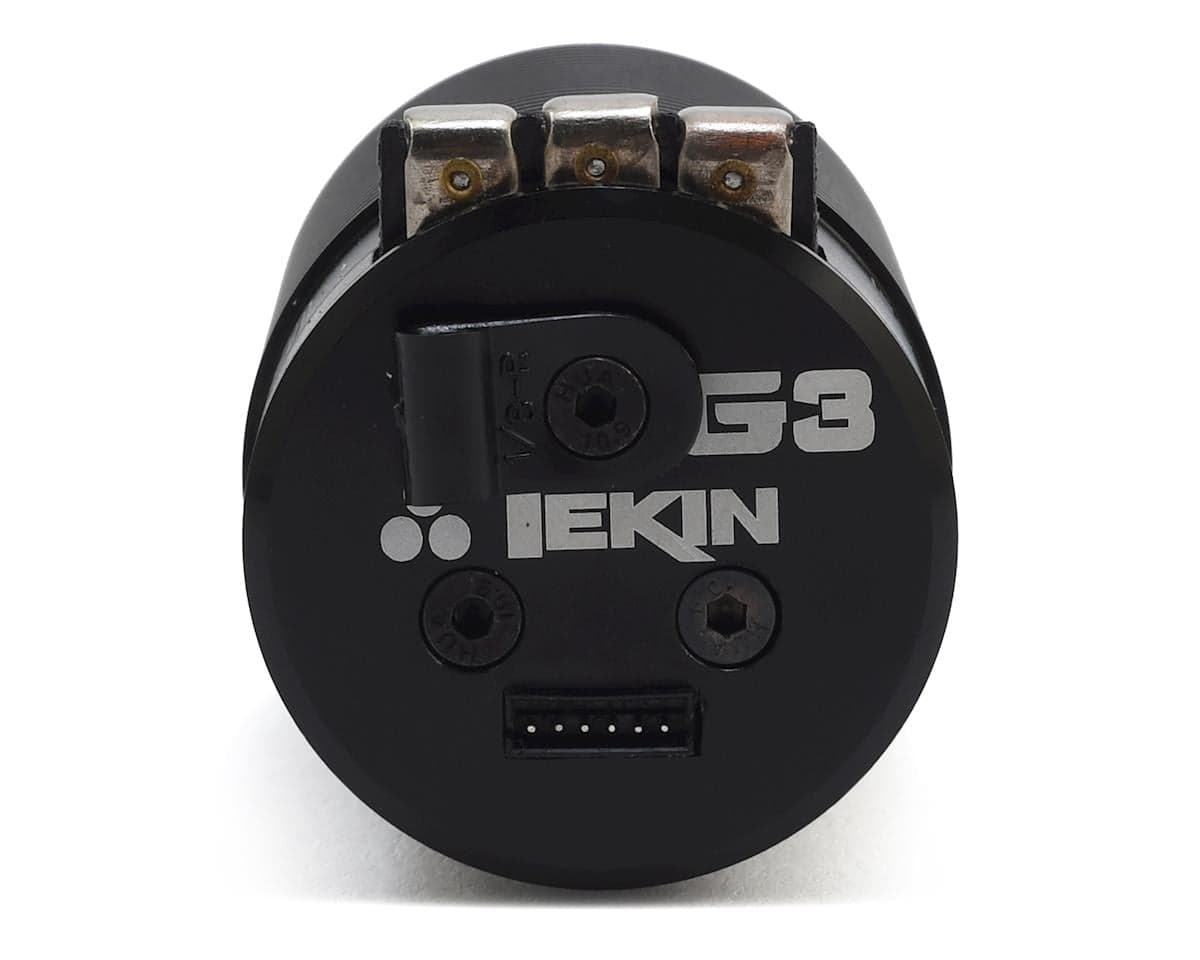

Tekin Redline T8 GEN3 4030 1/8 Buggy Brushless Sensored Motor (2050kV)
About this part
This is the Tekin Redline T8 GEN3 4030 Can Brushless Sensored Motor, made specifically for 1/8 Buggy use. Tekin's T8 GEN3 racing motors are racing performance defined. With a stronger rotor, updated stack features and lower resistance, the T8 GEN3 motors are a versatile, unmatched and advanced power delivery system. Relentless amounts of torque and power are at your disposal with industry-leading RC motor technology. Coupled with an RX8 GEN3 (TEKTT2302) utilizing Tekin's D2 Dual Drive Technology, the T8 GEN3 packs efficiency and precise control through the entire RPM range. Maintain Pro- level control of your chassis no matter the situation on the track with a T8 GEN3.
Features:
- CNC Machined 6061 T6 Billet Aluminum Ribbed Heatsink Can
- Matte Anodized for Maximum Corrosion Resistance
- Sensored and Sensorless Operation
- Low Resistance HD Solder Tabs
- Rebuildable Design
- Solderless Sensor PCB Replacement
- 4-Pole Neodymium Sintered Magnet

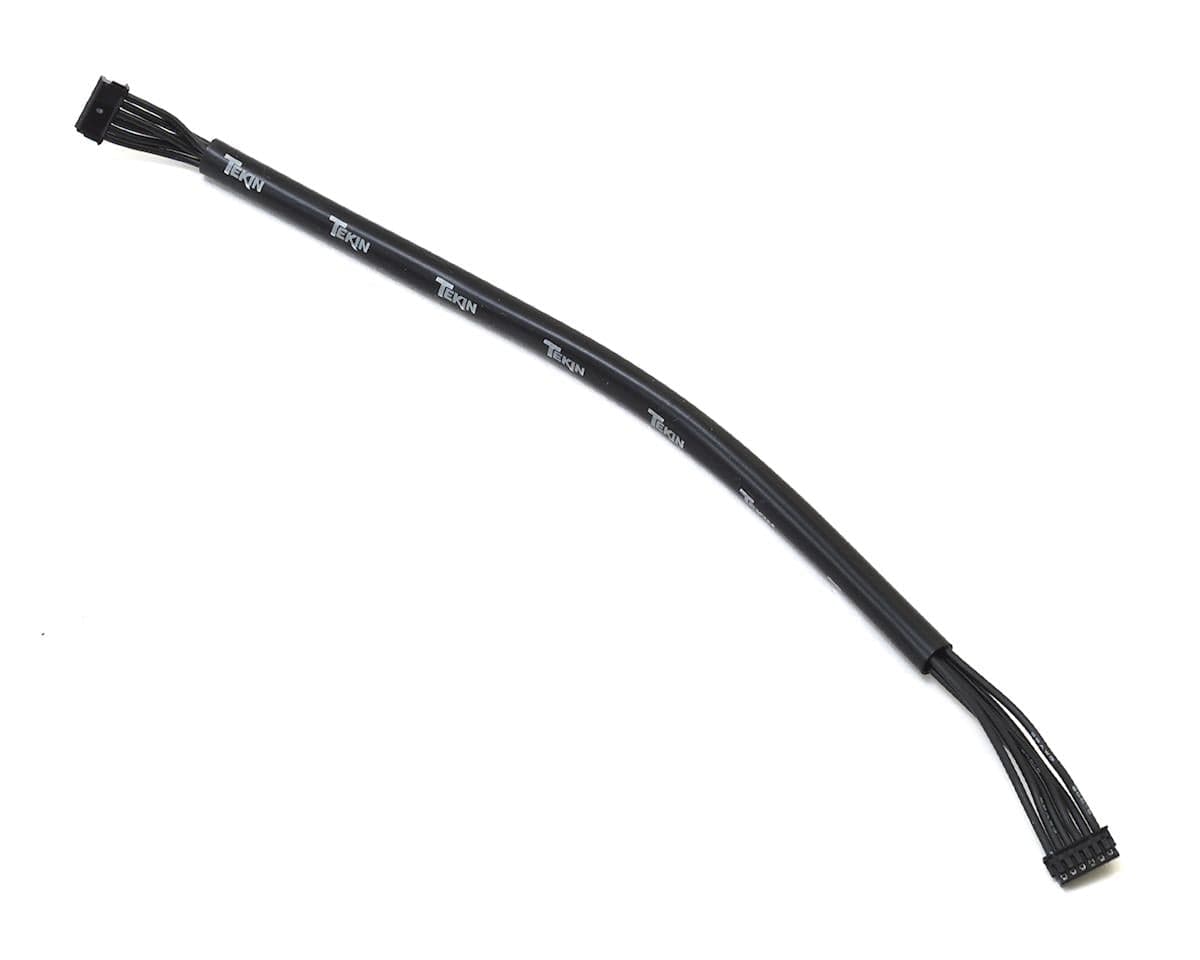

- Dual-Plug Sensor Wire Harness
- ABEC5 Precision High Speed Oversized Bearings
- Precision Engineered for Maximum Energy Conversion
- Designed to be paired with the RX8 GEN3 ESC
- ROAR Approved
Recommended Applications:
- OFF-ROAD
- 1/8 4WD Buggy
- 1/8 4WD Truggy
- 1/8 4WD Monster Truck
- ON-ROAD
- 1/8 4WD GT
- 1/8 4WD GP
Specifications:
- Input Voltage: (recommended kV for each popular voltage)
- 4S: 2650kV / 2050kV / 1900kV
- 5S: 1700kV / 1400kV
- 6S: 1400kv
- Weight: 311g / 11oz
- Shaft Dimensions: 5mm (.125") x 19mm
- Motor Diameter: 40mm / 1.57" (42mm / 1.65" including fin)
- Motor Length: 69mm / 2.71"
- Bearing Dimensions: Front: 5 x 16 x 5mm / Rear: 5 x 11 x 5mm
- Rotor Size: 18.5mm
- Rebuildable: Yes
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews3.3 · 4 reviews
Still pretty new and have only used for practice, but it works great in my eb48.4 plenty of power. Looks great to with kinda a built in heat sink on the can,
Rotor separated from the motor shaft. Tekin claims they haven’t seen it happen before. Warrantied it for me then had the rotor fail in my 1900kv motor shortly after. All just after the Tekin RX8 gen3 randomly gave up the ghost. Tekin use to be great, not sure what has changed.
Love the power! In a class if it's own..bought it for dec final gt clas and I am already doing course record testing
Still waiting for delivery, product review at the show as it finally comes.
Four reviews of the Tekin Redline T8 GEN3 4030 2050kV sensored buggy motor, with mixed opinions. Two reviewers praise its power and performance, one in an eb48.4 and one in competition testing. One reviewer reports the rotor separating from the shaft, which Tekin warrantied, followed by a second rotor failure in a different 1900kV motor, and says it followed a receiver failure. One reviewer rated it 2/5 but did not yet have the product and has not tested it. Reviews are limited in number, and the durability concern rests on a single account.
- + Strong power output
- + Good performance in competition testing
- + Built-in heat sink appearance on can
- − Rotor separated from shaft in one report
- − Second rotor failure reported after warranty replacement
- − Rating given without product received
