Tekin RX8 GEN3/Redline T8 GEN3 1/8 Truggy Brushless ESC/Motor Combo (2000kV)
About this part

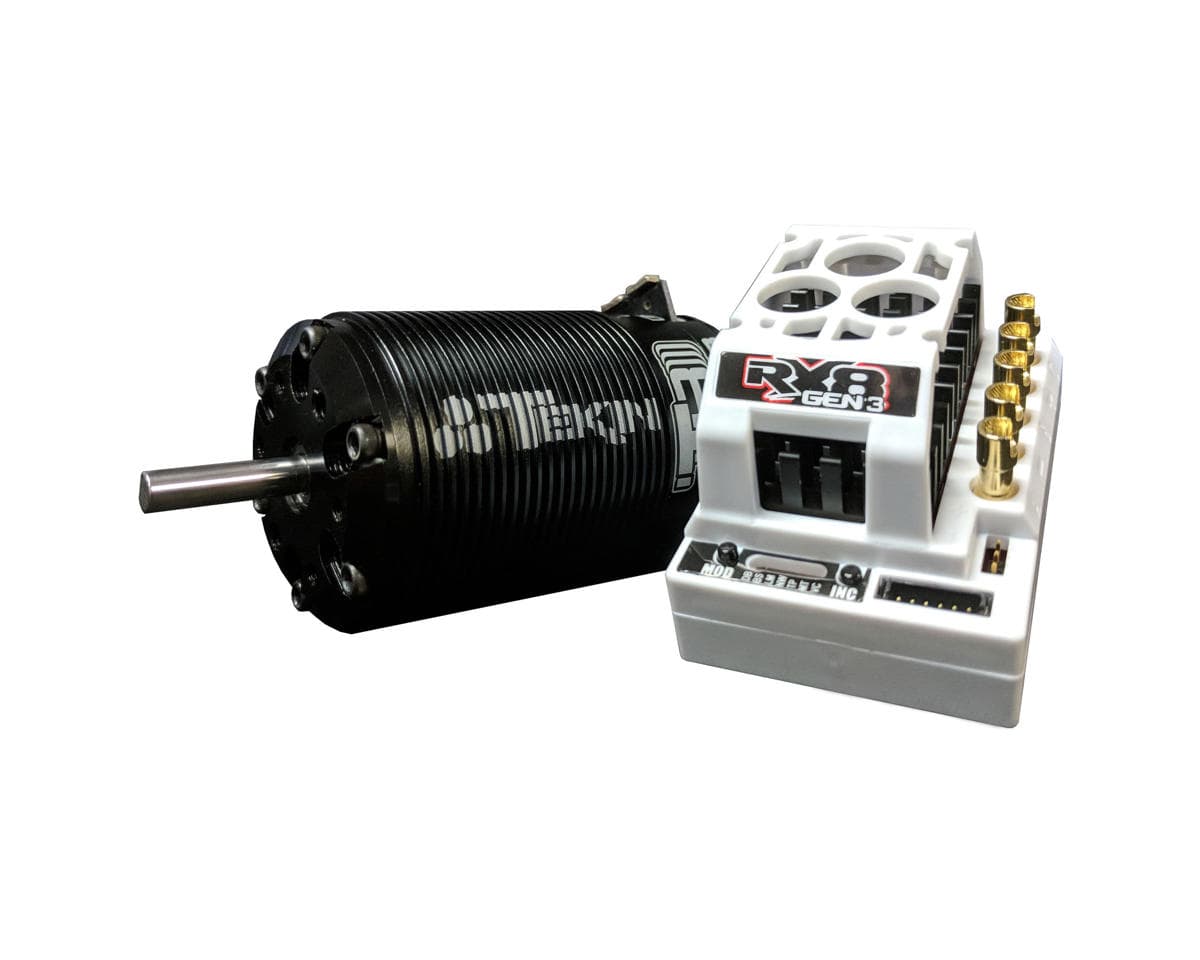

This is the Tekin RX8 GEN3 1/8 Scale Competition Brushless ESC/Motor Combo with an included Redline T8 GEN3 2000kV truggy motor and ESC cooling fan.
RX8 GEN3
The RX8 platform has proven itself to handle the rigors of racing, while providing professional features including a programmable High Voltage BEC, Data Logging Capabilities, Timing Profiles, Voltage Cutoffs for LiPos, HotWire 3.0 Bluetooth Connectivity and more. Utilizing Tekin's D2 Dual Drive Mode Technology, the RX8 runs both Sensored and Sensorless motor drives seamlessly, giving you the best of both worlds. The small footprint makes install on any chassis easy with the option of mounting with included hardware for extra security.
T8 GEN3 Motors
Tekin's T8 GEN3 racing motors are racing performance defined. With a stronger rotor, updated stack features and lower resistance the T8 GEN3 motors are a versatile, unmatched and advanced power delivery system. Relentless amounts of torque and power are at your disposal with industry-leading RC motor technology. Coupled with an RX8 GEN3 utilizing Tekin's D2 Dual Drive Technology, the T8 GEN3 packs efficiency and precise control through the entire RPM range. Maintain Pro- level control of your chassis no matter the situation on the track with a T8 GEN3.
Features:
- RX8 GEN3
- Updated HD Gold-plated Solder Posts for Easy Soldering
- Updated Adjustable Torque Control
- Updated Adjustable Throttle and Brake Frequencies
- Updated HD High Voltage Programmable BEC
- Ultra-smooth and Precise Throttle and Braking Control
- Includes 5V ESC fan
- Compatible with Brushless and Brushed Motors
- ?Easily Access Programming, Anywhere, Anytime
- ?Datalogging Capability
- ?EZ Access HotWire Programming Port
- ?HotWire Interface for Advanced Programming and Updating
- ?D2: Dual Drive Mode Technology
- ?On-Board Temperature Indicator
- ?HDAC: High Density Copper PCB's
- ?Sensor Plug for Precise Commutation with all Motors
- ?Self Test Diagnostics and Factory Reset
- ?Pit Tune Mode
- ?DGF2: Digital Glitch Filtering V2
- ?QuickTune Programming
- ?One-Touch Radio Calibration
- T8 GEN3
- CNC Machined 6061 T6 Billet Aluminum Ribbed Heatsink Can
- Matte Anodized for Maximum Corrosion Resistance
- Sensored and Sensorless Operation
- Low Resistance HD Solder Tabs
- Rebuildable Design
- Solderless Sensor PCB Replacement
- 4-Pole Neodymium Sintered Magnet
- Dual-Plug Sensor Wire Harness
- ABEC5 Precision High Speed Oversized Bearings
- Precision Engineered for Maximum Energy Conversion
- Designed to be paired with the RX8 GEN3 ESC
- ROAR Approved
Controls: Forward/Brake/Reverse
Input Voltage: 2S-6S LiPo / 4-16S NiMH-NiCD
BEC: 6.0v / 7.4v @ 8amps
Motor Limit Brushless Mode: 2S - No Limit; 3S - 4000kV; 4S - 3500kV; 5S - 2200kV; 6S - 2200kV
Motor Limit Brushed Mode: No Limit
Max Current: 300amps per phase*
Burst Current: 1000amps per phase*
Timing Profiles: 7 choices (on board)
Brushed Modes: FWD Only / FWD-REV / FWD-REV Delay
Brushless Modes: FWD Only / FWD-REV / FWD-REV Delay
Dimensions: 1.5 x 2.2 x 1.4" / 38 x 55.8 x 35.5mm
Weight: 2.7oz / 76.5g
Recommended Applications: 1/10 4WD SCT, 1/8 4WD Buggy, 1/8 4WD Truggy, 1/8 4WD Monster Truck, 1/8 4WD Touring Car, 1/8 4WD GT, 1/8 Dirt Oval, 1/10 (and larger) Rock Crawler
*Per Manufacturer Specs
T8 GEN3 Specifications:
Weight: 368g / 13oz
Shaft Dimensions: 5mm (.125") x 19mm
Motor Diameter: 40mm / 1.57" (42mm / 1.65" including fin)
Motor Length: 77mm / 3.03"
Bearing Dimensions: Front: 5 x 16 x 5mm / Rear: 5 x 11 x 5mm
Rotor Size: 18.5mm
Rebuildable: Yes
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.0 · 7 reviews
Do not buy their products absolutely have the worst customer service ever in this industry. Especially on a Friday just before your weekend of racing because they're closed. Send them an email on Friday today is Tuesday and I still haven't got a response. Don't try to call no voicemail no options to push nobody ever answers Just a recording telling you they're helping other customers. Is there only one person working? I have been buying Tekken products for decades now. From the early '80s. Battery chargers ESCs batteries will never buy another Tiken product again. Problem with that is is I have them in about 10 of my vehicles. I will be swapping them out and I will not be using theirs. Look on eBay you'll find Tekken products for sale.
The customer service is excellent. I had a problem with the product, but they resolved it immediately.
Very fast delivery and was very excited, but my other item that was ordered along with it did not arrived.
Great combo. Turned my Summit into an absolute beast
I have only had the opportunity to run one pack through it, but I have the same one in my tekno sct 410 2.0 and tekno Et 48 2.0. Love this esc. Have never had a problem with it. Easy to use and the 3.0 hotspot makes things super simple. By far my favorite esc. Only thing I would change is how the on off switch is designed. Only have a little time with the motor but it is a super powerhouse. The et48 has tons of torque and speed. Currently running a 15 pinion and will be changing to a 14. I will be adding a fan to the motor but a full pack on a 15 there was very little heat. Outstanding combination!
Reviewers generally rate the Tekin RX8 GEN3/Redline T8 GEN3 combo highly for power, torque and speed, with one owner noting it runs cool even when geared high and another praising its ease of setup via the 3.0 hotspot. Owners of Tekno chassis describe it as a favourite. Recurring criticisms are the on/off switch design, a plastic housing one reviewer considers fragile, and reported start/stop issues after a few months of use. One reviewer said it was incompatible with the Hotwire Gen 2 programmer. Customer service drew mixed comments: one reviewer reported a prompt resolution, while another described unanswered calls and email over several days. A few reviews concern delivery or unrelated items, and the sample is small.
- + Strong power and torque
- + Easy setup with 3.0 hotspot
- + Runs cool under load
- + Good reported customer service resolution
- − Plastic housing seems fragile
- − Start/stop issues after months of use
- − On/off switch design
- − Slow response from customer service
