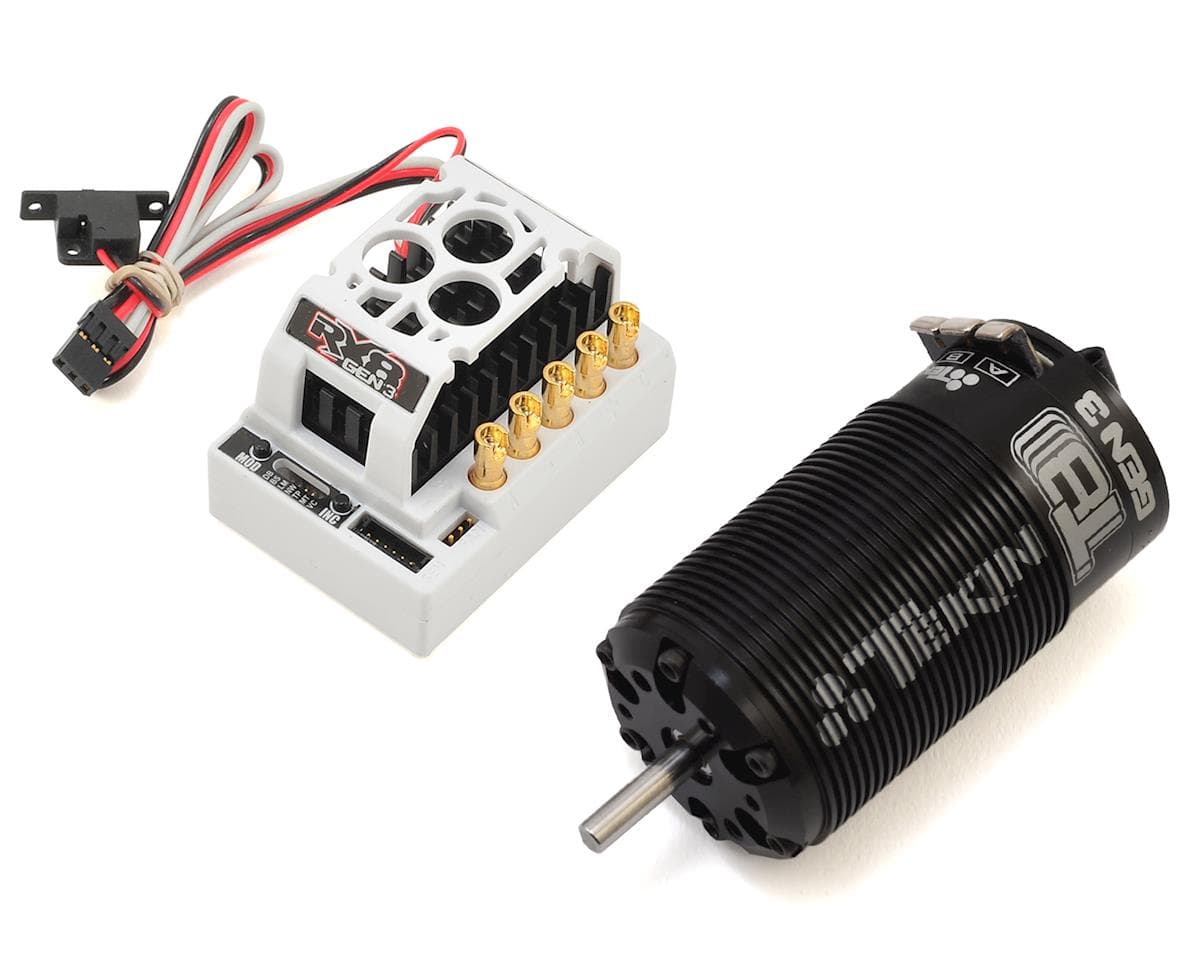

Tekin RX8 GEN3/Redline T8 GEN3 1/8 Truggy Brushless ESC/Motor Combo (2250kV)
About this part
This is the Tekin RX8 GEN3 1/8 Scale Competition Brushless ESC/Motor Combo with an included Redline T8 GEN3 2250kV truggy motor.
RX8 GEN3
The RX8 platform has proven itself to handle the rigors of racing, while providing professional features including a programmable High Voltage BEC, Data Logging Capabilities, Timing Profiles, Voltage Cutoffs for LiPos, HotWire 3.0 Bluetooth Connectivity and more. Utilizing Tekin's D2 Dual Drive Mode Technology, the RX8 runs both Sensored and Sensorless motor drives seamlessly, giving you the best of both worlds. The small footprint makes install on any chassis easy with the option of mounting with included hardware for extra security.
T8 GEN3 Motors
Tekin's T8 GEN3 racing motors are racing performance defined. With a stronger rotor, updated stack features and lower resistance the T8 GEN3 motors are a versatile, unmatched and advanced power delivery system. Relentless amounts of torque and power are at your disposal with industry-leading RC motor technology. Coupled with an RX8 GEN3 utilizing Tekin's D2 Dual Drive Technology, the T8 GEN3 packs efficiency and precise control through the entire RPM range. Maintain Pro- level control of your chassis no matter the situation on the track with a T8 GEN3.
Features:
- RX8 GEN3
- Updated HD Gold-plated Solder Posts for Easy Soldering
- Updated Adjustable Torque Control
- Updated Adjustable Throttle and Brake Frequencies
- Updated HD High Voltage Programmable BEC
- Ultra-smooth and Precise Throttle and Braking Control
- Compatible with Brushless and Brushed Motors
- ?Easily Access Programming, Anywhere, Anytime
- ?Datalogging Capability
- ?EZ Access HotWire Programming Port
- ?HotWire Interface for Advanced Programming and Updating
- ?D2: Dual Drive Mode Technology
- ?On-Board Temperature Indicator
- ?HDAC: High Density Copper PCB's
- ?Sensor Plug for Precise Commutation with all Motors
- ?Self Test Diagnostics and Factory Reset
- ?Pit Tune Mode
- ?DGF2: Digital Glitch Filtering V2
- ?QuickTune Programming
- ?One-Touch Radio Calibration
- T8 GEN3
- CNC Machined 6061 T6 Billet Aluminum Ribbed Heatsink Can
- Matte Anodized for Maximum Corrosion Resistance
- Sensored and Sensorless Operation
- Low Resistance HD Solder Tabs
- Rebuildable Design
- Solderless Sensor PCB Replacement
- 4-Pole Neodymium Sintered Magnet
- Dual-Plug Sensor Wire Harness
- ABEC5 Precision High Speed Oversized Bearings
- Precision Engineered for Maximum Energy Conversion
- Designed to be paired with the RX8 GEN3 ESC
- ROAR Approved
Controls: Forward/Brake/Reverse
Input Voltage: 2S-6S LiPo / 4-16S NiMH-NiCD
BEC: 6.0v / 7.4v @ 8amps
Motor Limit Brushless Mode: 2S - No Limit; 3S - 4000kV; 4S - 3500kV; 5S - 2200kV; 6S - 2200kV
Motor Limit Brushed Mode: No Limit
Max Current: 300amps per phase*
Burst Current: 1000amps per phase*
Timing Profiles: 7 choices (on board)
Brushed Modes: FWD Only / FWD-REV / FWD-REV Delay
Brushless Modes: FWD Only / FWD-REV / FWD-REV Delay
Dimensions: 1.5 x 2.2 x 1.4" / 38 x 55.8 x 35.5mm
Weight: 2.7oz / 76.5g
Recommended Applications: 1/10 4WD SCT, 1/8 4WD Buggy, 1/8 4WD Truggy, 1/8 4WD Monster Truck, 1/8 4WD Touring Car, 1/8 4WD GT, 1/8 Dirt Oval, 1/10 (and larger) Rock Crawler
*Per Manufacturer Specs
T8 GEN3 Specifications:
Weight: 368g / 13oz
Shaft Dimensions: 5mm (.125") x 19mm
Motor Diameter: 40mm / 1.57" (42mm / 1.65" including fin)
Motor Length: 77mm / 3.03"
Bearing Dimensions: Front: 5 x 16 x 5mm / Rear: 5 x 11 x 5mm
Rotor Size: 18.5mm
Rebuildable: Yes
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews3.5 · 8 reviews
This combo is a beast in my Tekno ET48.3 running mostly Protek Graphene 6500mah 4s LiHV batteries. I do run the Protek 6s LiHV and a Gens Ace 6s from time to time and its completely nuts with those. The ESC is small and fits perfectly in the small Tekno ESC tray. I picked up a second combo when I got my TLR 8ight-XTE a few months back and same thing, couldnt ask for a better setup. I have 6 of the RX8/buggy motor combos in all of my 1/8 E-buggies and they are all awesome too. 3 are the 1900kv and 3 are the 2650kv. Ive tried a couple other popular brands but every time Ive ended up replacing them with these Tekin setups after only a couple packs. The bluetooth programmer is great too, just remember to remove it before hitting the track. I forgot once and shredded the wire off as it went flying out of my rig. I was able to repair it though and its still working great too.
Purchased many things from Amain hobbies , everything has been great , fast delivery , good service , the TEKIN set up is the fastest truck I have , unbelievable , one thing I need is , the tekno et410 I purchased did not have the battery tray screws , they are a rare size , can't find them anywhere , can u help , great company thank u ! Much ! I heard one of the founders of your company is from where I live ,Spokane Washington Hank Perry race track
The time it lasted it was a great esc, it lasted only 1 race night, the next race it started acting weird by cutting on and off then just completely shut off. It was great for the couple minutes that it lasted.
This was a replacement from the last Tekin RX8 I bought from Amain and this one only lasted for one race night. The next race night it immediately started acting weird, then smoked. These are getting too expensive to be replacing every month.
I was in need of a buggy motor but mistake I have order a truggy motor combo kit. The motor is too big to install in my kiyosho MP10 which I brought at same . Time
Reviewers generally praise the combo's power, smooth throttle response, light weight and fit in 1/8 buggies such as the Tekno ET48 and TLR 8ight-XTE, with one owner reporting long-term use with 4S and 6S LiHV packs. Several verified owners report ESC failures after one to three runs, including flashing error lights and smoke, and one reviewer describes replacing units repeatedly. Other reviewers attribute low ratings to operator error or ordering the wrong kit, and one buyer found the truggy motor too large for a buggy chassis. Service and delivery from the seller were mentioned favourably. Reviews are mixed, with reliability of the ESC the main point of disagreement.
- + Strong power and smooth throttle response
- + Lightweight
- + Fits small ESC trays in 1/8 buggies
- + Responsive customer service
- − ESC failures after a few runs in several reports
- − Motor too large for some chassis (Kyosho MP10)
- − Replacement units also reported failing
- − Ordering the wrong variant led to confusion
