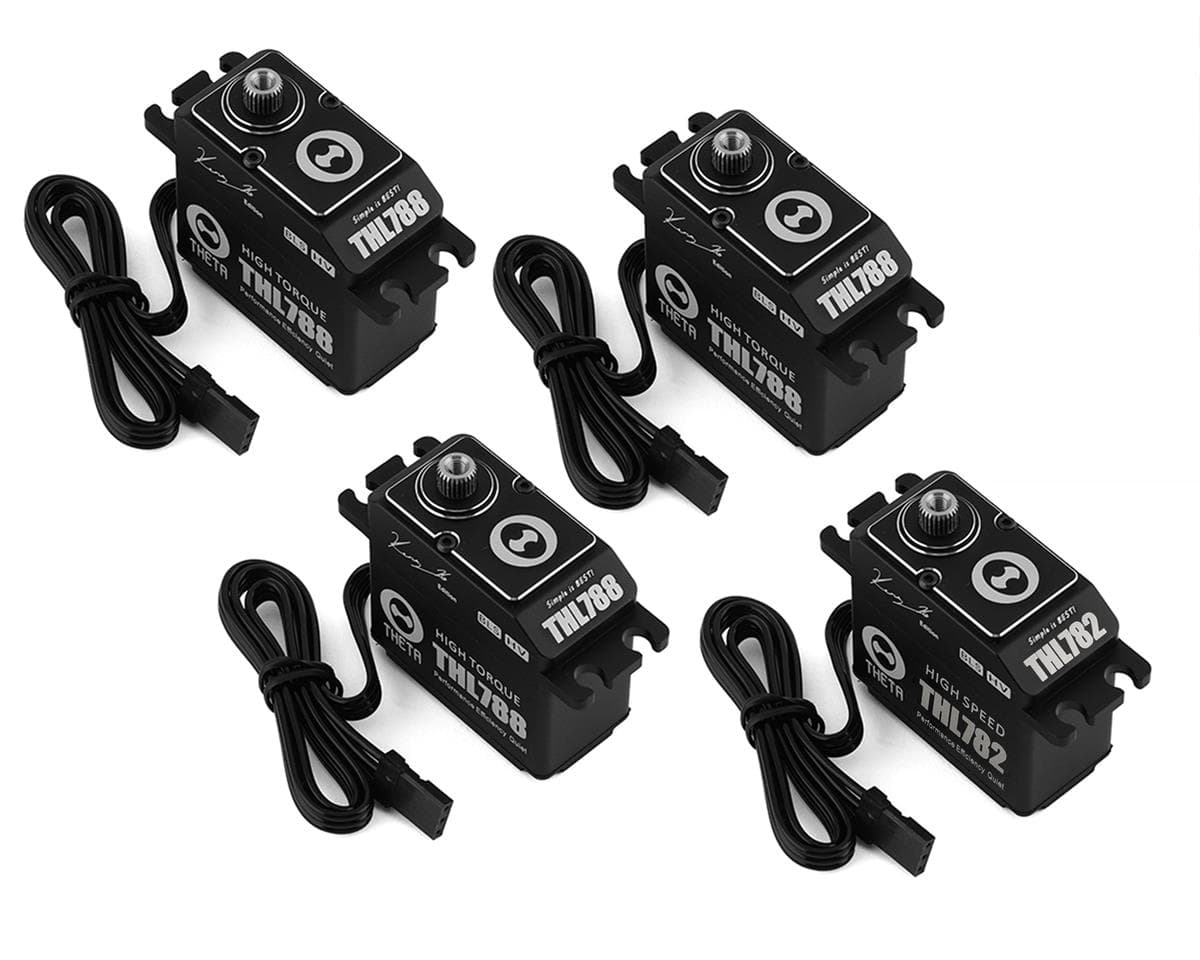

Theta Servos Kenny Ko Edition THL788 & THL782 Helicopter Servo Set (3 Cyclic & 1 Tail Servo) (High Voltage)

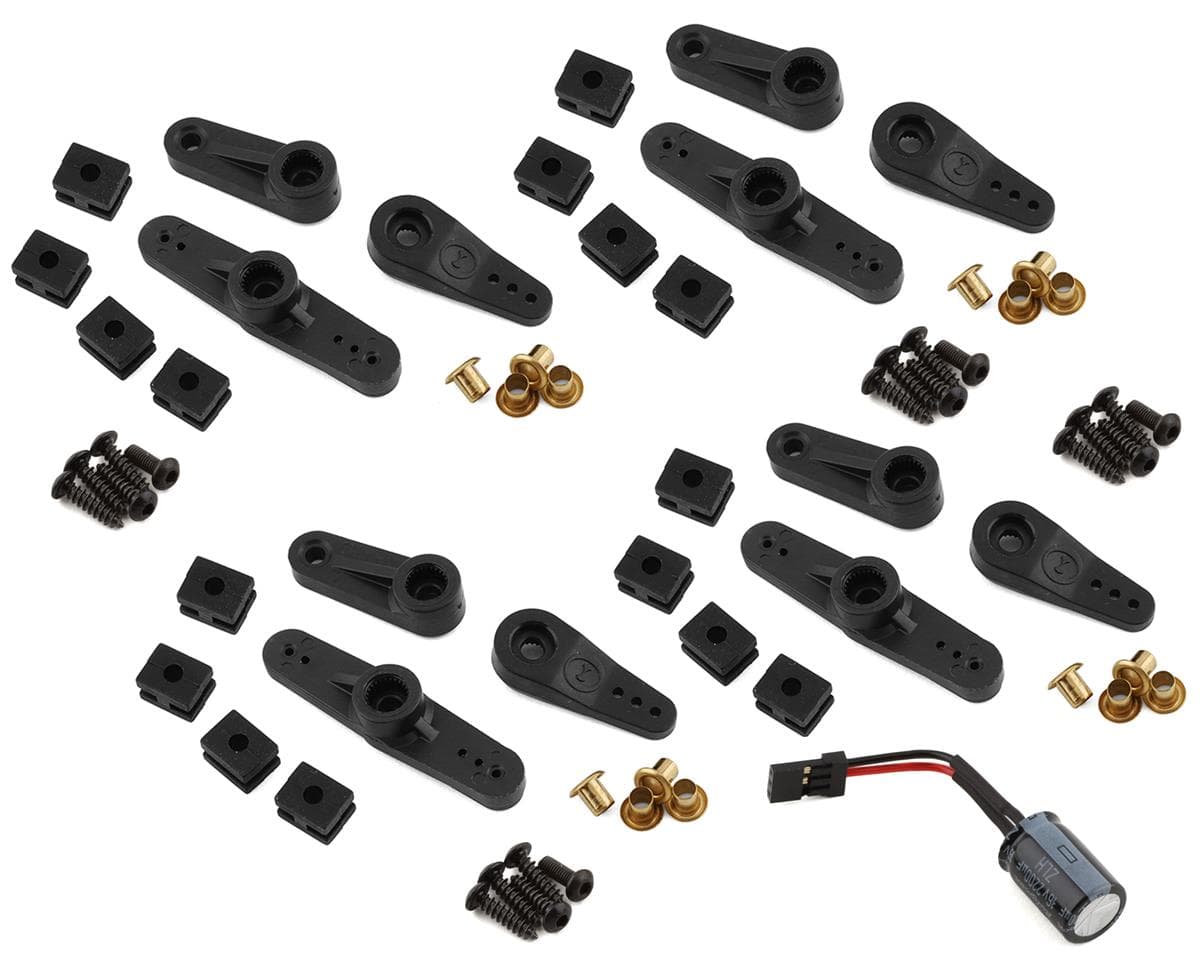

The Kenny Ko Edition THL788 and THL782 Helicopter HV Servo Set allow you to use servos that were optimized in collaboration with the World Champion, Kenny Ko. Package includes three THL788 cyclic servos, one THL782 tail servo, four sets of servo horns, four sets of servo mounts and one capacitor.

Features:

• High Voltage
• High Speed
• Excellent Centering
• Includes a set of servo horns and servo mounts
• Compatible with 25T Futaba type horns/arms
• Light Weight

Specifications:

• THL788 Cyclic Servo:
• Voltage: 5.0-8.4V DC
• Speed:
• 5.0V: 0.11s/60°
• 7.4V: 0.09s/60°
• 8.4V: 0.08s/60°
• Torque:
• 5.0V: 277.74oz-in (20kg-cm)
• 7.4V: 388.84oz-in (28kg-cm)
• 8.4V: 444.39oz-in (32kg-cm)
• Neutral Pulse Width: 1520us
• Frequency Range: 50-400Hz
• THL782 Tail Servo:
• Voltage: 5.0-8.4V DC
• Speed:
• 5.0V: 0.065s/60°
• 7.4V: 0.057s/60°
• 8.4V: 0.045s/60°
• Torque:
• 5.0V: 138.87oz-in (10kg-cm)
• 7.4V: 194.42oz-in (14kg-cm)
• 8.4V: 222.19oz-in (16kg-cm)
• Neutral Pulse Width: 760us
• Frequency Range: 50-700Hz
