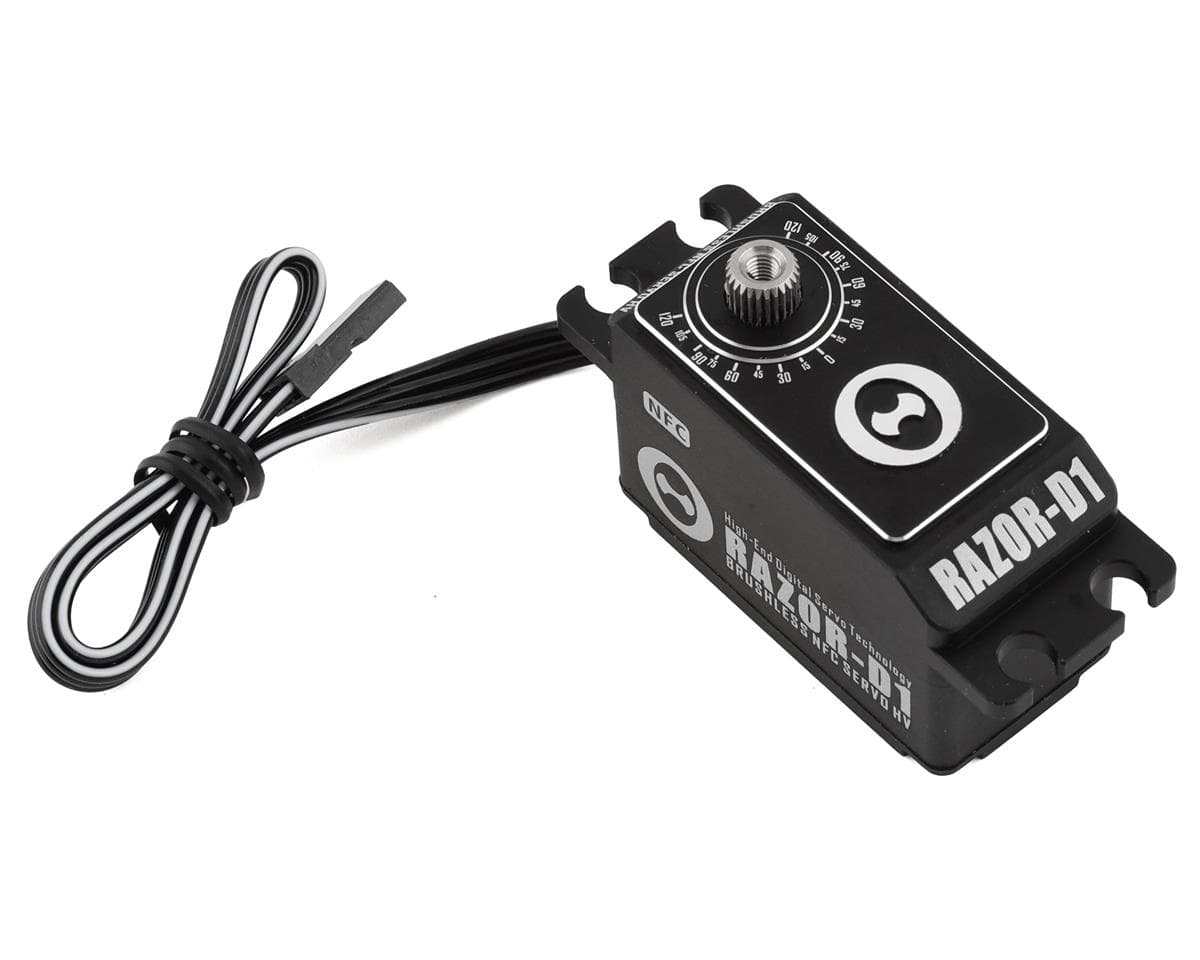

Theta Servos Razor-D1 Brushless Low Profile High Voltage Servo

The Razor D1 Theta Servo is a low profile size brushless servo that is capable of handling high voltage of up to 8.4V. The high torque brushless servo delivers incredible power and can be used for RC helicopters, airplanes, cars, and trucks. Featuring NFC technology, the Razor series of servos can tune and optimize performance through an Android device. Settings such as servo centering (servo offset), refresh rate, acceleration, and PID control loop are all available for tuning.

Features:

• High voltage compatibility
• Brushless motor
• Metal gears
• Precision centering
• NFC Wireless tuning via Android devices
• 25T Output shaft
• Neutral position: 760uS | 1520uS - Selectable

• Operating Voltage: 5V - 8.4V
• Torque:
• 3A:
• 6V: 187 oz/in (13.5kg-cm)
• 7.4V:  208 oz/in (15kg-cm)
• 8.4V: 222 oz/in (16kg-cm)
• 5A:
• 6V: 215 oz/in (15.5kg-cm)
• 7.4V:  249 oz/in (18kg-cm)
• 8.4V:  277 oz/in (20kg-cm)
• Speed:
• 3A:
• 6V: 0.09 sec/60
• 7.4V:  0.08 sec/60
• 8.4V:  0.07 sec/60
• 5A:
• 6V: 0.081 sec/60
• 7.4V: 0.072 sec/60
• 8.4V:  0.063 sec/60
• Weight: 53g (1.87 Oz)
• Motor Type: Brushless
• Spline: 25T
