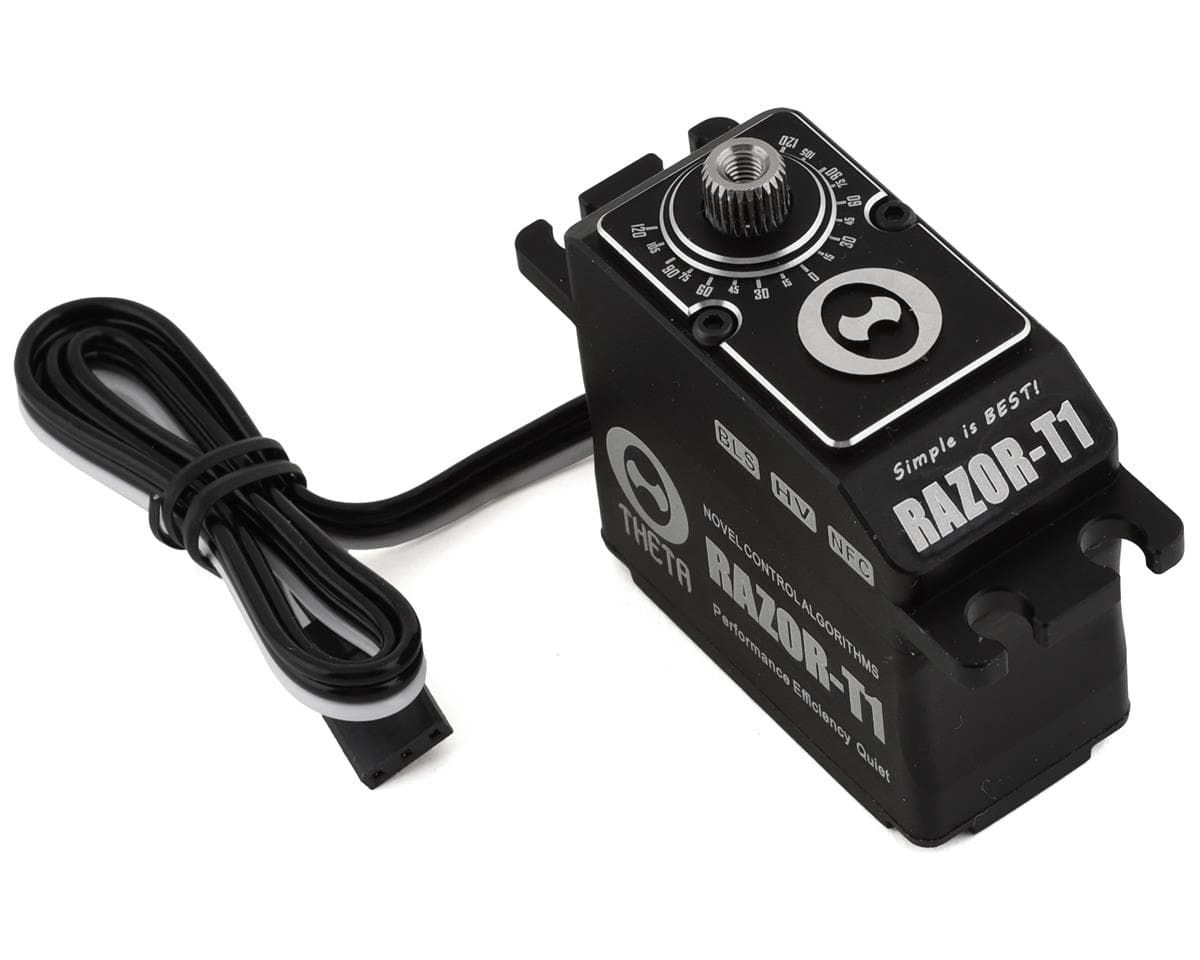

Theta Servos Razor-T1 Brushless High Voltage Tail Servo (Black)

The Razor C1 Theta Servo is a full size brushless helicopter tail rotor servo that is capable of handling high voltage of up to 8.4V. The high torque brushless servo delivers incredible power and can be used for RC helicopters. Featuring NFC technology, the Razor series of servos can tune and optimize performance through an Android device. Settings such as servo centering (servo offset), refresh rate, acceleration, and PID control loop are all available for tuning.

Features:

• All black design
• High voltage compatibility
• Brushless motor
• Metal gears
• Precision centering
• NFC Wireless tuning via Android devices
• 25T Output shaft
• All black cables
• Neutral position: 760uS (default) | 1520uS - Selectable

• Operating Voltage: 5V - 8.4V
• Torque:
• 2.6A:
• 6V: 249 oz/in (18kg-cm)
• 7.4V:  263 oz/in (19kg-cm)
• 8.4V: 277 oz/in (20kg-cm)
• 5A:
• 6V: 333 oz/in (24kg-cm)
• 7.4V:  374 oz/in (27kg-cm)
• 8.4V: 416 oz/in (30kg-cm)
• Speed:
• 2.6A:
• 6V: 0.054 sec/60
• 7.4V:  0.047 sec/60
• 8.4V:  0.042 sec/60
• 5A:
• 6V: 0.051 sec/60
• 7.4V: 0.044 sec/60
• 8.4V:  0.039 sec/60
• Weight: 73g (2.57 Oz)
• Motor Type: Brushless
• Spline: 25T
