Theta Servos Razor-X1 Brushless High Voltage Servo
Part # TS-RX1
Where to buy
$181.49
Prices are as last seen at the store; stock is not tracked.
About this part

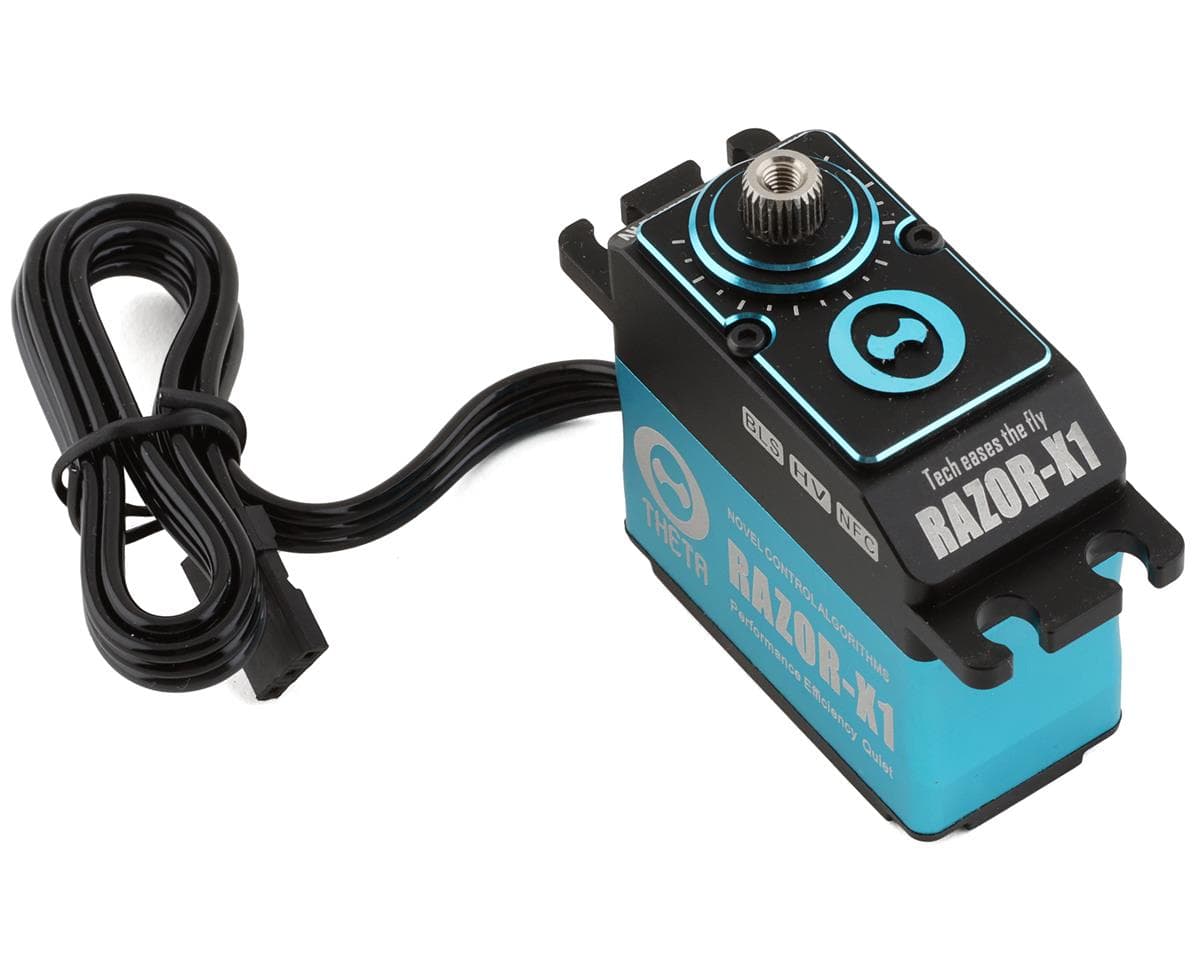

The Razor X1 Theta Servo is a full size brushless servo that is capable of handling high voltage of up to 8.4V. The high torque brushless servo delivers incredible power and can be used for RC airplanes, cars, and trucks. Featuring NFC technology, the Razor series of servos can tune and optimize performance through an Android device. Settings such as servo centering (servo offset), refresh rate, acceleration, and PID control loop are all available for tuning.
Features:
- All black design
- High voltage compatibility
- Brushless motor
- Metal gears
- Precision centering
- NFC Wireless tuning via Android devices
- 25T Output shaft
- All black cables
Specifications:
- Operating Voltage: 5V - 8.4V
- Torque:
- 6V: 582 oz/in (42kg-cm)
- 7.4V: 652 oz/in (47g-cm)
- 8.4V: 721 oz/in (52kg-cm)
- Speed:
- 6V: 0.14 sec/60
- 7.4V: 0.13 sec/60
- 8.4V: 0.12 sec/60
- Weight: 76g (2.68 Oz)
- Motor Type: Brushless
- Spline: 25T
