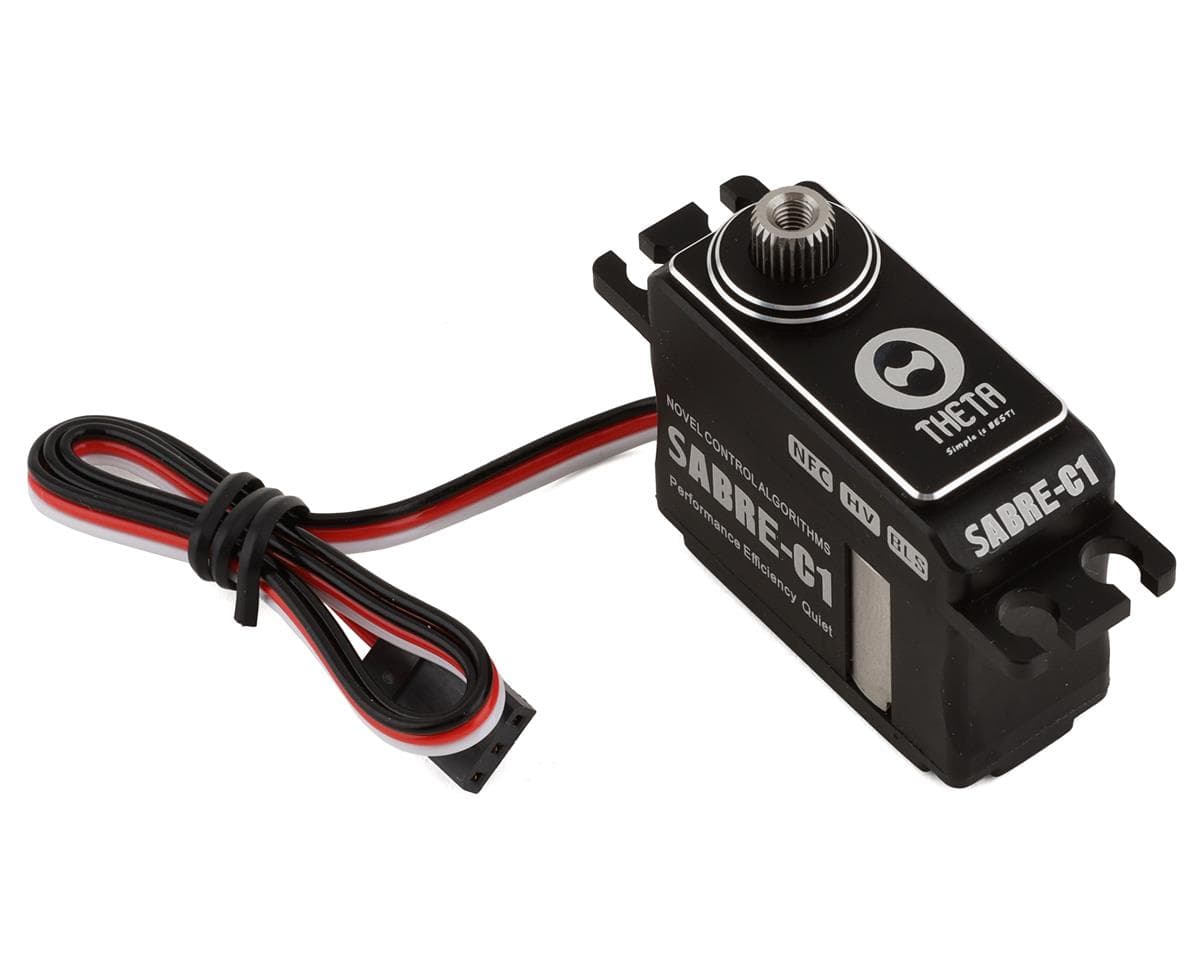

Theta Servos Sabre-C1 Brushless Mini High Voltage Servo
Part # TS-SC1
Where to buy
$132.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Sabre C1 Theta Servo is a mini size brushless servo that is capable of handling high voltage of up to 8.4V. The high torque brushless servo delivers incredible power and can be used for RC helicopters, airplanes, cars, and trucks when a mini servo is required. Featuring NFC technology, the Sabre series of servos can tune and optimize performance through an Android device. Settings such as servo centering (servo offset), refresh rate, acceleration, and PID control loop are all available for tuning.
Features:
- High voltage compatibility
- Brushless motor
- Metal gears
- Precision centering
- NFC Wireless tuning via Android devices
- 25T Output shaft
- Neutral position: 760uS | 1520uS - Selectable
Specifications:
- Operating Voltage: 5V - 8.4V
- Torque:
- 6V: 166 oz/in (12kg-cm)
- 7.4V: 194 oz/in (14kg-cm)
- 8.4V: 208 oz/in (15kg-cm)
- Speed:
- 6V: 0.09 sec/60
- 7.4V: 0.08 sec/60
- 8.4V: 0.07 sec/60
- Weight: 46g (1.62 Oz)
- Motor Type: Brushless
- Spline: 25T
