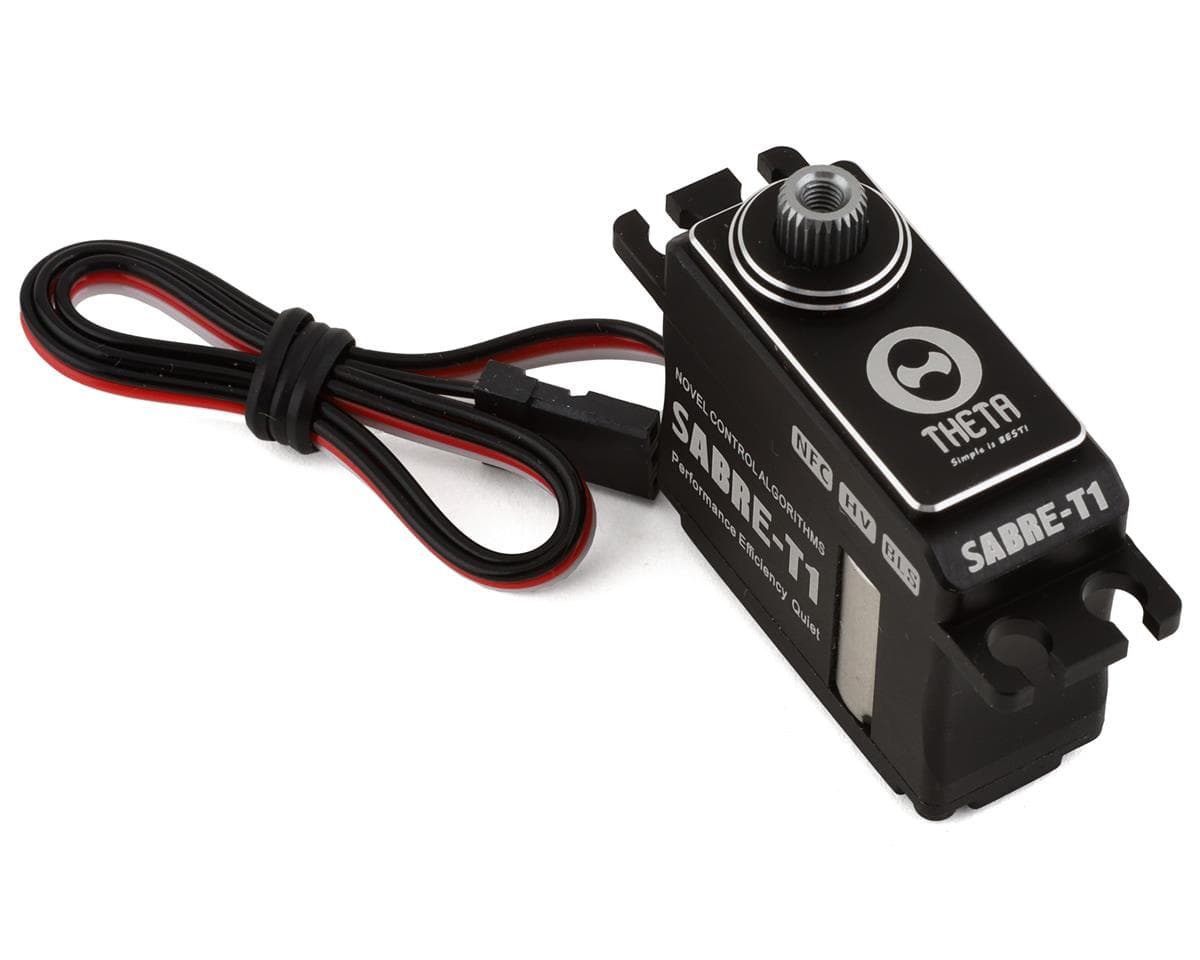

Theta Servos Sabre-T1 Brushless Mini High Voltage Tail Servo

The Sabre T1 Theta Servo is a mini size brushless servo that is capable of handling high voltage of up to 8.4V. The high torque brushless servo delivers incredible power and is an ideal choice for RC helis that need a mini sized tail rotor servo. Featuring NFC technology, the Sabre series of servos can tune and optimize performance through an Android device. Settings such as servo centering (servo offset), refresh rate, acceleration, and PID control loop are all available for tuning.

Features:

• High voltage compatibility
• Brushless motor
• Metal gears
• Precision centering
• NFC Wireless tuning via Android devices
• 25T Output shaft
• Neutral position: 760uS | 1520uS - Selectable

• Operating Voltage: 5V - 8.4V
• Torque:
• 6V: 97 oz/in (7kg-cm)
• 7.4V:  111 oz/in (8kg-cm)
• 8.4V: 124 oz/in (9kg-cm)
• Speed:
• 6V: 0.07 sec/60
• 7.4V:  0.06 sec/60
• 8.4V:  0.05 sec/60
• Weight: 46g (1.62 Oz)
• Motor Type: Brushless
• Spline: 25T
