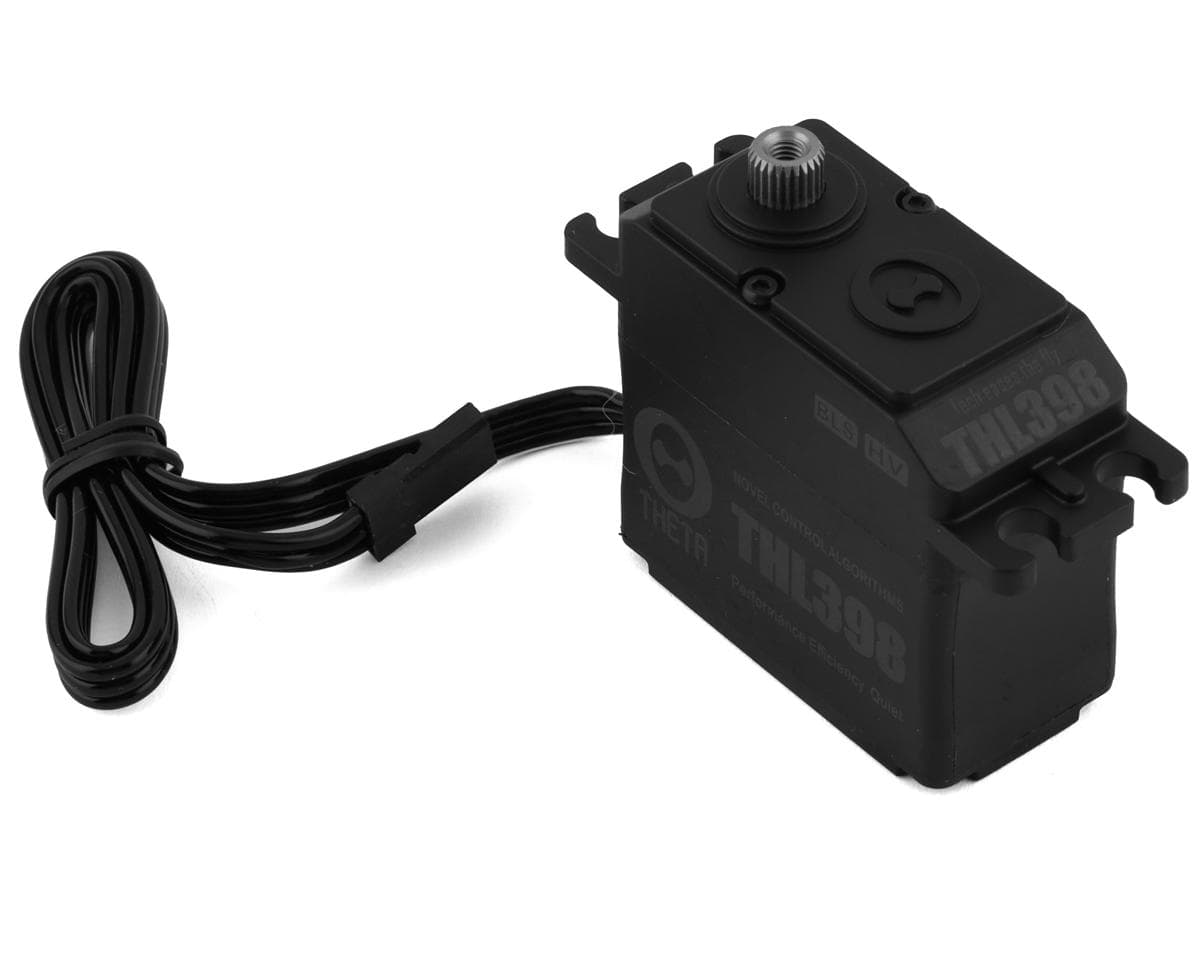

Theta Servos THL398 HV High Torque Standard Brushless Servo (5V-8.4V)

Theta Servos THL398 HV High Torque Standard Brushless Servo. Designed and developed to be a high performance and a budget friendly, this THL398 super capable servo can put up to 30Kg/CM of pure torque at a high speed rate of 0.10sec/60° while operating on 8.4V! which is ideal for 550 all the way up to 800 class helicopters, airplanes and more!

Features:

• High Voltage compatible
• High speed and torque
• Lightweight at only 65g
• Ideal for 550 all the way up to 800 class helicopters, airplanes and more

Specifications:

• Application: 50 all the way up to 800 class helicopters, airplanes and more
• Motor: Brushless
• Operating Voltage: 6V-8.4V
• Speed:
  • 6.0V: 0.12sec/60°
  • 7.4V: 0.11sec/60°
  • 8.4V: 0.10sec/60°
• Torque:
  • 6.0V: 23Kg/cm
  • 7.4V: 27Kg/cm
  • 8.4V: 30Kg/cm
• Spline: 25T (Protek/Futaba)
• Dimensions (LxWxH): 40x37.5x25.9mm
• Weight: 65g

Includes:

• (1) THL398 HV High Torque Standard Brushless Servo
