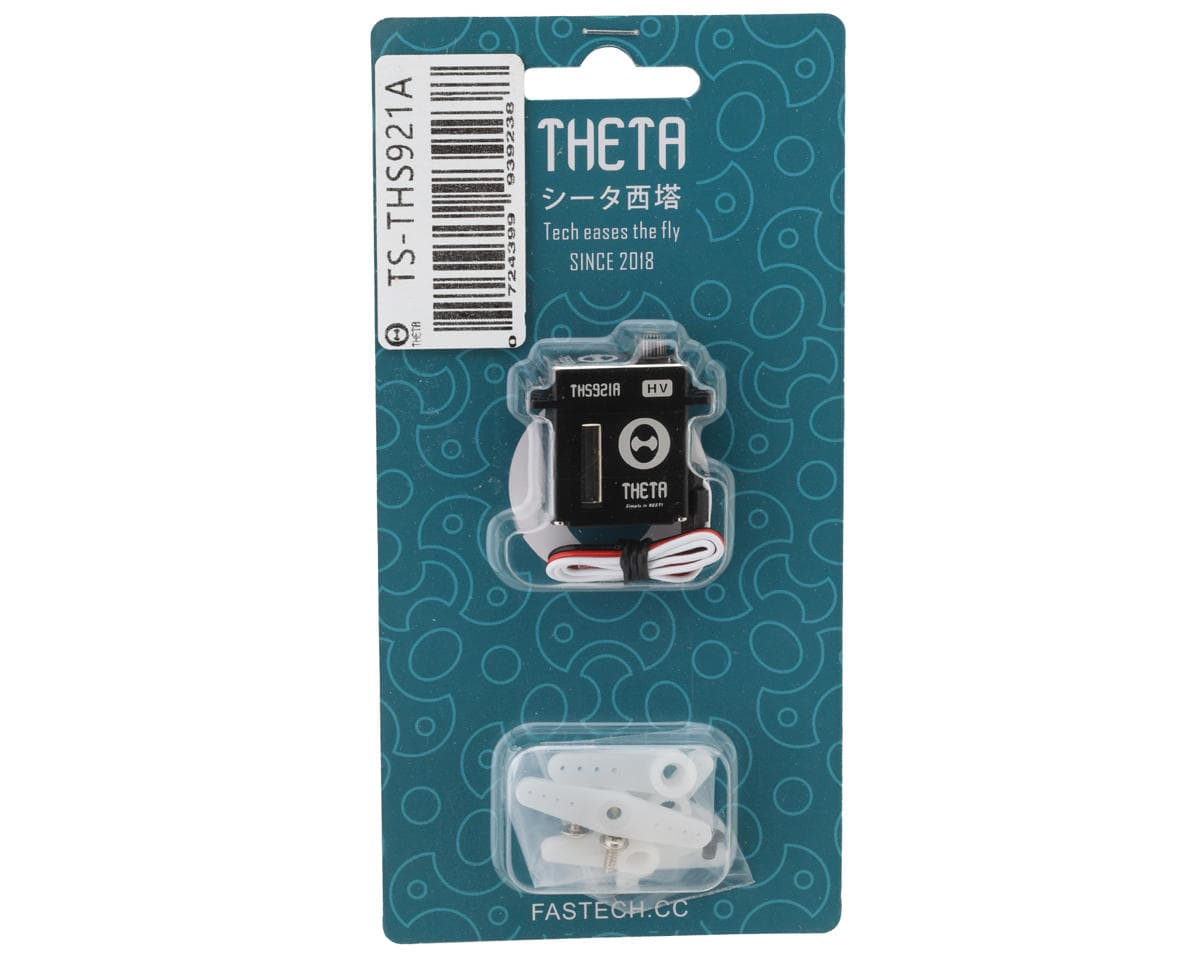

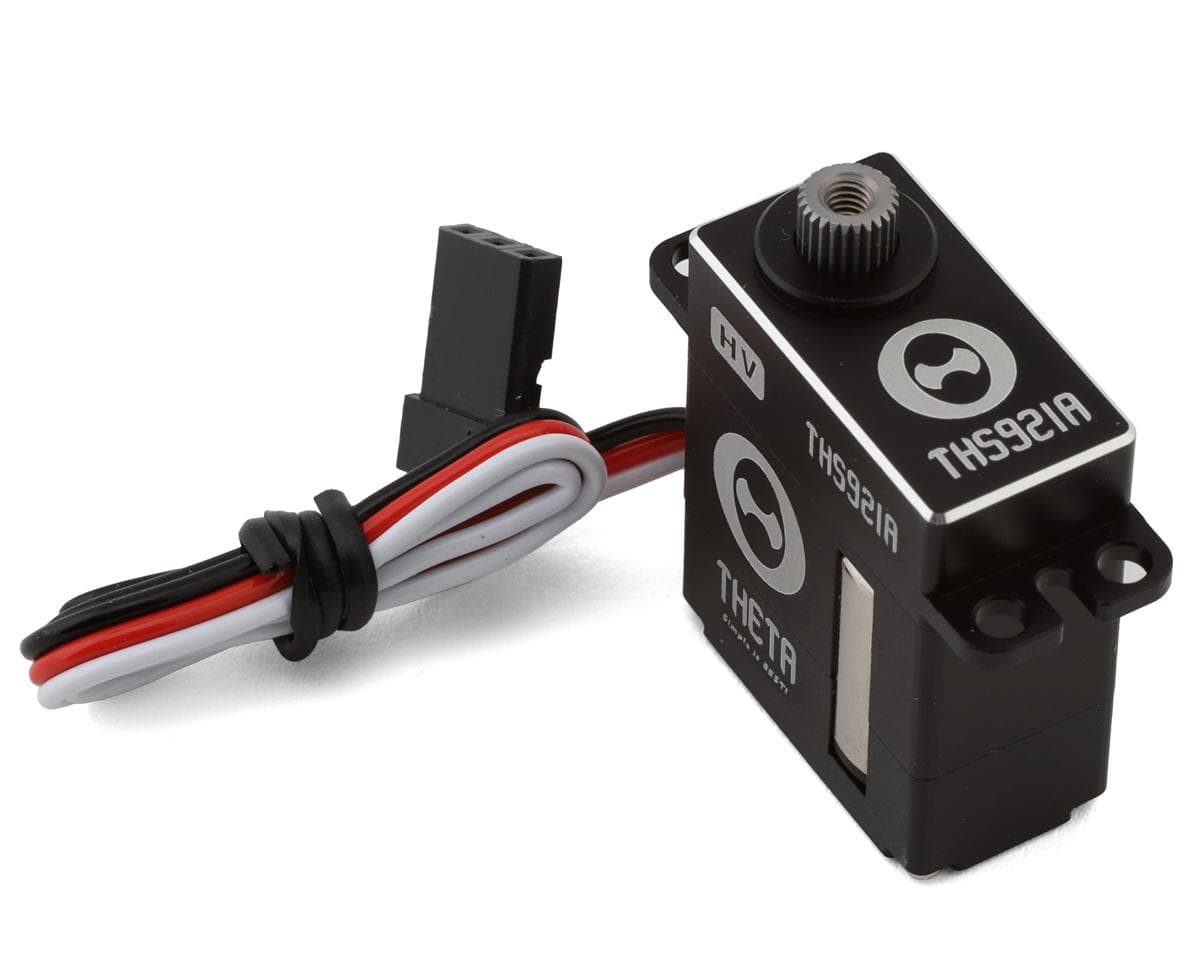

Theta Servos THS921A Coreless Micro High Voltage Servo
Part # TS-THS921A
Where to buy
$72.99
Prices are as last seen at the store; stock is not tracked.
About this part
Servo Overview:
Theta Servos THS921A Coreless Micro High Voltage Servo. Ideal for 450 class helicopters, such as Goblin 380, T-Rex 450, and many others with a rotor disc less than 420mm, the THS921A features an incredible torque of 108.32oz-in (7.8kg-cm) combined with a high speed of 0.10 sec/60° at 7.4V, high voltage compatible, excellent centering and high-efficiency brushless motor for smooth operation and efficiency! In addition, the THS921A is compatible with Futaba-type horns/arms! Get the THS921A coreless micro high voltage servo to elevate your flying experience to the sky!
Features
- Ideal for 450 class helicopters, such as Goblin 380, T-Rex 450, GAUI X3, KDS Chase, and many others with a rotor disc less than 420mm
- Incredible torque combined with high speed
- High-efficiency brushless motor for smooth operation and efficiency
- 100% high voltage compatible
- Excellent centering
- Compatible with Futaba-type horns/arms
- Extremely lightweight
- All aluminum case
- All metal gears
Specifications:
- Speed:
- @6.0V: 0.12 sec/60°
- @7.4V: 0.10 sec/60°
- @8.4V: 0.09 sec/60°
- Torque:
- @6.0V: 91.65oz-in (6.6kg-cm)
- @7.4V: 108.32oz-in (7.8kg-cm)
- @8.4V: 119.43oz-in (8.6kg-cm)
- Motor: Brushless
- Operating Voltage: 6.0V-8.4V
- Operating Temperature: -
- Dimensions: 27.4x23x12mm
- Weight: 21g
- Operating Spline: Futaba
Includes:
- (1) THS921A Coreless Micro High Voltage Servo

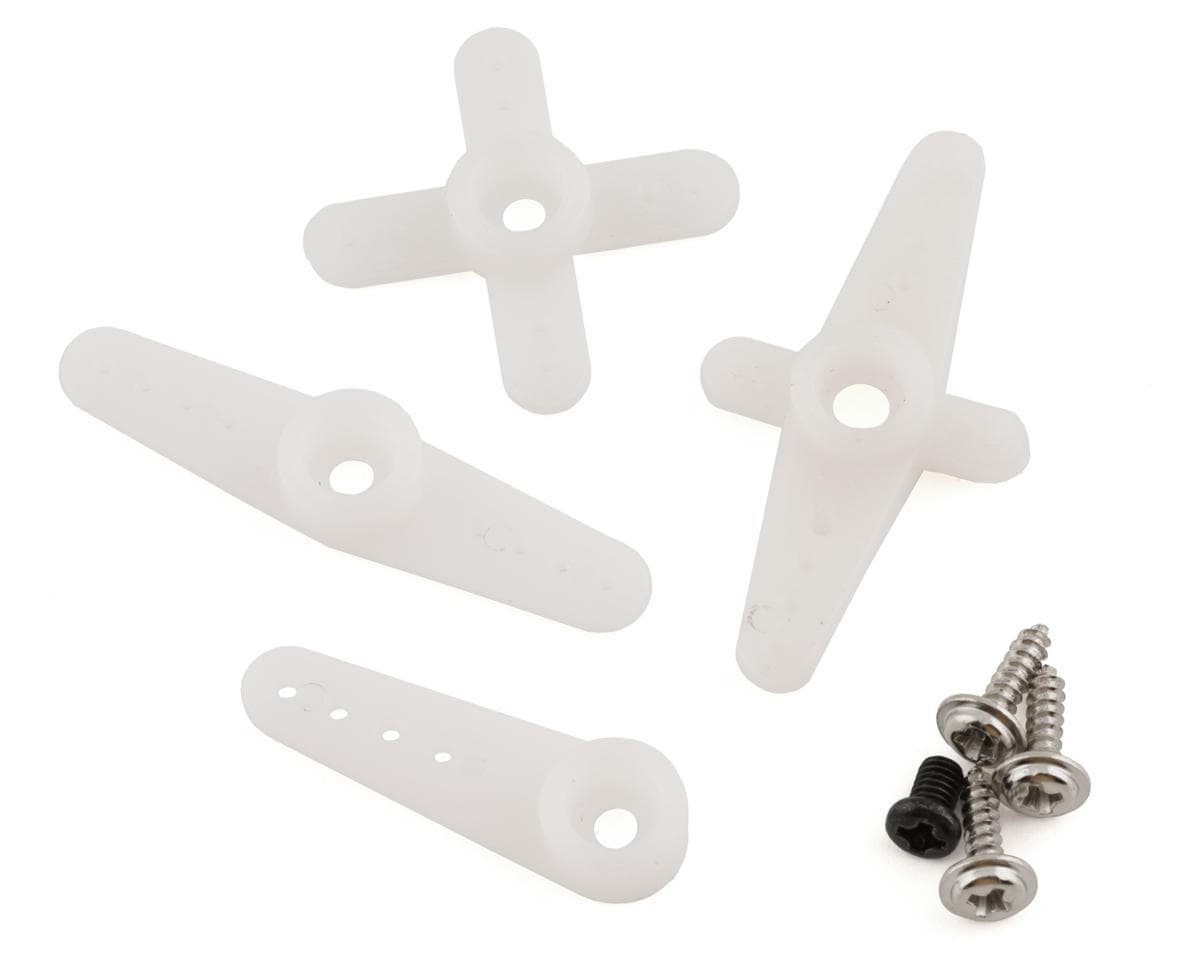

- Composite Horns
- Mounting Hardware
