ToolkitRC

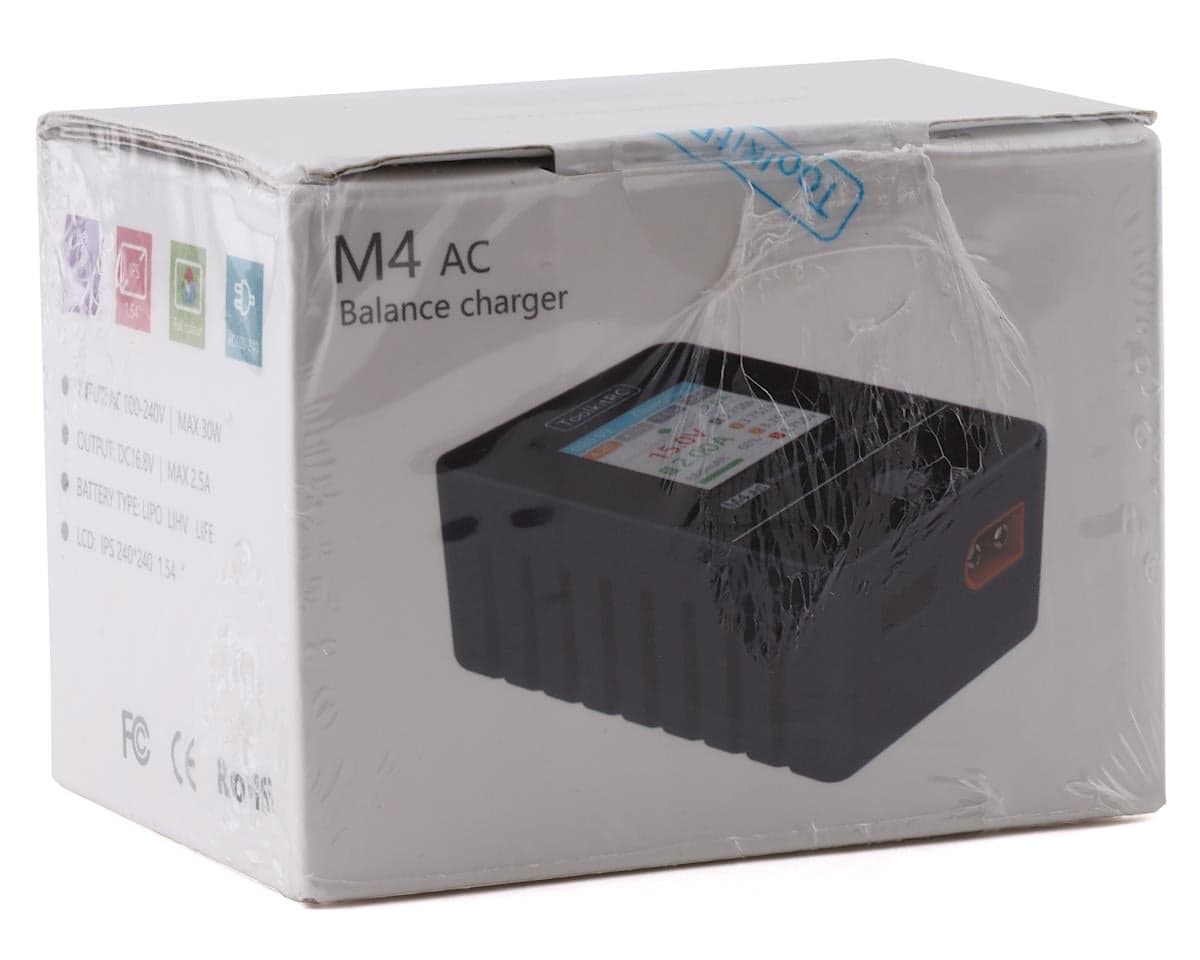

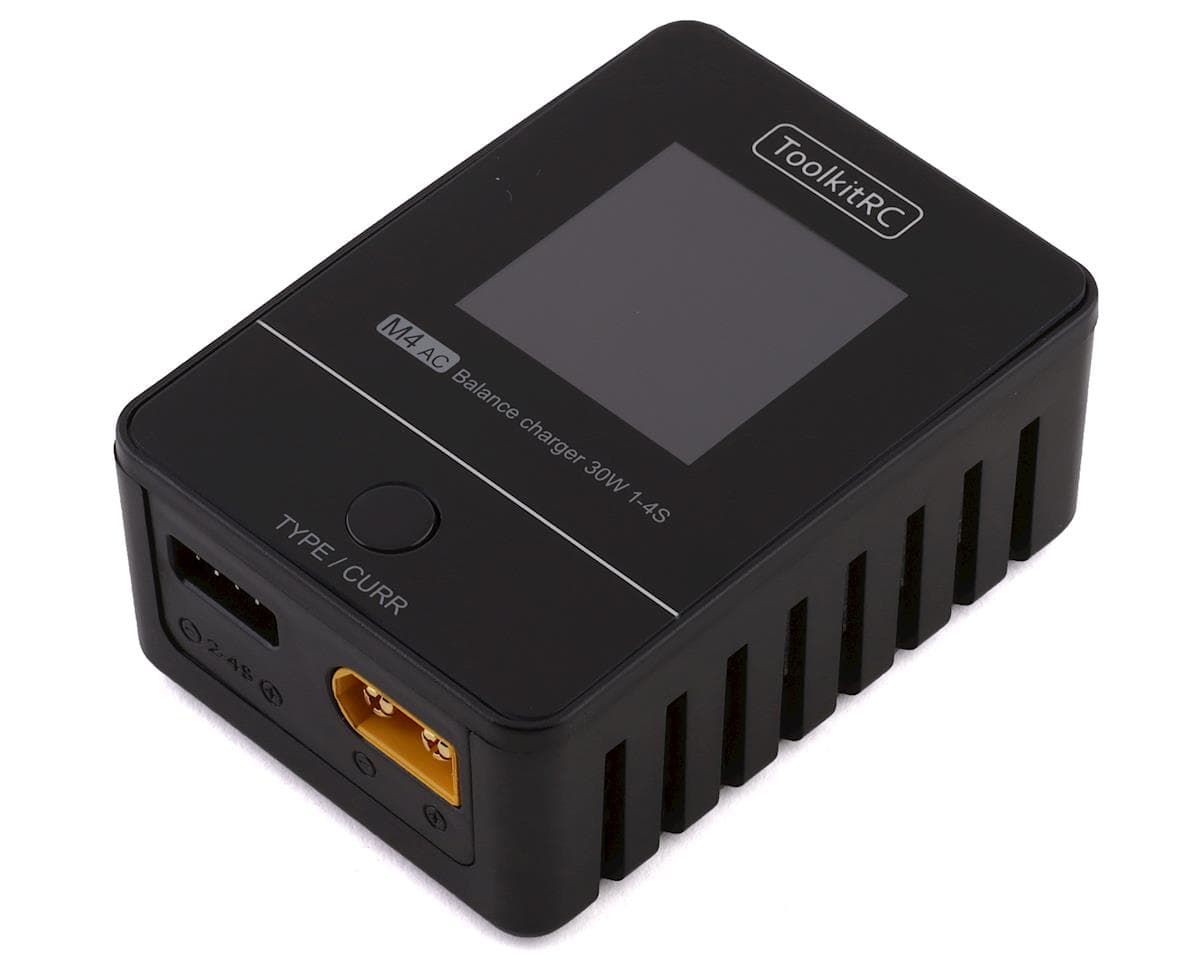

ToolkitRC M4 AC Battery Charger (4S/2.5A/25W)
Part # TLK-M4AC-XT602.0(2)
Where to buy
$31.99
Prices are as last seen at the store; stock is not tracked.
About this part
The ToolKitRC M4AC 25W Compact Balance Charger is a small lithium battery balance charger that offers great performance in a small form factor. Featuring 25W output power (up to 2.5A!), a colorful IPS display, powerful 32bit ARM processor, and XT-60 charging output, the M4AC is small but mighty.
Features:
- IPS full viewing angle display
- Voltage, current, charging status display
- 32Bit ARM Processor
- XT60 Interface
Specifications:
Input Power: AC 100-240V
Battery Type: LiPo LiHV LiFe @1-4S
Charging Power: 0.5-2.5A @ 25W
Balance Current: 200mA @2-4S
Charging accuracy: <0.005V
Display: LCD IPS 1.54 inch 240*240 resolution
Size: 75mm*54mm*30mm
Weight: 120g
Includes:
- (1) ToolkitRC M4AC Charger

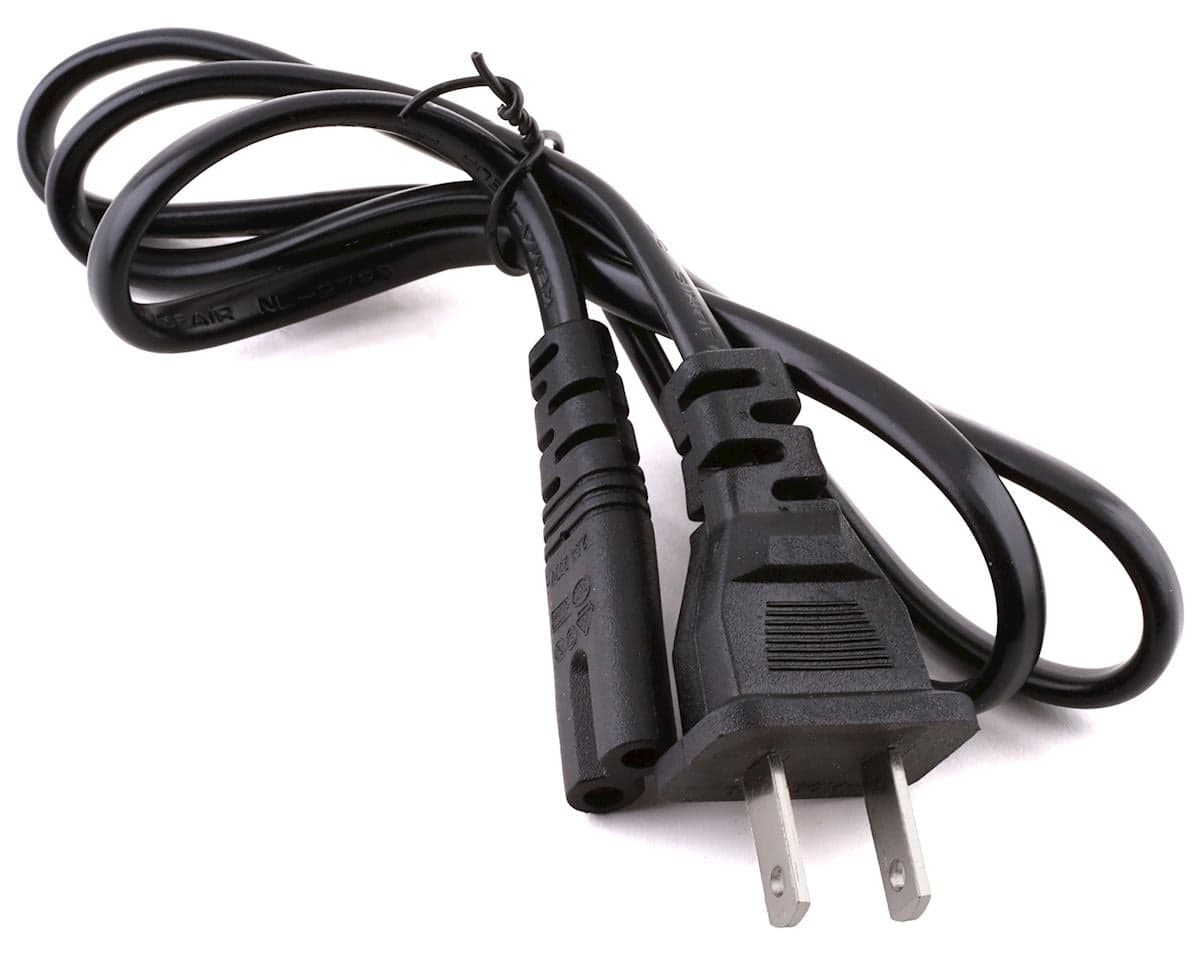

- (1) US plug
Reviews2.0 · 2 reviews
Jeffrey ZhongVerified owneron ToolkitRC M4 AC Battery Charger (4S/2.5A/25W)
The listing stated that the charger would include a US plug, but when my order arrived it came with a European (EU) plug instead. Because of this, I can’t use the charger as intended without purchasing a separate adapter, which is inconvenient and not what was advertised. I specifically ordered this item expecting it to include the correct US plug based on the product description.
Grayson SmithVerified owneron ToolkitRC M4 AC Battery Charger (4S/2.5A/25W)
Not bad. Gets the job done. I don’t think it provides discharge, instructions are minimal. Had to ask Reddit how to use it and check YouTube for instructions (I’m a RC newb).
