ToolkitRC

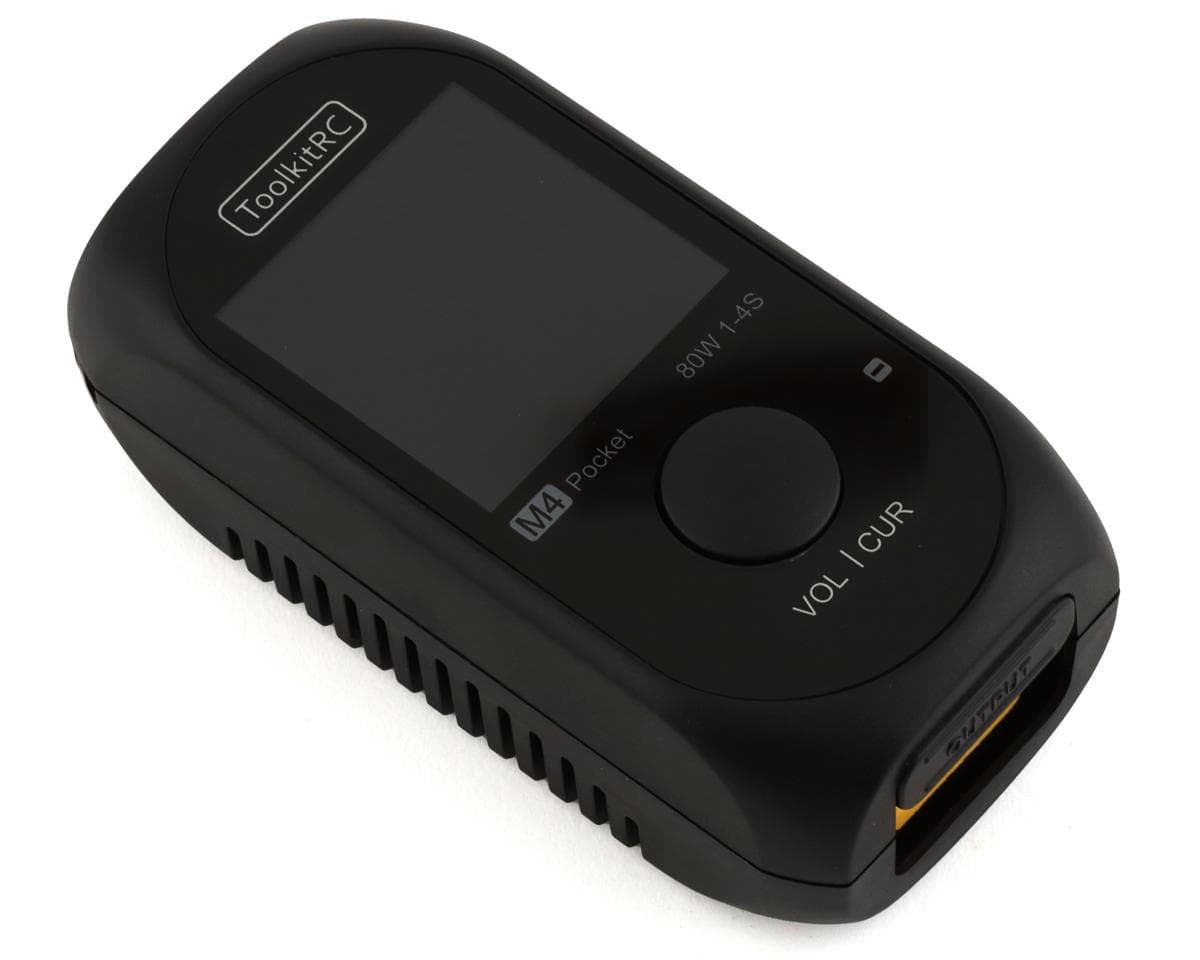

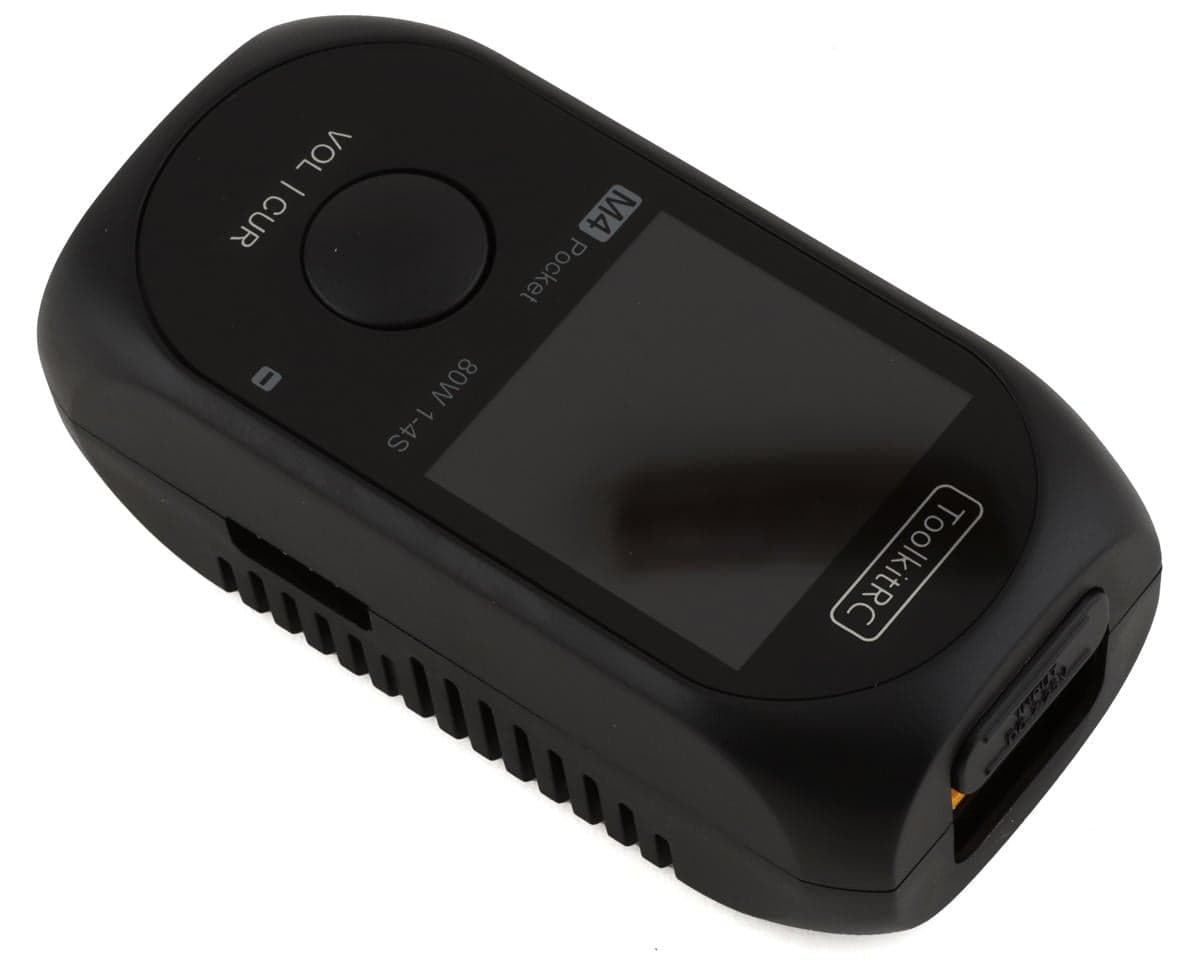

ToolkitRC M4 DC Battery Charger Workstation (4S/5A/80W)
Part # TLK-M4POCKET5.0(1)
Where to buy
$29.99
Prices are as last seen at the store; stock is not tracked.
About this part
ToolkitRC M4 DC Battery Charger Workstation. This small but mighty charger is packed with features. Packing up to 80 watts of power this ultra small charger is capable of charging up to 4S LiPo batteries with ease. Incorporated into the charger are selectable XT60 and XT30 charge connectors eliminating the need to carry adapters for properly equipped battery packs. Adding to the capability are dual inputs allowing you to easily power this charger and even fast charge USB-C devices when needed. The ToolkitRC M4 DC Battery Charger Workstation offers premium features in a small and affordable package.
Features:
Features:
- Up to 80 watts of charging power
- Compact size (80x40x30mm)
- IPS wide angle color display (240x240 pixels)
- Charge mobile devices using USB-C
- Built in XT30/XT-60 outputs
- Input Voltage:
- XT60: 7.0-25.0V, MAX 5.0A
- USB-C: 7.0-20.0V
- USB-C Protocol: QC,PD,AFC,FCP Protocol
- Battery Type: LiPo, LiHv, LiFe (1-4S)
- Charge Power: 1.0-5.0A@MAX 80W
- Balance Current: 400mA @4.20V
- Balance Accuracy: <0.005V @ 4.2V
- USB-C Output: 1.0A @5.0V
- (1) M4 DC Battery Charger Workstation
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 1 review
Neil Antonio CajoteVerified owneron ToolkitRC M4 DC Battery Charger Workstation (4S/5A/80W)
After some searching online and reading the Manual, I was able to calibrate the voltage and able to charge accurately. This charger is awesome, small but very fast charging. Highly recommended... Thank you Amain Hobbies!!!
