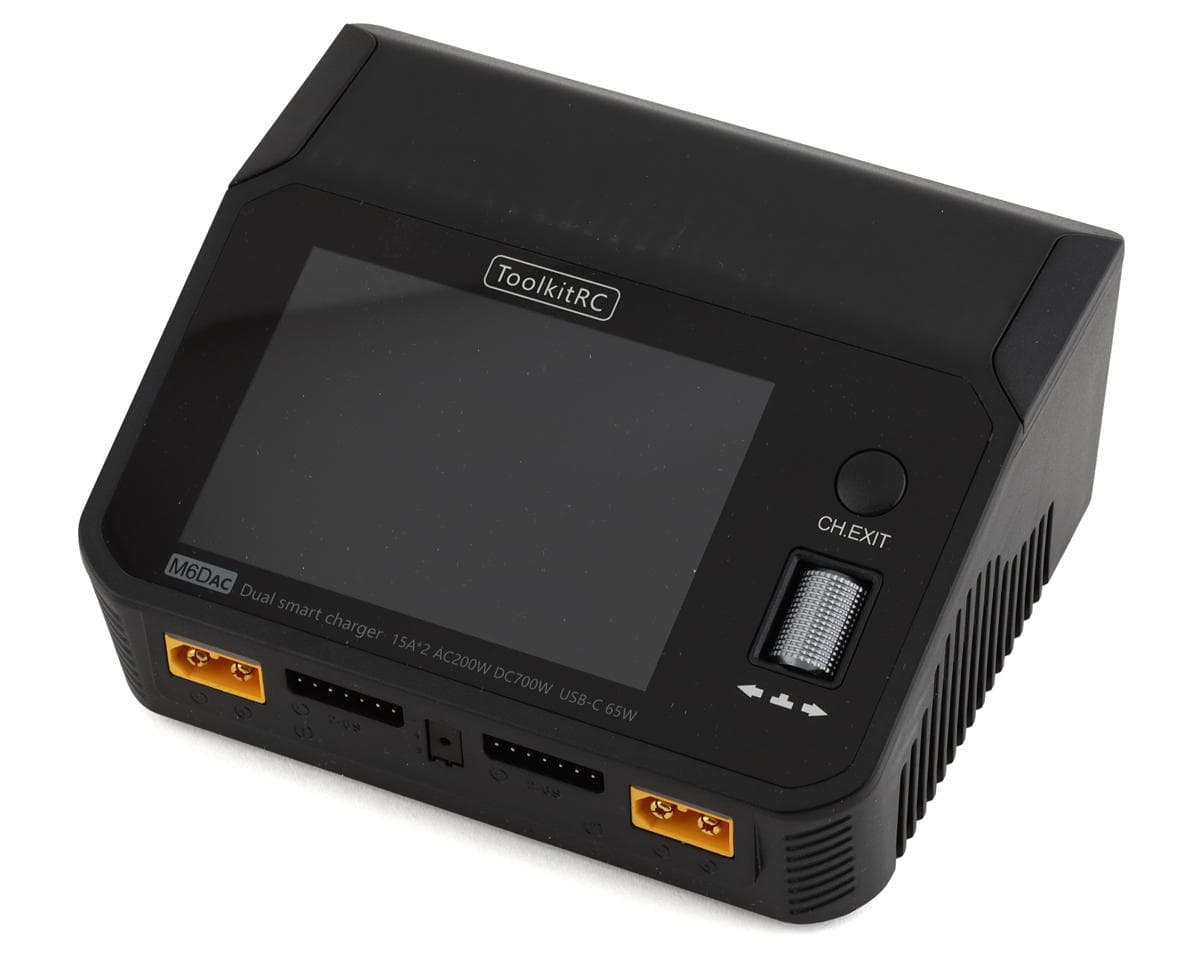

ToolkitRC M6D Dual AC/DC Battery Charger Workstation (6S/15A/200W)
About this part
Features:
- Built-in AC/DC power supply
- Dual charge outputs
- USB 65W fast charge
- 3.5" IPS color screen
- Metal dial wheel for an excellent tactile feel
- Input Voltage:
- DC 7.0-28.0V @MAX 30A
- AC 100-240V @ MAX 2.5A
- Battery Type:
- Lipo LiHV LiFe Lion@1-6S
- NiMh @1-16S Pb @1-10S
- Balance Current: 1000mA @2-6S
- Balance Accuracy: <0.005V
- Charger Power:
- 0.1-15A @350W *2 (Asynchronous mode)
- 0.1-25A @700W (Synchronous mode)
- Discharge Power:
- 350W @MAX 15A *2?Recycle mode)
- 15W@3A *2 (Normal mode)
- USBC Power: MAX 65W 3.25A @20.0V or Upgraded
- USBC Protocol: PD,QC,AFC,FCP,SCP,PE,SFCP,VOC
- Battery Voltage: 1.0V-5.0V@1-6S
- Internal Resistance: 1-100mR@1-6S
- Size: 127x106x57mm
- Weight: 520g
- LCD: IPS 3.5inch LCD 480x320 Pixel

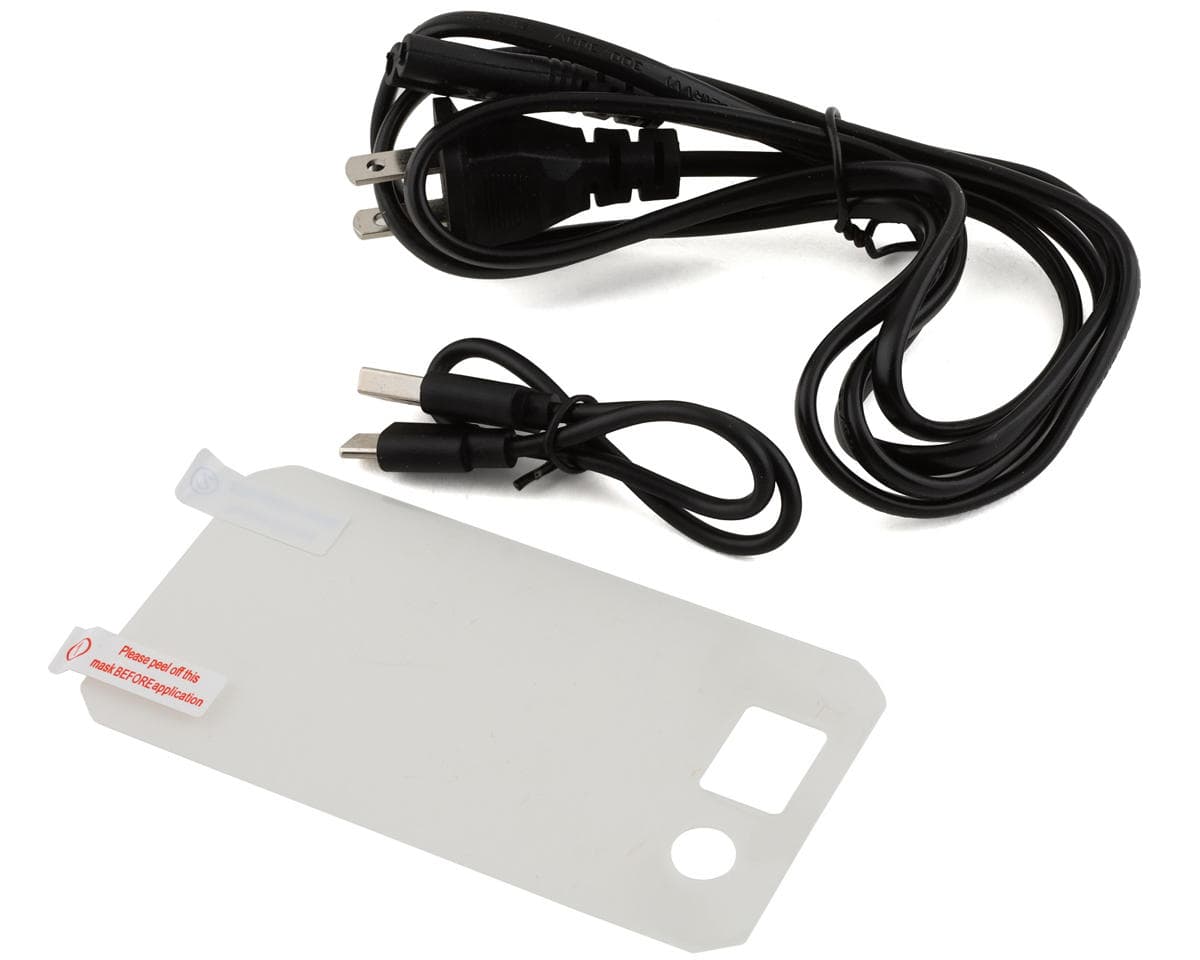

- (1) M6D Dual AC/DC Battery Charger Workstation
- (1) Screen Protector
- Power Chords
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews3.7 · 6 reviews
Two of the 6 cells of the charger are no longer usable and they cannot be recalibrated. I have communicated with Toolkit directly and even sent them a video of the problem ( https://youtu.be/c7zEB65Vz8k ) at which point they stopped communicating with me in the face of evidence of their defective product. While it worked, it was a great charger, but I would not buy any products from a company (Toolkit) that behaves this way and does not support their products or their customers. There are lots of other alternatives for good chargers from reputable companies!!!
Best charger I’ve own yet, I use to have a Reedy 1216 C2 but the screen went out & needed to replace that charger, friend of mine told me about this and for the price I couldn’t pass it up although I don’t fly FPV I use this charger strictly for RC car racing. Awesome charger only flaw is it doesn’t come with any charging leads but that’s not a dealbreaker, amain sales charging leads fairly priced
Great charger with the flexibility to use it at home or field. After quick shipping and arrival it has done a great job charging some medium size packs. It is a great upgrade from my prior charger.
Amazing charger. Absolutely love the compact size. I flipped a coin to try this vs the isdt k2 which has very similar specs. Key pros: Fan is quiet Charge 2 bats at 10a LED status so you can glance across the room and see if it's done. 15w discharge which is great for its size. Regen/recycle mode for discharge back to supply battery Measures IR viewable while charging Shows you everything it's doing, balancing status per cell, supply voltages Has USB charger Cons: Haven't seen any yet. Best charger I've owned.
Great compact charger for taking complete care of your batteries. I like the handy size for all the versatility it provides. Very useful around the shop as well as at the field.
Reviewers generally praise the charger's compact size, dual charging ports, power output and feature set, including discharge, regeneration mode, IR measurement and per-cell status display. Most reviews are five-star and describe the unit as a strong upgrade. Two one-star reviews raise concerns: one reports two cells failing and not recalibrating, with the reviewer saying the manufacturer stopped responding; the other objects to the lack of an on/off switch and the purpose of the USB-C input. One reviewer notes charging leads are not included. Review count is small, and the reported cell failure is a single account.
- + Compact size
- + Dual charging ports and high power output
- + Feature set including discharge and regen mode
- + Quiet fan and clear status display
- − Two cells reportedly failed and could not be recalibrated
- − Manufacturer support reportedly unresponsive
- − No on/off switch
- − Charging leads not included
