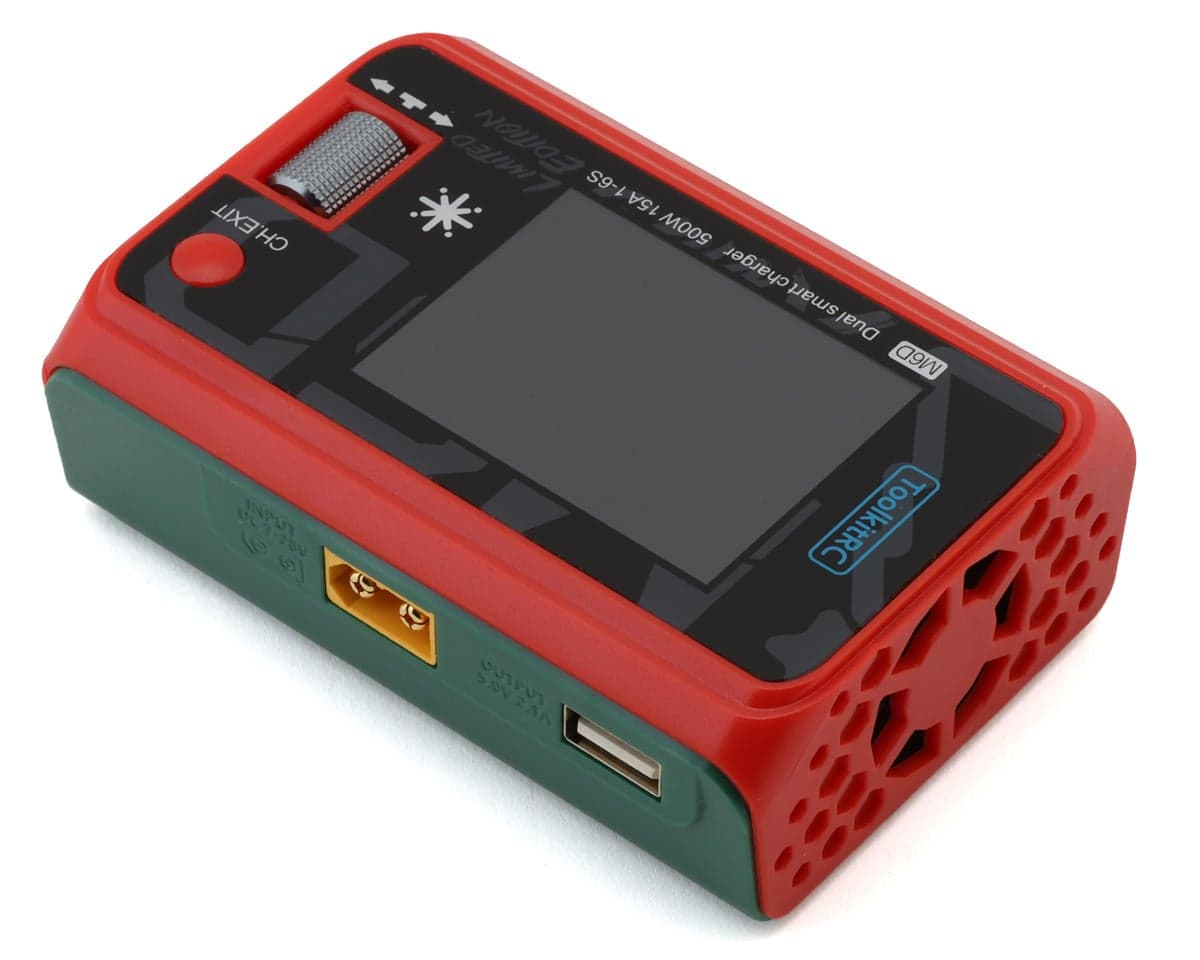

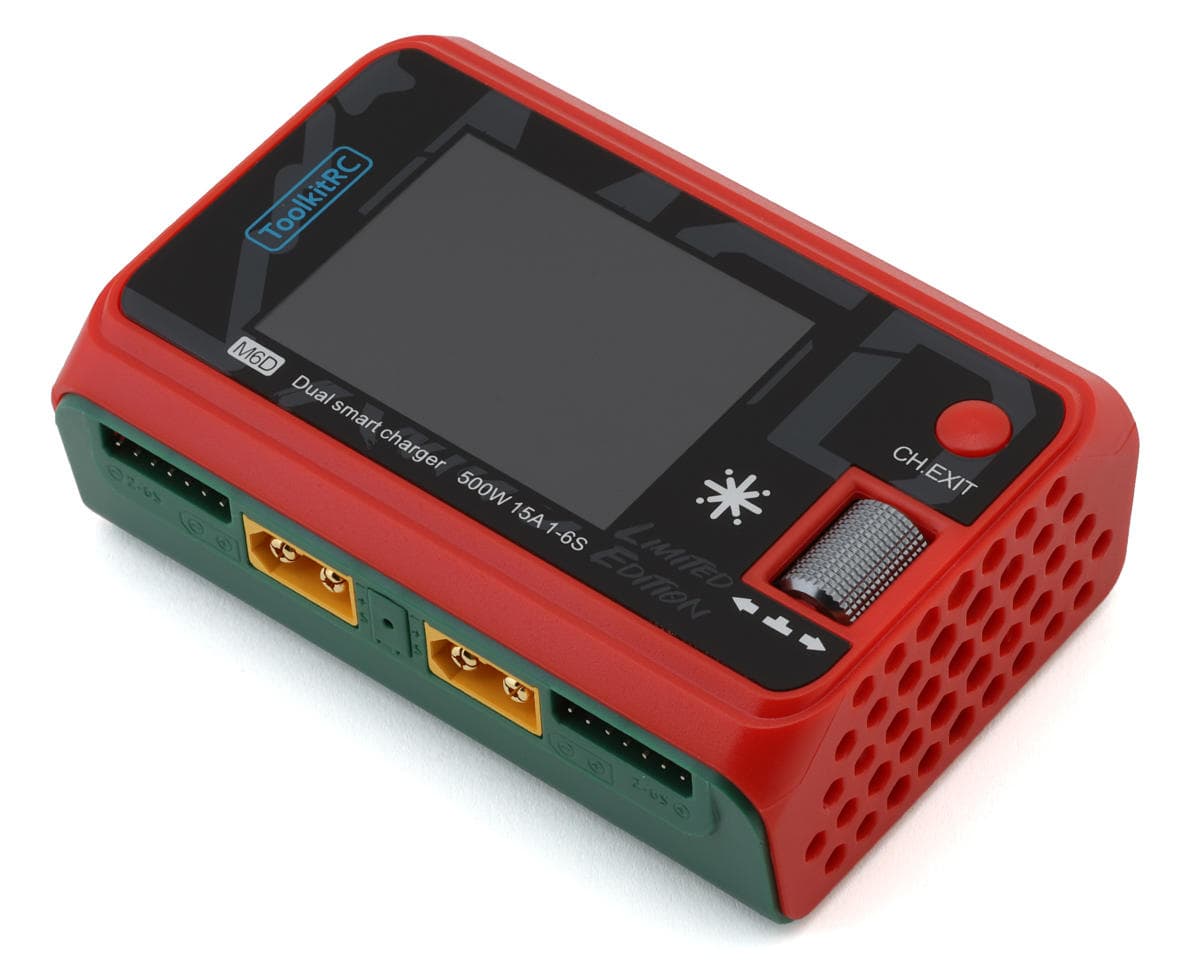

ToolkitRC M6D Dual DC Battery Charger Workstation (6S/15A/250W) (Xmas Limited Edition)
About this part
Charger Overview:
Power Up with Precision – The ToolkitRC M6D Dual DC Charger delivers unmatched charging performance in a compact package. With dual channels, advanced power distribution, and a vibrant IPS display, this workstation makes managing multiple batteries simple, fast, and efficient for any RC enthusiast.
About the Xmas Limited Edition M6D Charger
Dual Power Charging
The ToolkitRC M6D Dual DC LiPo Battery Charger delivers compact, high-efficiency performance for hobbyists who need versatility and speed. With dual independent channels and asynchronous automatic power distribution, it allows you to charge two different batteries simultaneously with a combined output of up to 500 watts.
Smart Design, Safe Operation
Equipped with an IPS display for clear outdoor visibility, the M6D offers intuitive navigation in eight languages and includes an optimized heat dissipation system for reliable performance. Its integrated USB port supports firmware updates and mobile device charging, making it a smart, all-in-one charging solution.
Features:
- Festive red and green Xmas edition
- Dual charging channels for maximum efficiency
- Smart automatic power distribution system
- Delivers up to 500 watts of charging power
- Supports multiple battery types up to 6S
- Bright IPS display for clear outdoor visibility
- Easy-to-use, multilingual interface
- Advanced heat dissipation for safe performance
- USB port for charging and firmware updates
- Compact and lightweight design for portability
Includes:
- (1) Xmas Limited Edition M6D Dual DC Battery Charger Workstation
- (1) USB-C Cable
- (1) Quick Manual
Specifications:
| Input Power: | DC |
|---|---|
| Input Voltage: | 7.0-28.0V @MAX 30A DC |
| LiPo/LiHV/LiFe Cell Count: | 1-6S |
| NiMH/NiCd Cell Count: | 1-16S |
| Pb Battery Voltage: | 1-10S |
| Input Connector: | XT60 |
| Output Connector: | XT60 |
| Charge Power: | DC 500W @MAX 25A SYNC |
| Discharge Power: | 500W @MAX 15A Recycle |
| Charge Current: | 25A Synchronous |
| Discharge Current: | 15A Recycle |
| Balance Current: | 800mA @2-6S |
| Dimensions: | 4.25x3.14x1.81in (108x80x46mm) |
| Weight: | 7.76oz (220g) |
