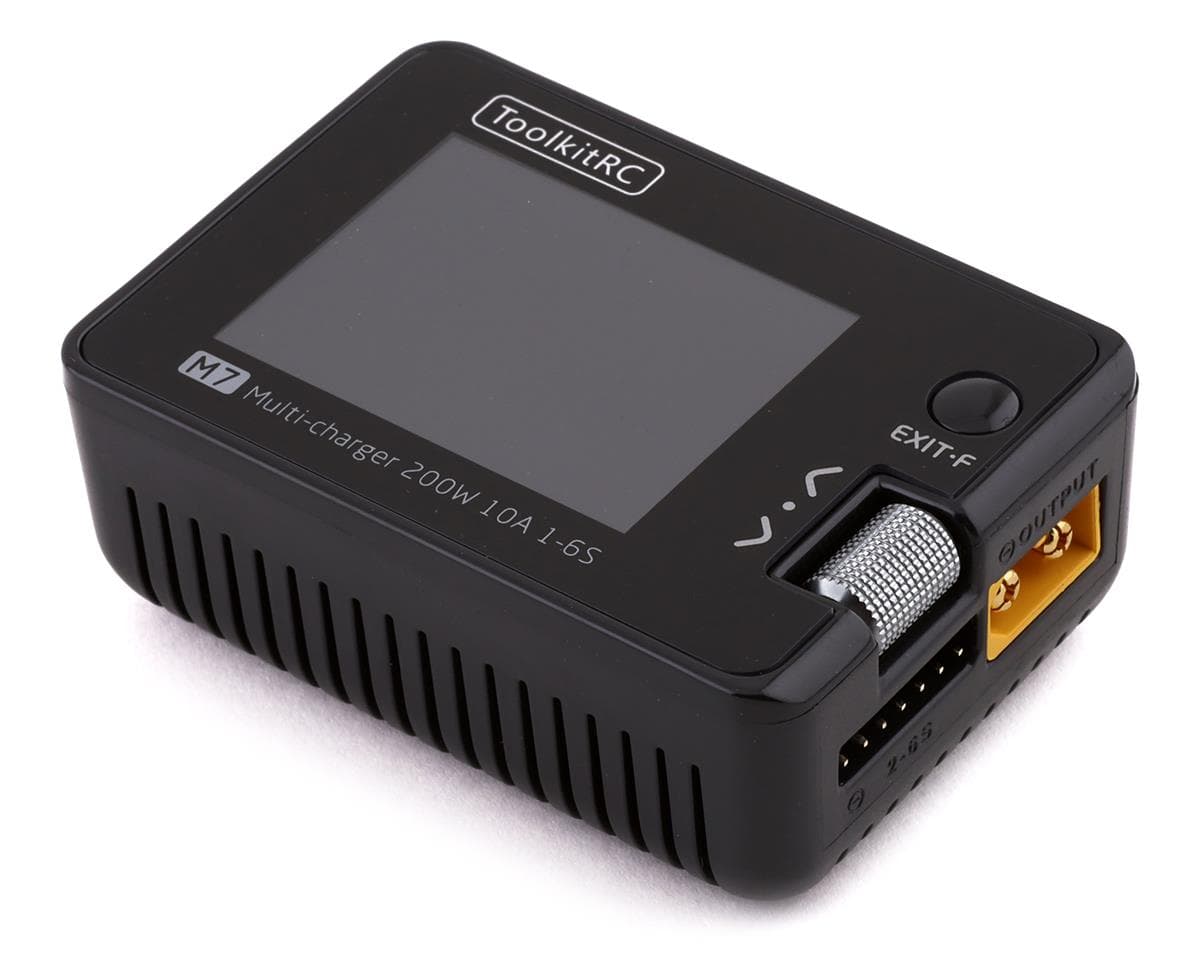

ToolkitRC M7 DC Battery Charger Workstation (6S/10A/200W)
About this part
Features:
- Battery Charger
- Cell Checker
- PWM, PPM, S.Bus Input/output & Receiver tester
- Lithium battery cut-off voltage can be set (TVC function)
- Measure battery voltage, internal resistance, balance
- Measure PWM, PPM, S.Bus signal values @ 1ms accuracy
- Output PWM, PPM, S.Bus standard signal @ 1ms accuracy
- Customizable 1-28V constant output voltage, 1-10A constant output current
- Multi-language optional
- USB 2.1A@5.0V Output (Mobile device charging)
- Udisk firmware upgrade (Slave device)
- Charger:
- Input voltage: 7.0-28.0V @Up to 12A
- Type of battery:
- Lipo, LiHV, LiFe, Lion: 1-6 Cell
- NiMh: 1-16 Cell
- Pb: 1-10 Cell
- Balance current: 400mA @2-6S
- Charger power: 200W @Up to 10A
- Discharge power:
- Recycle mode: 200W @Up to 10A
- Normal mode: 10W @Up to 3A
- USB: 2.1A @5.0V or Upgrade
- Measurement:
- PWM: 880-2200us @20-400Hz
- PPM: 880-2200us - 8CH @20-50Hz
- SBUS: 880-2200us - 16CH @20-100Hz
- Voltage: 1.0-5.0V @1-6S
- Internal Resistance: 1-99mR @1-6S
- ESC: 200W @10A PWM Output
- Output:
- PWM: 500-2500us @20-1000Hz
- PPM: 880-2200us - 8CH @20-50Hz
- SBUS: 880-2200us - 16CH @20-100H
- Power Supply: 1.0-28.0V @1.0-10A Mode: CC+CV
- Over Current Cutoff Time: <5ms
- General:
- Size: 73x51x27mm (2.87x2.00x1.06in)
- Weight: 90g (3.17oz)
- LCD: IPS 2.0in LCD 320x240 Pixel
Reviews3.3 · 3 reviews
This charger is an outstanding value for the money. It charges and balances at 10A without a hiccup. It measures internal cell resistance. The multicolor display is bright and easy to read. It fits comfortably in a pants pocket. It reads voltage to 3 significant digits and when tested against my true RMS Fluke multimeter it is surprisingly accurate at room temperature. The "Storage Charge" mode is extremely handy. The device will either charge or discharge a pack as needed. The end point voltage is adjustable. The only weird thing about this charger is that the input and output ports are both XT60 male.
4 stars due to lack of info regarding external power supply. First Amain doesn’t sell it must go on Amazon to buy it which is another 30 dollars on top of this charger but seems to work good.
This charger looks nice, it seemed like it was going to work, but I had nothing but issues with it throwing strange errors constantly. I followed the instructions to update the firmware and that seemed to work, but once I turned it back on there was nothing on the screen. There was audio for button presses and it seemed like it was taking input, but no options appeared on the screen. I attempted downloading the firmware again and updating with no changes. The charger in its current state does not work.
Reviewers largely agree the charger performs well when it works: one owner reports reliable 10A charging and balancing, a bright easy-to-read display, useful Storage Charge mode, adjustable end-point voltage, and voltage readings that matched a reference meter at room temperature. Two reviewers note the external power supply is not sold by the seller and must be bought separately, around $30 extra. The main disagreement concerns reliability: one owner reports constant strange errors and a blank screen after a firmware update, with no display recovery after re-downloading and re-flashing. One reviewer mentions both input and output ports are XT60 male as an odd design point. Three reviews only.
- + Reliable 10A charging and balancing
- + Bright, easy-to-read display
- + Useful Storage Charge mode
- + Accurate voltage reading in one test
- − Blank screen and errors after firmware update in one review
- − External power supply not sold by seller
- − Input and output both XT60 male
