Parts/Batteries & charging/Battery accessories (bags, straps, trays)/ToolkitRC MC8 Battery Multi Checker & Channel Analyzer
ToolkitRC
ToolkitRC MC8 Battery Multi Checker & Channel Analyzer
Part # TLK-MC8
Where to buy
$38.99
Prices are as last seen at the store; stock is not tracked.
About this part

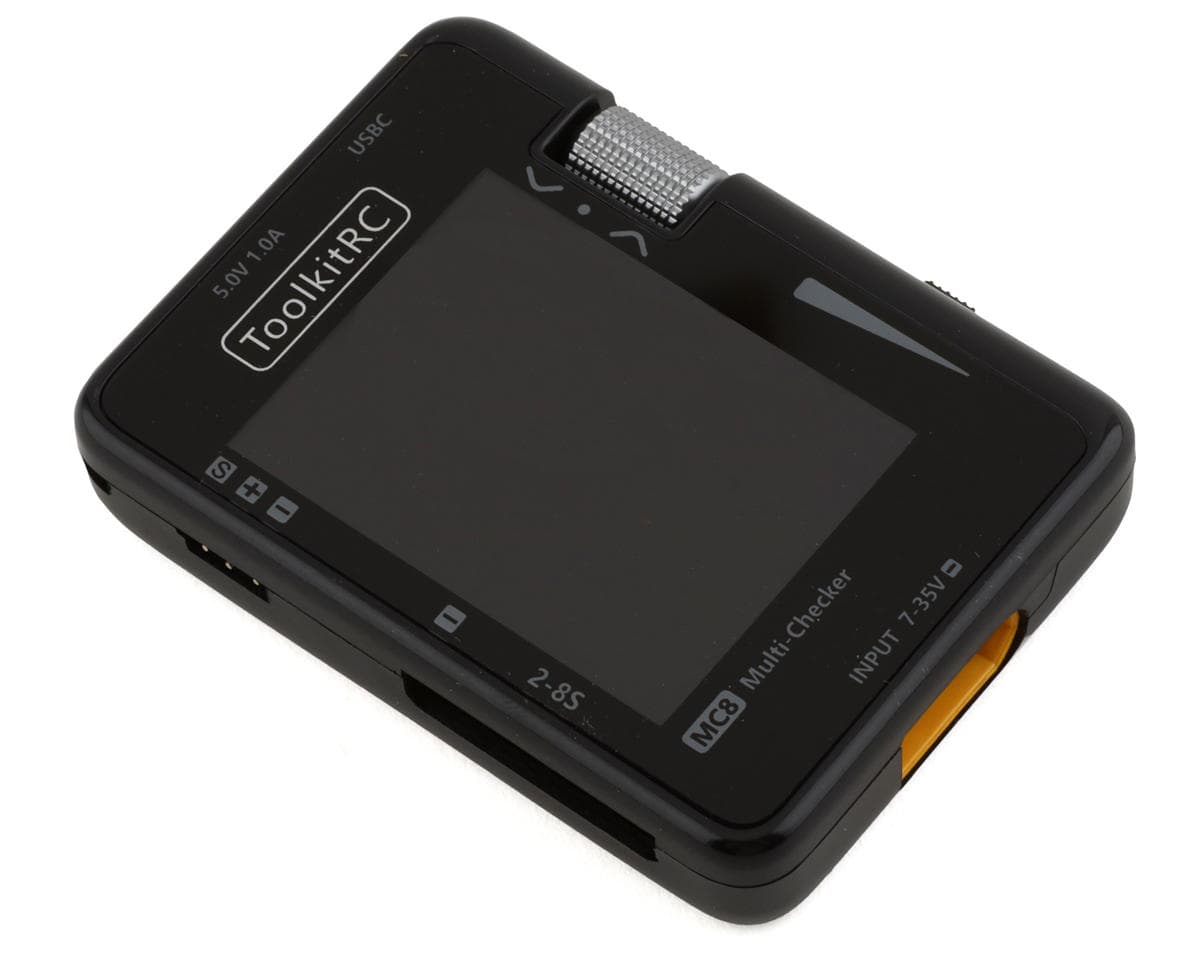

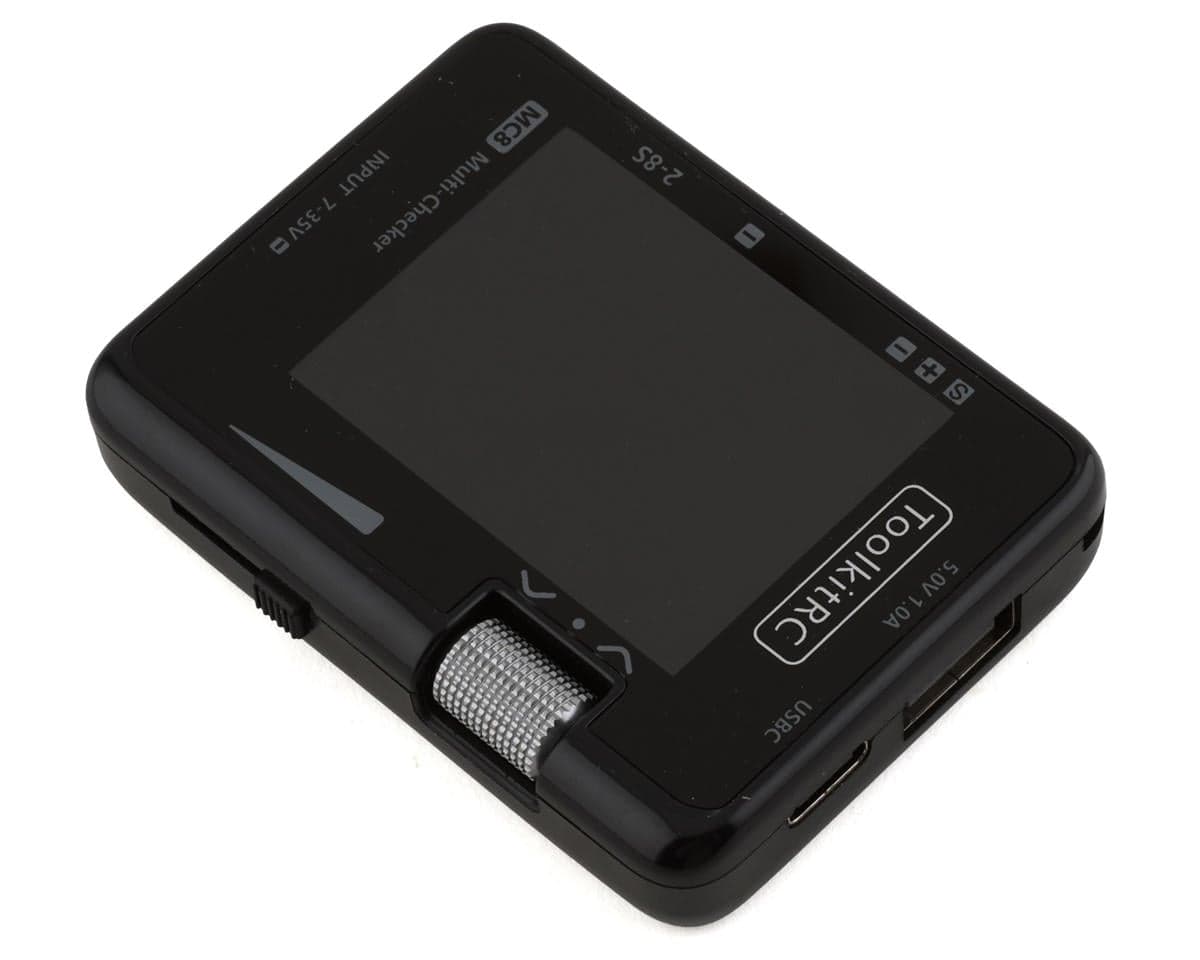

This is the ToolkitRC MC8 Battery Multi Checker and Channel Analyzer. Packed with features this multi-tool is an RC enthusiast's best friend. With the ability to check batteries, read and output PWM/PPM/SBUS signals, test servos, fast charge USB devices and more it is easy to see how this valuable tool it a must have.
Features:
Features:
- Large Color Screen
- PWM/PPM/SBUS Readout
- PWM Output
- One Touch Battery Balancer
- USB-A/USB-C Fast Charging
- Metal Roller
- 32-Bit Arm Processor
- Checker:
- Main Input Port: XT60 7.0-35.0V
- Balance Input: 0.5V-5.0V Lixx 2-8S
- Signal Port Input: <6.0V
- Balance Current: MAX 60mA @2-8S
- Balance Accuracy: <0.005V @ 4.2V
- USB-A output: 5.0V@1.0A firmware upgrade
- USB-C output: 5.0V-12.0V @MAX 20W
- USB-C protocol: PD3.0 QC3.0 AFC SCP FCP
- Input Tools:
- PWM: 880-2200us @20-400Hz
- PPM: 880-2200us*8CH @20-50Hz
- SBUS: 880-2200us*16CH @20-100Hz
- Output Tools:
- PWM: 1000-2000us @20-1000Hz
- PPM: 880-2200us*8CH @20-50Hz
- SBUS: 880-2200us*16CH @20-100Hz
- Dimensions:
- Size: 68x50x15mm
- Weight: 50g
- LCD: IPS 2.0inch LCD 320x240 Pixel

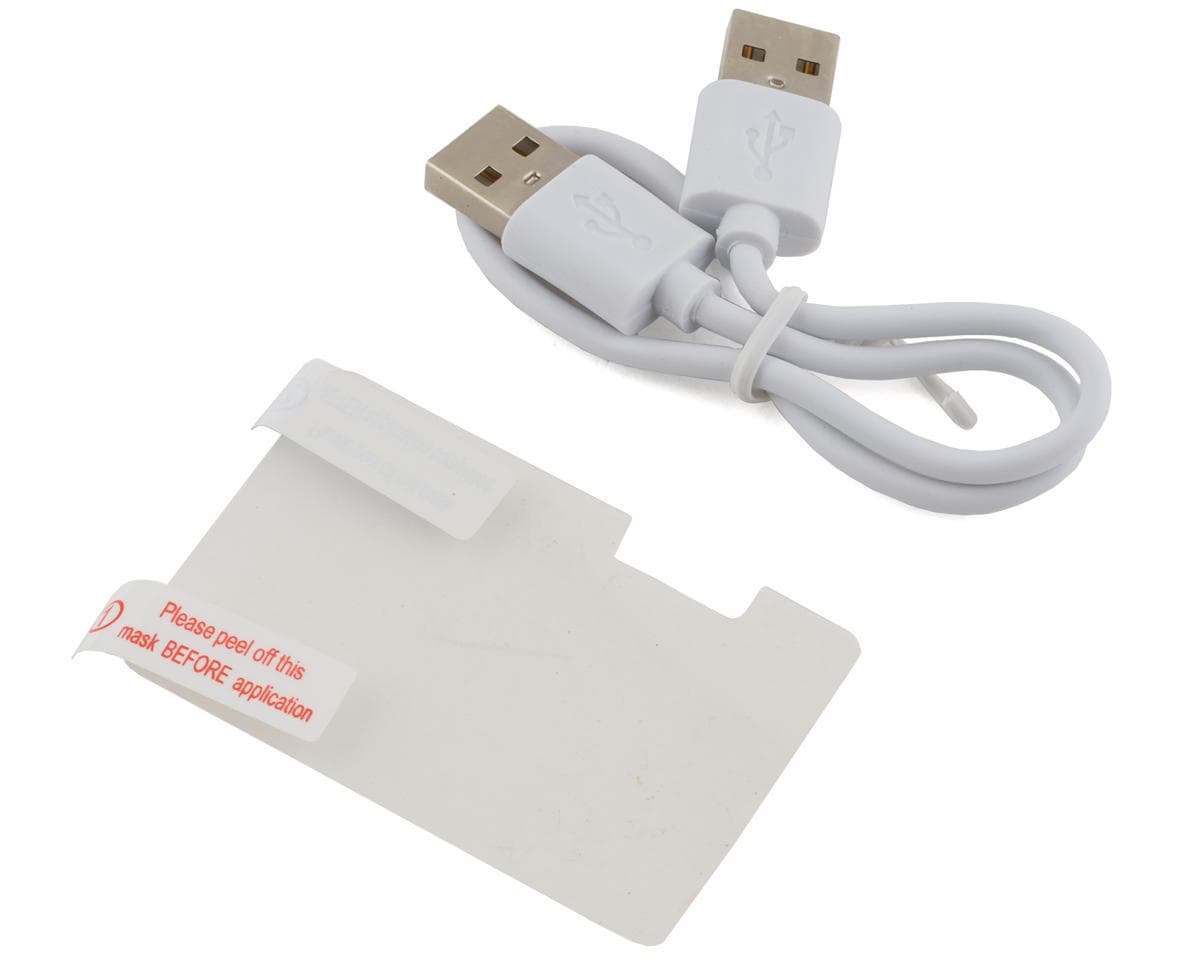

Includes:
- (1) MC8 Battery Multi Checker and Channel Analyzer
- (1) Screen Protector
- USB Chord
