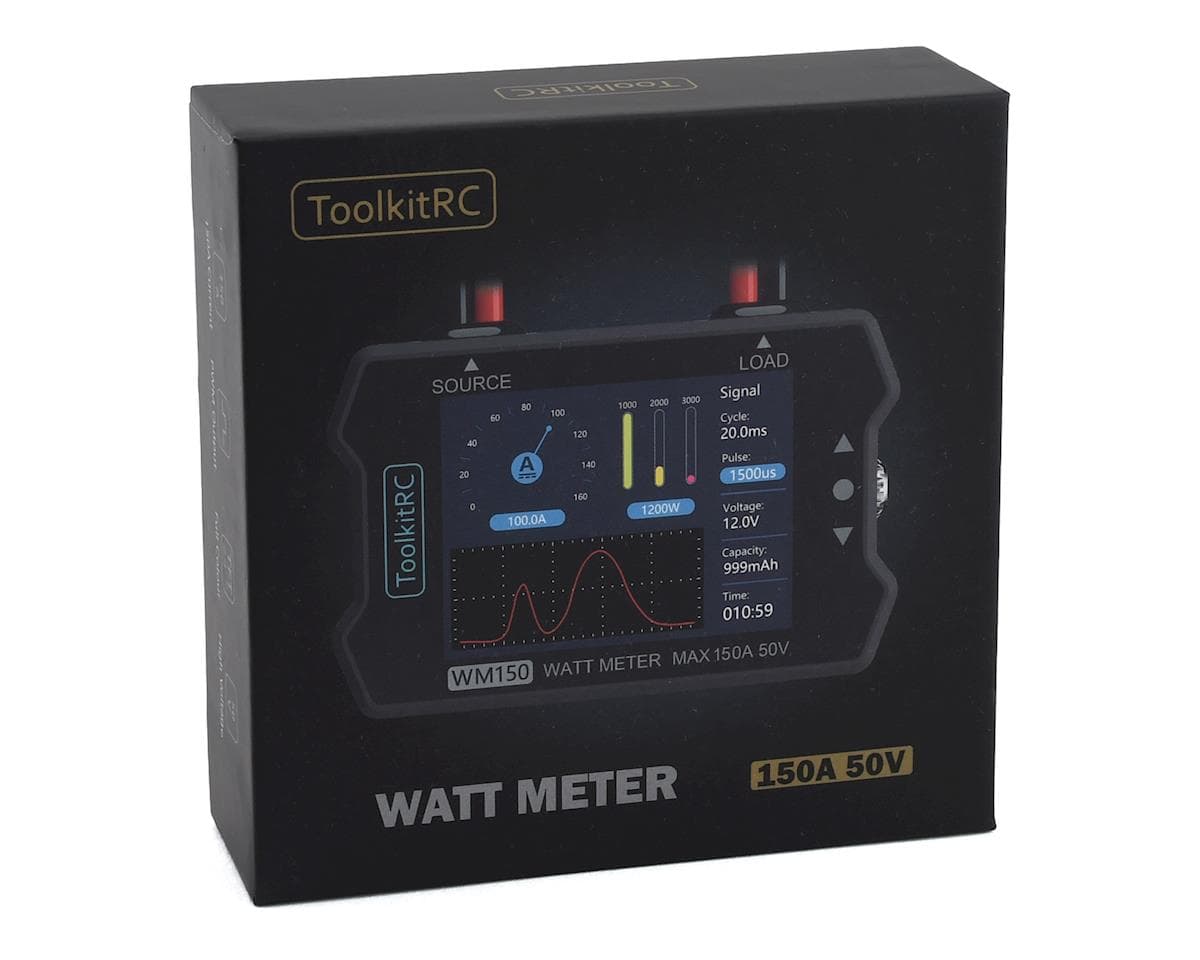

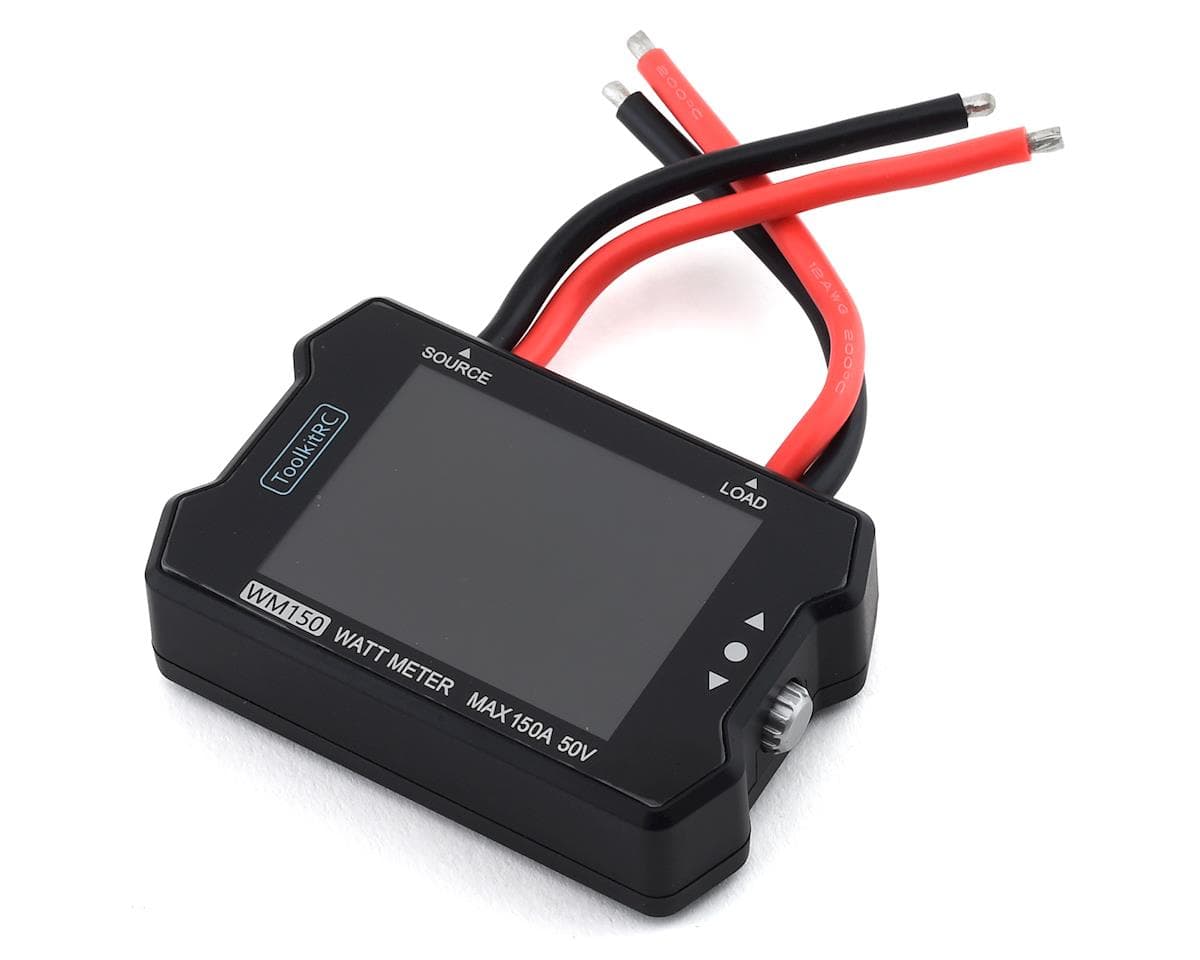

ToolkitRC WM150 Advanced Watt & Power Meter
Part # TLK-WM150
Where to buy
$39.99
Prices are as last seen at the store; stock is not tracked.
About this part
The WM150 Power & Watt Meter from Toolkit RC is an incredible elegant and powerful modern design on standard power meters used in the R/C world. Featuring a color 2.4 inch color screen, and critical data statistics, the WM150 will surely be your new favorite tool to ensure you're getting the most out of your electric set up.
Features:
Features:
- 2.4 Inch Color Display
- Adjustable PWM via Knob control
- Support for up to 50V input
- 150A Maximum Current rating
- Firmware upgradeable
Specifications:
Input Voltage: 1-50V @ 150A Maximum Amperage
Input USB: 5.0V @ 1A Firmware Upgradeable
Signal Port: 1000-2000uS @ 50Hz
LCD Display: 2.4 inch 320x240 resolution
Dimensions: 80x54x23mm
Weight: 82g
Input Voltage: 1-50V @ 150A Maximum Amperage
Input USB: 5.0V @ 1A Firmware Upgradeable
Signal Port: 1000-2000uS @ 50Hz
LCD Display: 2.4 inch 320x240 resolution
Dimensions: 80x54x23mm
Weight: 82g
