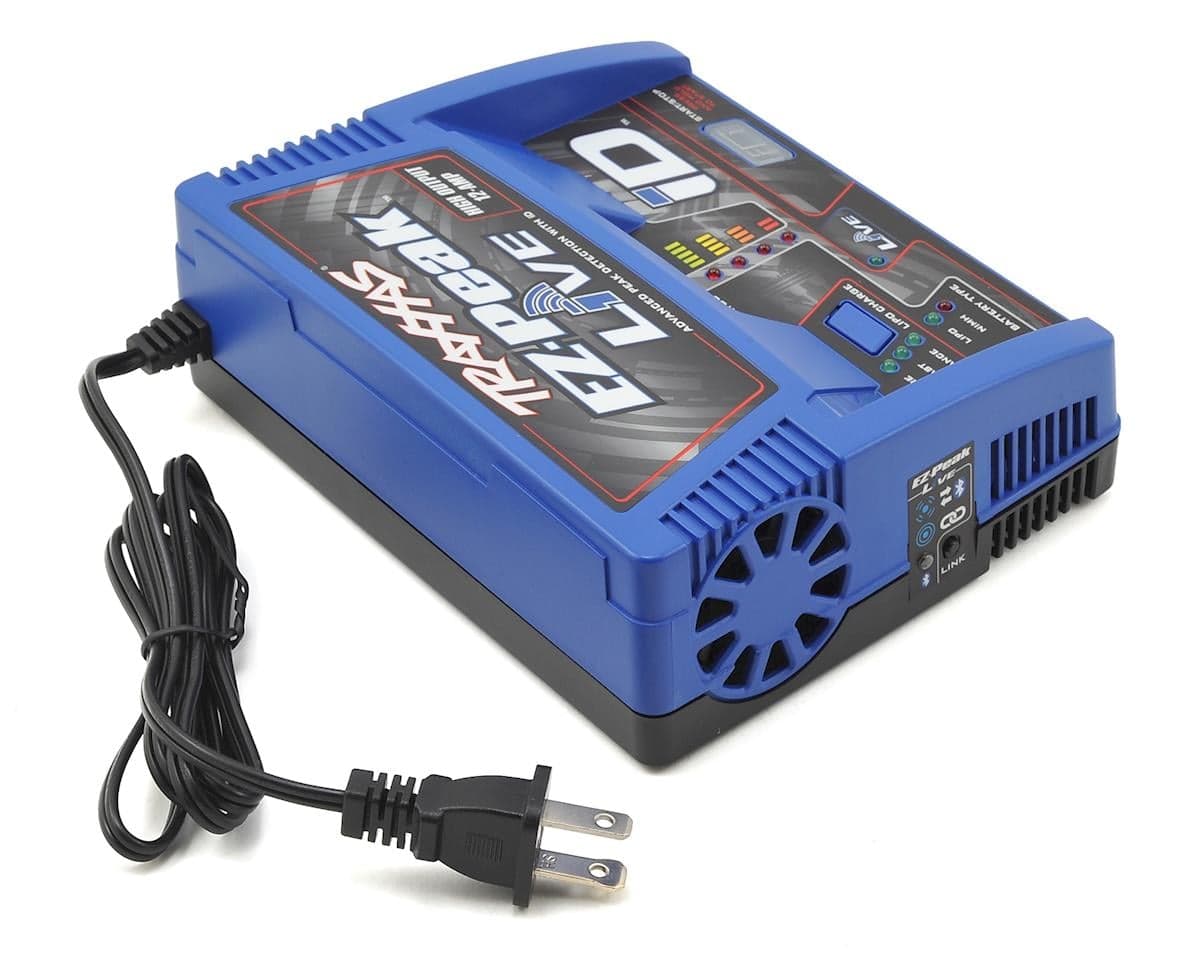

Traxxas EZ-Peak Live Multi-Chemistry Battery Charger w/Auto iD (4S/12A/100W)
About this part
This is the Traxxas EZ-Peak Live Multi-Chemistry Battery Charger, with iD Auto Battery Identification. There has never been an easier or safer way to charge your batteries than with the Traxxas iD system. Now you can bring that technology to bear using your smartphone or tablet! Connect to the EZ-Peak Live app on your mobile device to experience a high definition graphical user interface. Your mobile device now becomes a powerful tool to check battery cell voltage, monitor charge status, create and store battery profiles, receive alerts, and access advanced user functions and information.
The EZ-Peak Live charger recognizes Traxxas iD batteries and in an instant automatically configures and optimizes the charger settings. There's no need to be a battery expert or learn how to navigate complex menus. Just plug in a Traxxas iD battery and the EZ-Peak Live does all the work for you. The integrated balance connector on Traxxas LiPo iD batteries eliminates fragile balance wires and connectors, along with the need for external balance boards. At the press of a button, the EZ-Peak Live Storage Mode protects your LiPo battery investment by safely preparing the batteries for extended storage. Advanced high-resolution peak detection deliver a perfect charge every time. Parental lock function for worry-free iD-only charging, or full manual control through the free Traxxas EX-Peak Live app.
NOTE: Accessing some charger features requires a mobile device with Bluetooth® capability (sold separately) and the Traxxas EZ-Peak Live Application. Available here for iOS and here for Android.
Features:
- Charger:
- 100-Watt 12-amp output
- Recognizes Traxxas iD-equipped batteries to automatically program and optimize charger settings
- LED charge progress indicator
- Optimized for faster LiPo balance charging
- One button LiPo storage charge protects your battery investment
- Advanced high-resolution peak detection delivers a perfect charge
- Easy to use interface
- Supports Traxxas EZ-Peak Live Application
- Audible alerts
- Built-in cooling fan
- Advanced Mode for full manual control through EZ-Peak Live App
- Legacy support for all Traxxas High-Current Connectors
- Built-in balance port for conventional LiPo batteries
- Charges 5-8-cell NiMH batteries
- Charges 2s, 3s, and 4s LiPo Batteries
- EZ-Peak Live App:
- Check battery cell voltage, estimated time remaining, and mAh added
- Configure charge settings with an easy-to-use graphical interface
- Recognizes and remembers settings for up to 4 connected chargers
- Pass code lock prevents access to manual mode
- Create Battery Profiles and store commonly used settings
- Upload firmware updates to charger to get the latest features
- Remote monitoring and alerts for up to 4 chargers
- iD mode may be switched off through the EZ-Peak Live Application for charging first-generation Traxxas batteries with non-iD High-Current Connectors
- Click here for iOS App
- Click here for Android App
Specifications:
AC Input: 100–240 Volts, 50-60Hz, 1.5A
Charge Current Range: 1.0-12.0A
Discharge Current Range: 665mAh
Current Drain For Balance Ports: 665mAh
NiMH Battery Cell Count: 5–8 Cells
LiPo Cell Count: 2–4 Cells
Net Weight: 526g
Dimensions: 133 x 169 x 55mm
Reviews4.8 · 5 reviews
Great charger for Traxxas batteries. Charges my 7600 MAH 2C for my TRX4's quick from storage. Usually inside 20 minutes. I have the link app on my laptop and the ability to change settings like more amps or voltage is a nice touch. Normally I leave it on auto and haven't been disappointed with charge times.
This charger works great, the phone app was easy even for me.
Wish I would have spent the extra to get the one that could charge two batteries at once. Like most traxxas stuff, super easy too use. The blue tooth is actually nice for when you want to walk away. Can have my charger in the garage while I do stuff in the kitchen for example.
Don’t think twice just add to cart...amainhobbies are the best rc online store on the web....
The good: fantastic user interface, courtesy of the smartphone application. There is no easier setup. Plenty of profiles for different batteries (cell count and capacity). Good power, so it's fairly quick (I haven't charged any big packs - mine are 2S 5000-5500mAH size). Fan isn't too loud. Easy plugs if you make your own adapters. The bad: the Bluetooth connection is atrocious - I sit 10' away and it's constantly disconnecting. This is the biggest drawback to the unit, in my opinion. It's also Traxxas-ID focused, so you'll have to buy/make adapters. My Batts all have XT60 connections, so I just adapted. I'm considering upgrading and getting a Dual Live, but I'm slightly worried about the BT sucking as badly.
Reviewers generally rate this single-port Traxxas charger highly, praising its ease of setup, the smartphone app interface, and fast charging, including a 7600mAh 2C pack reported to charge in about 20 minutes. Several note that it offers many battery profiles and adjustable settings through the app. The main recurring complaint is an unreliable Bluetooth connection, with one reviewer reporting frequent disconnects at about 10 feet. Reviewers also note it is Traxxas-ID focused, so owners of other connectors need adapters. One reviewer wished they had bought a dual-bay model. One review is a general store endorsement without product detail.
- + Easy setup and app interface
- + Fast charging times
- + Many battery profiles and adjustable settings
- + Quiet fan
- − Unreliable Bluetooth connection
- − Traxxas-ID focused, adapters needed for other connectors
- − Single battery at a time
