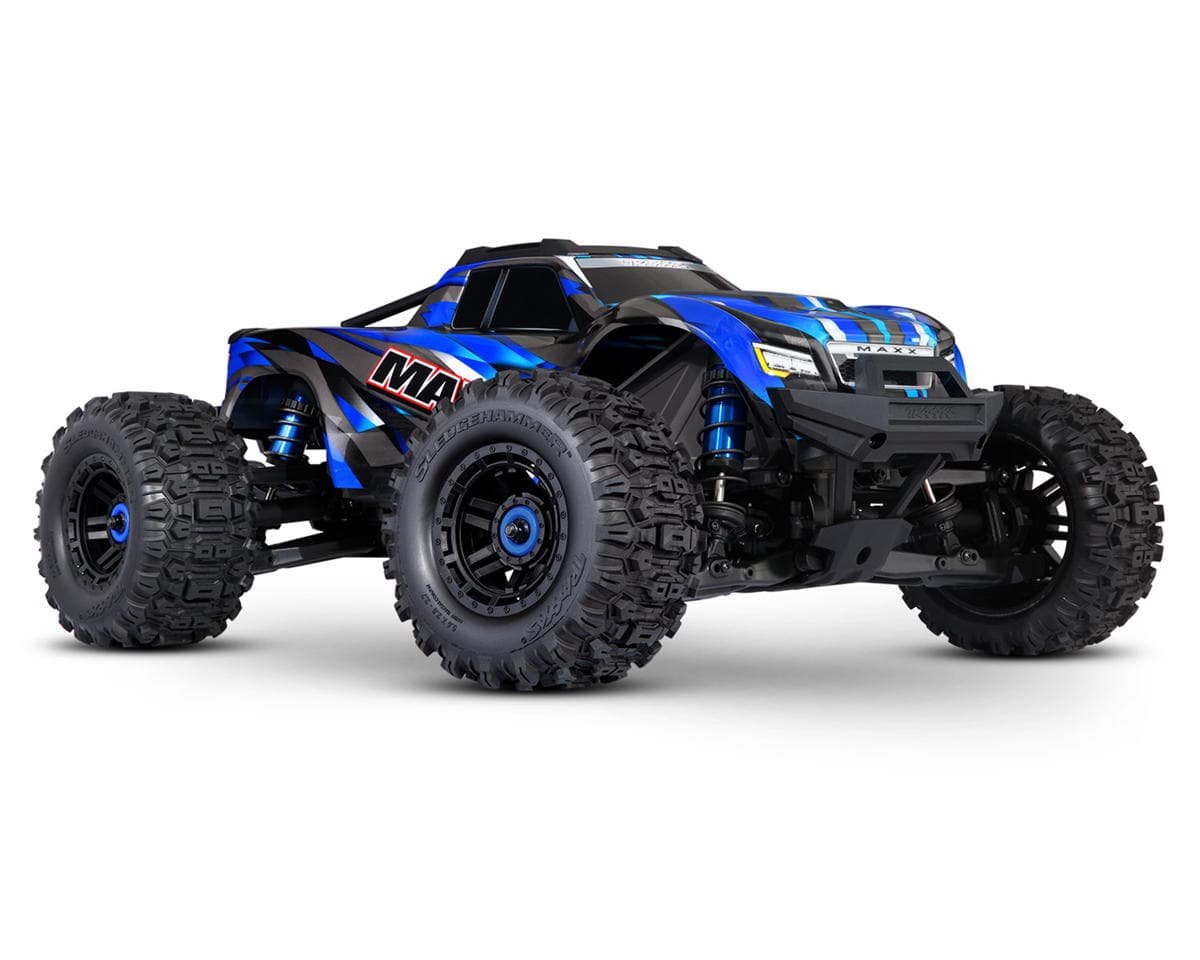

Traxxas Maxx WideMaxx 1/10 Brushless RTR 4WD Monster Truck (Blue) w/TQi 2.4GHz Radio & TSM
Traxxas

Traxxas Maxx WideMaxx 1/10 Brushless RTR 4WD Monster Truck (Blue) w/TQi 2.4GHz Radio & TSM

Part # TRA89086-4-BLUE4.5(17)
Where to buy
$599.95
AMain Hobbies
Seen Oct 12, 2026
$599.95Buy
Prices are as last seen at the store; stock is not tracked.

About this part

The Traxxas Maxx 1/10 Brushless RTR 4WD Monster Truck with WideMaxx Kit is the next level in ultimate basher chassis. This special chassis comes equipped with the WideMaxx suspension kit from the factory for greater stability.

Traxxas has totally revamped the Maxx chassis for this release. Starting on the four corners, Traxxas equipped this truck with the Sledgehammer tires. These tires feature an open-block design that clears away mud allowing for unreal traction. Moving to the suspension, Traxxas then equipped the truck with the WideMaxx suspension set. This extends the width over 1.5 inches improving stability. To further add to the stability, a longer chassis is used allowing the use of larger and more powerful batteries. All of these features come together to make the Traxxas Maxx an extremely durable and stable chassis. With six colors to choose from, the Traxxas Maxx with WideMaxx will be able to exceed expectations.




Features:

  • Refined shock tower design
  • Full length motor cradle
  • Updated wheels and tires
  • Clipless Body Mount System
  • Quick one-hand installation and removal
  • Waterproof
  • WideMaxx double-shear suspension arms

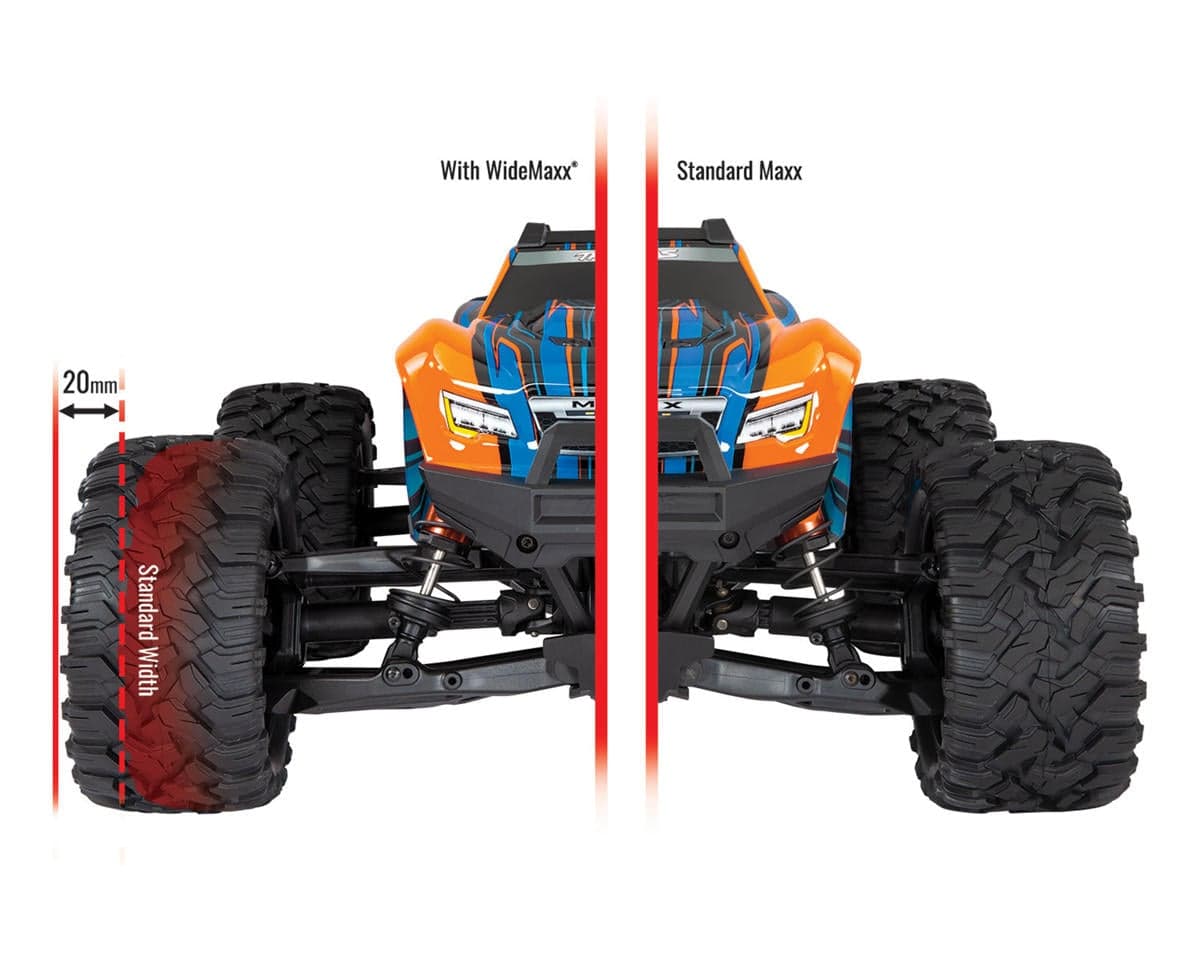

  • 1.57” (40 mm) wider for improved handling
  • Tough composite formula resists impact damage, even in cold weather
  • Modular chassis design
  • GT-Maxx Aluminum Shocks
  • 60+ MPH with optional gearing and single 4S LiPo battery (sold separately)
  • Full contact sealed bearings
  • Torque-biasing center drive
  • Easy Battery Access
  • Extended battery tray accepts Traxxas’ 6700mAh 4-cell LiPo battery
  • Aluminum splined driveshaft
  • Steel gear differentials
  • Extreme-duty telescoping driveshafts
Specifications:
Length: 22.50 inches (572mm)
Front Track: 15.95 inches (405mm)
Rear Track: 15.95 inches (405mm)
Ground Clearance (lowest skid): 1.90 inches (49mm)
Ground Clearance (center skid): 2.6 inches (67mm)
Weight: 10.40 lbs (4.7kg)
Height (ride): 9.12 inches (232mm)
Wheelbase: 13.85 inches (352mm)
Shock Length: 4.90 inches (124mm)
Tire Diameter: 5.64 inches (143mm)
Wheel Diameter: 2.8 / 3.6 inches (70 / 92mm)
Speed Control: Velineon VXL-4s
Motor (electric): 540XL (2400 kV)
Transmission: Single-Speed
Overall Drive Ratio: 12.37 (23/50 motor pinion and spur gear)

Included:
  • (1) Traxxas Maxx with WideMaxx and Traxxas 540XL brushless motor
  • (1) Quick Start Guide
  • (1) TQi 2.4GHz radio system
  • High quality maintenance tools
Needed to Complete:
  • (1) 3-4S LiPo Battery with Traxxas ID connector
  • (1) Compatible Traxxas LiPo Balance Charger
  • (4) AA Batteries

Reviews4.5 · 17 reviews

Anonymouson Traxxas Maxx WideMaxx 1/10 Brushless RTR 4WD Monster Truck (Blue)

The wide Maxx is an awesome monster truck! The extra width really helps keep the outside tires on the ground during turns and just plain bashing. One incredible Truck from Traxxas!

3 found this helpful
Ryan BrownleeVerified owneron Traxxas Maxx WideMaxx 1/10 Brushless RTR 4WD Monster Truck (Blue)

Great truck! Excellent power on 4S, can easily wheelie. Electronics work great, servo has enough speed and torque to be useful. Love the looks, and very fun to drive. Rotates well and jumps nice, seems to bottom out a bit easy. Only other slight issue, make sure you set the end points on your steering as the defaults on mine were way off even if you tried to adjust the servo horn. Would recommend this truck!

3 found this helpful
Shaun Popeon Traxxas Maxx WideMaxx 1/10 Brushless RTR 4WD Monster Truck (Blue)

Awsome truck. easy to find replacement parts. Good brand. It can take a beating. Can't wait to upgrade some parts!

3 found this helpful
James Hivelyon Traxxas Maxx WideMaxx 1/10 Brushless RTR 4WD Monster Truck (Blue)

This thing is a blast to drive. This is worth every penny. I have had no issues that were not my own fault. Let’s leave it like that. lol

3 found this helpful
Anonymouson Traxxas Maxx WideMaxx 1/10 Brushless RTR 4WD Monster Truck (Blue)

I was driving my MAXX on wet asphalt with hardly any traction, on a cool day (wasn't hot outside), I didn't hit anything and I wasn't even going the top speed and my esc just did the 4 red blinking lights of death, so now I have to send my MAXX esc in to Traxxas and I have to probably pay for shipping like when I had a defective battery made by Traxxas, And guess what, I've only had my MAXX for 2 months! If this would've happened 1 month ago I would get a replacement ESC for free, BUT NOW I HAVE TO BUY ONE!!! DO NOT BUY ANY TRAXXAS ELECTRONICS!!! |:( But their plastic is virtually indestructible ;)

3 found this helpful
What reviewers say

Reviewers of the Traxxas Maxx WideMaxx 1/10 Brushless RTR (Blue) generally praise its speed, power on 4S, wheelie ability, handling, and durability, with several calling it a strong monster truck. Some note it bottoms out easily and that steering endpoints may need adjusting out of the box. Two negative reviews report electronics failures: one ESC fault after two months and one motor that did not run, which persisted after replacement parts were sent. Customer support received mixed comments, with one reviewer finding it helpful. Most reviews are very positive, but the reported electronics failures are a recurring concern.

  • + Strong power and speed on 4S
  • + Easy wheelies and jumps
  • + Durable, takes a beating
  • + Good handling and wide stance
  • − Electronics failures reported (ESC, motor)
  • − Bottoms out easily
  • − Steering endpoints may need adjustment
  • − Some reviewers note shipping delays
Summary generated from the reviews above.
