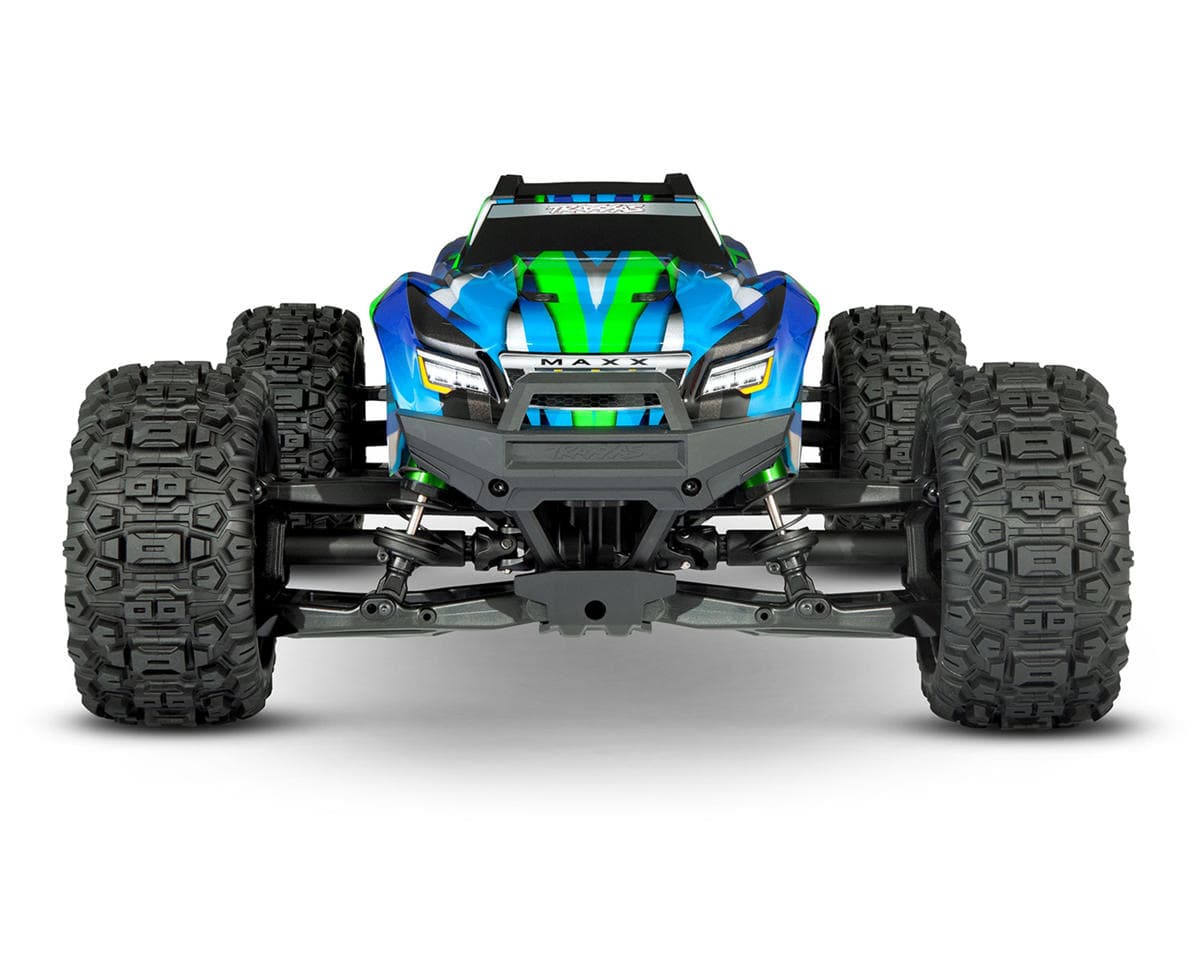

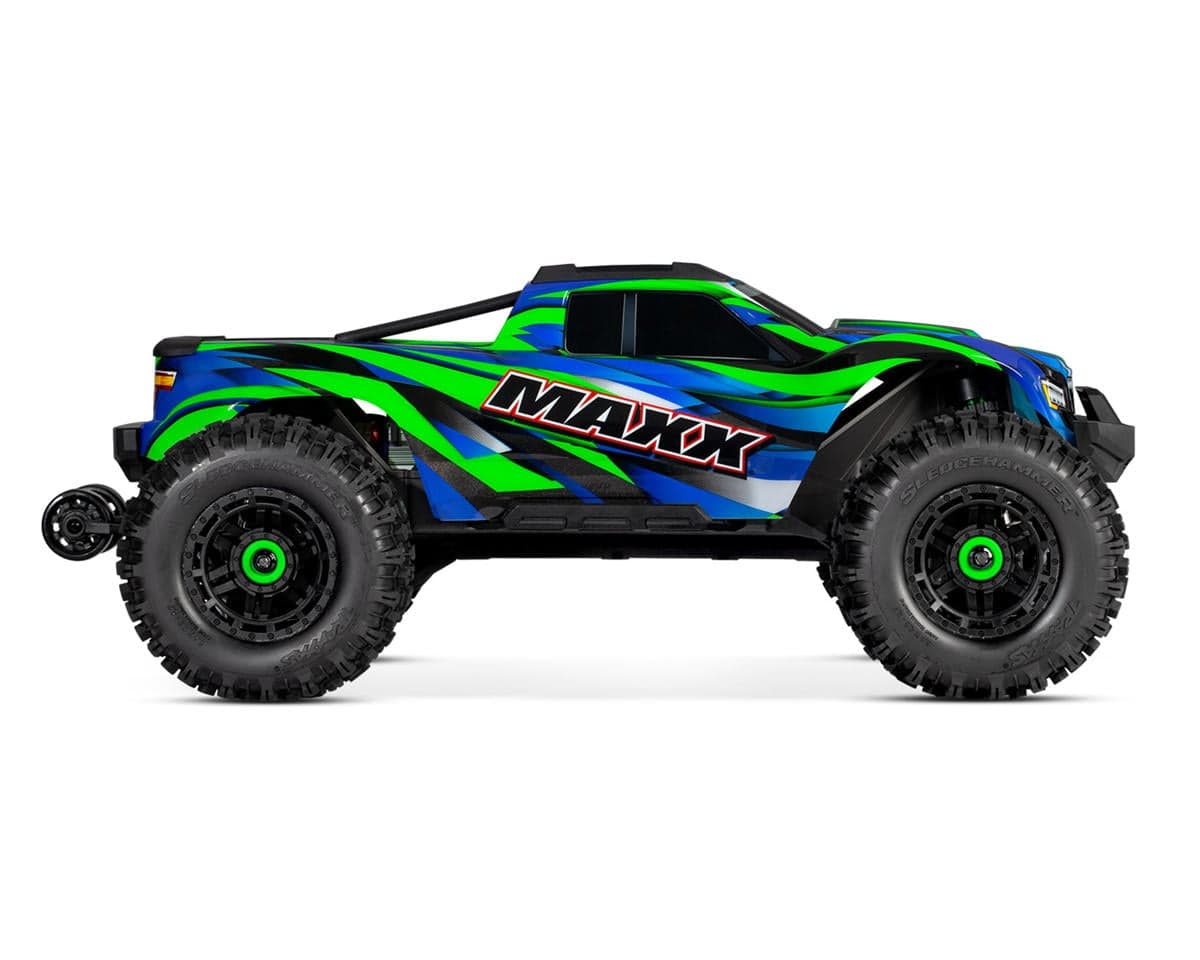

Traxxas Maxx WideMaxx 1/10 Brushless RTR 4WD Monster Truck (Green) w/TQi 2.4GHz Radio & TSM
Traxxas

Traxxas Maxx WideMaxx 1/10 Brushless RTR 4WD Monster Truck (Green) w/TQi 2.4GHz Radio & TSM

Part # TRA89086-4-GRN4.6(18)
Where to buy
$599.95
AMain Hobbies
Seen Oct 12, 2026
$599.95Buy
Prices are as last seen at the store; stock is not tracked.

About this part

The Traxxas Maxx 1/10 Brushless RTR 4WD Monster Truck with WideMaxx Kit is the next level in ultimate basher chassis. This special chassis comes equipped with the WideMaxx suspension kit from the factory for greater stability.

Traxxas has totally revamped the Maxx chassis for this release. Starting on the four corners, Traxxas equipped this truck with the Sledgehammer tires. These tires feature an open-block design that clears away mud allowing for unreal traction. Moving to the suspension, Traxxas then equipped the truck with the WideMaxx suspension set. This extends the width over 1.5 inches improving stability. To further add to the stability, a longer chassis is used allowing the use of larger and more powerful batteries. All of these features come together to make the Traxxas Maxx an extremely durable and stable chassis. With six colors to choose from, the Traxxas Maxx with WideMaxx will be able to exceed expectations.




Features:

  • Refined shock tower design
  • Full length motor cradle
  • Updated wheels and tires
  • Clipless Body Mount System
  • Quick one-hand installation and removal
  • Waterproof

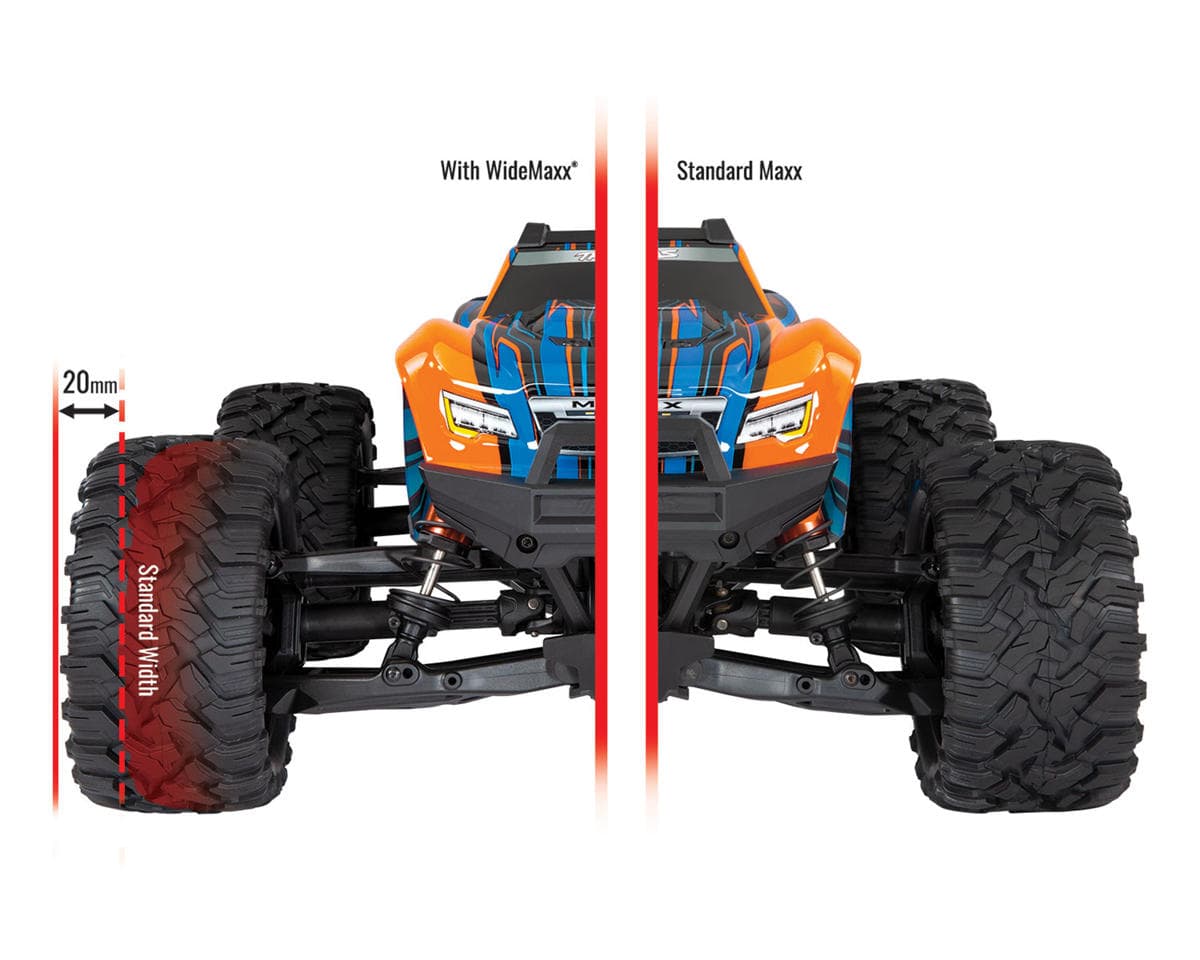

  • WideMaxx double-shear suspension arms
  • 1.57” (40 mm) wider for improved handling
  • Tough composite formula resists impact damage, even in cold weather

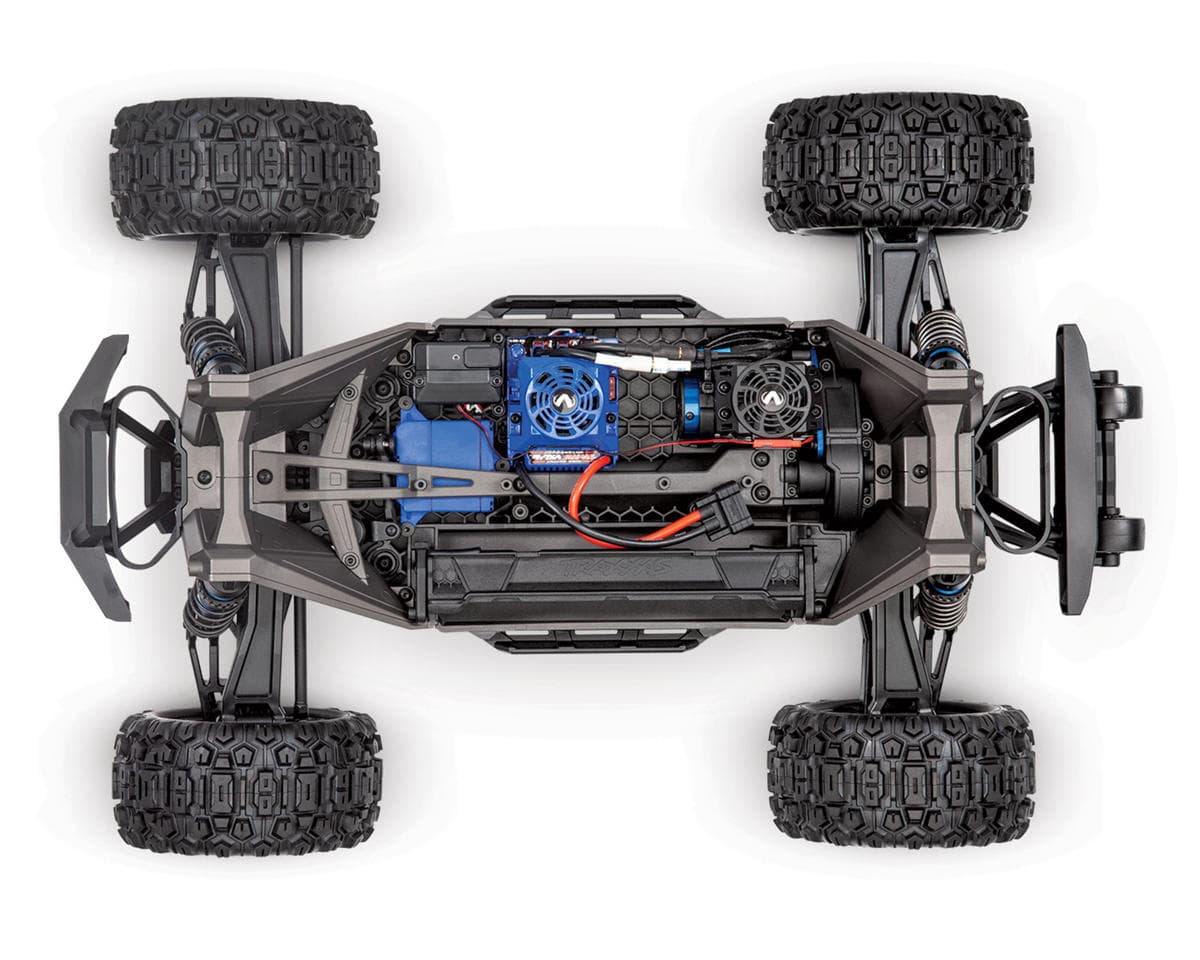

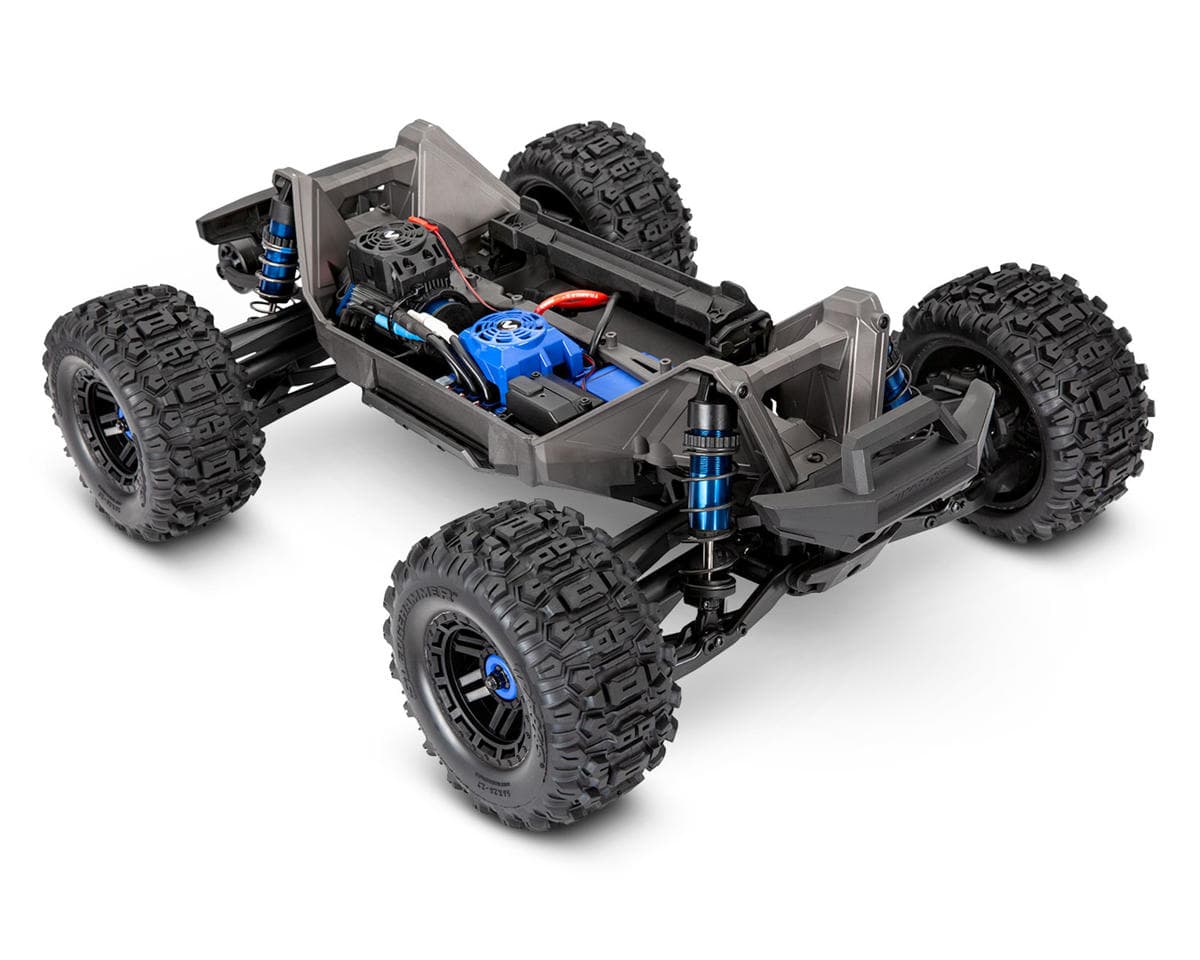

  • Modular chassis design
  • GT-Maxx Aluminum Shocks
  • 60+ MPH with optional gearing and single 4S LiPo battery (sold separately)
  • Full contact sealed bearings
  • Torque-biasing center drive
  • Easy Battery Access
  • Extended battery tray accepts Traxxas’ 6700mAh 4-cell LiPo battery
  • Aluminum splined driveshaft
  • Steel gear differentials
  • Extreme-duty telescoping driveshafts
Specifications:
Length: 22.50 inches (572mm)
Front Track: 15.95 inches (405mm)
Rear Track: 15.95 inches (405mm)
Ground Clearance (lowest skid): 1.90 inches (49mm)
Ground Clearance (center skid): 2.6 inches (67mm)
Weight: 10.40 lbs (4.7kg)
Height (ride): 9.12 inches (232mm)
Wheelbase: 13.85 inches (352mm)
Shock Length: 4.90 inches (124mm)
Tire Diameter: 5.64 inches (143mm)
Wheel Diameter: 2.8 / 3.6 inches (70 / 92mm)
Speed Control: Velineon VXL-4s
Motor (electric): 540XL (2400 kV)
Transmission: Single-Speed
Overall Drive Ratio: 12.37 (23/50 motor pinion and spur gear)

Included:
  • (1) Traxxas Maxx with WideMaxx and Traxxas 540XL brushless motor
  • (1) Quick Start Guide
  • (1) TQi 2.4GHz radio system
  • High quality maintenance tools
Needed to Complete:
  • (1) 3-4S LiPo Battery with Traxxas ID connector
  • (1) Compatible Traxxas LiPo Balance Charger
  • (4) AA Batteries

Reviews4.6 · 18 reviews

Brett - AMain Hobbies Videoson Traxxas Maxx WideMaxx 1/10 Brushless RTR 4WD Monster Truck (Green)

The updated Maxx is an incredible basher with a new boost in confidence. With it now being bigger (longer and wider) the truck is much more suited for aggressive, full-throttle driving styles. It still pops wheelies, but more on your terms. The truck is also only $20 more than the previous truck, which is nothing compared to all that you receive. Easily one of the most refined, polished and durable platforms the r/c world has ever seen. -Brett

7 found this helpful
Luis Carlos Castro GomezVerified owneron Traxxas Maxx WideMaxx 1/10 Brushless RTR 4WD Monster Truck (Green)

Love this Truck ,This truck is a beast, it’s a lot of fun

1 found this helpful
Anonymouson Traxxas Maxx WideMaxx 1/10 Brushless RTR 4WD Monster Truck (Green)

I was driving my MAXX on wet asphalt with hardly any traction, on a cool day (wasn't hot outside), I didn't hit anything and I wasn't even going the top speed and my esc just did the 4 red blinking lights of death, so now I have to send my MAXX esc in to Traxxas and I have to probably pay for shipping like when I had a defective battery made by Traxxas, And guess what, I've only had my MAXX for 2 months! If this would've happened 1 month ago I would get a replacement ESC for free, BUT NOW I HAVE TO BUY ONE!!! DO NOT BUY ANY TRAXXAS ELECTRONICS!!! |:( But their plastic is virtually indestructible ;)

1 found this helpful
Rudolph HartillVerified owneron Traxxas Maxx WideMaxx 1/10 Brushless RTR 4WD Monster Truck (Green)

Great truck just like it’s big brother takes a licking and keeps on going.

1 found this helpful
Kyle SwanVerified owneron Traxxas Maxx WideMaxx 1/10 Brushless RTR 4WD Monster Truck (Green)

Very fun truck! Wheelie machine! I wish Traxxas would allow coupons to be used though.

What reviewers say

Reviewers largely praise the Traxxas Maxx WideMaxx (Green) as a durable, fast and fun basher, with several noting it survives heavy crashes and wheelies readily. Shipping and seller service are frequently described as fast and smooth. The main recurring complaint is the battery tray, which one reviewer says let the battery fly out during bashing and contributed to a damaged LiPo; an aftermarket tray is suggested. One reviewer reported an electronic speed controller failure after about two months, and another described a box arriving open with an ESC failure requiring warranty handling. These ESC issues appear in a minority of reviews, and most reviewers report no breakage.

  • + Durable, survives heavy crashes
  • + Fast, powerful and responsive
  • + Strong wheelie performance
  • + Fast shipping and good seller service
  • − Battery tray lets battery fly out
  • − ESC failures reported
  • − Some packaging concerns on arrival
Summary generated from the reviews above.
