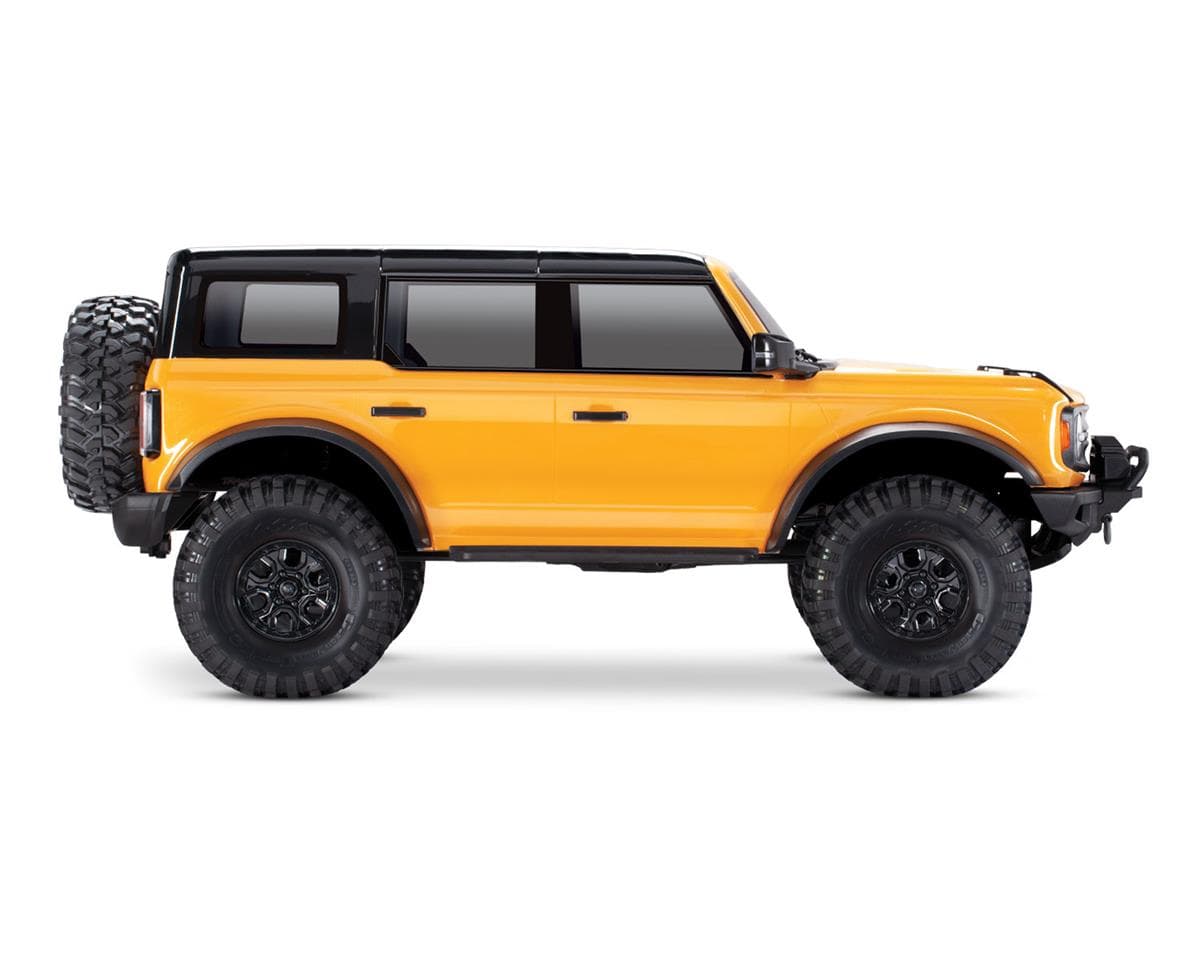

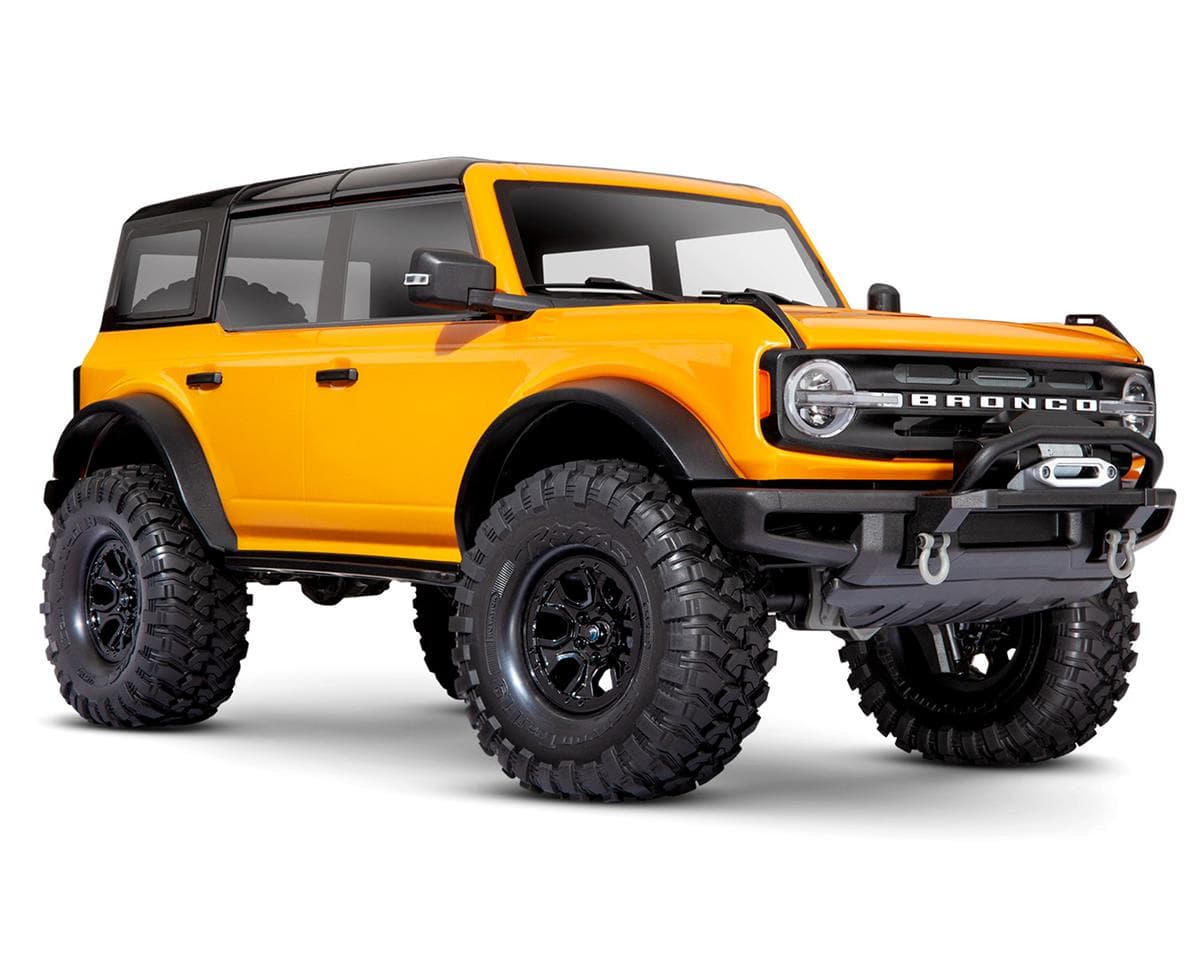

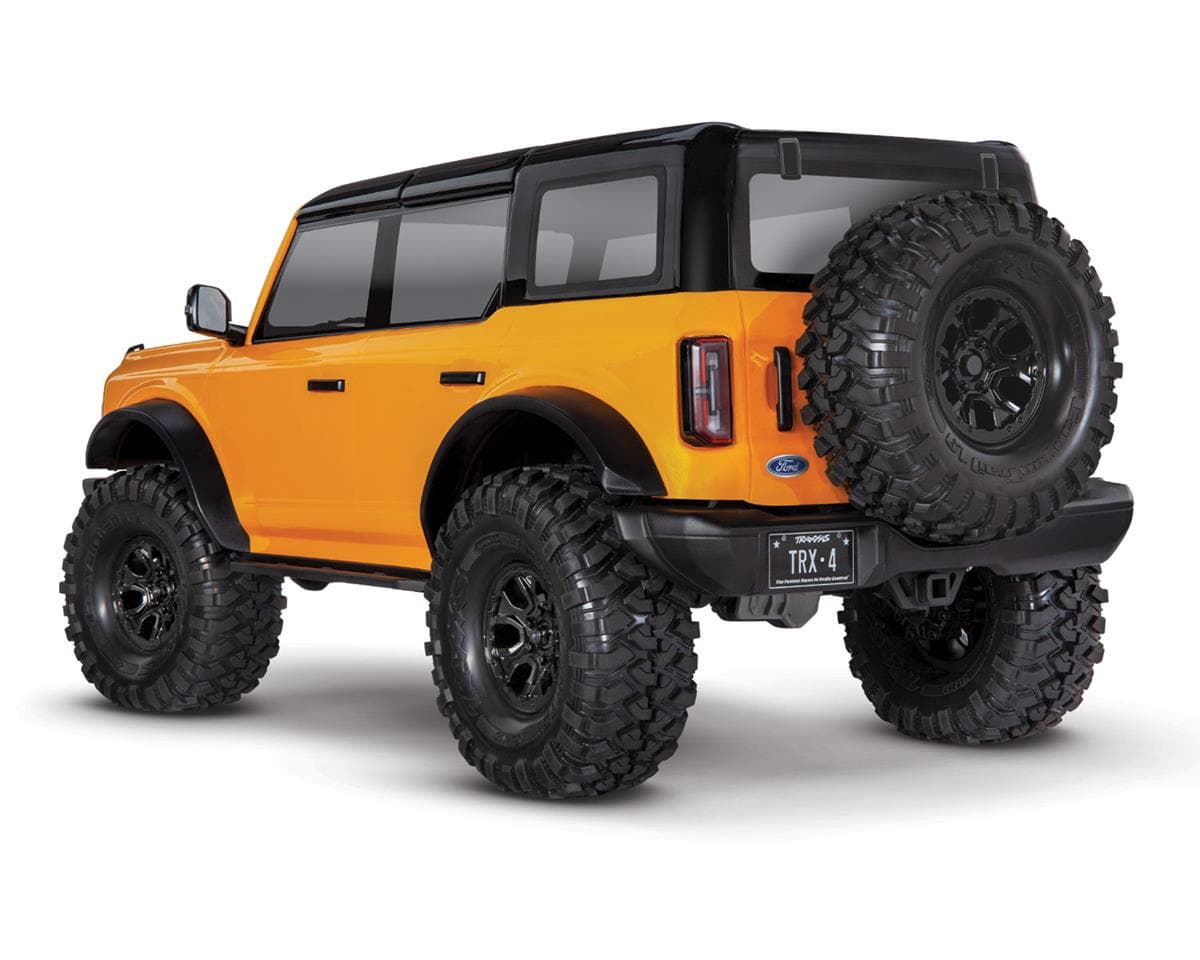

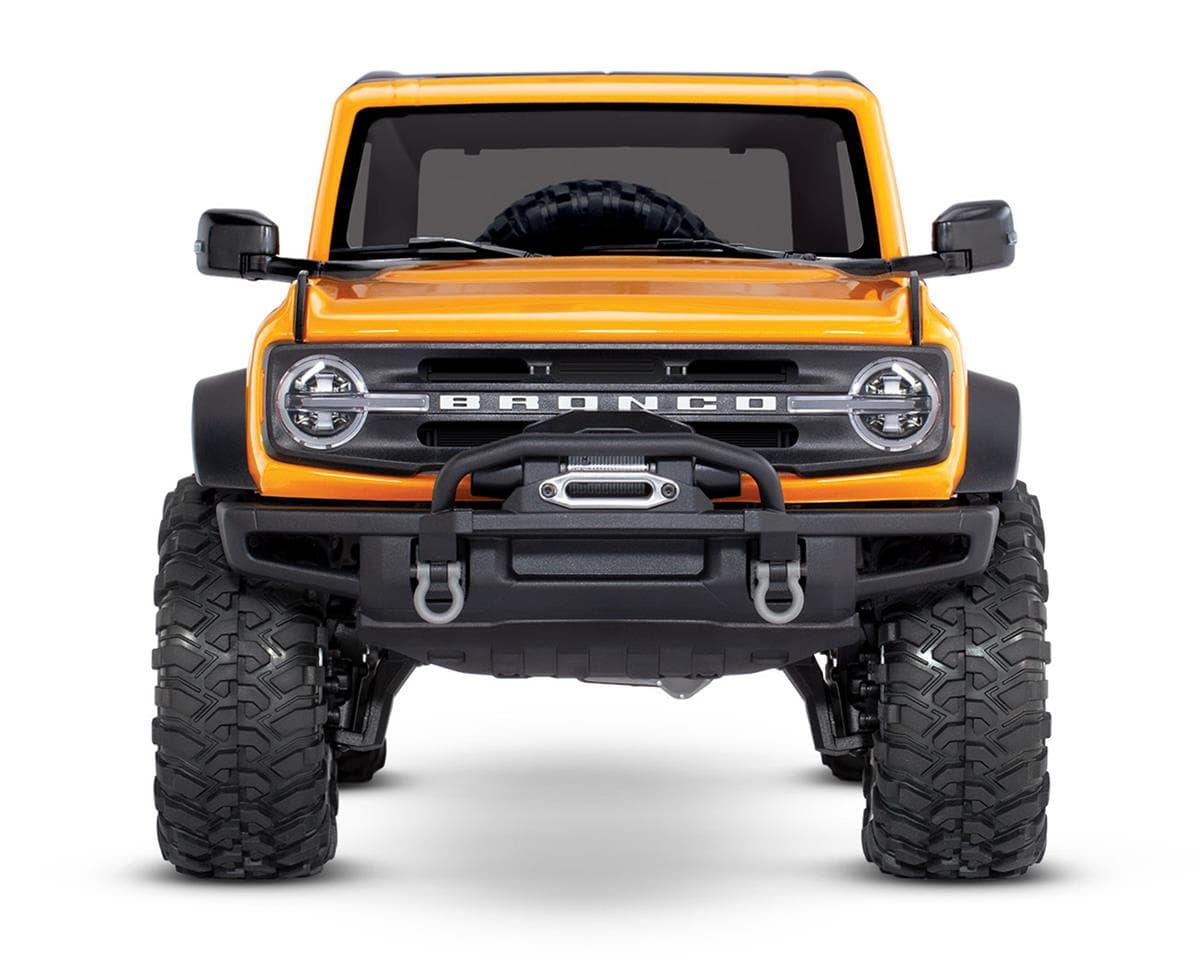

Traxxas TRX-4 1/10 Trail Crawler Truck w/2021 Ford Bronco Body (Orange) & TQi 2.4GHz Radio
About this part
The Traxxas TRX-4 2021 Ford Bronco combines the award winning TRX-4 chassis with the legendary sixth generation pony truck. Traxxas has captured the 2021 Bronco in exacting detail, with the capability and versatility that made the TRX-4 a leader in it's class. Class-leading performance and a licensed 2021 Bronco create a recipe for adventure, no matter where the trail takes you.
Features:
- Clip-less Body Mounting System: The Bronco introduces a higher level of realism and convenience to the TRX4. Traditional posts and body clips are gone, and instead an integrated quick release system secures the body invisibly. The hidden mechanism holds tight on the trail yet releases in just seconds to access the chassis.
- Stunning Scale Details: Injection molded door handles, mirrors and fender flares, plus a functional spare tire deliver incredible realism. Unique "Trail Sights" extend to the LED ready grille, while rugged replica bumpers feature a fairlead, tow hooks and receiver hitch.
- TRX-4 Capability: The features that make TRX-4 an award winning favorite are all built into the Bronco. That includes high clearance portal axles, remote operated T-Lock differentials, high/low 2 speed transmission, aluminum GTS shocks, steel ladder frame - and more!
- The Power of Portals: Portal axles lift the truck at the wheels for improved center pumpkin ground clearance. In order to achieve the same clearance with straight axles, your tires would have to be over an inch taller that the tires on the TRX-4 Bronco.
- Torque Twist Eliminated: The portal axles use gear reduction at the wheels to virtually eliminate torque twist. The Titan 550 motor's torque translates into straight, powerful, forward motion, rather than wasted energy twisting your rig right off the rocks.

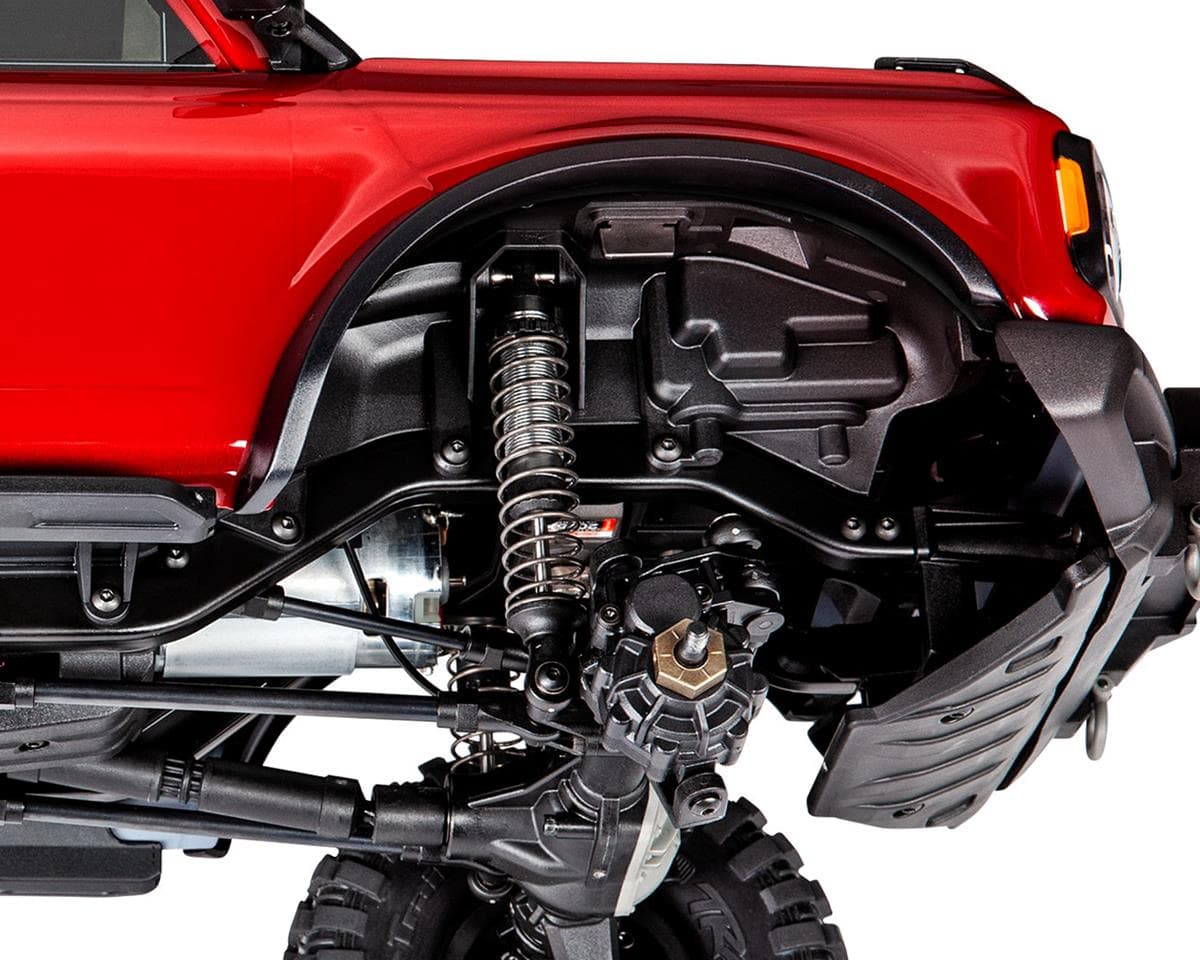

- GTS Aluminum Shocks: Oil filled coil over GTS shocks deliver silky smooth damping performance and feature threaded aluminum shock bodies for easy ride height adjustments. The convincing scale realism looks great and they perform even better.
- 3S Power System: The XL-5 HV speed control brings 3S LiPo capability for strong efficient running. The powerful 21T Titan motor provides torque to tackle the steepest climbs and all out speed on flat terrain. This efficient system provides up to 2 hours of run time with a Traxxas 3S 5000mAh iD LiPo Battery Pack!
- TQi Radio System: Operate the 2-speed transmission and T-Lock diffs with a touch, and activate cruise control to hold the throttle for long haul comfort. Its all built into the TQi. You can even customize settings via a smartphone with the TRA6511 wireless module.
- Waterproof Electronics: The TRX-4 shrugs off mud, snow and streams with waterproof electronics. The ESC and servos are waterproof, and the receiver is fully protected by a watertight enclosure. TRX-4 delivers all season, all weather adventure.
Length (overall): 22.98 inches (584mm)
Length (chassis): 21.59 inches (549mm)
Front Track: 9.78 inches (249mm)
Rear Track: 9.78 inches (249mm)
Ground Clearance: 3.14 inches (80mm)
Weight: 6.42lb (2.91kg)
Height: 9.4 inches (239mm)
Wheelbase: 12.8 inches (324mm)
Front Shock Length: 3.54 inches (90mm)
Rear Shock Length: 3.54 inches (90mm)
Front Wheels: 1.9 x 1.02 inches (49 x 26mm)
Rear Wheels: 1.9 x 1.02 inches (49 x 26mm)
Front Tires: 4.64 x 1.89 inches (118 x 48mm)
Rear Tires: 4.64 x 1.89 inches (118 x 48mm)
Approach Angle: 52°
Departure Angle: 49°
Breakover Angle: 58°
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation
Transmission: 2-speed Hi-Lo, Remote Shifting
Gear Pitch: 32P
Differential Type: 4 Gear, Remote Locking

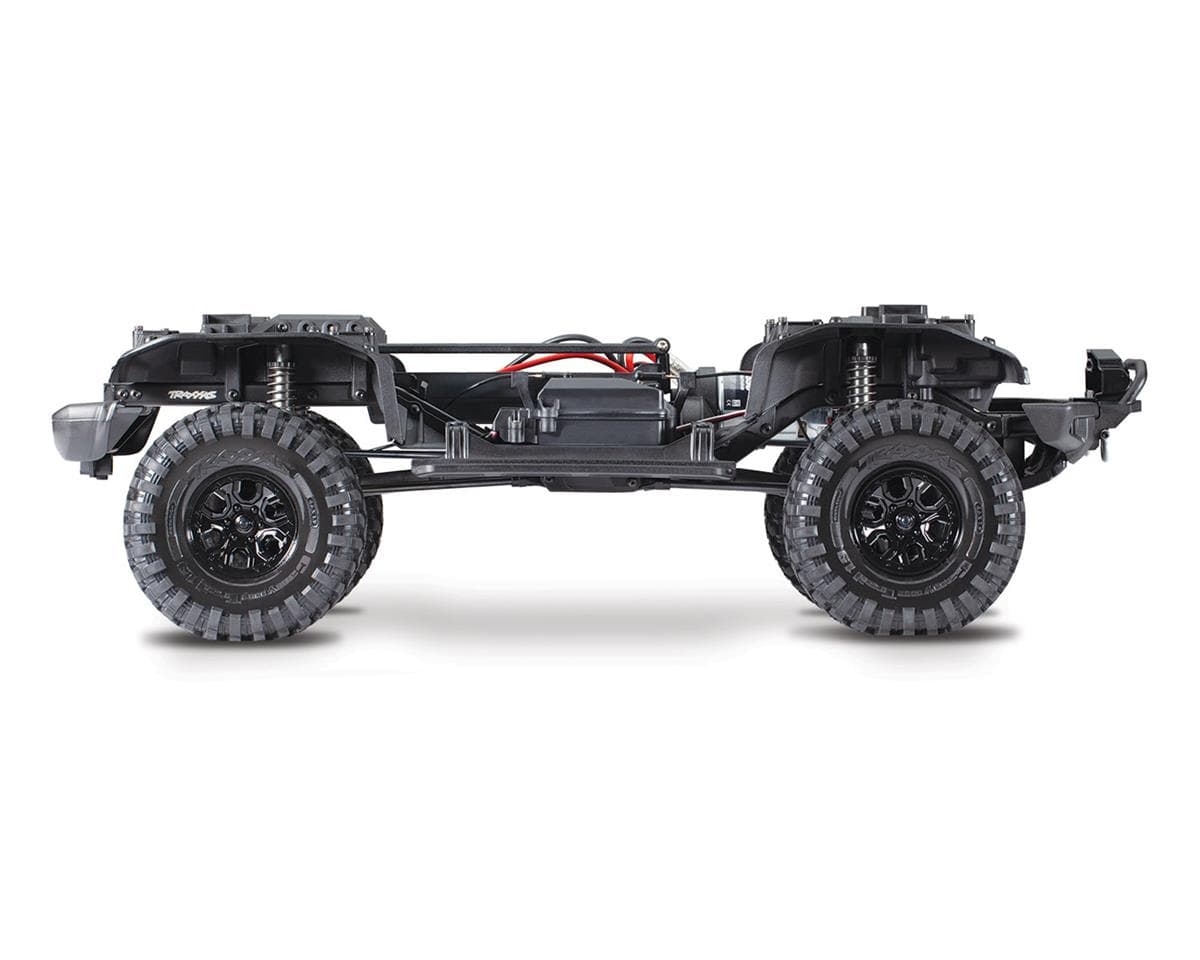

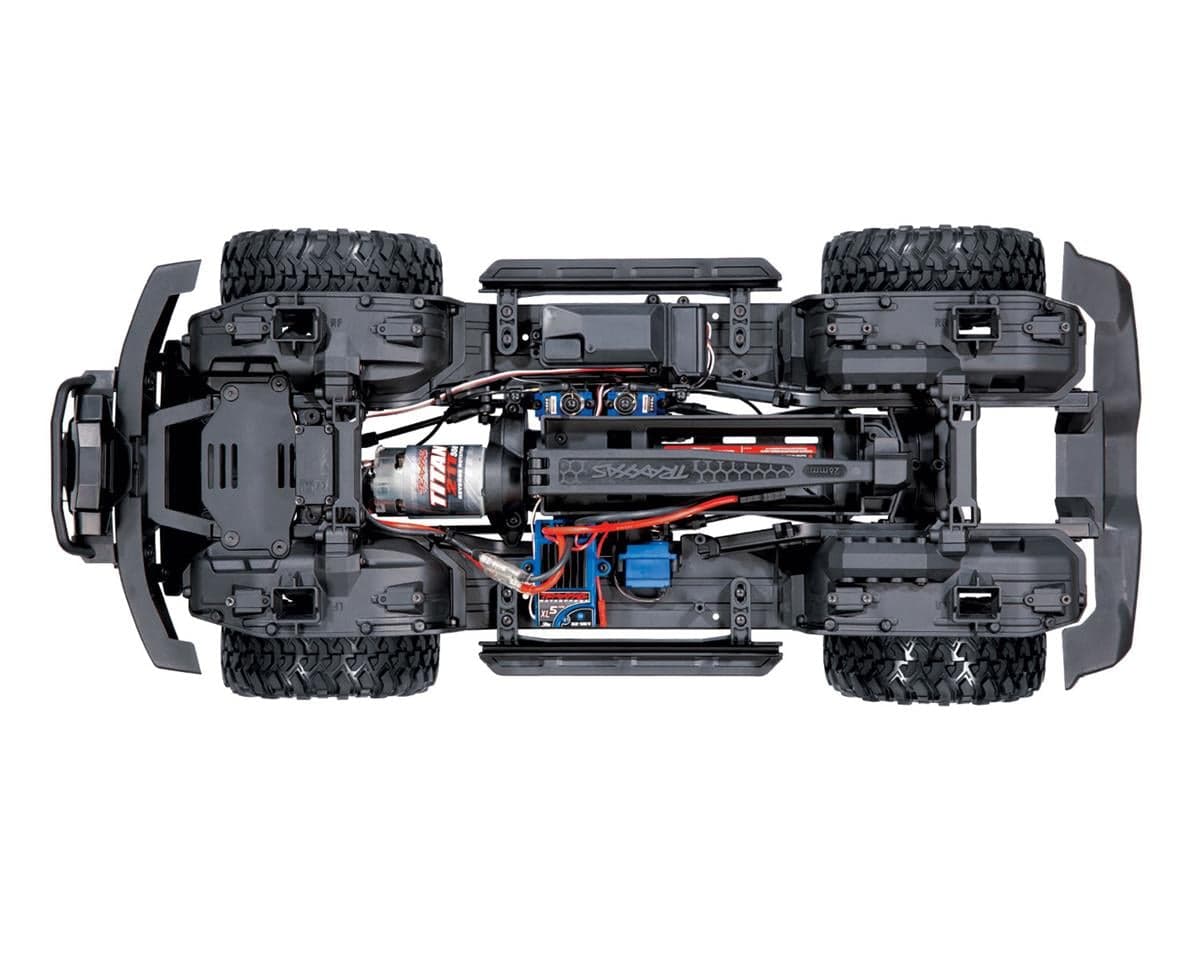

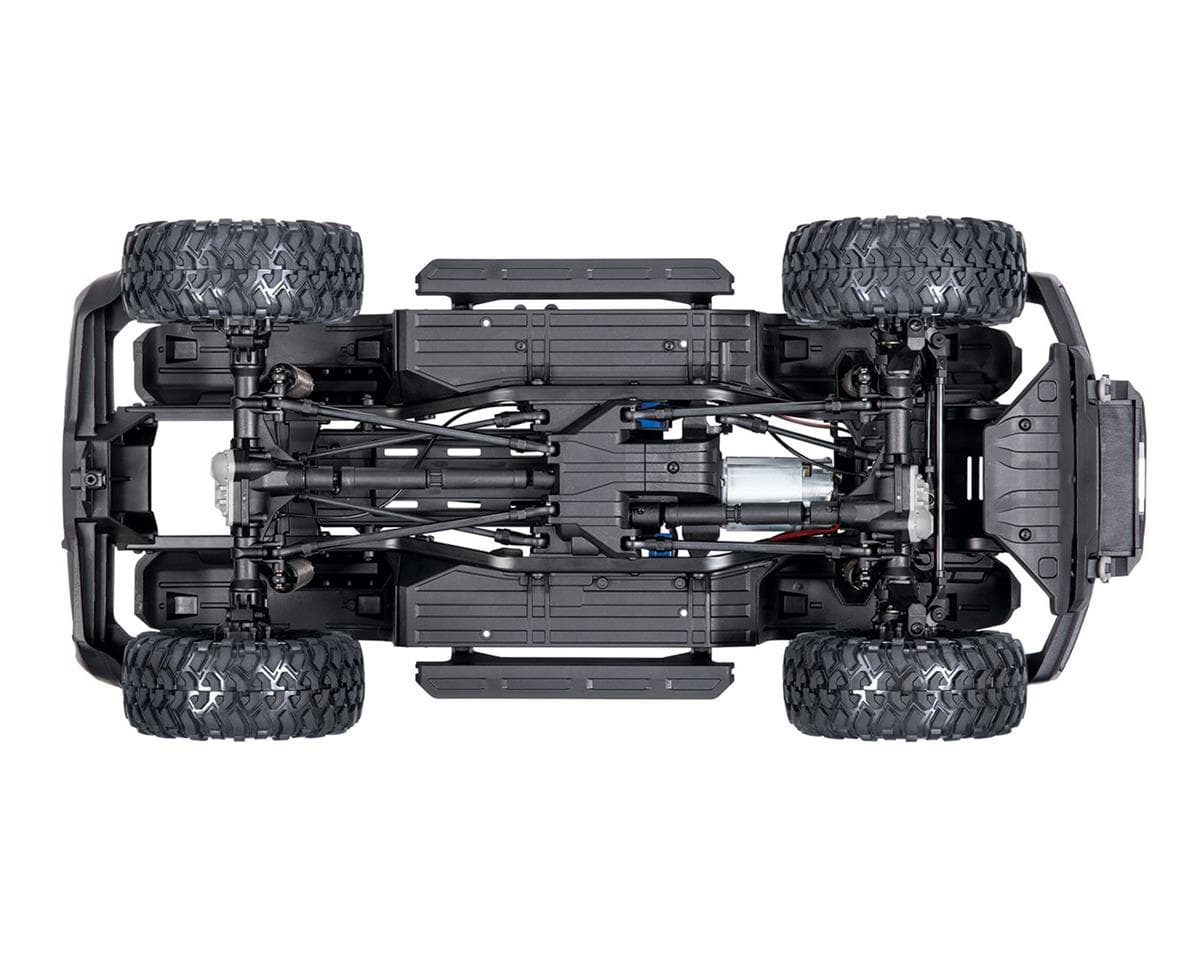

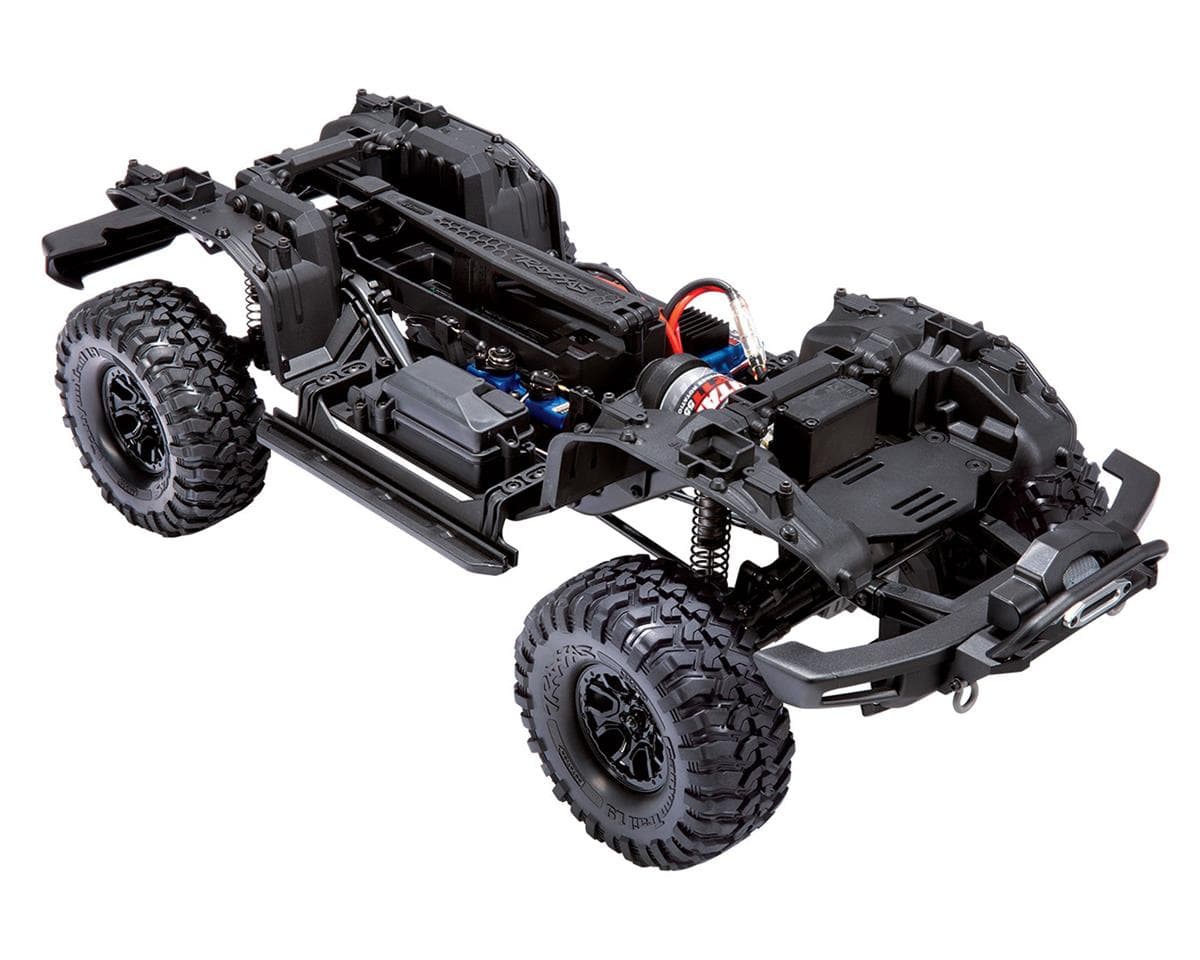

Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Cross members
Brake Type: Electronic “Hill Hold”
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQi™ 2.4 GHz 4-Channel Transmitter
Receiver: 6533
Skill Level: 1
Battery Tray: 158.75 L x 47 W x 23/26mm H
Needed To Complete:
- (4) "AA" Batteries (for transmitter)
- (1) NiMH Battery (4-7 cell) or LiPo Battery (2S/3S)
- (1) Compatible Battery Charger
Reviews4.4 · 12 reviews
Great rig, handled very well right out of the box, love the no clip body, it also comes with a metal servo horn that's a plus! You can count on many hours of fun time. Crawling is acceptable, quitting is not.
Trx-4 platform is great but the orange bronco isn't orange/yellow as it appears online. It's a dull orange, burnt orange, not that good looking in my opinion. Had I known this was the color, I wouldn't have purchased it.
"BUYER BEWARE" 30 day warranty on all electronics, this could be you. trx4 i bought last year with little to no use, pretty much a shelf queen. esc started on fire in my living room. they know they have a problem with them but who cares as long as they last 30 days.
I am soo satisfied with this bronco. I Am so in Love. I can’t wait to modify this little beast? So much fun?
So far really like we will see how it holds up. Amain hobbies was quick to ship hopefully this will hold up although I understand that many have to upgrade the stering servo will get one soon to have on hand. I personally like this unit for the purpose that I got it for which is a truck for trailing
Reviewers generally rate the Traxxas TRX-4 Bronco highly, praising out-of-the-box performance, its suitability for beginners, the no-clip body and the included metal servo horn. Several describe it as fun and capable on trails and crawling, and some note it is their first 10th-scale crawler. One reviewer complained the orange body is a duller burnt orange than shown online. Another reported an ESC that failed and caught fire after little use, criticising the 30-day electronics warranty. One reviewer expects to upgrade the steering servo. Several reviews praise the seller's prompt shipping, though these comments concern the retailer rather than the product.
- + Performs well out of the box
- + Beginner-friendly and fun to drive
- + No-clip body and metal servo horn included
- + Capable crawling with stock tires
- − Orange body color is duller than advertised
- − ESC failure reported with fire risk
- − Only 30-day warranty on electronics
- − Body can get in the way at times
