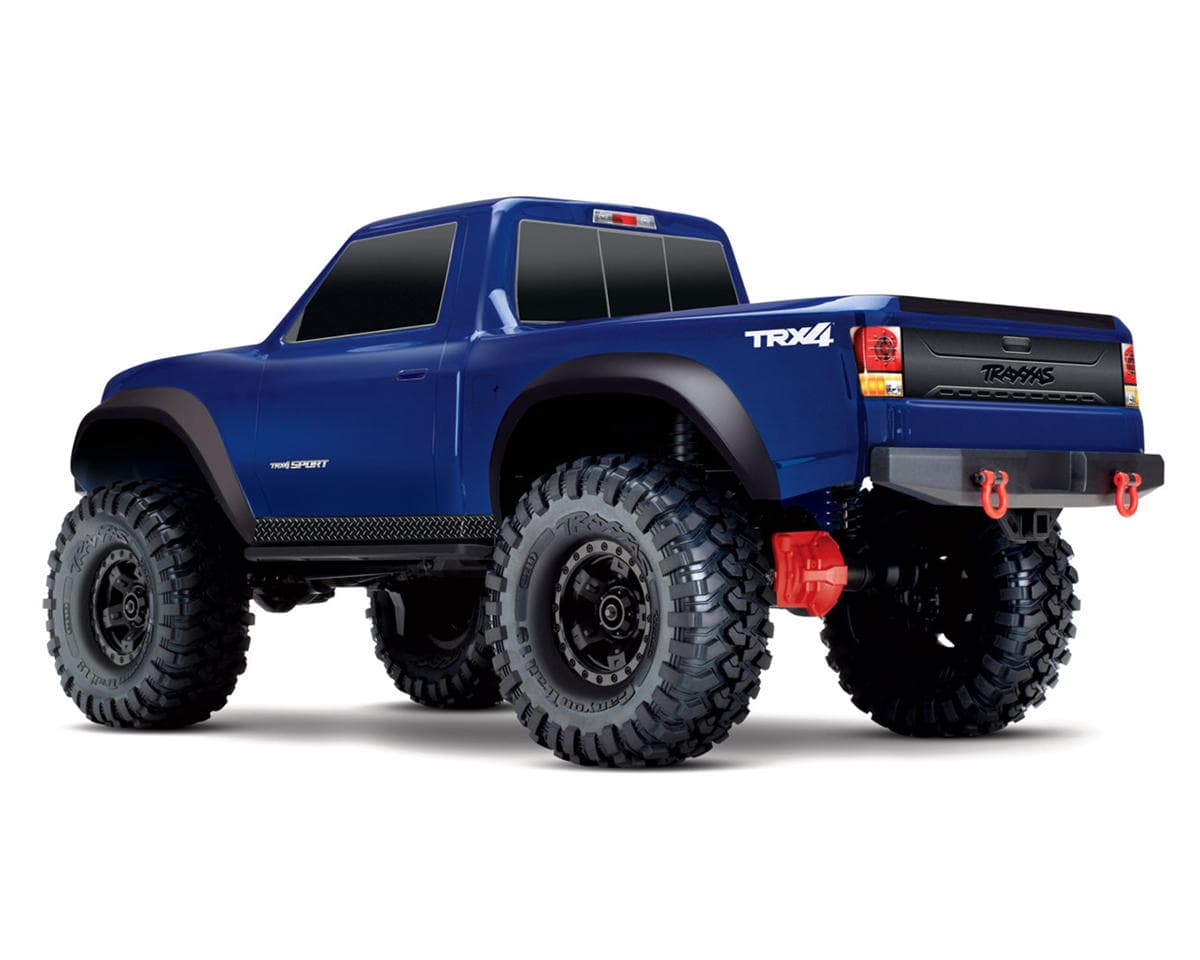

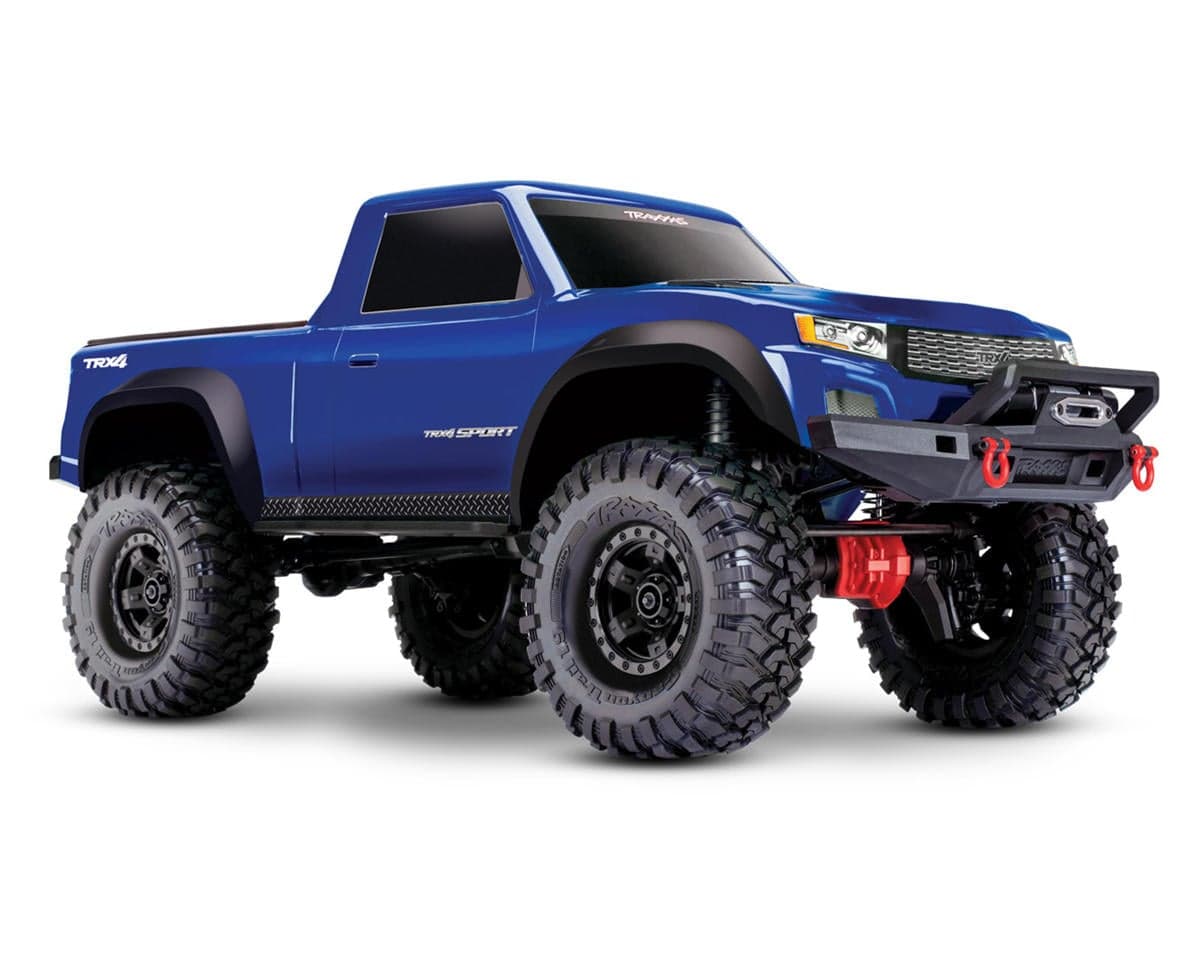

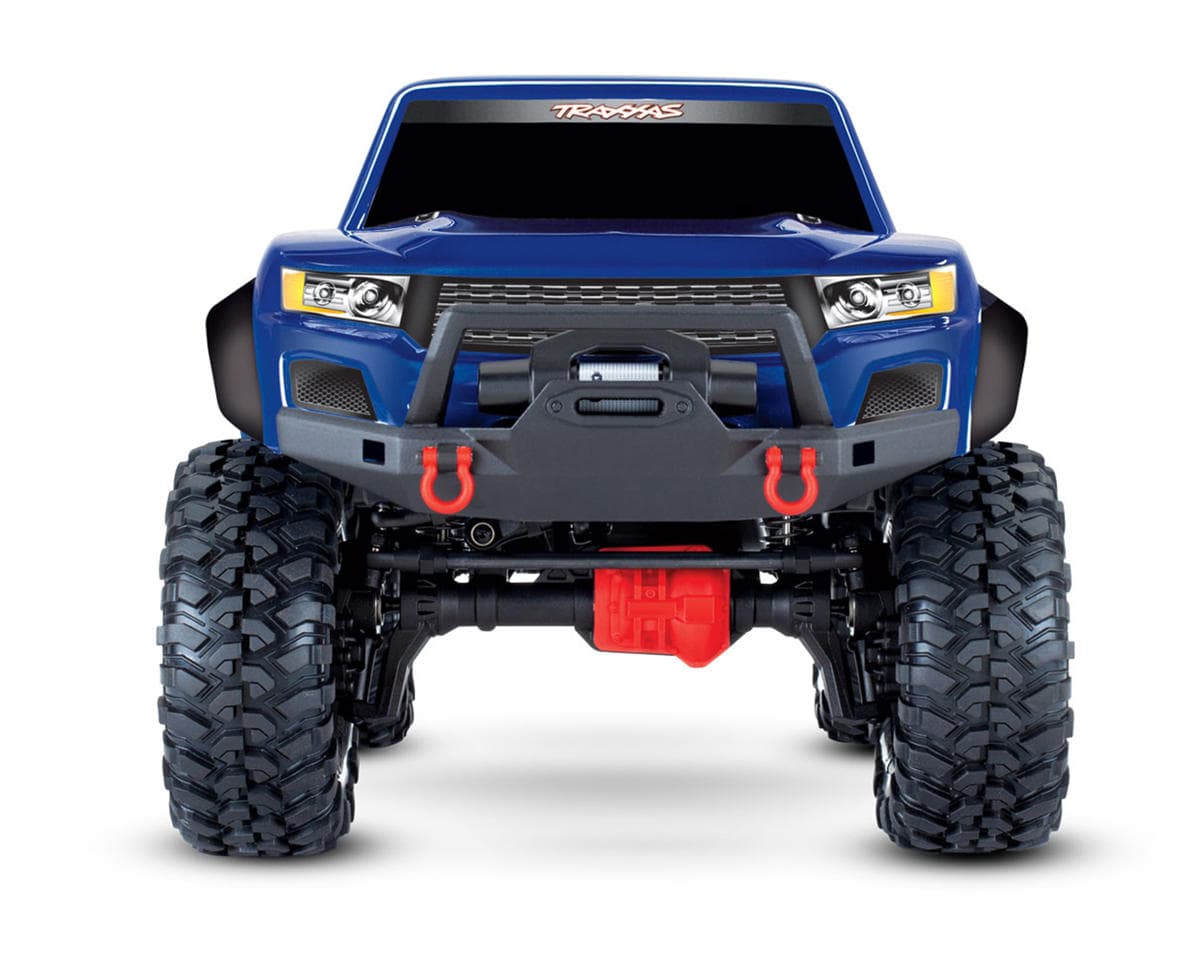

Traxxas TRX-4® Sport 1/10 4WD RTR Scale Trail Rock Crawler (Blue) w/XL-5™ HV ESC & TQ™ 2.4GHz Radio
About this part
Revolutionized High-Performance Portal Axle R/C 4WD Truck
The Traxxas® TRX-4® Sport 1/10 4WD RTR Scale Trail Rock Crawler with an upgraded clipless body system redefines off-road adventure with its sleek design, rugged durability, and advanced electronics. From conquering the toughest trails to mastering technical crawls, this purpose-built machine promises unparalleled performance and convenience for every outdoor enthusiast.
About the TRX-4 Sport
Chassis & Clipless Body System
The innovative clipless body mounting system ensures that the lightweight truck body maintains sleek, uninterrupted lines while providing a secure and easily accessible latch mechanism. This system not only enhances the truck's aesthetic appeal but also offers the convenience of quick body removal for easy access to the chassis, a crucial feature for intense trail runs or technical crawling sessions. The TRX-4 Sport's body is crafted to keep the center of gravity low, improving stability on steep climbs and rugged terrains. Additionally, the low-profile bumpers and carefully designed body components contribute to increased ground clearance and better approach angles, making the TRX-4 Sport an ideal choice for overcoming the most challenging obstacles.

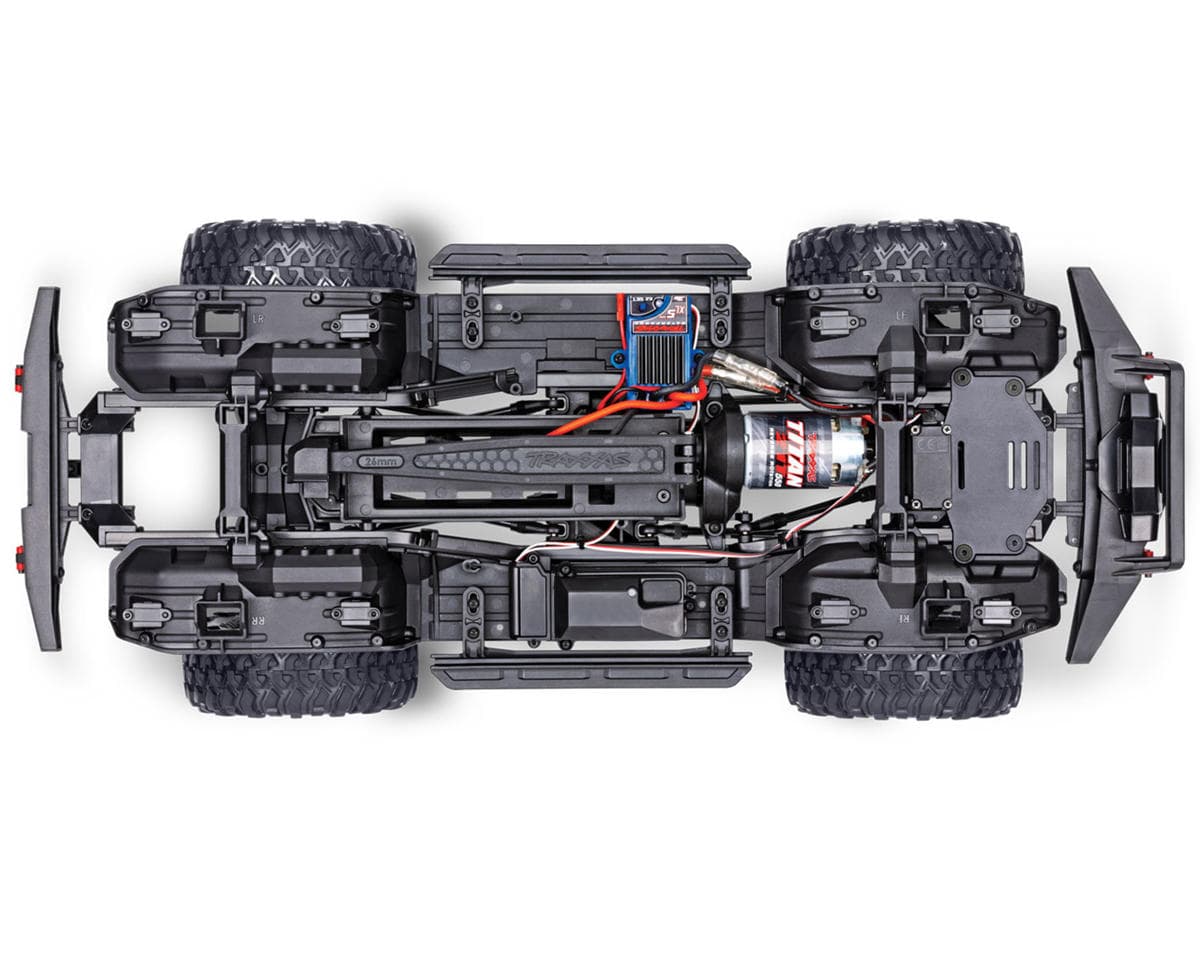

Drivetrain & Suspension
Underneath the stylish body lies a robust drivetrain and suspension system engineered for unparalleled durability and performance. The full-time shaft-driven 4-wheel drive system is complemented by heavy-duty steel frame rails, ensuring that the TRX-4 Sport can handle the most demanding terrains with ease. The portal axles significantly increase ground clearance and eliminate torque twist, improving axle geometry and reducing strain on the driveshafts. The vehicle's suspension system features front 3-link with panhard and rear triangulated 4-link setups, combined with heavy-duty steel link rods and aluminum GTS shocks. These oil-filled coil-over shocks, exclusive to the TRX-4 chassis, provide silky smooth damping and are easily adjustable for optimal ride height, ensuring the truck remains stable and responsive on any trail.
Powerful Electronics
The Traxxas TRX-4 Sport is powered by advanced and reliable electronics that enhance its performance and versatility. At its heart lies the Titan 21T 550 motor, which delivers ample power and is equipped with an internal cooling fan to prevent overheating during prolonged use. The XL-5™ HV Electronic Speed Control (ESC) is fully waterproof and offers five different drive profiles, including Sport Mode, Race Mode, Training Mode, Trail Mode, and Crawl Mode, each tailored to specific driving conditions and preferences. The TQ radio system provides precise control, while the chassis-mounted 2075X metal gear digital servo offers superior steering capabilities with a remarkable 45-degree steering angle. Additionally, the patented O-ring sealed watertight receiver box keeps the micro receiver dry, ensuring reliable performance in wet conditions. Together, these electronics components make the TRX-4 Sport a powerhouse, capable of tackling any trail or obstacle with confidence and precision.
Features:
- Fully assembled and Ready-To-Run
- Clipless body mount system
- All hardened steel suspension links
- Heavy Duty portal axles and full-time shaft driven 4-wheel drive
- Single speed transmission with all metal gears
- Rigid 1.5 mm thick steel frame rails
- Aluminum oil-filled GTS shocks
- Chassis mounted servo with superior 45° steering angle
- Trail-tuned powerful waterproof electronic
- Innovative dual battery compartment
Includes:
- (1) Traxxas TRX-4 Sport 1/10 Scale Trail Rock Crawler
- (1) Pre-Installed Titan 21T 550 High-Torque Brushed Motor
- (1) Pre-Installed XL-5 HV ESC w/Traxxas iD Connector
- (1) TQ 2.4GHz Radio System
- Miscellaneous Maintenance Tools
- Product Manual
Needed To Complete:
- (1) 2-3S LiPo Battery w/Traxxas iD Connector
- (1) Compatible Battery Charger
- (4) AA Batteries for Transmitter
Specifications:
| Scale | 1:10 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Drive | 4WD | ||||||||
| Power Source | 2S-3S LiPo | ||||||||
| Length | 21.93in (557mm) | ||||||||
| Wheelbase | 12.28in (312mm) | ||||||||
| Width | 9.78in (249mm) | ||||||||
| Height | 9.47in (241mm) | ||||||||
| Weight | 92.77oz (2630g) | ||||||||
Electronics
|
|||||||||
Wheels
|
|||||||||
Tires
|
|||||||||
| Assembly Level | RTR* | ||||||||
*Tech Note: Ready-to-Run models come equipped with all electronics and include the transmitter needed for use. Please check the "Needed To Complete" above to make sure you have everything you need to get out and enjoy your RC model.
Manuals:
User Manual
