Traxxas TRX-4M 2-Speed Transmission
About this part
Transmission Overview:

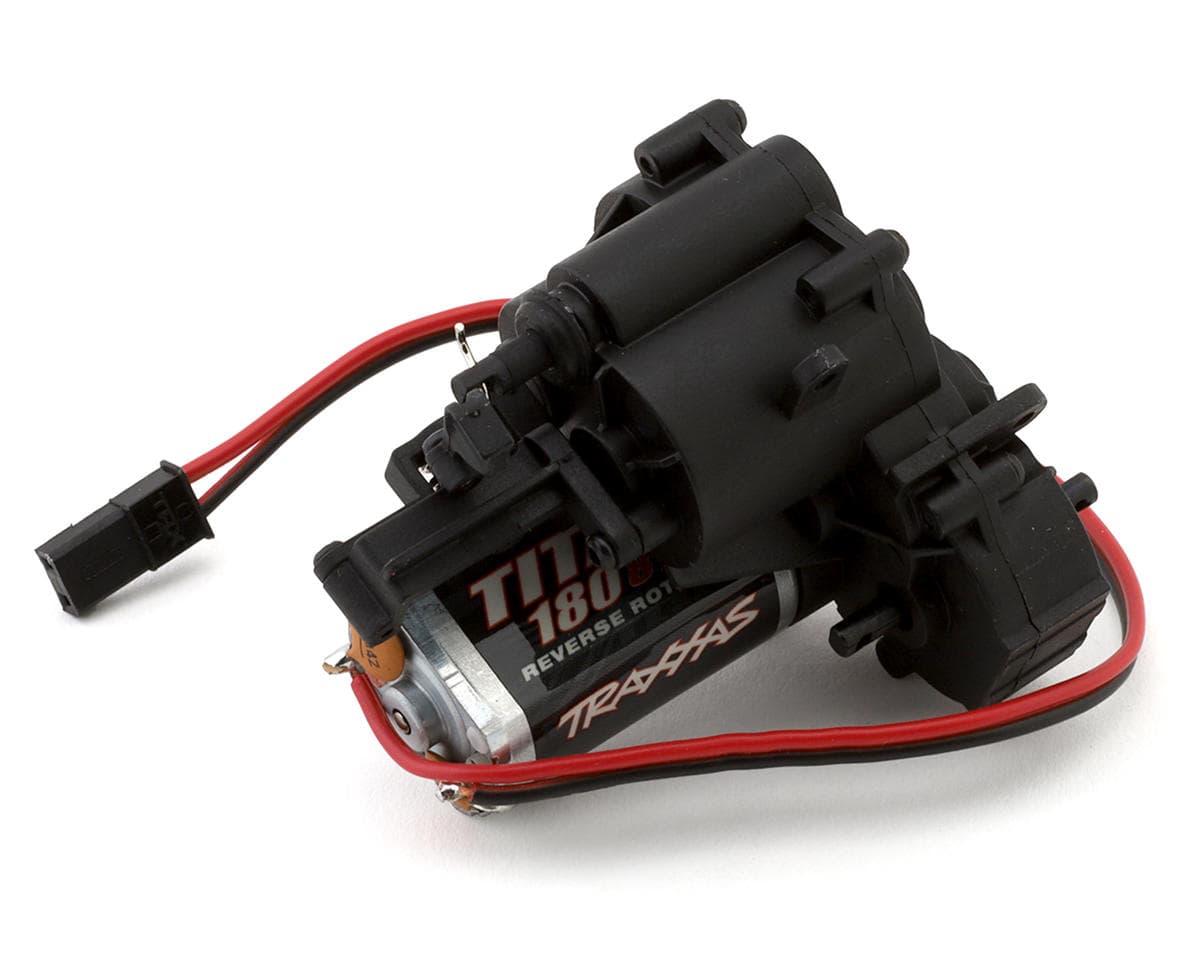

Traxxas® TRX-4M™ Two Speed Transmission. This transmission is designed to enhance the crawling capabilities of the TRX-4M™ by offering a selectable high and low gear option. This transmission provides a low gear for increased rock-crawling torque and a standard high gear ratio for general driving, making it versatile for various terrains. It comes fully assembled with a Titan® 180 motor and includes a mounting bracket for easy installation. The transmission features a manual shifting lever that allows users to choose between low gear (32.7:1) and high gear (9.9:1) settings, providing flexibility based on the driving conditions. This setup integrates seamlessly with the vehicle's stock components, including portal axles, making it a valuable upgrade for enhancing the performance of the TRX-4M.
Note: While this transmission is compatible with the standard gear set as well as the optional TRA9776X speed gear set, it is not compatible with the TRA9776R crawl gears.
Features:
- Fully assembled with Titan 180 motor
- Manual shifting lever for selecting low or high gears
- Enhances rock-crawling torque with low gear option
- Retains standard high gear ratio for general driving
- Includes mounting bracket for easy installation
- Compatible with stock and speed gear ratios, including portal axles

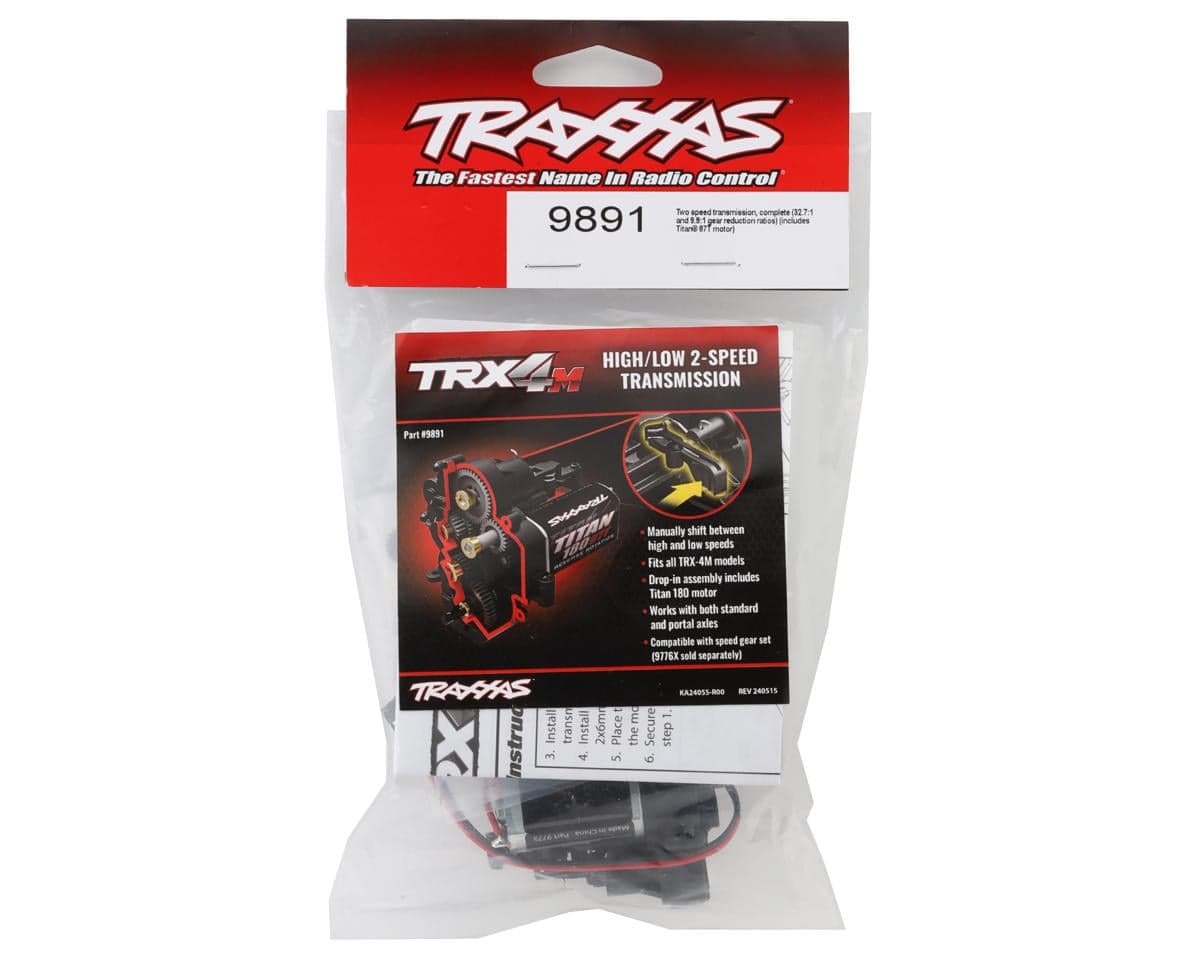

Includes:
- (1) Two Speed Transmission
- (1) Transmission Mount
- (2) 2x6mm Button Head Screws
- (1) 22T Adapter for Optional TRA9776X Gearing
- (1) Titan 180 Motor
- Product Manual
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.0 · 2 reviews
If you don't want to buy two TRX4Ms - one for crawling and one for bashing - enter this two speed. For those serious about crawling, beware, it raises the CG. For those that bash and want to occasionally crawl, I question its durability. In my own bashing of a TRX4M Bronco(modified as follows: no brass, Traxxas brushless system, metal diff gears, metal driveshafts), I have already stripped internal transmission gears.
Add this to my TRX-4MT along with the upgraded motor and ESC. install was easy. the lever can be hard to move at times if you don't take the Body off. Can't wait to get the shifting servo installed.
