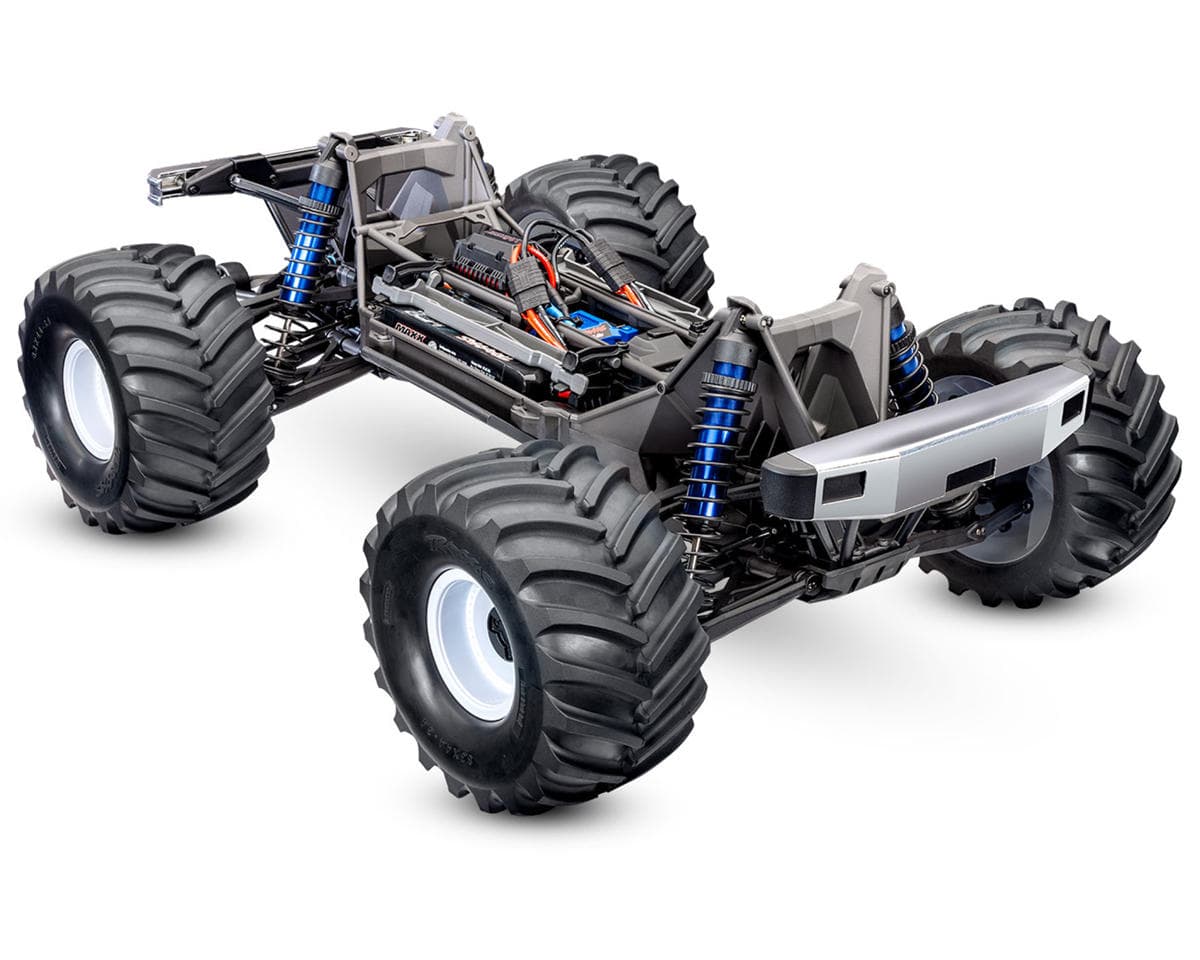

Traxxas X-Maxx® X-Monster 8S 1/6 4WD Brushless RTR Monster Truck (Without Body) w/TQi™ 2.4GHz Radio & TSM
About this part
Brushless Monster Truck Speed Meets Legendary Durability
The Traxxas® X-Maxx® X-Monster 8S 1/6 4WD Brushless RTR Monster Truck delivers extreme power, durability, and advanced engineering. Built for rugged terrain and maximum control, it combines premium electronics, a strong drivetrain, and a reinforced chassis system. With its advanced features, this chassis is the foundation of a true high-powered RC experience. This chassis does not include a body, giving you the freedom to choose between the Traxxas Chevrolet® GMT400 CK Truck Body, Bigfoot® No. 8 Body, or the Ford® F-150® Truck Body (TRA7697 or TRA7691-series - sold separately). If you already have a custom-painted X-Maxx body, the X-Maxx X-Monster Chassis offers full compatibility with existing X-Maxx clipless bodies, offering a wide range of options to match your style.
About the X-Maxx X-Monster 8S Monster Truck
Advanced Electronics
The X-Maxx X-Monster features a VXL-8s™ Waterproof Electronic Speed Control paired with the powerful Velineon® 1200XL Brushless Motor, providing 8S LiPo compatibility and speeds of over 50mph with the optional pinion gear. Advanced cooling systems include dual motor fans, aluminum slip-on heat sinks, and integrated heat dissipation for sustained performance. Traxxas Stability Management® (TSM) ensures precise handling by automatically correcting for spinouts or loss of traction. The TQi™ 2.4 GHz High Output Radio System, with Traxxas Link™ integration, provides full telemetry, adjustable sensitivity, and seamless model memory for up to thirty Traxxas Link-enabled vehicles, while the high-output 2085XL metal-gear steering servo delivers immense torque and reliability.
Drivetrain & Suspension
The drivetrain is engineered for strength, featuring hardened steel gears, heavy-duty constant-velocity (CV) driveshafts, and splined aluminum center driveshafts for consistent power delivery. Torque-Biasing Center Drive™ technology helps absorb shock loads and distributes torque evenly to all four wheels. The suspension is built for durability and performance, using reinforced arms, heavy-duty steel pins, and C-hub geometry that maximizes steering angle. Aluminum GTX™ Shocks with oversized bores provide excellent damping with adjustable spring retainers, sealed cartridges, and rugged construction designed to handle even the roughest terrain.
Retention System & Durable Chassis
The heavy-duty modular composite chassis provides a rigid yet serviceable platform with interlocking bulkheads and an integrated sealed driveline. For protection, energy-absorbing rubber bumpers and reinforced skid plates shield against harsh impacts, while nerf bars guard the sides from collision damage. Wheels and tires feature dual-profile monster truck rims with huge 8.6-inch belted chevron-pattern tires, designed with soft rubber for grip and internal belting to prevent ballooning at high speeds. Additionally, the Snap-Lock Battery Retention System offers tool-free, clipless security with adjustable pivoting hold-downs, keeping batteries locked firmly in place for maximum reliability.
Features:
- Full-time shaft-driven 4WD with sealed fluid-filled differentials
- Torque-Biasing Center Drive system for smooth power distribution
- Heavy-duty suspension arms with double-shear connections
- Adjustable roll center and steering geometry
- Oversized 8.6-inch belted chevron-pattern tires to eliminate ballooning
- Interlocking modular chassis design for improved stiffness
- Dual-profile monster truck wheels with replica military-style axle hubs
- Energy-absorbing rubber impact cushions built into front and rear bumpers
- Internal battery retention system integrated into chassis top brace for added rigidity
- Snap-Lock Battery Retention System for secure, tool-free battery access
Includes:
- (1) X-Maxx X-Monster 8S 1/6 4WD Brushless RTR Monster Truck
- (1) Pre-Installed VXL-8s Electronic Speed Control w/Traxxas iD™ Connector
- (1) Pre-Installed Velineon 1200XL Brushless Motor
- (1) Pre-Installed 2085XL High-Output Metal-Gear Steering Servo
- (1) TQi 2.4 GHz Radio System w/Factory-Installed Wireless Module
- (1) Optional Gearing Set
- High-Quality Maintenance Tools
- Product Manual
Needed To Complete:
- (1) X-Maxx Monster Truck Clipless Body
- (2) 4S Power Cell LiPo Batteries (14.8V/6700mAh) w/Traxxas iD Connectors
- (1) Compatible Battery Charger
- (4) AA Batteries for Transmitter
Specifications:
| Scale | 1:6 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Drive | 4WD | ||||||||
| Power Source | Electric | ||||||||
| Length | 30.67in (779mm) | ||||||||
| Wheelbase | 18.9in (480mm) | ||||||||
| Width | 21.26in (540mm) | ||||||||
| Height | 13.98in (355mm) | ||||||||
| Weight | 19.1lbs (8.66kg) | ||||||||
Electronics
|
|||||||||
Wheels
|
|||||||||
Tires
|
|||||||||
| Assembly Level | RTR* | ||||||||
*Tech Note: Ready-to-Run models come equipped with all electronics and include the transmitter needed for use. Please check the "Needed To Complete" above to make sure you have everything you need to get out and enjoy your RC model.
Manuals:
User Manual
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 2 reviews
A+. A slight upgrade from the regular XMAXX. Has the HD arms, HD lower hinge pin, and the best part…belted terra groove chevron style tires! I really love the new X monster over the xmaxx and xmaxx ultimate.
I always wanted a giant monster truck ever since I was a kid and saw a Clodbuster tearing around a dry riverbed. Fast forward almost 40 years and I finally have my own monster basher. This thing is a tank! I love the proportions especially with the Pro-Line Ram TRX body. Out of the box it was pretty hard to control all that power. The suspension was very under-sprung so it wallowed a lot. I have since put stiff springs on and it has transformed it into a much more manageable machine. The TSM works really well too. I did order all the body mounting parts separately which was still cheaper than buying the Traxxas Monster body. I did remove the monster truck retro bumpers in favor of the regular X Maxx bumpers since they look a lot better with the Ram body. I did go with 8s 6700 batteries and didn't realize I couldn't use my existing Traxxas charger so, I had to order a 4s charger. The runtime is excellent and have not even gotten close to running out of juice. I grew up in the days when nitro had the best runtime. This thing can go and hour at least! In 1989, when I was 12, I had an original Traxxas Hawk which I slowly upgraded to a Blue Eagle LS. Since then I have owned a Traxxas T-Maxx and a Rustler VXL 4X4 and love how quick it is, especially with 3s but this massive truck is so much more fun and can go over everything in my back yard. I have a little over 1/2 acre to play on so if you're looking for an X Maxx, I'd recommend that you have enough space to run it. It's the best engineered large scale monster truck available.
