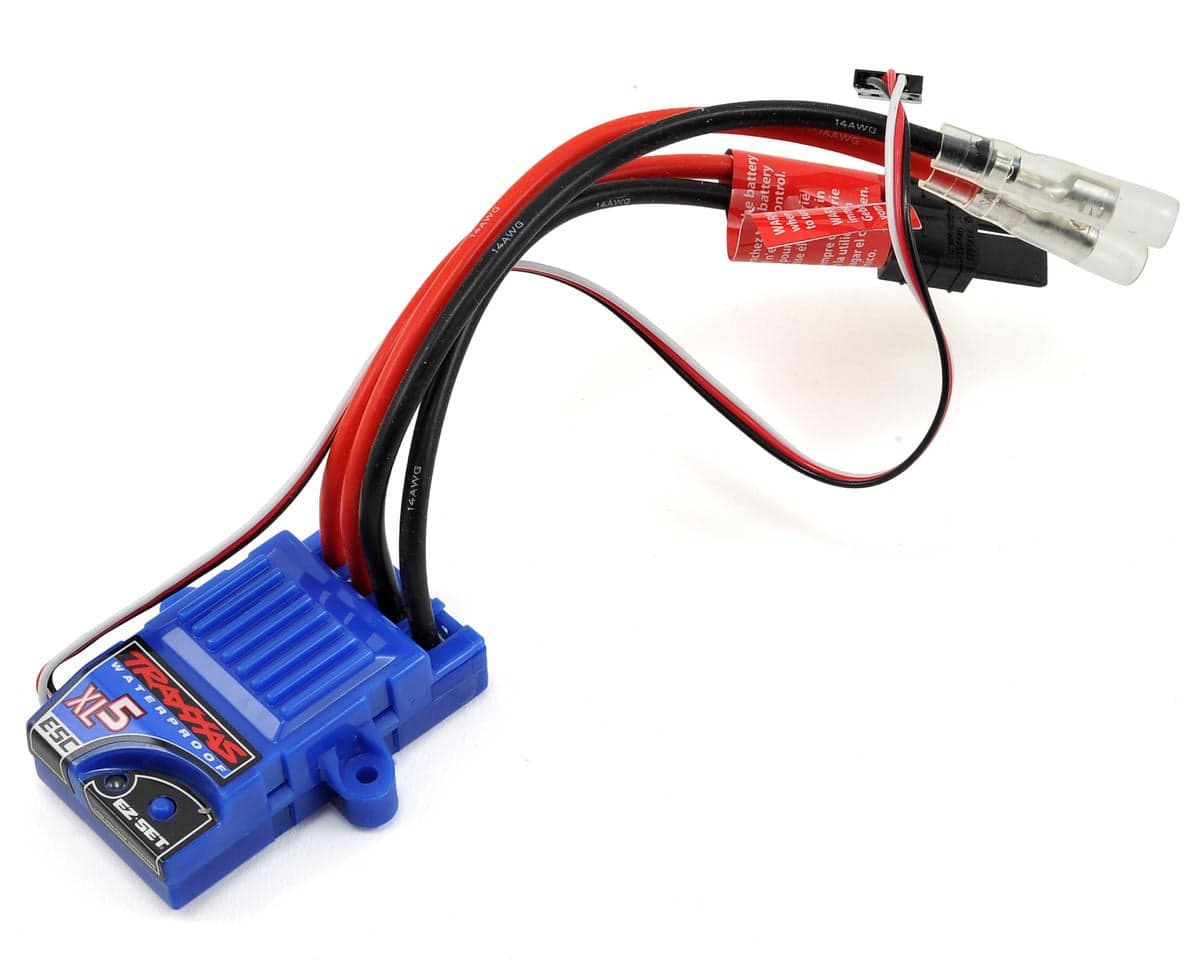

Traxxas XL-5 Waterproof ESC w/Low Voltage Detection

This is the Traxxas XL-5 Waterproof ESC. Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, three throttle profiles, Thermal Shutdown Protection, 4-8 cell compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. An exclusive feature on the XL-5 is the patent pending Training Mode™. This profile reduces the overall power output of the XL-5 by 50% making it easier for young or new drivers to develop their control skills before unleashing full-power operation. The XL-5 is manufactured by Traxxas to ensure the highest level of quality and support. The XL-5 is backed by the Traxxas Lifetime Electronics Warranty.

Traxxas High-Current Connector:
The XL-5 ESC is equipped with the Traxxas high-current connectors for restriction-free current flow.

Patent-Pending Training Mode:
An exclusive feature that places the XL-5 ahead of the pack is the patent pending Training Mode. This feature reduces the overall power output of the XL-5 by 50% making it easier for new drivers to control their model.  When they’re ready, simply change profiles to unleash full-throttle action.  Only Traxxas has it!

XL-5 Waterproof ESC Features:

• Innovative water sealed design
• 15-turn motor limit for 540 size motors
• 12-turn motor limit for 550 size motors
• Fully-proportional forward, reverse, and braking control
• Programmable with three drive profiles:
• Sport Mode – Fwd / Brake / Rev
• Race Mode – Fwd / Brake
• Training Mode – 50% Fwd / Brake / 50% Rev
• EZ-Set® push-button setup
• Multi-color LED
• Thermal shutdown protection
• Efficient, low-loss MOSFET design
• High-capacity heat sink
• Smooth, high-frequency operation
• Easy installation in Traxxas models
• Backed by the Traxxas Lifetime Electronics warranty

XL-5 (WATERSEALED) ESC Specifications:

• Input voltage: 4-7 Cells NIMH or 2S LiPo
• Case Size: 1.23"W x 2.18"D x 0.61" H
• Weight: 2.44 Ounce
• Motor Limit:
• 15-turns** (540 Size)
• 12-turns** (550 Size)
• On Resistance Forward: 0.007 Ohms
• On Resistance Reverse: 0.014 Ohms
• Peak Current - Forward: 100A
• Peak Current - Reverse: 60A
• Braking Current: 60A
• Continuous Current: 14A
• BEC Voltage: 6.0 VDC
• BEC Current: 1A
• Power Wire: 14 Gauge / 5"
• Input Harness Wire: 26 Gauge / 9"
• Transistor Type: MOSFET
• PWM Frequency: 1600 Hz
• Thermal Protection: Thermal shutdown
• Profile selection:
• Sport Mode: 100% FWD, 100% brakes, 100% REV
• Race Mode: 100% FWD, 100% brakes, no REV
• Training Mode: 50% FWD, 100% brakes, 50% REV
• Single-button setup: Yes, Traxxas EZ-Set®

**NOTE: When properly geared
